I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box

(No reviews yet) Write a Review
SKU:
49728
MPN:
MC-1200-2X32-F/B-UG
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout

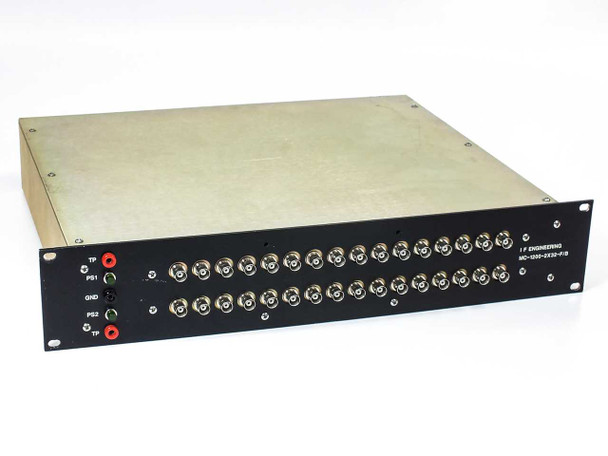

  • I.F. Engineering MC-1200-2X32-F/B-UG 32-port L-band distribution box – front panel with BNC connectors and PS1/PS2 indicators
  • I.F. Engineering MC-1200-2X32-F/B-UG distribution box – rear panel showing INPUT BNC connectors, fuses, power entry, and DC blocks caution label
  • I.F. Engineering MC-1200-2X32-F/B-UG rear label showing model number, Option 3, and distribution schematic diagram
  • MC-1200-2X32-F/B-UG front panel close-up – TP test points, PS1/PS2 LED indicators, GND binding post, and BNC output connectors
  • I.F. Engineering MC-1200-2X32-F/B panel with two rows of BNC connectors and model label on right side
  • Rear panel close-up – INPUT BNC ports labeled A and B, fuse holders, caution DC blocks label, and PS1/PS2 fuse cap assemblies
  • Interior view – two AAK CM242 regulated DC power supplies, two I.F. Engineering AM-701-014-B RF amplifier modules, and two PD-16-LBAND-B splitter boards
  • AAK Corporation CM242 regulated power supply close-up – specifications label showing 24VDC 2A output, 105–132 VAC input, 47–420Hz, with I.F. Engineering AM-701-014-B module alongside
  • Second AAK CM242 regulated power supply label detail – general specifications including output accuracy, temp range, input isolation 50 Megohms, and I.F. Engineering AM-701-014-B amplifier
  • I.F. Engineering AM-701-014-B RF amplifier module close-up – BNC RF IN and RF OUT connectors, OUFA1 designation, S/N 007 label
  • I.F Engineering MC-1200-2X32-F/B-UG 32-Port Distribution Box with 2x AAK CM242
$250.00
Was: $500.00
Current Stock: 1

Sold Out

Description

I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box

Rack-mount L-band satellite distribution amplifier with 32 BNC output ports. Distributes satellite L-band signals across multiple receivers or downstream equipment in telecom and satcom installations.

Specifications & What's Included

  • 32 BNC ports, rack-mount form factor
  • Input: 105–132 VAC, 47–420 Hz
  • Includes 2x AAK Corporation CM242 regulated DC power supplies (24VDC, 2A)
  • Includes 2x I.F. Engineering AM-701-014-B RF amplifier modules
  • Includes 2x I.F. Engineering PD-16-LBAND-B L-band splitters
  • DC blocks required on output ports

Applications

L-band distribution systems are used in satellite ground stations, teleport facilities, and broadcast receive sites to fan out single satellite signals to multiple decoders or modulators. This unit was designed for commercial satcom environments requiring centralized signal distribution with integrated amplification and splitting. Commonly found in VSAT networks, DTH (direct-to-home) distribution centers, and satellite uplink/downlink facilities.

Condition: Used
This I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box has been inspected and is in good used condition. It was pulled from a working satcom environment where it was in active use. All sub-components are present, including both AAK CM242 24VDC regulated power supplies, both AM-701-014-B RF amplifier modules, and both PD-16-LBAND-B L-band splitter boards. The unit shows normal wear consistent with rack-mounted service use. Note the label on the rear panel: DC blocks are required on the outputs of this unit. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
I.F. Engineering
Model:
MC-1200-2X32-F/B-UG
MPN:
MC-1200-2X32-F/B-UG
Secondary Model:
MC-1200-2X32-F/B
Type:
L-Band Satellite Distribution Box
SKU:
49728
Number of Ports:
32
Connector Type:
BNC
Form Factor:
Rack Mount
Power Requirements:
105–132 VAC, 47–420 Hz
Option:
Option 3
Included Component 1:
2x AAK Corporation CM242 Regulated DC Power Supply
Included Component 2:
2x I.F. Engineering AM-701-014-B RF Amplifier Module
Included Component 3:
2x I.F. Engineering PD-16-LBAND-B L-Band Splitter
Power Supply Model:
AAK Corporation CM242
Power Supply Output:
24VDC, 2A
Power Supply Input Voltage:
105–132 VAC, 47–420 Hz
Power Supply Output Accuracy:
1% Fixed
Power Supply Input Isolation:
50 Megohms
RF Amplifier Model:
I.F. Engineering AM-701-014-B
Amplifier Interface:
BNC (RF IN / RF OUT)
Application:
Satellite L-Band Signal Distribution
Caution Note:
DC Blocks required on output of this unit
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Includes 2x AAK CM242 PSUs, 2x AM-701-014-B amplifiers, 2x PD-16-LBAND-B splitters
Condition Notes:
I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box. Inspected, in good used condition. Pulled from a working satcom environment. All sub-components present. DC blocks required on outputs.
