I.F Engineering
-
I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box
I.F Engineering
$250.00Was: $500.00I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution BoxRack-mount L-band satellite distribution amplifier with 32 BNC output ports. Distributes satellite L-band signals across multiple...49728- SKU:
- 49728
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 20.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-1200-2X32-F/B-UG
- MPN:
- MC-1200-2X32-F/B-UG
- Secondary Model:
- MC-1200-2X32-F/B
- Type:
- L-Band Satellite Distribution Box
- SKU:
- 49728
- Number of Ports:
- 32
- Connector Type:
- BNC
- Form Factor:
- Rack Mount
- Power Requirements:
- 105–132 VAC, 47–420 Hz
- Option:
- Option 3
- Included Component 1:
- 2x AAK Corporation CM242 Regulated DC Power Supply
- Included Component 2:
- 2x I.F. Engineering AM-701-014-B RF Amplifier Module
- Included Component 3:
- 2x I.F. Engineering PD-16-LBAND-B L-Band Splitter
- Power Supply Model:
- AAK Corporation CM242
- Power Supply Output:
- 24VDC, 2A
- Power Supply Input Voltage:
- 105–132 VAC, 47–420 Hz
- Power Supply Output Accuracy:
- 1% Fixed
- Power Supply Input Isolation:
- 50 Megohms
- RF Amplifier Model:
- I.F. Engineering AM-701-014-B
- Amplifier Interface:
- BNC (RF IN / RF OUT)
- Application:
- Satellite L-Band Signal Distribution
- Caution Note:
- DC Blocks required on output of this unit
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes 2x AAK CM242 PSUs, 2x AM-701-014-B amplifiers, 2x PD-16-LBAND-B splitters
- Condition Notes:
- I.F. Engineering MC-1200-2X32-F/B-UG 32-Port L-Band Distribution Box. Inspected, in good used condition. Pulled from a working satcom environment. All sub-components present. DC blocks required on outputs.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box
I.F Engineering
$600.00Was: $1,200.00I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box 2UThe I.F. Engineering MC-1200-2X32-F/B-UG is a 2-channel, 32-port L-Band RF signal distribution box housed in a 2U...49691- SKU:
- 49691
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 14.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-1200-2X32-F/B-UG
- MPN:
- MC-1200-2X32-F/B-UG
- Type:
- L-Band RF Signal Distribution Box
- SKU:
- 49691
- Number of Channels:
- 2
- Number of Ports:
- 32 output (BNC), 2 input (SMA/F-type)
- Form Factor:
- 2U Rackmount
- Connector Type (Output):
- BNC
- Connector Type (Input):
- SMA / F-type (A and B inputs)
- Frequency Band:
- L-Band
- DC Blocking:
- Yes — internal DC blocking
- Signal Path:
- 1-to-16 splitter per channel (14 dB amplifier + splitter tree)
- Sub-Module 1:
- I.F. Engineering PD-16-LBAND-B (qty 2)
- Sub-Module 2:
- I.F. Engineering AM-701-014-B (qty 2)
- Dimensions:
- 19" x 15" x 3.5"
- Application:
- Satellite IF / SatCom / Microwave / RF signal distribution
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes 2x PD-16-LBAND-B and 2x AM-701-014-B sub-modules installed
- Condition Notes:
- I.F. Engineering MC-1200-2X32-F/B-UG L-Band Distribution Box. Powered on and inspected — passed power-on test. Pulled from a working SatCom/RF test environment. All 32 BNC outputs and both inputs intact. Good condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -

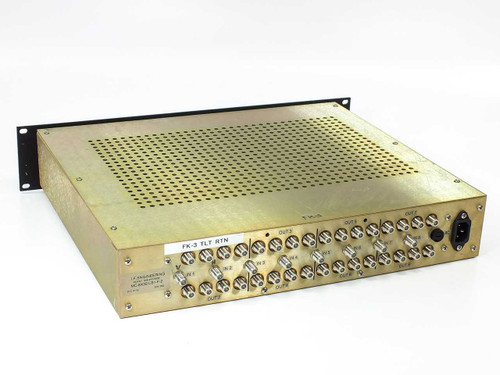

I.F. Engineering MC-8X32-LB1-F-2 L-Band Multi-Coupler 950-1450MHz 8x32 2U
I.F Engineering
$375.00Was: $750.00I.F. Engineering MC-8X32-LB1-F-2 L-Band Multi-Coupler 950-1450MHz 8x32 2UEight-input, thirty-two-output L-band signal distribution amplifier for satellite and microwave RF applications. Each of the 8...49690- SKU:
- 49690
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 17.00 LBS
- Brand:
- I.F. Engineering
- Model:
- MC-8X32-LB1-F-2
- MPN:
- MC-8X32-LB1-F-2
- Type:
- L-Band Multi-Coupler / Signal Distribution Amplifier
- SKU:
- 49690
- Frequency Range:
- 950 – 1450 MHz (L-Band)
- Number of Inputs:
- 8
- Number of Outputs:
- 32
- Distribution Configuration:
- 8 x 32 (each input split to 4 outputs)
- Form Factor:
- 2U Rackmount
- Power Requirements:
- 120V AC, 50/60 Hz (IEC inlet)
- Connector Type:
- F-Type (female)
- Number of Power Supplies:
- 2 (redundant)
- Power Supply Model:
- Volgen SX100U-24S AC/DC (x2)
- Amplifier Module:
- I.F. Engineering AM-LB2-7 x8 (+12 to +24V)
- Splitter Module:
- I.F. Engineering PD-4X16-LB2-F x2
- Application:
- Satellite IF / SatCom / Microwave / RF Signal Distribution
- Front Panel Indicators:
- 2x PS LED indicators (PS1, PS2 green LEDs)
- Date Code:
- 0118
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 2x PD-4X16-LB2-F splitters, 8x AM-LB2-7 amplifiers, 2x Volgen SX100U-24S PSUs
- Condition Notes:
- I.F. Engineering MC-8X32-LB1-F-2 L-Band multi-coupler. Inspected, powers on. Pulled from active SatCom/RF test environment. Good condition with light rack wear. All internal sub-components (8x AM-LB2-7, 2x PD-4X16-LB2-F, 2x Volgen PSUs) present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$375.00Was: $750.00 -

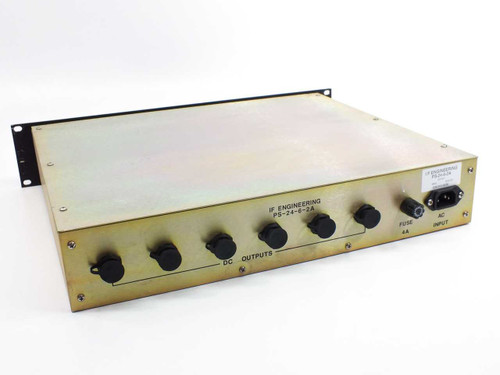

IF Engineering PS-24-6-2A 24VDC 2A L-Band 6-Port DC Distribution Amplifier
I.F Engineering
$150.00Was: $300.00IF Engineering PS-24-6-2A 24VDC 2A L-Band 6-Port DC Distribution AmplifierL-Band DC distribution amplifier with dual internal power supplies. Provides regulated 24VDC at 2A across six output ports...49653- SKU:
- 49653
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- IF Engineering
- Model:
- PS-24-6-2A
- MPN:
- PS-24-6-2A
- Secondary Model:
- CM242
- Type:
- L-Band DC Distribution Amplifier
- SKU:
- 49653
- Output Voltage:
- 24VDC
- Output Current:
- 2A
- Number of Output Ports:
- 6
- AC Input:
- AC Input via IEC connector, 4A fuse
- Internal Power Supplies:
- Dual AAK CM242 DC Power Supplies
- Frequency Band:
- L-Band
- Form Factor:
- Rackmount, 2U
- Front Panel Controls:
- Power LED, ON/OFF toggle switch per supply module
- DC Output Connectors:
- 6 x DC output jacks (rear panel)
- Condition:
- Used – Inspected
- Seller Notes:
- Includes dual internal AAK CM242 DC power supplies; 6 DC output ports
- Country/Region of Manufacture:
- United States
- Condition Notes:
- IF Engineering PS-24-6-2A L-Band 6-Port DC Distribution Amplifier. Inspected and in good used condition. Minor surface wear on chassis. Both internal AAK CM242 supplies present. All 6 DC output ports intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$150.00Was: $300.00
