Description
I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box 2U
The I.F. Engineering MC-1200-2X32-F/B-UG is a 2-channel, 32-port L-Band RF signal distribution box housed in a 2U 19-inch rackmount chassis. It takes two independent RF input signals (Channel A and Channel B) and splits each across 16 BNC output ports, for a total of 32 distributed output connections. An internal amplifier stage — visible on the label schematic as a 14 dB gain block — precedes the 1-to-16 passive splitter tree on each channel, compensating for split loss. The unit includes internal DC blocking on both signal paths, as noted on the rear panel label.
Specifications & What's Included
- Model: MC-1200-2X32-F/B-UG
- Manufacturer: I.F. Engineering
- Frequency Band: L-Band (satellite IF range)
- Number of Channels: 2 (Channel A and Channel B)

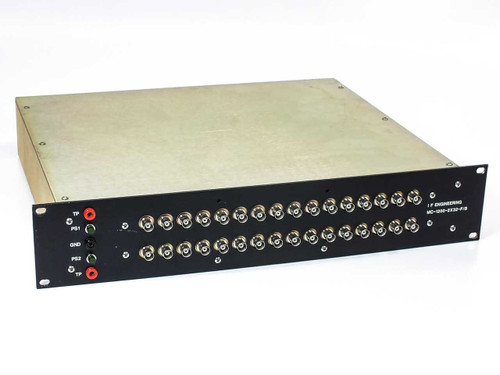

- Output Ports: 32 total — 16 BNC outputs per channel, front panel
- Input Connectors: 2 × SMA/F-type (rear panel, labeled A and B)
- Internal DC Blocking: Yes (noted on rear panel label)
- Internal Amplifier: 14 dB gain block per channel (per rear schematic label)
- Sub-Module 1: I.F. Engineering PD-16-LBAND-B × 2 (16-port L-Band passive distribution modules)
- Sub-Module 2: I.F. Engineering AM-701-014-B × 2 (amplifier modules, installed and wired internally)
- Front Panel Indicators: PWR (green LED power indicator)
- Rear Panel: Rotary fuse holder, 3-pin locking power connector
- Form Factor: 2U rackmount, 19-inch EIA standard rails
- Chassis Dimensions: 19" W × 15" D × 3.5" H
- Date Code: 9802 (manufactured February 1998)
Applications
L-Band distribution boxes like the MC-1200-2X32-F/B-UG are used in satellite ground station and SatCom test environments to distribute a single L-Band IF signal (typically 950–2150 MHz) from a satellite receiver or LNB to multiple pieces of downstream test, monitoring, or demodulation equipment simultaneously. The two-channel architecture allows operators to distribute two independent satellite transponder signals — or a forward and return path — across up to 32 outputs without requiring additional external splitters or amplifiers. The built-in gain stage compensates for the inherent insertion loss of a 1-to-16 split, maintaining usable signal levels at each port. Units of this type are common in satellite test labs, signal monitoring arrays, VSAT test benches, and teleport/uplink facility test racks. This unit dates from 1998, a period when L-Band IF distribution racks were becoming standard infrastructure in professional SatCom test and monitoring facilities.
This I.F. Engineering MC-1200-2X32-F/B-UG 2-Channel 32-Port L-Band Distribution Box has been inspected and powered on at our facility. It passed a power-on test and appears to be in good working condition. It was pulled from an active Microwave / RF / SatCom testing environment where it was in regular use. Cosmetically the unit is in good shape — the black front panel and gold-toned chassis show typical handling marks consistent with rack use, and all 32 BNC output connectors and both rear SMA/F-type input connectors appear intact. The interior is clean with both AM-701-014-B amplifier modules and associated coax wiring in place. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
I.F. Engineering |
Model: |
MC-1200-2X32-F/B-UG |
MPN: |
MC-1200-2X32-F/B-UG |
Type: |
L-Band RF Signal Distribution Box |
SKU: |
49691 |
Number of Channels: |
2 |
Number of Ports: |
32 output (BNC), 2 input (SMA/F-type) |
Form Factor: |
2U Rackmount |
Connector Type (Output): |
BNC |
Connector Type (Input): |
SMA / F-type (A and B inputs) |
Frequency Band: |
L-Band |
DC Blocking: |
Yes — internal DC blocking |
Signal Path: |
1-to-16 splitter per channel (14 dB amplifier + splitter tree) |
Sub-Module 1: |
I.F. Engineering PD-16-LBAND-B (qty 2) |
Sub-Module 2: |
I.F. Engineering AM-701-014-B (qty 2) |
Dimensions: |
19" x 15" x 3.5" |
Application: |
Satellite IF / SatCom / Microwave / RF signal distribution |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes 2x PD-16-LBAND-B and 2x AM-701-014-B sub-modules installed |
Condition Notes: |
I.F. Engineering MC-1200-2X32-F/B-UG L-Band Distribution Box. Powered on and inspected — passed power-on test. Pulled from a working SatCom/RF test environment. All 32 BNC outputs and both inputs intact. Good condition. |
