MCS 4009-0000G1 Microwave Waveguide Port Assembly X-Ku Band WR-75 w/Fans

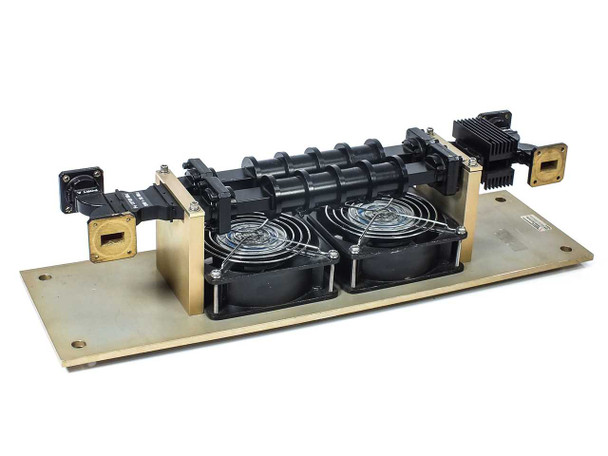

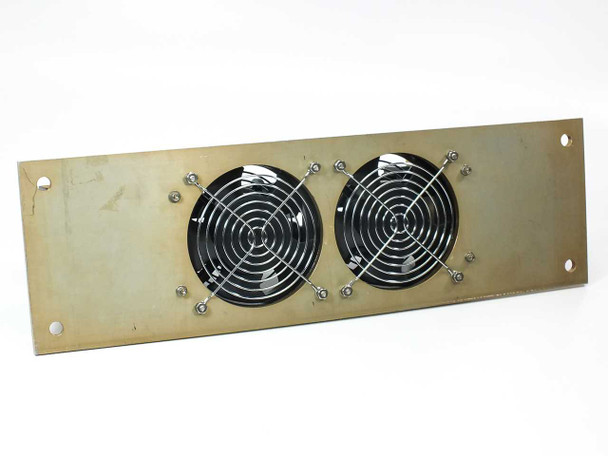

Microwave waveguide port assembly featuring four WR-75 ports operating across the X-Ku band frequency range. Includes two Sunon Electric cooling fans mounted on baseplate for thermal management.
Specifications & What's Included
- Frequency Range: 10 to 15 GHz (X-Ku Band)
- Center Frequency: 12,769 MHz
- Bandwidth: 36 MHz

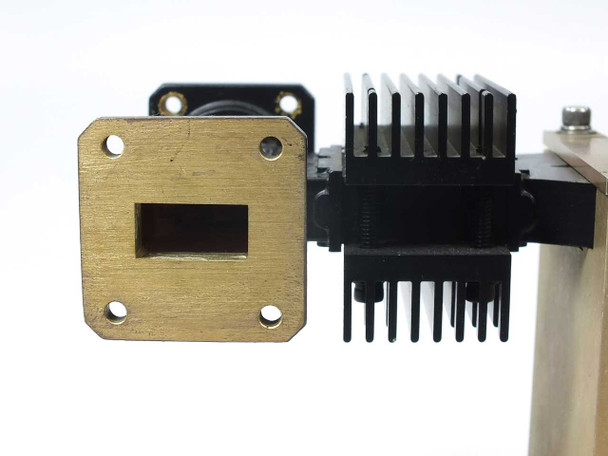

- Waveguide Type: WR-75 (19.05 mm x 9.525 mm aperture)

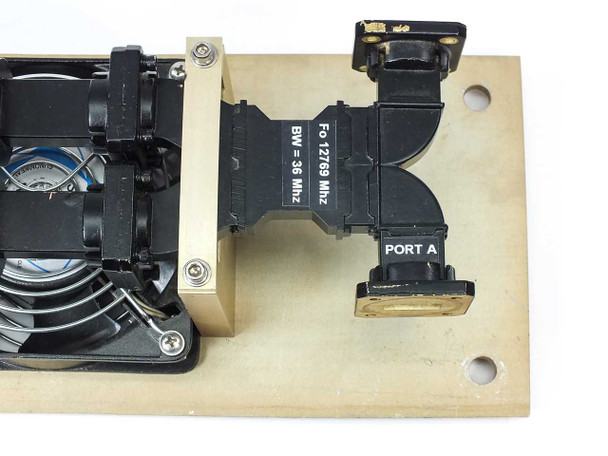

- Number of Ports: 4 (Port A, B, C, D)
- Cooling: 2x Sunon Electric Fans, 115V AC 50/60 Hz
- Manufacturer: MCS Inc., Marlboro, MA
Applications
WR-75 waveguide assemblies operate in satellite communications systems and microwave RF transmission networks. These port assemblies route signals across X and Ku band frequencies in ground stations, telecom infrastructure, and radar systems. Commonly integrated into RF switching matrices, multiplexers, and signal distribution equipment requiring multi-port microwave connectivity.
Condition: Used

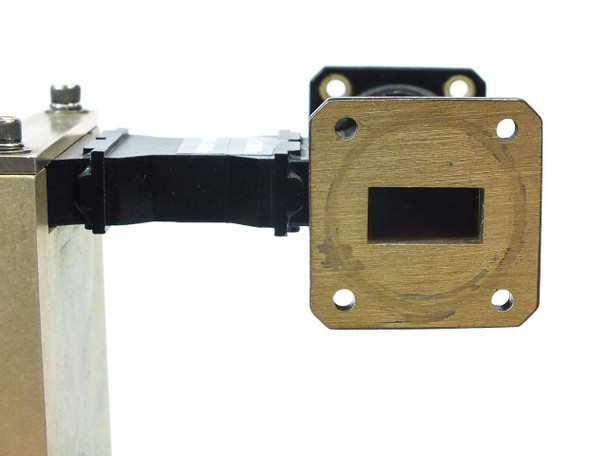

This MCS 4009-0000G1 X-Ku Band WR-75 Microwave Waveguide Port Assembly has been inspected and is in good used condition. The waveguide port flanges are intact and the WR-75 apertures appear clean and undamaged. One of the brass waveguide flange faces shows a light circular contact mark, visible in the photos. The black plastic waveguide body, heatsink block, and both Sunon cooling fans are all present and show only normal handling wear. The brass baseplate has typical surface scuffing consistent with prior installation and removal. Please view our photo set and contact us if you have any questions.
This MCS 4009-0000G1 X-Ku Band WR-75 Microwave Waveguide Port Assembly has been inspected and is in good used condition. The waveguide port flanges are intact and the WR-75 apertures appear clean and undamaged. One of the brass waveguide flange faces shows a light circular contact mark, visible in the photos. The black plastic waveguide body, heatsink block, and both Sunon cooling fans are all present and show only normal handling wear. The brass baseplate has typical surface scuffing consistent with prior installation and removal. Please view our photo set and contact us if you have any questions.
