Satcom
Satcom, short for satellite communication, refers to the transmission of data, voice, and video through satellite systems. Satcom technology utilizes satellites in geostationary or low earth orbit to provide global coverage for communication purposes. It enables long-distance communication without the need for physical infrastructure on the ground. Satcom is used in various industries such as aviation, maritime, military, and broadcasting for reliable and secure communication. The use of Satcom is expanding rapidly with advancements in technology, offering high-speed internet access, telecommunication services, and remote monitoring capabilities. Satcom plays a crucial role in connecting remote areas and ensuring seamless communication worldwide.
-
Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF Satcom
Hughes
$350.00Was: $700.00Hughes Aircraft 3878526-100 AUSSAT HS-601 Satellite Simulator 70MHz RF SatcomGround support equipment simulator for AUSSAT HS-601 satellite systems. Generates 70MHz RF test signals and processes...41235- SKU:
- 41235
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 50.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878526-100
- MPN:
- 3878526-100
- Type:
- Satellite Simulator / RF Satcom Ground Support Equipment
- SKU:
- 41235
- Condition:
- As-Is / For Parts or Not Working
- Revision:
- Rev B
- System:
- AUSSAT HS-601
- Division:
- Hughes Satellite Ground Equipment Division
- Output Frequency:
- 70 MHz (Selected Out)
- Power Input:
- 240V AC, 2A
- Interface - Computer:
- RS-232 (DB-25, J3); Computer port DB-25 (J2)
- Telemetry Inputs - PCM 1:
- NRZ-L (J10), Clock (J9), BI-Phase (J8)
- Telemetry Inputs - PCM 2:
- NRZ-L (J13), Clock (J12), BI-Phase (J11)
- Telemetry Monitor:
- D-sub connector J7
- Command Interface:
- CMD Tone In (J16), Monitor (J15, D-sub), Execute Out (J14)
- Real Time Inputs:
- Spin Sync J21, Sun J20, Composite J19, Nutation J18
- Range In:
- BNC connector J17
- Monitor Bus:
- D-sub J22
- Selected RF Output:
- A/B switch, 70 MHz, BNC connectors J6/J5/J4
- Front Panel Display:
- CRT/LCD screen with status readout
- Front Panel Controls:
- FAIL/RESET button
- Known Fault:
- 70 MHz output level fixed; attenuator inoperative
- Form Factor:
- Rackmount Enclosure
- Seller Notes:
- Sold AS-IS for parts or repair. Crack in corner of screen.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Hughes 3878526-100 AUSSAT Satellite Simulator sold AS-IS for parts/repair. 70 MHz attenuator inoperative; output level fixed. Crack in screen corner. Not tested. No functionality guaranteed.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$350.00Was: $700.00 -
Hughes 3878523-100 Synchronous Command Generator 240VAC Satcom 19" Rack
Hughes
$350.00Was: $700.00Hughes 3878523-100 Synchronous Command Generator 240VAC Satcom 19" Rack A 19" rackmount synchronous command generator manufactured by Hughes Aircraft Company for satellite ground station use. This...41233- SKU:
- 41233
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 35.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3878523-100
- MPN:
- 3878523-100
- Type:
- Synchronous Command Generator
- SKU:
- 41233
- Condition:
- As-Is / For Parts or Not Working
- System:
- AUSSAT Satellite Ground Station
- Division:
- Hughes Satellite Ground Equipment Division
- Power Requirements:
- 240VAC
- Form Factor:
- 19" Rackmount
- Front Panel Designation:
- CMD GEN 1
- Internal Assembly A2:
- Hughes A2 Assy 3814102 Rev F
- Internal Assembly A3 (1):
- Hughes A3 Assy 1404473 Rev (Synchronous Cmd Gen)
- Internal Assembly A3 (2):
- Hughes A3 Assy 3808473 Rev — (Synchronous Cmd Gen)
- Crystal Oscillator:
- Vectron SC-235T-3, 4.1Hz (ref), Vectron Labs
- SPD Part Number:
- SPD Industrial Electronic Engineers 04202-01
- SPD Code Ident:
- 05464
- Front Panel Controls:
- Clear Decoder, Transmit Command, Critical Enable, Fail/Reset, Execute
- Front Panel Display:
- Integrated display screen (appears dark/non-operational)
- Seller Notes:
- Sold AS-IS for parts or repair. Multi-board rackmount assembly.
- Country/Region of Manufacture:
- United States
- Application:
- Satellite ground station command generation, AUSSAT system
- Compatible With:
- AUSSAT satellite ground station system
- Condition Notes:
- Hughes 3878523-100 Synchronous Command Generator sold AS-IS for parts or repair. Not tested, no functionality guaranteed. Front display appears non-operational. Internal PCBs intact. Unit shipped may vary from photo.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$350.00Was: $700.00 -
GE RF Ground Test Unit Waveguide Assembly EM-1 Satcom Microwave Test Set
Hexel
$300.00Was: $600.00GE RF Ground Test Unit Waveguide Assembly EM-1 Satcom Microwave Test SetOpen-frame RF waveguide ground test assembly manufactured by General Electric for satellite communications microwave testing...40608- SKU:
- 40608
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- General Electric (GE)
- Model:
- EM-1
- MPN:
- GE 7523149P15
- Secondary Model:
- GE 7813254G-6
- Type:
- RF Waveguide Ground Test Unit Assembly
- SKU:
- 40608
- Condition:
- Used – Inspected
- Enclosure Manufacturer:
- Hexcel Structural Products
- Enclosure Type:
- Bonded Structure
- Date of Manufacture:
- January 31, 1977
- Job Number:
- K741421
- Subassembly 1 Part No.:
- GE 7523149P15 (Serial No. 0033)
- Subassembly 2 Part No.:
- GE 7641881G1 (Ser. 119)
- Subassembly 3 Part No.:
- GE 7813254G-6 (Ser. No. 131)
- Subassembly 4 Part No.:
- GE 7641547G1 (Ser G 021)
- Subassembly 5 Part No.:
- GE 7813327-G0
- Part Number (visible on component):
- 9127-1088
- Waveguide Switch Manufacturer:
- Airtron (Division of Litton Industries)
- Airtron Location:
- Morris Plains, New Jersey
- RF Indicators:
- CR1 FWD (Forward), CR2 REV (Reverse), CR3
- Application:
- Satellite / Satcom RF Ground Test
- Technology:
- Microwave Waveguide RF
- Form Factor:
- Open-frame bench/rack assembly
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Multi-subassembly open-frame unit with Airtron waveguide switches and GE RF components. Sold as-is assembly.
- Condition Notes:
- GE EM-1 RF Ground Test Unit waveguide assembly. Inspected, good used condition. Age patina and oxidation on board contacts consistent with 1977 mfg. date. Not powered or tested at our facility. Sold as-inspected.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$300.00Was: $600.00 -

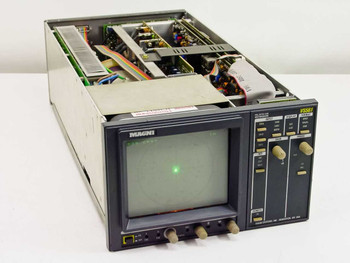

Magni VS561 PAL/NTSC/CAV Vectorscope 90-250V BNC For Parts No Covers
Magni
$95.00Was: $200.00Magni VS561 PAL/NTSC/CAV Vectorscope 90-250V BNC For Parts No CoversThe Magni VS561 is a professional PAL/NTSC/CAV vectorscope manufactured by Magni Systems, Inc. of Beaverton, Oregon. A vectorscope...40149- SKU:
- 40149
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Magni Systems
- Model:
- VS561
- MPN:
- VS561
- Type:
- PAL/NTSC/CAV Vectorscope
- SKU:
- 40149
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Powers on and lights up; untested further. Missing side and top covers.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Power Requirements:
- 90-250V AC, 50/60Hz
- Power Consumption:
- 55W Max
- Fuse Rating:
- 1.6A (Slow)
- Video Standards:
- PAL, NTSC, CAV
- Display Formats:
- CPST, YPbPr, GBR
- Input Channels:
- 3 channels per input (CH A, CH B, CH C)
- Number of Inputs:
- 2 (Input 1, Input 2)
- Input Connector Type:
- BNC
- Loop-Through:
- 75 Ohm loop-through on all channels
- External Reference:
- EXT REF BNC input with 75 Ohm loop-through
- Auxiliary Input:
- AUX INPUT – DB-15 connector
- Remote Connector:
- DB-9 (REMOTE)
- R-Y Output:
- BNC rear panel
- AC Connector:
- IEC C14 (AC LINE/FUSE)
- Reference Modes:
- INT, EXT, TEST
- Gain Settings:
- VAR, x5
- Phase Adjustment:
- VAR, +V, PAL
- Manufacturer:
- Magni Systems, Inc., Beaverton, OR, USA
- Compatible With:
- Broadcast PAL/NTSC/CAV video production systems
- Condition Notes:
- Magni VS561 PAL/NTSC/CAV Vectorscope powers on and CRT lights up but is untested further. Sold AS-IS for parts or repair. Missing side and top covers. Internal boards exposed. Rear connectors appear intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -
Varian VZC6961D7A1 C-Band TWTA 5.9-6.4 GHz 50dB Gain Satcom Upconverter
Varian
$1,500.00Was: $3,000.00Varian VZC6961D7A1 C-Band TWTA 5.9-6.4 GHz 50dB Gain Satcom Upconverter TransmitterC-Band traveling wave tube amplifier (TWTA) for satellite uplink transmission. Provides 50 dB gain across 5.9–6.4...39941- SKU:
- 39941
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 45.00 LBS
- Brand:
- Varian
- Model:
- VZC6961D7A1
- MPN:
- VZC6961D7A1
- Type:
- C-Band Traveling Wave Tube Amplifier (TWTA)
- SKU:
- 39941
- Frequency Range:
- 5.9 – 6.4 GHz
- Frequency Band:
- C-Band
- Gain:
- 50 dB
- RF Output Interface:
- Waveguide (WR-137 flange)
- RF Input Connector:
- Type N (front panel)
- RF Sample Connector:
- Type N (front panel)
- Control Interface:
- Local/Remote switch; 25-pin D-Sub connector
- TWT Type:
- VTC-6161H4
- Heater Voltage (Ef):
- 6.3 V
- Collector Voltage (Eb):
- 2400 Vdc
- Helix-GND Voltage (Ew):
- 4800 Vdc
- Upconverter Module:
- Western Microwave ICW-9070
- TWT P/N:
- 113798-03
- Code Ident:
- 59782
- Form Factor:
- Rackmount, 2U
- Country/Region of Manufacture:
- United States
- Application:
- Satellite uplink, C-band earth station transmitter
- Front Panel Indicators:
- Power, Filtd, Stdby, HV ON, Fault; Temp, VSWR, Int, Ext, Helix
- Front Panel Controls:
- POWER switch, HV ON/OFF/RESET switch, IND RESET button, RF Gain Adj knob, Helix Current meter
- Condition:
- Used – Inspected and in good condition
- Seller Notes:
- Unit only; no cables or accessories observed. Western Microwave ICW-9070 upconverter installed internally.
- Condition Notes:
- Varian VZC6961D7A1 C-Band TWTA inspected and in good used condition. Front panel controls, indicators, and meters intact. Waveguide output shows minor surface wear. Interior TWT and upconverter assembly present and complete.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$1,500.00Was: $3,000.00 -
Varian VZC-6965F7 700W C-Band TWTA & Power Supply 01008290-00 RF Assy For Parts
Varian
$750.00Was: $1,500.00Varian VZC-6965F7 700W C-Band TWTA & Power Supply 01008290-00 RF Assy For PartsThis is a matched, serialized two-unit set consisting of a Varian VZC-6965F7 700-watt C-Band traveling wave tube...39838- SKU:
- 39838
- Availability:
- This item requires freight shipping. Please contact us for a shipping quote or to arrange local pickup.
- Weight:
- 305.00 LBS
- Brand:
- Varian
- Model:
- VZC-6965F7
- Secondary Model:
- 01008290-00
- MPN:
- VZC-6965F7
- RF Assembly P/N:
- 01007747-03
- Power Supply Model:
- 01008290-00
- RF Assembly Model:
- VZC6965F7-7SR
- SKU:
- 39838
- Type:
- C-Band Traveling Wave Tube Amplifier (TWTA)
- Frequency Band:
- C-Band
- Output Power:
- 700 W
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Matched set: TWTA amplifier + power supply. Tube tested bad, no RF output. AS-IS.
- Filament Hours:
- 32082 hours (per front-panel meter)
- Power Input:
- 120 VAC (per rear panel label)
- Connectors - RF:
- RF IN, RF OUT (waveguide flange on rear)
- Connectors - Control:
- JSA, JSB (D-sub), J2, J3, J4, J5 (circular)
- Cooling:
- Forced air — dual large axial fans
- Form Factor:
- Rackmount / Freestanding Chassis, 2-unit stacked set
- Country/Region of Manufacture:
- United States
- Manufacturer:
- Varian Microwave Equipment Products, Santa Clara, CA
- Application:
- Satellite uplink, C-Band RF amplification
- Includes:
- TWTA amplifier unit + matched TWTA power supply
- Shipping:
- Freight shipping required — contact seller for quote
- Condition Notes:
- Varian VZC-6965F7 700W C-Band TWTA — TWT tube tested bad, no RF output. Sold AS-IS for parts or repair. Matched set with power supply 01008290-00. Freight shipping required. Contact us for quote.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$750.00Was: $1,500.00 -
CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System
CLI
$850.00Was: $1,700.00CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer SystemRackmount MPEG-2 DVB satellite multiplexer and encoder system designed for video contribution and DVB uplink applications...39800- SKU:
- 39800
- Availability:
- Usually ships within 3-5 business days due to size and weight.
- Weight:
- 265.00 LBS
- Brand:
- CLI Compression Labs Inc.
- Model:
- Magnitude
- MPN:
- 410111-01
- Type:
- MPEG-2 DVB Satellite Multiplexer / Encoder System
- SKU:
- 39800
- Form Factor:
- Rackmount Chassis
- Standard:
- DVB, MPEG-2
- Application:
- Satellite Broadcasting, DVB Uplink, Video Contribution
- Power Requirements:
- 120 VAC, 60 Hz, 12 A (chassis label)
- Power Connector:
- 30A 250V Twist-Lock
- Power Supply Model:
- Tectrol TO620/11-1054 Rev.E
- Power Supply Input:
- 115/230 VAC, 60/50 Hz, 10A
- Power Supply Output:
- 620W Max., CSA Level 6
- Number of Power Supplies:
- 4 (hot-swap)
- Video Encoder Module:
- CLI Video Encoder M1, P/N 410444 / 410538 (x6)
- Audio Encoder Module:
- CLI Audio Encoder MPEG2, P/N 410588 (x7)
- Remux Input Unit:
- General Instrument RIU Remux Input Unit, P/N 410774-01
- Chassis Interface Module:
- CLI Chassis I/F M1, P/N 410002-01
- Fan Assembly:
- Comair Rotron Muffin-XL MX2A1, 6-fan, 115V 50/60Hz
- Audio Encoder Chipset:
- Motorola DSP56001AFC27; SGS-Thomson SF9701P
- Seller Notes:
- Complete system: 6x video encoders, 7x audio encoders, RIU, chassis I/F, 4x hot-swap PSUs, 6-fan assembly
- Country/Region of Manufacture:
- USA
- Interface Type:
- BNC, DB-25, RJ45
- Condition:
- Used – Inspected
- Condition Notes:
- CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Multiplexer system inspected and in good used condition. Fully populated with 6 video encoders, 7 audio encoders, RIU, chassis I/F, 4 hot-swap PSUs, and 6-fan assembly. Normal rack wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$850.00Was: $1,700.00 -
General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" Rackmount
General Instrument
$100.00Was: $200.00General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" RackmountDVB conditional access scrambling unit designed for satellite headend operations. Handles DVB parallel output and clock...39790- SKU:
- 39790
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 19.00 LBS
- Brand:
- General Instrument
- Model:
- Magnitude 00-410809-01
- MPN:
- 00-410809-01
- Type:
- DVB Scrambling Unit
- SKU:
- 39790
- Product Line:
- Magnitude Compression Systems
- Form Factor:
- 19" 1U Rackmount
- Power Requirements:
- AC 100-240V, 0.8/0.4A, 50-60Hz
- Country/Region of Manufacture:
- United States
- Interface Type:
- DB-9, DB-25, BNC
- Ports / Connectors:
- SYS SUP IN, SYS SUP OUT, CAE IN, TEST, MUX IN, CLOCK IN, DVB Parallel Out
- Application:
- DVB conditional access scrambling, satellite headend
- Standards:
- DVB (Digital Video Broadcasting)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working satellite headend environment.
- Condition Notes:
- General Instrument Magnitude 00-410809-01 DVB Scrambling Unit. Inspected, in good used condition. Pulled from a working headend environment where it was in active use. Light surface wear. Connectors and controls intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$100.00Was: $200.00 -
HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link Analyzer
HP
$173.00Was: $350.00HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link AnalyzerThe HP 3712A IF/BB Receiver and HP 3793B Differential Phase Detector together form the receiver portion of the Hewlett-Packard...39762- SKU:
- 39762
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 53.00 LBS
- Brand:
- HP
- Model:
- 3712A / 3793B
- MPN:
- 3712A
- Secondary Model:
- 3793B
- Type:
- IF/BB Receiver and Differential Phase Detector
- SKU:
- 39762
- Condition:
- Used – Inspected
- Seller Notes:
- Includes HP 3712A IF/BB Receiver and HP 3793B Diff Phase Detector modules in combined chassis
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Rackmount Chassis
- Power Requirements:
- 220/240-1AT or 100/120-3AT, 48-66 Hz, 160 VA max
- Application / Use Case:
- Microwave link analysis, Satcom, IF/BB signal testing
- Rear Connectors:
- X-Y Recorder (5-pin DIN), D-Sub Normaliser, BNC ports
- Subsystem 1:
- HP 3712A IF/BB Receiver
- Subsystem 2:
- HP 3793B Differential Phase Detector
- Front Panel Display:
- CRT oscilloscope display with graticule
- Frequency Display:
- Digital LED frequency readout (visible on front panel)
- Measurement Type:
- IF/Baseband signal analysis, differential phase detection
- Compatible With:
- HP Microwave Link Analyzer system, Satcom test setups
- Phase Functions:
- Phase Lock/Level, BB Frequency, Diff Phase Calibration
- Power Measurement:
- Baseband power meter on front panel (analog meter)
- Condition Notes:
- HP 3712A / 3793B IF/BB Receiver and Diff Phase Detector Microwave Link Analyzer. Inspected and in good used condition. Normal lab wear; CRT, controls, and rear connectors appear intact. Property ID tag on front.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$173.00Was: $350.00 -
Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount
Scientific Atlanta
$145.00Was: $300.00Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount 100-240VThe Scientific Atlanta D9261 is a 1U rackmount SWIF (Satellite Wide-band Intermediate Frequency) distribution...39699- SKU:
- 39699
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D9261
- MPN:
- D9261
- Type:
- SWIF Distribution Amplifier
- SKU:
- 39699
- Product Line:
- PowerVu
- Power Requirements:
- 100-240V AC, 47-63 Hz, 1.0/0.5A auto-ranging
- Fuse Rating:
- T 2A 250V
- Form Factor:
- 1U Rackmount
- Front Panel Indicators:
- Power, Alarm, Mode A, Mode B, PLL Lock A, PLL Lock B
- Alarm Output:
- Rear terminal block with NC, C, NO contacts
- Control Modes:
- Local (LOC), Remote (REM), External (EXT)
- Connector Type:
- F-Type (multiple rear outputs)
- Country/Region of Manufacture:
- Canada
- Seller Notes:
- Unit only; no accessories included. Rack ears installed.
- Compatible With:
- Scientific Atlanta PowerVu headend systems
- Application:
- Satellite headend signal distribution, CATV, SMATV
- Condition Notes:
- Scientific Atlanta D9261 SWIF Distribution Amplifier inspected and in good used condition. Light surface wear on chassis; front panel indicators and F-type connectors intact. Rack ears installed. Ready for deployment.
- Dual-Path Operation:
- Mode A / Mode B with PLL lock monitoring
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$145.00Was: $300.00 -
Scientific Atlanta D9223 PowerVu C/Ku Band Commercial Digital Satellite Receiver
Scientific Atlanta
$119.00Was: $250.00Scientific Atlanta D9223 PowerVu C/Ku Band Commercial Digital Satellite Receiver 2UThe Scientific Atlanta D9223 is a 2U rackmount commercial digital satellite receiver from Scientific Atlanta's...39587- SKU:
- 39587
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Scientific-Atlanta
- Model:
- D9223
- MPN:
- D9223 V22THDSXXXX 803-200
- Secondary Model:
- 803-200
- Type:
- Commercial Digital Satellite Receiver
- Product Line:
- PowerVu
- SKU:
- 39587
- Seller Notes:
- Unit only, no accessories. Untested, sold as-is for parts or repair.
- Country/Region of Manufacture:
- Canada
- Form Factor:
- 2U Rackmount
- Power Requirements:
- 100-240V AC, 50-60Hz, 1.4A Max
- LNB Power Output:
- 13V/19V switchable, 450mA Max
- RF Input:
- BNC (RF IN), SWIF IN
- Video Output:
- BNC Video, BNC Monitor
- Audio Output:
- Balanced Audio 1 & 2 (stereo), RCA Ch1/Ch2
- Data Interface:
- DB-9 serial (High Speed Data), AGC output
- Relay Output:
- RC8/AUTH relay contacts (terminal block)
- Expansion Port:
- Rear expansion connector
- Satellite Band:
- C-band and Ku-band selectable
- FEC Modes:
- Selectable via front panel
- Authorization ID:
- UA: 1789191-2
- Cat. No.:
- D9223 V22THDSXXXX 803-200
- Certifications:
- CSA NRTL/C LR 63109
- Compatible With:
- PowerVu satellite networks, C/Ku-band LNBF
- Application:
- Commercial broadcast satellite reception, cable headend
- Condition Notes:
- Scientific Atlanta D9223 PowerVu commercial digital satellite receiver. Sold as-is for parts or repair. Has not been tested and is not guaranteed functional. Unit only; no accessories included.
- Front Panel Controls:
- Keypad for channel/parameter selection, numeric display
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$119.00Was: $250.00 -
Matrix Systems 12924/13021 Programmable Quad 5x10x2 Wire Switching System 4204
Matrix Systems Corp
$475.00Was: $950.00Matrix Systems 12924/13021 Programmable Quad 5x10x2 Wire Switching System 4204The Matrix Systems Corporation 12924/13021 is a programmable quad wire switching system housed in a 4U rackmount...39586- SKU:
- 39586
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 30.00 LBS
- Brand:
- Matrix Systems Corporation
- Model:
- 12924/13021
- MPN:
- 12924/13021
- Secondary Model:
- 4204
- Type:
- Programmable Wire Switching Matrix System
- SKU:
- 39586
- Condition:
- Used – Inspected and in Good Condition
- Form Factor:
- Rackmount, 4U
- Switching Configuration:
- Quad 5x10x2 (four independent 5-throw, 2-wire sections)
- Relay Card Model:
- 4204 (Model 4204, MFG 07/99)
- Relay Card Part Number:
- 367-4204-01
- Number of Relay Cards:
- Multiple 4204 dual 5-throw 2-wire relay cards installed
- Relay Type:
- Dual 5-throw 2-wire relay with status indicators
- Front Panel Indicators:
- Addresser, Addressed, Addressee LEDs; +24V, +5V, -5V, PS1, PS2 status LEDs
- Rear Connectors:
- 2x Centronics-style (J2A, J3A), IEC AC inlet (J1A), 60x RJ-type jacks (J1–J60)
- Power Input Connector:
- IEC C14 (J1A)
- Power Rating:
- 85–265 VAC, 5.5A Max
- Control Interface:
- Parallel (Centronics) — J2A, J3A
- Signal Connectors:
- 60 RJ-type jacks (J1–J60) on rear panel
- Seller Notes:
- Mainframe chassis with multiple Model 4204 dual 5-throw 2-wire relay cards installed
- Country/Region of Manufacture:
- United States
- Application:
- Automated test, signal routing, relay switching matrix
- Programmable:
- Yes
- Condition Notes:
- Matrix Systems 12924/13021 Quad 5x10x2 Wire Switching System. Inspected and in good condition. Normal cosmetic wear. All 4204 relay cards present. Connectors appear clean and undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$475.00Was: $950.00 -
Varian Control Logic Board Assy 01002543-00 Rev M PCB Card Module
Varian
$95.00Was: $200.00Varian Control Logic Board Assy 01002543-00 Rev M PCB Card ModuleControl logic board assembly used in Varian industrial and telecom equipment. This PCB card module manages signal processing and...39482- SKU:
- 39482
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Varian
- Model:
- 01002543-00
- MPN:
- 01002543-00
- Secondary Model:
- 01002543 Rev M
- Type:
- Control Logic Board / PCB Assembly
- SKU:
- 39482
- Revision:
- Rev M
- Assembly Number:
- Assy No. 01002543-00
- Form Factor:
- PCB Card / Module
- Connector Type:
- 50-pin D-sub (female)
- PCB Color:
- Pink / Red
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Board only — no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian Control Logic Board 01002543-00 Rev M inspected and in good condition. PCB shows normal handling wear. No visible damage, corrosion, or missing components. 50-pin D-sub connector intact.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -
Varian Current Limit & Logic PCB Board E-01000437 01-000437-00 Assembly
Varian
$95.00Was: $200.00Varian Current Limit & Logic PCB Board E-01000437 01-000437-00 AssemblyCurrent limiting and logic control PCB assembly manufactured by Varian for industrial and telecom equipment. Board manages power...39481- SKU:
- 39481
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Varian
- Model:
- E-01000437
- MPN:
- 01-000437-00
- Secondary Model:
- 01-000437-00
- Type:
- Current Limit & Logic PCB Assembly Board
- SKU:
- 39481
- Condition:
- Used – Inspected
- Assembly Number:
- E-01000437
- Part Number:
- 01-000437-00
- Form Factor:
- PCB / Card Module
- Function:
- Current Limiting and Logic Control
- Notable Components:
- Sprague capacitors, multiple transformers, DIP ICs
- Connector Type:
- Multi-pin card-edge and header connectors
- Seller Notes:
- Board only; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian Current Limit & Logic PCB Board 01-000437-00 (Assy E-01000437). Inspected and in good used condition. Board is clean with no visible damage; all components present and intact. Normal light handling wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$95.00Was: $200.00 -
Matrix Systems 10360 Programmable Switching System 1031/10287 w/ 4204-NC-10 Card
Matrix Systems
$250.00Was: $500.00Matrix Systems 10360 Programmable Switching System 1031/10287 w/ 4204-NC-10 CardRackmount programmable switching system designed for telecom and industrial control applications. Features a multi-slot...39469- SKU:
- 39469
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 33.00 LBS
- Brand:
- Matrix Systems Corporation
- Model:
- 10360
- Secondary Model:
- 1031/10287
- MPN:
- 1031/10287
- SKU:
- 39469
- Type:
- Programmable Switching System
- Form Factor:
- Rackmount Chassis
- Power Requirements:
- 120V AC, 60Hz (wired for 120 VAC per label)
- AC Input Connector:
- IEC C14 (standard 3-pin)
- Circuit Breakers:
- 2x panel-mount breakers (CB1, CB2) on rear
- Relay Card Model:
- 4204-NC-10 (Matrix Systems Part No. 367-4204-01)
- Display Type:
- Multi-grid LED matrix display (red LEDs)
- Status Indicators:
- +28V, +5V, POWER, ADDRESSOR, ADDRESSED, ADDRESSEE
- I/O Connectors:
- 7x Amphenol/Centronics 50-pin connectors (J1–J7)
- Included PSU 1:
- Condor Inc B5-3.0/OVP DC Power Supply
- Included PSU 2:
- Condor Inc B28-1.0 DC Power Supply
- Backplane Slots:
- Multi-slot card cage (approx. 20+ card positions visible)
- Condition:
- Used – Powers On; Further Functional Testing Not Performed
- Seller Notes:
- Includes 4204-NC-10 relay card, Condor B5-3.0/OVP and B28-1.0 DC PSUs
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Matrix Systems 10360 Programmable Switching System 1031/10287. Powers on; LED display illuminates. Not further tested. Includes 4204-NC-10 relay card and Condor DC PSUs. Good used condition, pulled from working environment.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$250.00Was: $500.00 -
Decom Systems DSI 7376-41000-012-333 PSK/PCM Bit Synchronizer Rackmount
Decom Systems
$400.00Was: $800.00Decom Systems DSI 7376-41000-012-333 PSK/PCM Bit Synchronizer RackmountThe Decom Systems Inc. (DSI) Model 7376 is a rackmount PSK/PCM Bit Synchronizer combining a PSK demodulator section and a PCM...39441- SKU:
- 39441
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Decom Systems Inc.
- Model:
- 7376-41000-012-333
- MPN:
- 7376-41000-012-333
- Secondary Model:
- 010226-1 F
- Type:
- PSK/PCM Bit Synchronizer
- SKU:
- 39441
- Form Factor:
- Rackmount
- Assembly Number:
- 010226-1 F
- EVO Numbers:
- EVO-0380, EVO-0491
- FSC/M Number:
- 55744
- Signal Type:
- PSK / PCM
- Sections:
- PSK Demodulator, PCM Bit Synchronizer
- Front Panel Connectors:
- BNC: Bit Sync/Data In, Data Out, CLK Out (test)
- Rear Connectors:
- BNC: Demod In 1 (J1), Demod In 2 (J2), Bit Sync Ext In (J3), NRZL Out (J4), Clock Out (J5), Demod Status Out (J6), Bit Sync Status Out (J7), BI0 Tape Out (J8), PN Tape Out (J9/J10/J11)
- Rear Power:
- AC Power via multi-pin circular connector (J14)
- Input Power Select:
- S1 switch: 115V; Fuse: 1/4A / 1/2A
- PCM Code Modes:
- NRZ-S, NRZ-M, NRZ-L, NRZ-I, BI0S, BI0B, DMS, DM8, PN
- PSK Demod Input Bandwidth:
- Narrow / Wide selectable
- Input Source:
- 1 / 2 selectable
- Polarity:
- Normal / Invert selectable
- Sync Indicator:
- Green LED, front panel
- Loop Meter:
- Analog meter: LBE / CI / UBE (both sections)
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no manual or accessories included.
- Condition Notes:
- Decom Systems 7376 PSK/PCM Bit Synchronizer. Inspected, good used condition. Pulled from a working environment where it was in use and functional. Normal wear. Please view photos and contact us with questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$400.00Was: $800.00 -
Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground Station
Hughes
$175.00Was: $350.00Hughes 3770031-100 FM Data Detector Rackmount Westar VII Satcom Ground StationFM data detector unit designed for satellite telemetry applications in Westar VII ground stations. Processes composite...39438- SKU:
- 39438
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 22.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3770031-100
- MPN:
- 3770031-100
- Type:
- FM Data Detector
- SKU:
- 39438
- System Compatibility:
- Westar VII (Westar V11) Satellite Ground Station
- Revision:
- Rev F
- Form Factor:
- Rackmount
- Condition:
- Used – Pulled from Working Environment
- Division:
- Hughes Satellite Ground Equipment Division
- Front Panel Controls:
- Nutation Offset, Nutation Gain knob/switches, PS1/MIP/EX indicators, Analog Data switch
- Rear Connectors:
- J1: Composite TM In (BNC), J2: Detected TM Data Out (D-sub), J3: PSI Out (BNC)
- Input Connector:
- BNC – Composite TM In (J1)
- Output Connector:
- D-sub – Detected TM Data Out (J2); BNC – PSI Out (J3)
- Power Input:
- 105-127 VAC or 210-250 VAC, 47-63 Hz (IEC inlet, rear)
- Internal Power Supply:
- Lambda LND-X-152 Regulated Dual Output, ±12 to 15 VDC
- Internal Power Module:
- Acopian Model 5E850 AC to DC Power Module
- Crystal Oscillator:
- Vectron Laboratories CO231, 10 kHz
- Application:
- Satellite telemetry FM data detection, Westar ground station
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories. Pulled from Westar VII satellite ground station service.
- Condition Notes:
- Hughes 3770031-100 FM Data Detector, used, pulled from active Westar VII satellite ground station service. Inspected and in good condition. Front panel controls and rear connectors intact. Internal assembly complete.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $350.00 -
General Instrument VideoCipher II VCRS 76590-1 Commercial TV Descrambler
General Instrument
$34.70Was: $70.00General Instrument VideoCipher II VCRS 76590-1 Commercial TV Descrambler RackmountCommercial-grade television descrambler designed for C-band satellite TVRO headend systems. Decodes encrypted video...39434- SKU:
- 39434
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 19.00 LBS
- Brand:
- General Instrument
- Model:
- VideoCipher II VCRS
- MPN:
- 76590-1
- Secondary Model:
- 76591-1 (VCRS Commercial Kit A retrofit)
- Type:
- Commercial Television Descrambler
- SKU:
- 39434
- Form Factor:
- Rackmount
- Power Requirements:
- 120VAC, 60Hz, 38 Watts
- Video Interface:
- BNC — IN, OUT, BYPASS/THRU, LOCK
- Audio Interface:
- TB2 terminal block — Left, Mono, Right outputs
- Data Interface:
- TB1 terminal block — CLK, DATA (Data Out)
- Front Panel Indicators:
- POWER, SYNC, AUTH, BYPASS LEDs
- Rear Connectors:
- BNC video x4, TB1 data terminal, TB2 audio terminal
- Power Switch:
- Rear-mounted rocker switch, 0.5A fuse
- External Battery Connector:
- Yes — rear panel
- Retrofit Kit:
- Upgraded with VCRS Commercial Kit A P/N 76591-1
- Manufacturer:
- General Instrument / Cable-Home Communication Corp.
- Country/Region of Manufacture:
- United States
- Compatible With:
- C-band satellite TVRO commercial headend systems
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; includes power cable visible in photos.
- Condition Notes:
- General Instrument VideoCipher II VCRS 76590-1 commercial TV descrambler. Inspected, in good used condition, pulled from a working environment. Minor surface wear on front panel. Upgraded with VCRS Commercial Kit A (76591-1).
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$34.70Was: $70.00 -
3dbm 70MDF-DAT-GLW FM Modulator Rackmount 70-01FM-CH 70-01FD-CH 50AT-1-2R
3dbm, INC
$275.00Was: $550.003dbm 70MDF-DAT-GLW FM Modulator Rackmount 70-01FM-CH 70-01FD-CH 50AT-1-2RRack-mount FM modulation and demodulation unit designed for satellite ground station applications. Combines dual-channel FM...39422- SKU:
- 39422
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 29.00 LBS
- Brand:
- 3dbm, Inc.
- Model:
- 70MDF-DAT-GLW
- MPN:
- 70MDF-DAT-GLW
- Type:
- FM Modulator/Demodulator Rackmount Unit
- SKU:
- 39422
- Form Factor:
- Rack Mount
- Included Module 1:
- WV Communications FM Modulator – 70-01FM-CH
- Included Module 2:
- WV Communications FM Demodulator – 70-01FD-CH
- Included Module 3:
- 3dbm RF Attenuator – 50AT-1-2R
- RF Input Frequency:
- 69.6 MHz / 70.0 MHz selectable
- Power Requirements:
- 115 VAC, 1-Phase, 47-63 Hz, 1A Fuse SB
- Interface / Connectors:
- BNC (RF/Tone), DB-9 (J4), IEC AC inlet
- RF Attenuator Channels:
- 2 (FM Modulator 1 & FM Modulator 2 RF Attenuation)
- Internal Sub-Assembly:
- WV Communications RF/IF Demodulator, P/N RF/IF-DEM-PANAM
- Indicators:
- AC PWR ON (green LED), FAULT (red LED) per module
- Application:
- Satellite ground station FM modulation/demodulation
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes 3 modules: 70-01FM-CH, 70-01FD-CH, 50AT-1-2R
- Country/Region of Manufacture:
- United States
- Condition Notes:
- 3dbm 70MDF-DAT-GLW FM Modulator Rackmount with WV Communications modules 70-01FM-CH, 70-01FD-CH & 3dbm 50AT-1-2R. Pulled from a working satcom environment, in use and functional. Inspected; good used condition.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$275.00Was: $550.00 -
Hughes 3814115-100 Range Tone Processor Galaxy Satellite Ground System Rackmount
Hughes
$325.00Was: $650.00Hughes 3814115-100 Range Tone Processor Galaxy Satellite Ground System RackmountRange tone processor unit for Hughes Galaxy satellite ground stations. Generates and measures range tones used in...39415- SKU:
- 39415
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 29.00 LBS
- Brand:
- Hughes Aircraft
- Model:
- 3814115-100
- MPN:
- 3814115-100
- Type:
- Range Tone Processor
- SKU:
- 39415
- System:
- Galaxy Rev A
- Division:
- Hughes Satellite Ground Equipment Division
- Form Factor:
- Rack Mount
- Mode:
- Computer / Manual
- Input:
- Normal / Test (selectable)
- OSC:
- Internal / External (selectable)
- Tones:
- 27777, 34/2, 434, 54.25 (front-panel selectable)
- Phase Count Display:
- Front-panel numeric display
- Rear Connectors:
- DB-25 Computer (J2), BNC Receiver (J3), BNC Analog Out (J4)
- Rear Connectors 2:
- BNC Range Tones Out T&C (J5), BNC Transponder (J6)
- Rear Connectors 3:
- Multi-pin Status (J7), BNC Computer In (J8), BNC Computer Out (J9)
- Rear Connectors 4:
- BNC Analog Tone Out (J10), BNC Range Tone Out (J11), BNC RCVR Input (J12)
- Rear Connectors 5:
- BNC OSC Freq (J13), Signal GND (E2), Chassis GND (E1), EXT OSC IN (BNC)
- AC Power:
- 100/240 VAC, 48/440 Hz (Hopkins Engin F65003 filter)
- Internal Oscillator:
- Greenray Industries YH-725-21, 28.44444 MHz, +5 VDC
- Power Filter:
- Hopkins Engin F65003, 2-6A, 100/240 VAC, 48/440 Hz
- Application:
- Satellite range tone generation and measurement
- Compatible With:
- Hughes Galaxy satellite ground station system
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; pulled from working Galaxy satellite ground station environment
- Condition Notes:
- Hughes 3814115-100 Range Tone Processor in good used condition. Pulled from a working Galaxy satellite ground station environment where it was in active use. Shows normal wear. Inspected; no visible damage. Unit only.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$325.00Was: $650.00
