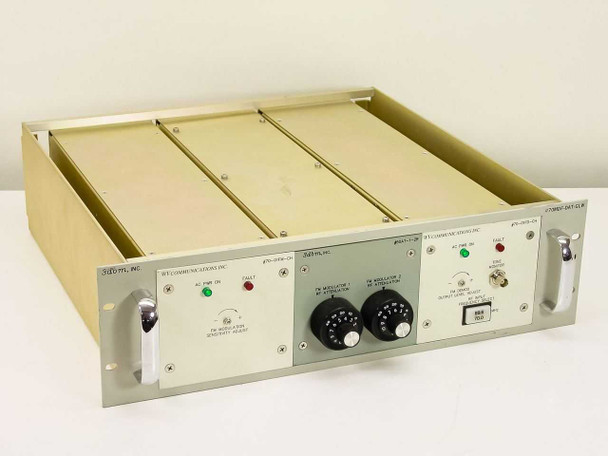

  • 3dbm 70MDF-DAT-GLW FM modulator rackmount unit front panel overview showing three module bays with WV Communications and 3dbm modules installed
  • WV Communications 70-01FM-CH FM modulator module front panel showing AC PWR ON green LED, FAULT red LED, and FM Modulation Sensitivity Adjust knob
  • 3dbm 50AT-1-2R dual RF attenuation module front panel showing FM Modulator 1 and FM Modulator 2 RF Attenuation rotary knobs
  • WV Communications 70-01FD-CH FM demodulator module front panel showing AC PWR ON and FAULT LEDs, Tone Monitor BNC, FM Demod Output Level Adjust, and RF Input Frequency Select switch set to 69.6/70.0 MHz
  • 3dbm 70MDF-DAT-GLW FM modulator rackmount unit rear panel view showing BNC connectors, DB-9 connectors, IEC AC inlets, and power switches for all three modules
  • WV Communications 70-01FD-CH module rear panel detail showing RF INPUT (J1 BNC), J4 DB-9, TONE OUTPUT (J2 BNC), AC INPUT (J3 IEC), power rating label 115VAC 1-phase 47-63Hz 1A fuse, and AC ON/OFF switch SW1
  • 3dbm 50AT-1-2R module rear panel detail showing four BNC connectors labeled RF 1 Input (J1), RF 2 Input (J3), RF 1 Output (J2), RF 2 Output (J4), with 3dbm model and serial number label
  • WV Communications 70-01FM-CH module rear panel detail showing TONE INPUT (J1 BNC), J4 DB-9, RF OUTPUT (J2 BNC), AC INPUT (J3 IEC), power rating 115VAC 1-phase 47-63Hz 1A fuse, and AC ON/OFF switch SW1
  • Internal view of 3dbm 70MDF-DAT-GLW rackmount unit with top cover removed showing three module bays with PCBs, power supply boards, and RF components including coaxial interconnects
  • Close-up of WV Communications RF/IF Demodulator sub-assembly inside the unit, label reads P/N RF/IF-DEM-PANAM S/N 101, with SMA connectors labeled LO IN, RF IN, IF OUT, GND, and +12V
  • 3dbm, INC 70MDF-DAT-GLW FM Modulator Rackmount Unit w/WV Communications Modules
  • 3dbm, INC 70MDF-DAT-GLW FM Modulator Rackmount Unit w/WV Communications Modules
  • 3dbm, INC 70MDF-DAT-GLW FM Modulator Rackmount Unit w/WV Communications Modules
  • 3dbm, INC 70MDF-DAT-GLW FM Modulator Rackmount Unit w/WV Communications Modules
  • 3dbm, INC 70MDF-DAT-GLW FM Modulator Rackmount Unit w/WV Communications Modules
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

3dbm 70MDF-DAT-GLW FM Modulator Rackmount 70-01FM-CH 70-01FD-CH 50AT-1-2R

Rack-mount FM modulation and demodulation unit designed for satellite ground station applications. Combines dual-channel FM modulator, FM demodulator, and RF attenuator modules in a single 19-inch rackmount chassis.

Specifications & What's Included

  • Model: 70MDF-DAT-GLW; Manufacturer: 3dbm, Inc.
  • Includes: WV Communications FM Modulator (70-01FM-CH), FM Demodulator (70-01FD-CH), 3dbm RF Attenuator (50AT-1-2R)
  • RF Input Frequency: 69.6 MHz / 70.0 MHz selectable
  • Power: 115 VAC, 1-phase, 47–63 Hz, 1A fuse
  • Connectors: BNC (RF/tone), DB-9, IEC AC inlet
  • Status indicators: AC PWR ON (green LED), FAULT (red LED) per module

Applications

FM modulators and demodulators are core components in satellite ground station equipment for uplink and downlink signal processing. This unit is typical of systems used in fixed satellite service (FSS) and other telecom infrastructure where RF signal conversion and attenuation are required. WV Communications modules are established in professional ground station installations.

Condition: Used
This 3dbm 70MDF-DAT-GLW FM Modulator Rackmount Unit with WV Communications modules has been inspected and is in good used condition. It was pulled from a working satcom environment where it was actively in use and functional. The chassis and front panels show light surface wear consistent with normal rack service life, but the unit is clean overall with no significant damage. All three modules — the WV Communications FM modulator (70-01FM-CH), FM demodulator (70-01FD-CH), and 3dbm RF attenuator (50AT-1-2R) — are present and installed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
3dbm, Inc.
Model:
70MDF-DAT-GLW
MPN:
70MDF-DAT-GLW
Type:
FM Modulator/Demodulator Rackmount Unit
SKU:
39422
Form Factor:
Rack Mount
Included Module 1:
WV Communications FM Modulator – 70-01FM-CH
Included Module 2:
WV Communications FM Demodulator – 70-01FD-CH
Included Module 3:
3dbm RF Attenuator – 50AT-1-2R
RF Input Frequency:
69.6 MHz / 70.0 MHz selectable
Power Requirements:
115 VAC, 1-Phase, 47-63 Hz, 1A Fuse SB
Interface / Connectors:
BNC (RF/Tone), DB-9 (J4), IEC AC inlet
RF Attenuator Channels:
2 (FM Modulator 1 & FM Modulator 2 RF Attenuation)
Internal Sub-Assembly:
WV Communications RF/IF Demodulator, P/N RF/IF-DEM-PANAM
Indicators:
AC PWR ON (green LED), FAULT (red LED) per module
Application:
Satellite ground station FM modulation/demodulation
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes 3 modules: 70-01FM-CH, 70-01FD-CH, 50AT-1-2R
Country/Region of Manufacture:
United States
Condition Notes:
3dbm 70MDF-DAT-GLW FM Modulator Rackmount with WV Communications modules 70-01FM-CH, 70-01FD-CH & 3dbm 50AT-1-2R. Pulled from a working satcom environment, in use and functional. Inspected; good used condition.
