3dbm 70MDF-DAT-GLW Dual-Channel 70MHz FM Satcom Signal Modulator 19" Rack

(No reviews yet) Write a Review
SKU:
39334
MPN:
70MDF-DAT-GLW
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
  • 3dbm 70MDF-DAT-GLW dual-channel satcom modulator front panel view showing three plug-in modules in 19-inch rack chassis

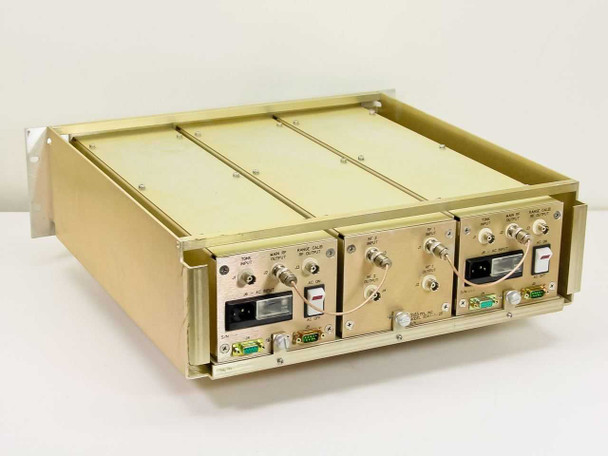

  • 3dbm 70MDF-DAT-GLW rear panel view showing BNC connectors, IEC AC input, DB9 serial ports, and AC power switch on two modulator plug-ins

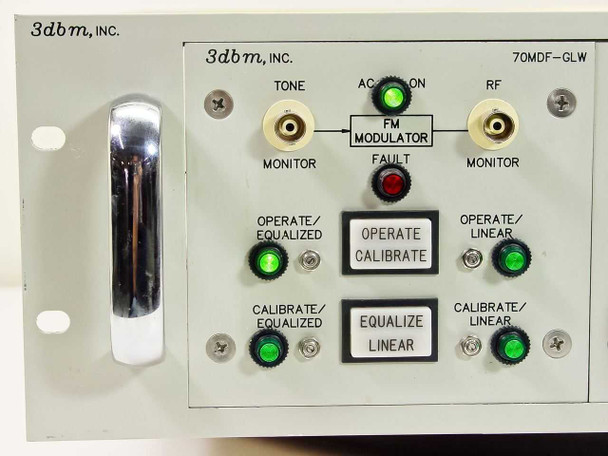

  • Close-up of 3dbm 70MDF-GLW plug-in front panel showing FM Modulator block diagram, Tone and RF BNC connectors, Operate/Calibrate and Equalize/Linear buttons, and LED indicators

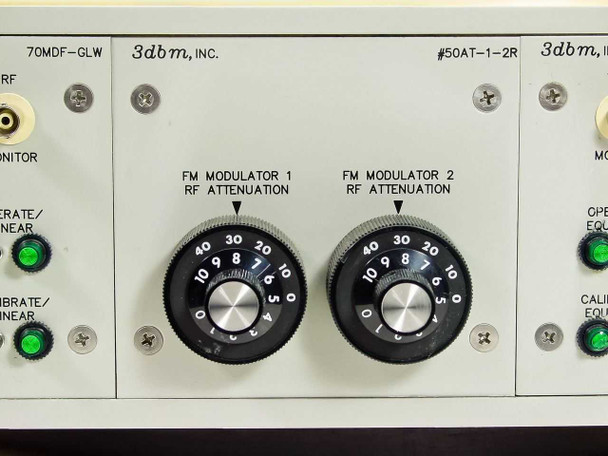

  • Center section of 3dbm chassis showing 50AT-1-2R dual attenuator plug-in with two rotary RF attenuation knobs labeled FM Modulator 1 and FM Modulator 2 RF Attenuation

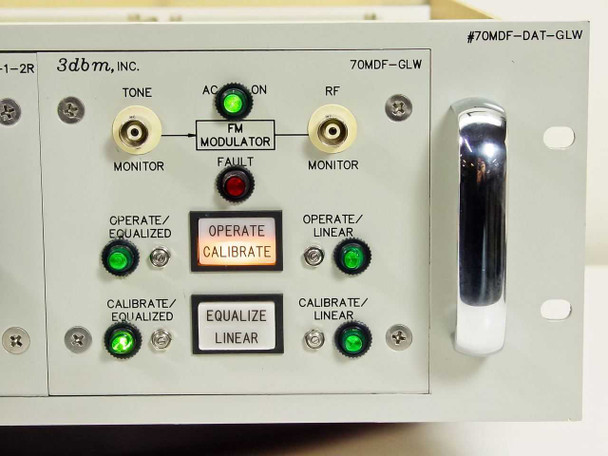

  • Close-up of second 3dbm 70MDF-GLW plug-in front panel showing #70MDF-DAT-GLW chassis label, FM Modulator indicators, Operate/Calibrate button illuminated amber, and green LED status lights

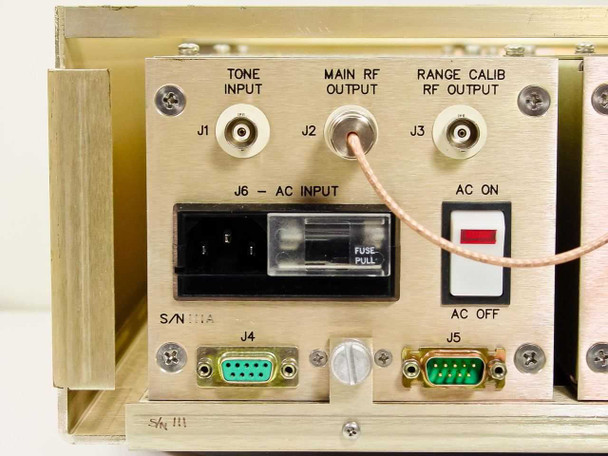

  • Rear panel of 3dbm 70MDF-GLW modulator plug-in showing Tone Input J1, Main RF Output J2, Range Calib RF Output J3 BNC connectors, IEC AC input J6 with fuse pull, AC ON/OFF switch, and DB9 serial connectors J4 and J5

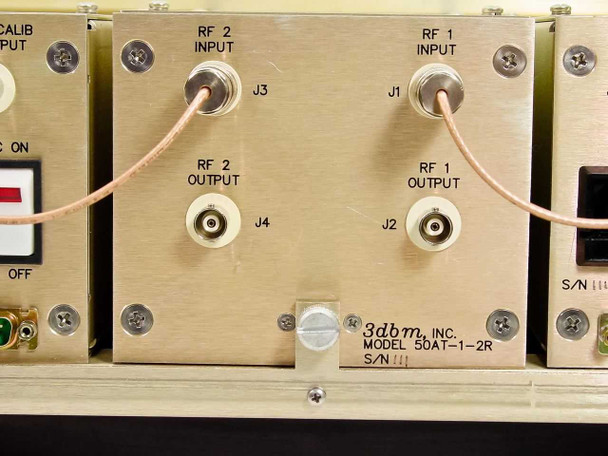

  • Rear panel of 3dbm 50AT-1-2R dual attenuator plug-in showing RF 1 Input J1, RF 1 Output J2, RF 2 Input J3, RF 2 Output J4 BNC connectors and 3dbm model label

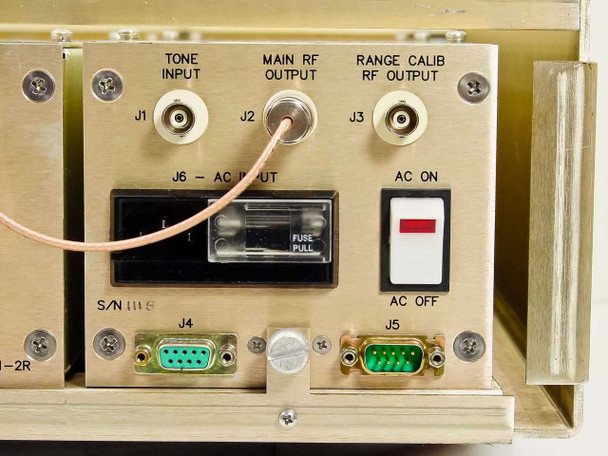

  • Second 3dbm 70MDF-GLW modulator plug-in rear panel showing identical BNC connector layout, IEC AC input with fuse pull, AC ON/OFF rocker switch, and DB9 serial connectors

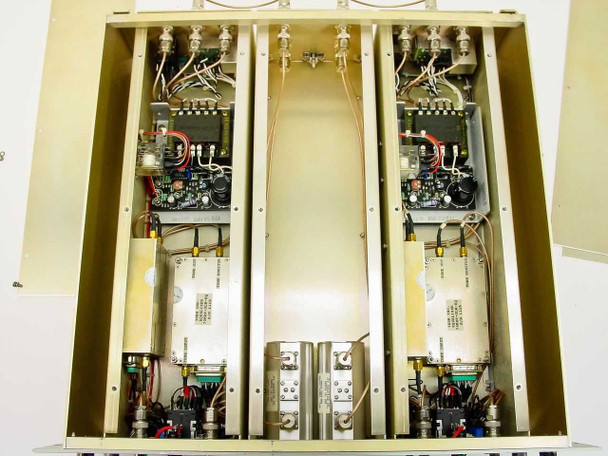

  • Interior top-down view of 3dbm 70MDF-DAT-GLW chassis with top cover removed showing two modulator assemblies with circuit boards, shielded RF modules, and internal wiring

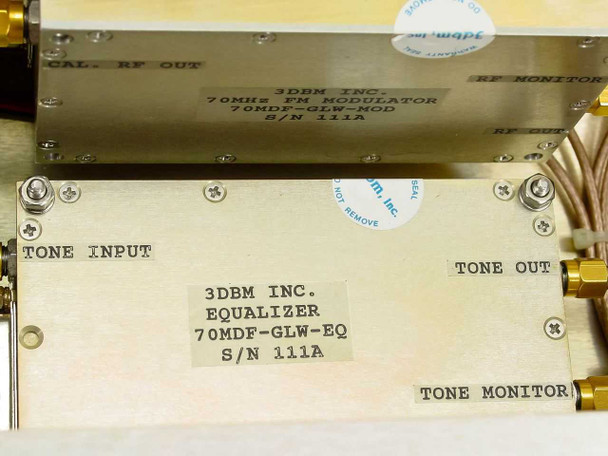

  • Close-up of internal 3dbm sub-assembly labels: 70MDF-GLW-MOD 70MHz FM Modulator and 70MDF-GLW-EQ Equalizer modules with Tone Input, Tone Out, Tone Monitor, and CAL RF Out connections visible
  • 3dbm 70MDF-DAT-GLW Dual-Channel RF Satcom Signal Modulator - 19" Chassis
$375.00
Was: $750.00
Current Stock: 2

Sold Out

Description

3dbm 70MDF-DAT-GLW Dual-Channel 70MHz FM Satcom Signal Modulator 19" Rack

A dual-channel 70MHz FM satcom signal modulator in 19" rack-mount form factor. This unit modulates baseband signals onto a 70MHz carrier for satellite ground station uplink applications.

Specifications & What's Included

  • Model: 70MDF-DAT-GLW (70MDF-GLW / 50AT-1-2R)
  • Dual-channel 70MHz FM modulator with dual RF attenuator module
  • Two 3dbm 70MDF-GLW FM Modulator plug-ins and one 50AT-1-2R Dual RF Attenuator plug-in
  • BNC RF connectors (Tone In, Main RF Out, Range Calib RF Out)
  • DB9 RS-232 serial control interface
  • IEC C14 AC power input with fuse pull
  • Front panel switches: Operate/Calibrate, Equalize/Linear; rotary RF attenuators

Applications

This modulator type was deployed in satellite ground stations and satcom uplink facilities for modulating signals onto 70MHz intermediate frequency carriers. Common in telecom and data transmission systems interfacing with satellite transponders. Typically used in conjunction with upconverters and high-power amplifiers for ground-to-satellite signal transmission.

Condition: Used
This 3dbm 70MDF-DAT-GLW dual-channel 70MHz FM satcom signal modulator has been inspected and is in good condition. It was pulled from a working environment where it was in active use and functional. The chassis and all three plug-in modules — two 70MDF-GLW FM modulators and one 50AT-1-2R dual RF attenuator — are present and show normal wear consistent with field use. Front panel LED indicators, rotary attenuators, and push-button controls are all intact. Rear-panel BNC connectors, IEC AC inlets, and DB9 serial ports appear clean and undamaged. Some light surface scuffing is visible on the chassis exterior. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
3dbm Inc.
Model:
70MDF-DAT-GLW
MPN:
70MDF-DAT-GLW
Secondary Model:
70MDF-GLW / 50AT-1-2R
Type:
Dual-Channel 70MHz FM Satcom Signal Modulator
SKU:
39334
Condition:
Used – Pulled from Working Environment
Form Factor:
19" Rack Mount Chassis
Number of Channels:
2
Modulation Type:
FM (Frequency Modulation)
Center Frequency:
70 MHz
Plug-In Module 1:
3dbm 70MDF-GLW FM Modulator
Plug-In Module 2:
3dbm 50AT-1-2R Dual RF Attenuator
Plug-In Module 3:
3dbm 70MDF-GLW FM Modulator
Internal Sub-Assembly 1:
3DBM INC. 70MDF-GLW-MOD 70MHz FM Modulator
Internal Sub-Assembly 2:
3DBM INC. 70MDF-GLW-EQ Equalizer
RF Connector Type:
BNC (Tone In, Main RF Out, Range Calib RF Out)
Serial Interface:
DB9 (J4, J5 — RS-232 control)
AC Power Connector:
IEC C14 (J6 – AC Input) with fuse pull
Front Panel Controls:
Operate/Calibrate, Equalize/Linear switches; LED indicators
RF Attenuation Control:
Dual rotary attenuators: FM Modulator 1 & 2 RF Attenuation
Rear Connections per Module:
Tone Input (J1), Main RF Output (J2), Range Calib RF Out (J3)
Attenuator Module Ports:
RF 1 In (J1), RF 1 Out (J2), RF 2 In (J3), RF 2 Out (J4)
Application:
Satellite Ground Station / Satcom Uplink Signal Modulation
Seller Notes:
Includes 19" chassis with two 70MDF-GLW modulator plug-ins and one 50AT-1-2R dual attenuator plug-in.
Country/Region of Manufacture:
United States
Condition Notes:
3dbm 70MDF-DAT-GLW dual-channel 70MHz FM satcom modulator. Inspected, in good condition. Pulled from a working environment where it was in active use and functional. All three plug-ins present. Please view photos and contact us with questions.
