3dbm Inc 70MDF-BRZ 70MHz FM Modulator RF Monitor Tone Monitor Satcom

(No reviews yet) Write a Review
SKU:
39377
MPN:
70ndf-brz
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

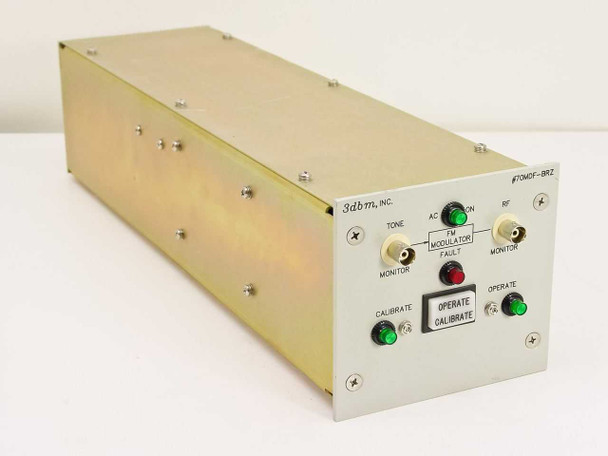

  • 3dbm Inc 70MDF-BRZ FM Modulator – front-right three-quarter view showing front panel with Tone Monitor, RF Monitor, FM Modulator Fault indicator, and Operate/Calibrate controls

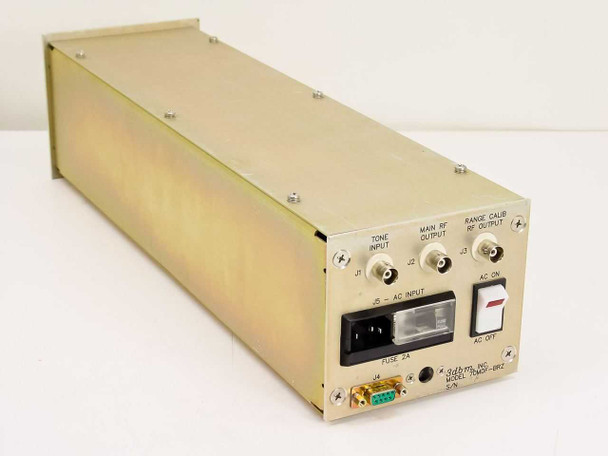

  • 3dbm Inc 70MDF-BRZ FM Modulator – rear-left three-quarter view showing IEC AC input, fuse holder, AC ON/OFF switch, BNC connectors, and DB9 port
  • 3dbm Inc 70MDF-BRZ – close-up of manufacturer label showing brand '3dbm Inc', model '70MDF-BRZ', and serial number field

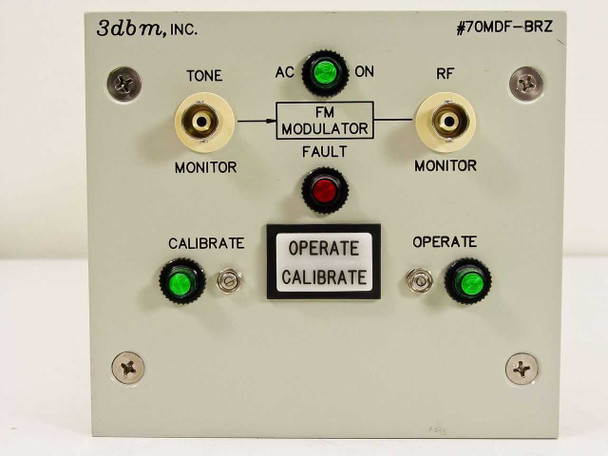

  • 3dbm Inc 70MDF-BRZ – front panel close-up showing Tone Monitor (BNC), RF Monitor (BNC), FM Modulator block, Fault indicator, Calibrate and Operate push-buttons

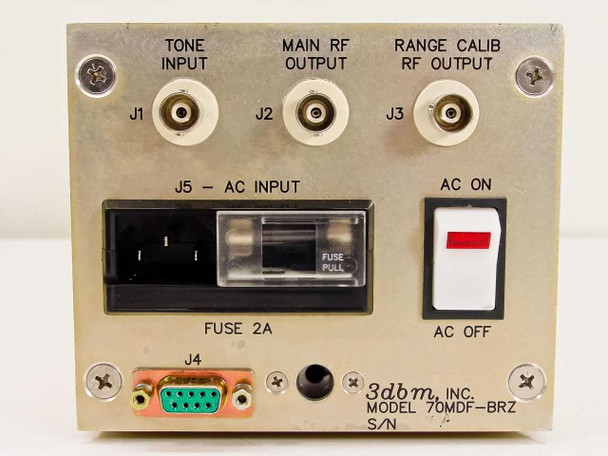

  • 3dbm Inc 70MDF-BRZ – rear panel close-up showing J1 Tone Input, J2 Main RF Output, J3 Range Calib RF Output (all BNC), J4 DB9 connector, J5 AC Input, 2A fuse, and AC ON/OFF switch

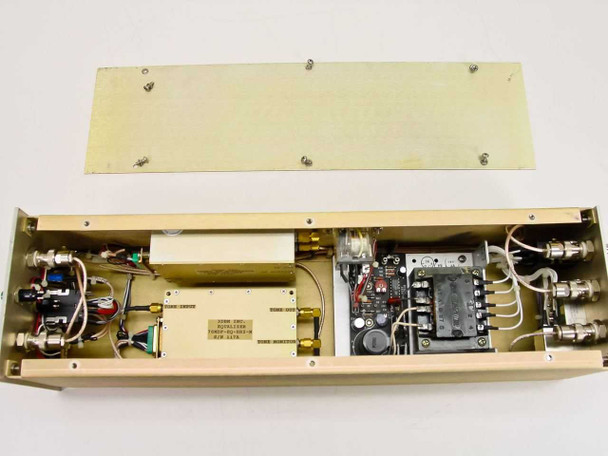

  • 3dbm Inc 70MDF-BRZ – interior view with top cover removed, showing internal PCB assemblies, cabling, and the 70MDF-EQ-BRZ-M equalizer module

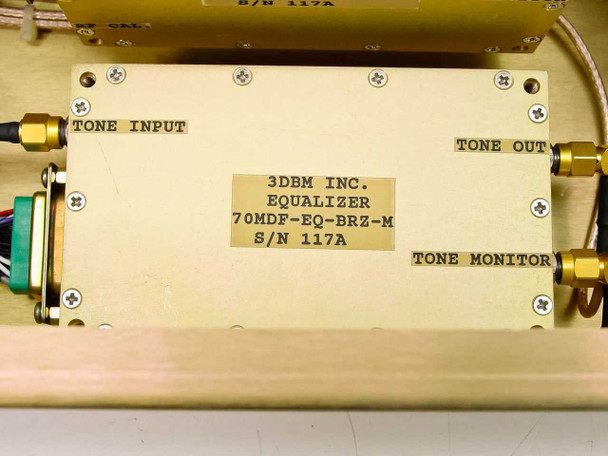

  • 3dbm Inc 70MDF-BRZ – interior close-up of internal equalizer module labeled '3DBM INC EQUALIZER 70MDF-EQ-BRZ-M S/N 117A' with Tone Input, Tone Out, and Tone Monitor SMA connectors

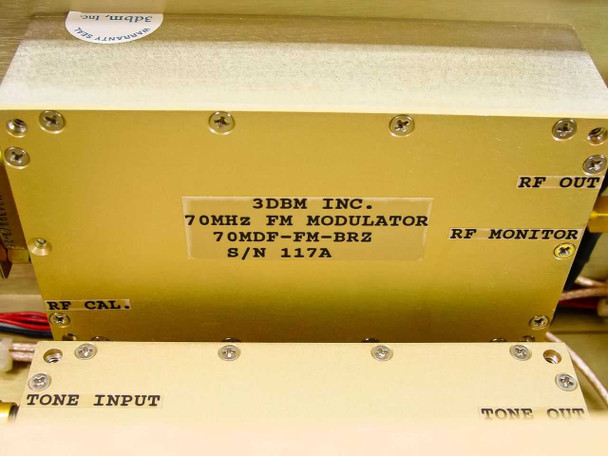

  • 3dbm Inc 70MDF-BRZ – interior close-up of FM modulator sub-assembly labeled '3DBM INC 70MHz FM MODULATOR 70MDF-FM-BRZ S/N 117A' with RF OUT, RF Monitor, RF CAL, and Tone Input connectors
$325.00
Was: $650.00
Current Stock: 2

Sold Out

Description

3dbm Inc 70MDF-BRZ 70MHz FM Modulator RF Monitor Tone Monitor Satcom

70MHz FM modulator with integrated RF monitor and tone monitor capabilities. Designed for satellite communications IF modulation with internal equalizer module. Operates on AC power with front-panel Operate/Calibrate switch and fault indication.

Specifications & What's Included

  • Model: 70MDF-BRZ (includes internal 70MDF-EQ-BRZ-M equalizer)
  • Center Frequency: 70 MHz FM modulation
  • Connectors: BNC (tone input, main RF output, range calib output), SMA, DB9
  • Front Panel: Tone Monitor, RF Monitor, FM Modulator Fault indicator, Operate/Calibrate switch
  • Power: AC input (IEC inlet, 2A fused)
  • Form Factor: Benchtop/rack module

Applications

Used in satellite ground stations and satcom uplink systems for intermediate frequency signal modulation. Typical deployment in telecom and aerospace RF environments where 70MHz IF chains are standard. Compatible with modular satcom racks and monitoring systems requiring integrated tone and RF signal observation.

Condition: Used
This 3dbm Inc 70MDF-BRZ 70MHz FM Modulator has been inspected and is in good used condition. It was pulled from a working satcom environment where it was actively in use and functional. The gold-anodized aluminum enclosure shows light surface wear consistent with field use. All front-panel controls, indicators, and BNC monitor ports appear intact. The rear panel connectors — including the BNC RF outputs, DB9 interface port, IEC AC input, and fuse holder — are in good shape with no visible damage. The internal 70MDF-EQ-BRZ-M equalizer sub-assembly and 70MDF-FM-BRZ modulator module are present and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
3dbm Inc
Model:
70MDF-BRZ
MPN:
70MDF-BRZ
Secondary Model:
70MDF-FM-BRZ
Type:
FM Modulator with RF Monitor and Tone Monitor
SKU:
39377
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes internal 70MDF-EQ-BRZ-M equalizer module
Center Frequency:
70 MHz
Modulation Type:
FM (Frequency Modulation)
Connector Type:
BNC, SMA, DB9
Rear Connectors:
J1 Tone Input (BNC), J2 Main RF Output (BNC), J3 Range Calib RF Output (BNC), J4 DB9, J5 AC Input
Front Panel Features:
Tone Monitor, RF Monitor, FM Modulator Fault indicator, Operate/Calibrate switch
Fuse Rating:
2A
Power Input:
AC (IEC inlet, fused 2A)
Form Factor:
Benchtop / Rack Module
Internal Module:
3dbm Inc Equalizer 70MDF-EQ-BRZ-M
Application:
Satellite Communications (Satcom) IF Modulation
Country/Region of Manufacture:
United States
Condition Notes:
3dbm Inc 70MDF-BRZ 70MHz FM Modulator in good used condition. Pulled from a working satcom environment where it was in use and functional. Enclosure shows light wear. All connectors and controls intact.
View AllClose

Related Products

Related Products

3dbm 70MDF-DAT-BRZ dual port RF satcom FM modulator plugin chassis – front panel overview with three installed plugin modules 3dbm 70MDF-BRZ FM modulator plugin front panel close-up showing Tone, RF monitor BNC connectors, FM Modulator indicator, Operate/Calibrate switch, and green status LEDs
Add to Cart
Quick view

3dbm 70MDF-DAT-BRZ Dual Port RF AM Satcom FM Modulator Plugin Chassis 70MDF-BRZ

3dbm

$425.00
Was: $850.00
3dbm 70MDF-DAT-BRZ Dual Port RF AM Satcom FM Modulator Plugin Chassis 70MDF-BRZThe 3dbm 70MDF-DAT-BRZ is a dual-port RF AM satcom modulator system built around a rackmount plugin chassis manufactured...
39328
SKU:
39328
Availability:
Usually ships within 1–2 business days.
Weight:
35.00 LBS
Brand:
3dbm Inc.
Model:
70MDF-DAT-BRZ
MPN:
70MDF-DAT-BRZ
Secondary Model:
70MDF-BRZ
SKU:
39328
Type:
Dual Port RF AM Satcom FM Modulator Plugin Chassis
Condition:
Used – Inspected and Tested
Plugin 1 Model:
70FMO-DL-1-3-A-1 FM Modulator
Plugin 2 Model:
50AT-1-2R RF Attenuator
Plugin 3 Model:
70MDF-BRZ FM Modulator/Controller
Included Component:
JFW Industries 50DR-003 RF component (internal)
Form Factor:
Rackmount Plugin Chassis
Number of Plugin Slots:
3
Signal Type:
RF AM / FM
Application:
Satellite Communications (Satcom) Uplink
Rear Connectors - FM Modulator:
BNC RF Out (J5), BNC MOD IN (J6), DB9 Status (J7), AC Power (J8)
Rear Connectors - Attenuator:
BNC RF1 Input (J1), BNC RF1 Output (J2), BNC RF2 Input (J3), BNC RF2 Output (J4)
Rear Connectors - Main Module:
BNC Tone Input (J1), BNC Main RF Output (J2), BNC Range Calib RF Output (J3), DB9 (J4)
Power Requirements:
105–125 VAC, 60 Hz; Fuse 2A
Front Panel Controls:
Operate/Calibrate switch, RF attenuation knobs (FM Mod 1 & 2), indicators
RF Attenuation Range:
0–40 dB (per FM Modulator attenuator dial)
Country/Region of Manufacture:
United States
Compatible With:
Satcom Uo Upconverter, RF Amplifier systems
Seller Notes:
Chassis with three installed plugin modules as described. Tested working.
Condition Notes:
3dbm 70MDF-DAT-BRZ Satcom FM Modulator Plugin Chassis tested and confirmed working with a compatible Uo Converter and RF Amplifier. All three plugins installed. Normal wear. Unit shipped may vary from photo.

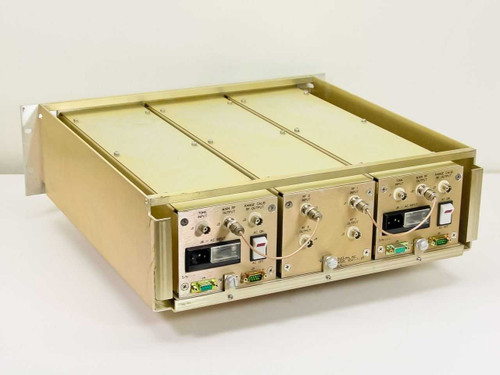

3dbm 70MDF-DAT-GLW dual-channel satcom modulator front panel view showing three plug-in modules in 19-inch rack chassis 3dbm 70MDF-DAT-GLW rear panel view showing BNC connectors, IEC AC input, DB9 serial ports, and AC power switch on two modulator plug-ins
