3dbm Inc 70FMO 70 MHz FM Command Modulator Satcom IF BNC RF Out

(No reviews yet) Write a Review
SKU:
31863
MPN:
70FMO
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout

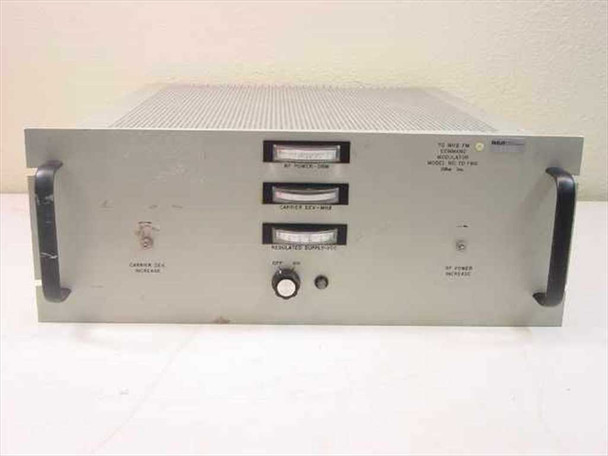

  • 3dbm Inc 70FMO 70 MHz FM Command Modulator — front panel view showing three panel meters and OFF/ON rotary switch
  • 3dbm Inc 70FMO FM Command Modulator — rear panel view showing BNC connectors, circular alarm relay connectors, IEC AC inlet, and hand-drawn wiring diagram
  • 3dbm Inc 70FMO model label — reads '3 dbm inc., Model #70FMO, S/N 103, 70MHz FM Modulator', Westlake Village CA
  • 3dbm 70FMO front panel close-up — RF Power-dBm meter, Carrier Dev-MHz meter, Regulated Supply-VDC meter, and OFF/ON rotary power switch

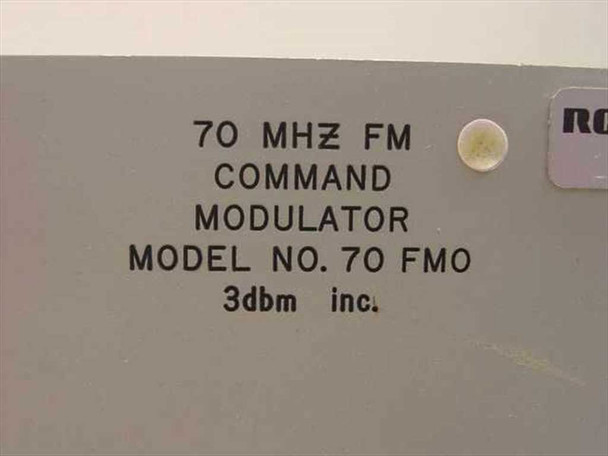

  • 3dbm 70FMO front panel label close-up — reads '70 MHZ FM COMMAND MODULATOR MODEL NO. 70 FMO, 3dbm inc.'
  • 3dbm 70FMO rear panel — Carrier Dev Increase trim pot with arrow indicator and torn label

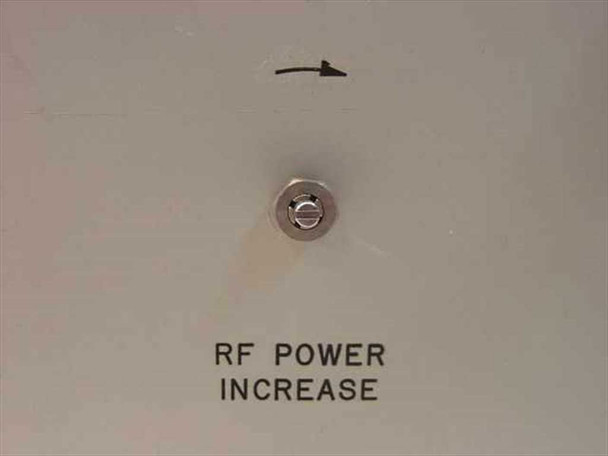

  • 3dbm 70FMO rear panel — RF Power Increase trim pot with directional arrow
  • 3dbm 70FMO side panel — RF OUT BNC connector (top), FM Mod In BNC connector (bottom), and Freq Adj trim
  • 3dbm 70FMO rear panel — IEC AC power inlet (no cord), Slo-Blo 1/2 Amp fuse holder
  • 3dbm 70FMO rear panel — Lock Alarm Out and RF Level Alarm Out circular connectors with Alarm Relays label and relay wiring diagram (Black 1, Green 6, Blue 3)
$275.00
Was: $550.00
Current Stock: 3

Sold Out

Description

3dbm Inc 70FMO 70 MHz FM Command Modulator Satcom IF BNC RF Out

The 3dbm Inc model 70FMO is a 70 MHz FM Command Modulator designed for satellite ground station and satcom uplink applications. Built by 3dbm Inc. of Westlake Village, California, it generates and controls an FM-modulated 70 MHz intermediate frequency (IF) signal used in satellite communication command chains. The front panel provides direct readout of RF output power (in dBm), carrier deviation (in MHz), and regulated supply voltage (VDC) via three panel meters, with an OFF/ON rotary power switch.

Specifications & What's Included

  • Manufacturer: 3dbm Inc. (Westlake Village, CA)
  • Model: 70FMO
  • Carrier Frequency: 70 MHz
  • Modulation: FM (Frequency Modulation)
  • RF Output connector: BNC (labeled RF OUT — side panel)
  • FM Modulation Input connector: BNC (labeled FM MOD IN — side panel)
  • Frequency Adjust: rear-panel trim (Freq Adj)
  • Carrier Deviation Adjust: rear-panel trim pot (Carrier Dev Increase)
  • RF Power Adjust: rear-panel trim pot (RF Power Increase)
  • Front-panel meters: RF Power (dBm), Carrier Deviation (MHz), Regulated Supply (VDC)
  • Alarm outputs: Lock Alarm Out and RF Level Alarm Out via circular multi-pin connectors (rear panel)
  • Alarm relays: relay contact wiring shown on rear-panel diagram (Black 1 / Green 6 / Blue 3)
  • Fuse: 1/2 Amp Slo-Blo (rear panel)
  • AC power inlet: IEC-style (rear panel)
  • Form factor: Rackmount
  • No power cord included

Applications

The 70FMO is a 70 MHz IF FM modulator of the type used in satellite ground stations for command uplink chains. In a typical satcom ground station, a command modulator like this takes a baseband command signal at the FM Mod In port and produces an FM-modulated 70 MHz IF output that is then upconverted to the satellite uplink frequency (C-band, Ku-band, or similar) by a separate block upconverter. The 70 MHz IF standard was widely adopted in the satellite industry as a common interface point between baseband/command equipment and the RF upconverter chain. Units of this type were used in telemetry, tracking, and command (TT&C) stations and smaller dedicated command uplink systems from the 1970s through the 1990s. The onboard alarm relay outputs allow integration with station monitoring or supervisory control systems, triggering on loss of carrier lock or RF level drop. 3dbm Inc. produced specialized satcom ground station equipment for professional and government applications during this era.

Condition: Used
This 3dbm Inc 70FMO 70 MHz FM Command Modulator has been inspected and appears to be in good used condition. The chassis and front panel show typical surface wear consistent with bench or rack use, including light scuffing on the top cover. The three front-panel meters (RF Power, Carrier Deviation, and Regulated Supply) and the OFF/ON rotary switch are intact. BNC connectors on the side panel appear in usable shape. There is some torn/peeled label material visible near the Carrier Dev Increase trim on the rear panel, and light surface marks on the rear. No power cord is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
3dbm Inc
Model:
70FMO
MPN:
70FMO
Type:
FM Command Modulator
SKU:
31863
Frequency:
70 MHz
Modulation Type:
FM (Frequency Modulation)
RF Output Connector:
BNC
FM Modulation Input Connector:
BNC
Panel Meters:
RF Power (dBm), Carrier Deviation (MHz), Regulated Supply (VDC)
Alarm Outputs:
Lock Alarm Out, RF Level Alarm Out (circular multi-pin connectors)
Alarm Relays:
Yes — relay contacts wired per rear-panel diagram
Carrier Deviation Adjust:
Rear-panel trim pot (Carrier Dev Increase)
RF Power Adjust:
Rear-panel trim pot (RF Power Increase)
Frequency Adjust:
Rear-panel trim (Freq Adj)
Fuse:
1/2 Amp Slo-Blo
Form Factor:
Rackmount
Power Requirements:
AC mains (IEC inlet, no power cord included)
Seller Notes:
No power cord included. Unit is sold as pictured.
Country/Region of Manufacture:
United States
Application:
Satellite ground station IF modulation, satcom uplink
Condition Notes:
3dbm Inc 70FMO 70 MHz FM Command Modulator. Inspected and in good used condition. Front-panel meters and rotary switch intact. BNC connectors usable. No power cord included. Surface wear on chassis.
View AllClose

Related Products

Related Products

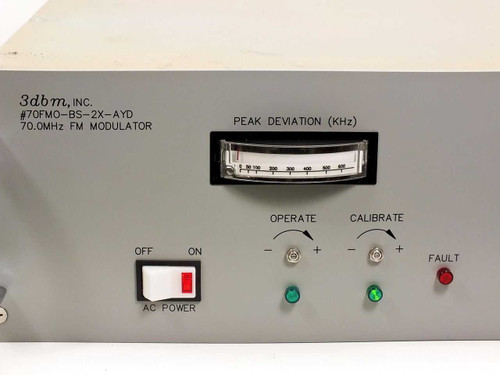

3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator – front panel view showing Peak Deviation meter, Operate/Calibrate switch, and AC power switch 3dbm Inc. 70FMO-BS-2X-AYD 70.0 MHz FM Modulator – close-up of front panel label, Peak Deviation (kHz) analog meter, Operate and Calibrate controls, and Fault LED
Add to Cart
Quick view

3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator Rackmount 115/230VAC BNC RF Out

3dbm

$250.00
Was: $500.00
3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator Rackmount 115/230VAC BNC RF OutThe 3dbm Inc. 70FMO-BS-2X-AYD is a rack-mounted 70 MHz FM modulator designed for satellite communications uplink chains. Built...
45323
SKU:
45323
Availability:
Usually ships within 1-2 business days.
Weight:
18.00 LBS
Brand:
3dbm
Model:
70FMO-BS-2X-AYD
MPN:
70FMO-BS-2X-AYD
Type:
FM Modulator
SKU:
45323
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included. See photos for condition details.
Country/Region of Manufacture:
United States
Form Factor:
Rack Mount
Power Requirements:
115/230VAC, 1-Phase, 47-63Hz
Fuse Rating:
115V: 1A / 230V: 0.5A SB
Output Frequency:
70 MHz
Modulation Type:
FM (Frequency Modulation)
RF Output Connector:
BNC (J1 – RF Out)
FM Mod Input Connector:
BNC (J2 – FM Mod In)
Operate/Calibrate Connector:
DB9 (J4 – Operate/Calibrate Select)
Alarm Output Connector:
Terminal block J3 – Common, N.O., N.C.
RF Monitor Output:
BNC (front panel)
Voltage Monitor Output:
Banana jacks – GND and +15V (front panel)
Front Panel Controls:
AC Power switch, Operate/Calibrate switch, Fault LED
Peak Deviation Meter:
Analog meter, kHz scale (front panel)
Internal Assembly:
Two 3dbm sub-modules: Relay Enclosure + 70MHz FM Modulator
PCB Assembly:
ASSY.50886 (BD.50113L power board)
Manufacturer Location:
Camarillo, CA
Condition Notes:
This 3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator is in good used condition. Pulled from a working environment where it was in use and functional. Front panel and rear connectors show light rack wear. Please contact us with any questions.

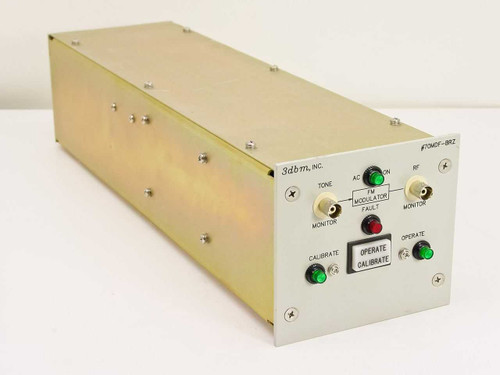

3dbm Inc 70MDF-BRZ FM Modulator – front-right three-quarter view showing front panel with Tone Monitor, RF Monitor, FM Modulator Fault indicator, and Operate/Calibrate controls 3dbm Inc 70MDF-BRZ FM Modulator – rear-left three-quarter view showing IEC AC input, fuse holder, AC ON/OFF switch, BNC connectors, and DB9 port
Add to Cart
Quick view

3dbm Inc 70MDF-BRZ 70MHz FM Modulator RF Monitor Tone Monitor Satcom

3dbm Inc.

$325.00
Was: $650.00
3dbm Inc 70MDF-BRZ 70MHz FM Modulator RF Monitor Tone Monitor Satcom70MHz FM modulator with integrated RF monitor and tone monitor capabilities. Designed for satellite communications IF modulation...
39377
SKU:
39377
Availability:
Usually ships within 1–2 business days.
Weight:
7.00 LBS
Brand:
3dbm Inc
Model:
70MDF-BRZ
MPN:
70MDF-BRZ
Secondary Model:
70MDF-FM-BRZ
Type:
FM Modulator with RF Monitor and Tone Monitor
SKU:
39377
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes internal 70MDF-EQ-BRZ-M equalizer module
Center Frequency:
70 MHz
Modulation Type:
FM (Frequency Modulation)
Connector Type:
BNC, SMA, DB9
Rear Connectors:
J1 Tone Input (BNC), J2 Main RF Output (BNC), J3 Range Calib RF Output (BNC), J4 DB9, J5 AC Input
Front Panel Features:
Tone Monitor, RF Monitor, FM Modulator Fault indicator, Operate/Calibrate switch
Fuse Rating:
2A
Power Input:
AC (IEC inlet, fused 2A)
Form Factor:
Benchtop / Rack Module
Internal Module:
3dbm Inc Equalizer 70MDF-EQ-BRZ-M
Application:
Satellite Communications (Satcom) IF Modulation
Country/Region of Manufacture:
United States
Condition Notes:
3dbm Inc 70MDF-BRZ 70MHz FM Modulator in good used condition. Pulled from a working satcom environment where it was in use and functional. Enclosure shows light wear. All connectors and controls intact.

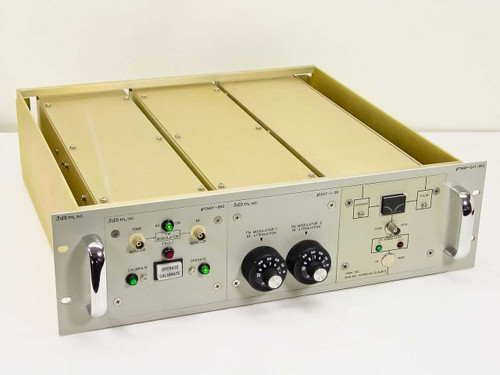

3dbm 70MDF-DAT-BRZ dual port RF satcom FM modulator plugin chassis – front panel overview with three installed plugin modules 3dbm 70MDF-BRZ FM modulator plugin front panel close-up showing Tone, RF monitor BNC connectors, FM Modulator indicator, Operate/Calibrate switch, and green status LEDs
