3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module Rackmount 70 MHz RF 105-125V

(No reviews yet) Write a Review
SKU:
39373
MPN:
70FMO-DL-1-3-A-1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
13.00 LBS
Shipping:
Calculated at Checkout

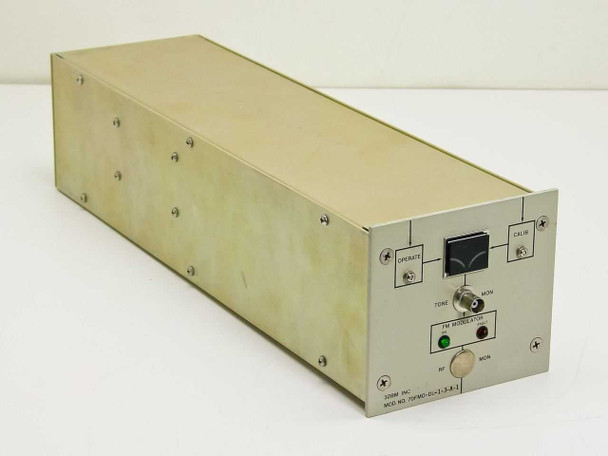

  • 3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module – front panel and right-side three-quarter view showing gold-anodized enclosure

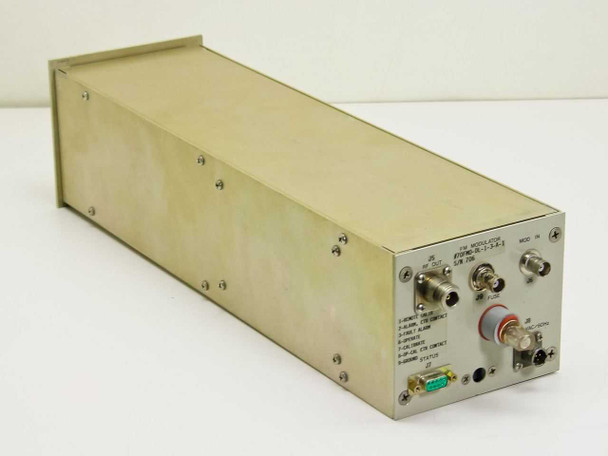

  • 3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module – rear panel three-quarter view showing BNC and DB9 connectors and power inlet

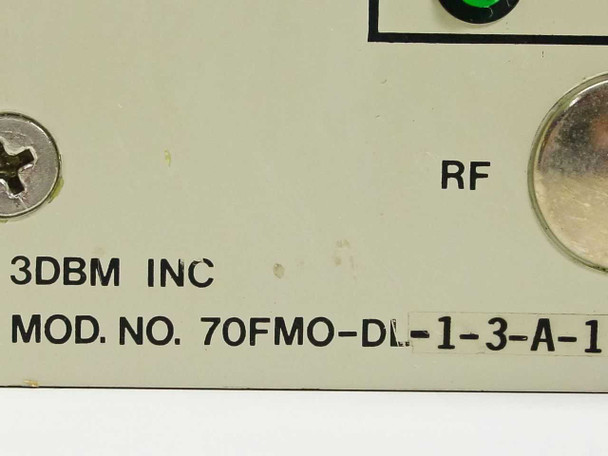

  • 3DBM Inc 70FMO-DL-1-3-A-1 close-up of model number label on rear panel reading 3DBM INC MOD. NO. 70FMO-DL-1-3-A-1

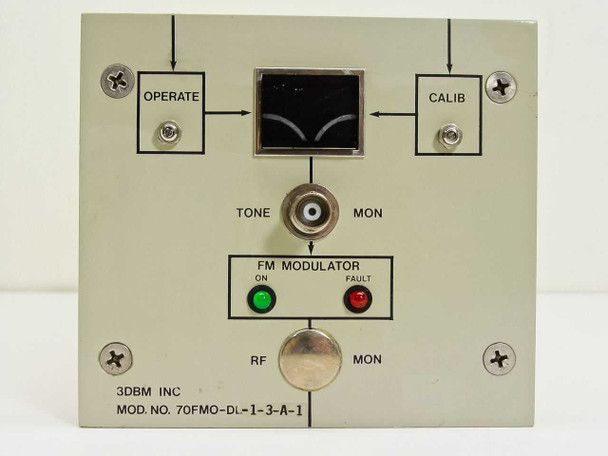

  • 3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module – front panel detail showing OPERATE and CALIB switches, meter, TONE MON BNC, FM MODULATOR ON and FAULT LEDs, and RF MON connector

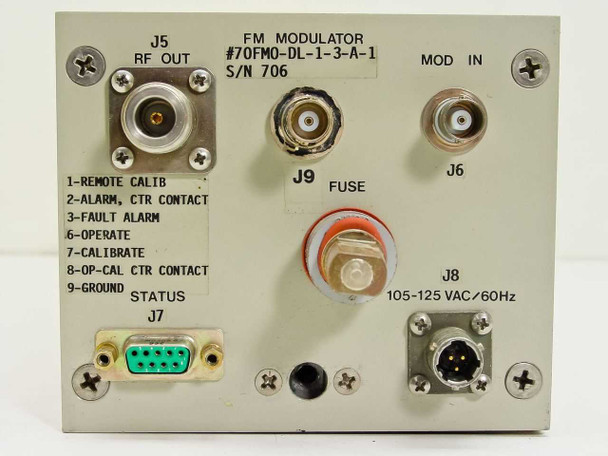

  • 3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module – rear panel detail showing J5 RF OUT BNC, J6 MOD IN BNC, J9 TONE fuse connector, J7 DB9 status port, J8 105-125VAC/60Hz power inlet, and control function label
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module Rackmount 70 MHz RF 105-125V

FM modulator module designed for rackmount integration in broadcast and telecom systems. Operates at 70 MHz RF frequency and accepts modulation input via BNC connectors.

Specifications & What's Included

  • Model: 70FMO-DL-1-3-A-1
  • Frequency: 70 MHz
  • Power Requirements: 105-125 VAC, 60 Hz
  • RF Output: BNC (J5)
  • Modulation Input: BNC (J6)
  • Monitor Output: BNC (J9)
  • Status/Control: DB9 interface with remote calibration, alarm control, and fault monitoring
  • Front Panel: OPERATE/CALIB switches, meter display, ON and FAULT indicators
  • Form Factor: Rackmount module

Applications

FM modulator modules of this type are used in broadcast transmission systems, telecom infrastructure, and RF distribution networks. The 70 MHz intermediate frequency is typical for modular broadcast equipment and cable television headend systems. These modules serve as building blocks in larger rackmount systems for signal processing and frequency conversion.

Condition: Used
This 3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The gold-anodized aluminum enclosure shows light surface wear and minor discoloration consistent with normal rack service life. Front panel controls, switches, and indicators are intact. Rear connectors — including the BNC RF OUT, BNC MOD IN, DB9 status port, and power inlet — all appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
3DBM Inc
Model:
70FMO-DL-1-3-A-1
MPN:
70FMO-DL-1-3-A-1
Type:
FM Modulator Module
SKU:
39373
Form Factor:
Rackmount Module
Frequency:
70 MHz
Power Requirements:
105-125 VAC, 60 Hz
RF Output Connector:
BNC (J5 – RF OUT)
Modulation Input Connector:
BNC (J6 – MOD IN)
Monitor Output Connector:
BNC (J9 – TONE MON)
Status/Control Interface:
DB9 (J7 – Status)
Control Functions:
Remote Calib, Alarm CTR Contact, Fault Alarm, Operate, Calibrate, OP-CAL CTR Contact, Ground
Front Panel Indicators:
FM Modulator ON (green LED), FAULT (red LED)
Front Panel Controls:
OPERATE switch, CALIB switch, meter display
Condition:
Used – Pulled from Working Environment
Seller Notes:
Module only; pulled from a working rackmount system environment.
Country/Region of Manufacture:
United States
Condition Notes:
3DBM Inc 70FMO-DL-1-3-A-1 FM Modulator Module. Inspected, in good used condition. Pulled from a working environment where it was in active use. Enclosure shows light surface wear. Connectors and controls intact.
