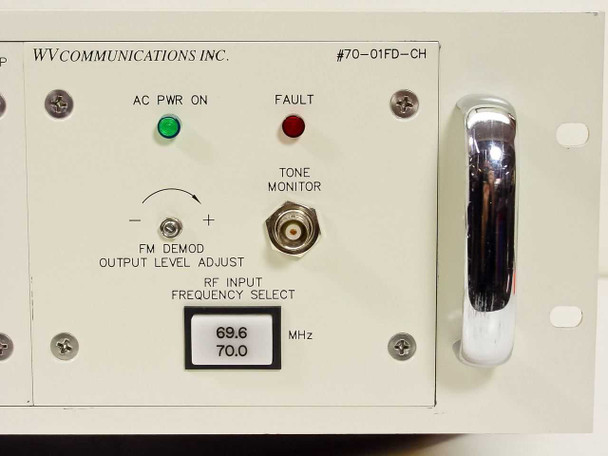

  • Close-up of WV Communications 70-01FD-CH RF/IF Demodulator module front panel showing AC PWR ON and FAULT LEDs, FM Demod Output Level Adjust, Tone Monitor BNC, and RF Input Frequency Select switch at 69.6/70.0 MHz
  • Rear panel of RF/IF Demodulator module showing J1 RF Input BNC, J4 DB9, J2 Tone Output BNC, J3 IEC AC input with fuse holder rated 115VAC 1-phase 47-63Hz 1A SB, and SW1 AC ON/OFF rocker switch
  • Rear panel center bay cover plate labeled WV Communications #BP with gold-anodized finish — blank/bypass panel for unused module slot
  • Rear panel of FM Modulator module showing J1 Tone Input BNC, J4 DB9, J2 RF Output BNC, J3 IEC AC input rated 115 VAC 1-phase 47-63Hz 1A fuse, and SW1 AC rocker switch with WV Communications model label
  • Interior top-down view of WV Communications 70-01FD-CH chassis with top cover removed, showing internal PCBs, power supply boards, and RF subassemblies in both module bays
  • Close-up label on WV Communications 70 MHz FM Modulator subassembly reading: 70MHZ FM MODULATOR, part number 70MDF-FM-BRZ, S/N 122, with WV Communications QC warranty sticker
  • WV Communications 70-01FD-CH 19" Rackmountable Chassis with Two Modules Inside
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

WV Communications 70-01FD-CH 19" Rackmount 70 MHz FM Modulator RF/IF Demodulator

This rackmount chassis houses two modules: a 70 MHz FM modulator and an RF/IF demodulator. It converts between baseband audio signals and 70 MHz RF carriers for telecom and broadcast equipment.

Specifications & What's Included

  • 19" rackmount form factor
  • 70 MHz FM Modulator module (70MDF-FM-BRZ)
  • RF/IF Demodulator module (RF/IF-DEM-PANAM)
  • Selectable center frequency: 69.6 MHz or 70.0 MHz
  • Power: 115 VAC, 1-phase, 47-63 Hz, 1A SB fuse
  • Front panel controls: FM sensitivity and output level adjustments
  • Status LEDs: AC PWR (green), FAULT (red)
  • BNC and DB9 connectors on rear

Applications

70 MHz intermediate frequency modulators and demodulators are used in microwave and satellite communication systems, RF distribution networks, and telecom transmission equipment. This unit was designed for systems requiring FM modulation at 70 MHz, commonly found in professional broadcast and point-to-point radio links. Compatible with equipment supporting standard 70 MHz IF frequencies.

Condition: Used
This WV Communications 70-01FD-CH 19" Rackmount FM Modulator / RF-IF Demodulator Chassis has been inspected and appears to be in good condition. The gold-anodized aluminum enclosure shows light surface wear consistent with prior rack use, but there is no significant damage visible. Both installed modules — the 70 MHz FM Modulator (70MDF-FM-BRZ) and the RF/IF Demodulator (RF/IF-DEM-PANAM) — are present and seated in the chassis. The interior components, PCBs, and RF subassemblies appear intact and undamaged in the photos. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
WV Communications
Model:
70-01FD-CH
MPN:
70-01FD-CH
Secondary Model:
70-01FM-CH
Type:
19" Rackmount FM Modulator / RF-IF Demodulator Chassis
SKU:
39331
Condition:
Used – Inspected
Seller Notes:
Includes 70MDF-FM-BRZ 70 MHz FM Modulator and RF/IF-DEM-PANAM Demodulator modules
Form Factor:
19" Rackmount
Number of Modules:
2
Module 1 Part Number:
70MDF-FM-BRZ
Module 1 Description:
70 MHz FM Modulator
Module 2 Part Number:
RF/IF-DEM-PANAM
Module 2 Description:
RF/IF Demodulator
Center Frequency:
70 MHz (69.6 / 70.0 MHz selectable)
Modulation Type:
FM (Frequency Modulation)
Power Requirements:
115 VAC, 1-Phase, 47-63 Hz
Fuse Rating:
1A SB
Front Panel Indicators:
AC PWR ON (green LED), FAULT (red LED)
Front Panel Controls:
FM Modulation Sensitivity Adjust; FM Demod Output Level Adjust
RF Input Frequency Select:
69.6 MHz / 70.0 MHz
Tone Monitor Connector:
BNC (front panel, demodulator module)
Rear Connectors – Demodulator:
J1 RF Input (BNC), J2 Tone Output (BNC), J3 AC Input (IEC), J4 (DB9)
Rear Connectors – Modulator:
J1 Tone Input (BNC), J2 RF Output (BNC), J3 AC Input (IEC), J4 (DB9)
AC Power Switch:
SW1 rocker switch (AC ON / AC OFF) per module
Country/Region of Manufacture:
United States
Condition Notes:
WV Communications 70-01FD-CH rackmount chassis inspected and in good condition. Both modules present: 70 MHz FM Modulator (70MDF-FM-BRZ) and RF/IF Demodulator (RF/IF-DEM-PANAM). Light rack wear. Contact us with questions.
View AllClose

Related Products

Related Products

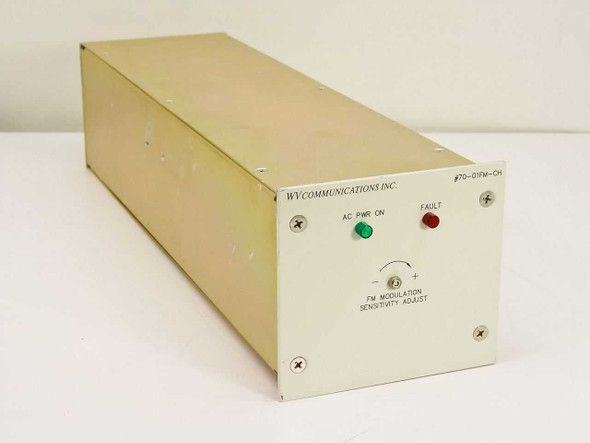

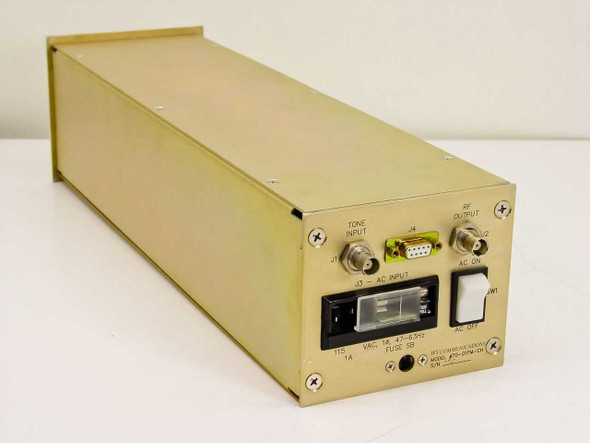

WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust — front panel showing AC PWR ON green LED, FAULT red LED, and sensitivity adjust knob WV Communications 70-01FM-CH — rear panel showing BNC Tone Input (J1), DB9 connector (J4), BNC RF Output (J2), IEC AC input (J3), fuse holder, and AC ON/OFF rocker switch
Add to Cart
Quick view

WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust 70MHz RF

$125.00
Was: $250.00
WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust 70MHz RFThis is a benchtop FM modulation sensitivity adjustment unit operating at 70 MHz. It provides manual control over FM modulation...
39369
SKU:
39369
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Brand:
WV Communications
Model:
70-01FM-CH
MPN:
70-01FM-CH
Secondary Model:
70MDF-FM-BRZ
SKU:
39369
Type:
FM Modulation Sensitivity Adjust Unit
Frequency:
70 MHz
RF Output Connector:
BNC (J2)
Tone Input Connector:
BNC (J1)
Control Interface:
DB9 (J4)
AC Input Connector:
IEC C14 (J3)
Power Requirements:
115 VAC, 1-Phase, 47-63Hz, 1A
Fuse:
1A SB
Front Panel Indicators:
AC PWR ON (green LED), FAULT (red LED)
Front Panel Controls:
FM Modulation Sensitivity Adjust (rotary trim pot)
Power Switch:
Rear-panel rocker switch (AC ON / AC OFF, SW1)
Form Factor:
Benchtop / Rackmount enclosure
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust. Inspected and in good used condition. Clean enclosure with minor surface wear. Front panel controls and rear BNC/DB9 connectors intact. No damage observed.

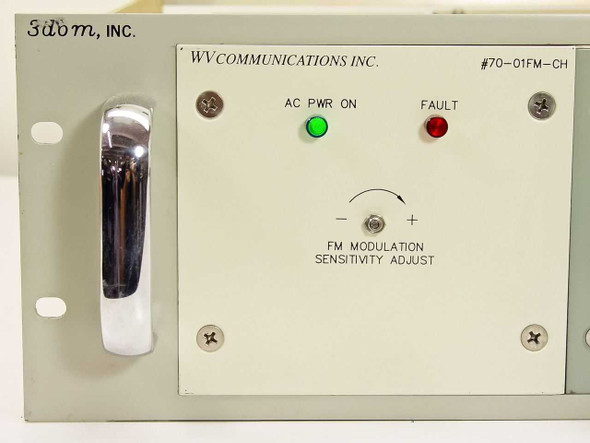

3dbm 70MDF-DAT-GLW FM modulator rackmount unit front panel overview showing three module bays with WV Communications and 3dbm modules installed WV Communications 70-01FM-CH FM modulator module front panel showing AC PWR ON green LED, FAULT red LED, and FM Modulation Sensitivity Adjust knob
