WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust 70MHz RF

(No reviews yet) Write a Review
SKU:
39369
MPN:
70-01fm-ch
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

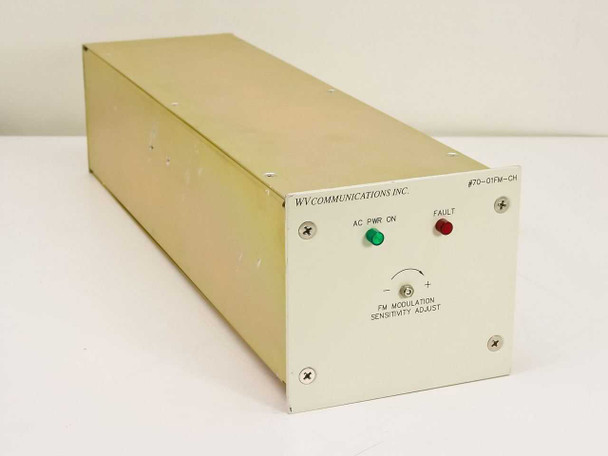

  • WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust — front panel showing AC PWR ON green LED, FAULT red LED, and sensitivity adjust knob

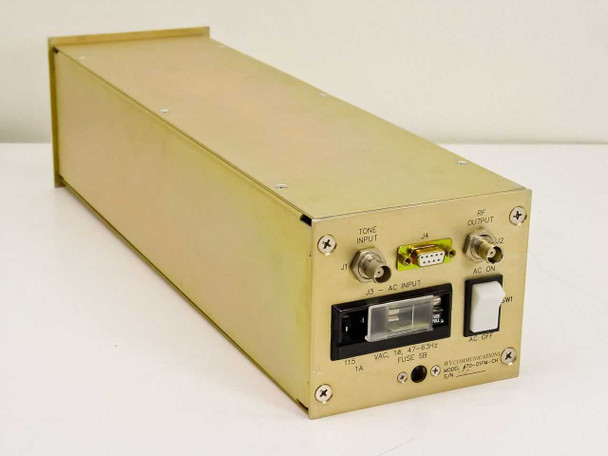

  • WV Communications 70-01FM-CH — rear panel showing BNC Tone Input (J1), DB9 connector (J4), BNC RF Output (J2), IEC AC input (J3), fuse holder, and AC ON/OFF rocker switch
  • WV Communications 70-01FM-CH label closeup — model number and serial number plate on enclosure
  • WV Communications 70-01FM-CH — front panel closeup showing FM Modulation Sensitivity Adjust trim knob, green power LED, and red fault LED
  • WV Communications 70-01FM-CH — rear panel closeup showing BNC Tone Input J1, DB9 J4, BNC RF Output J2, IEC AC input, 115VAC 47-63Hz 1A rating plate, fuse, and AC ON/OFF switch SW1

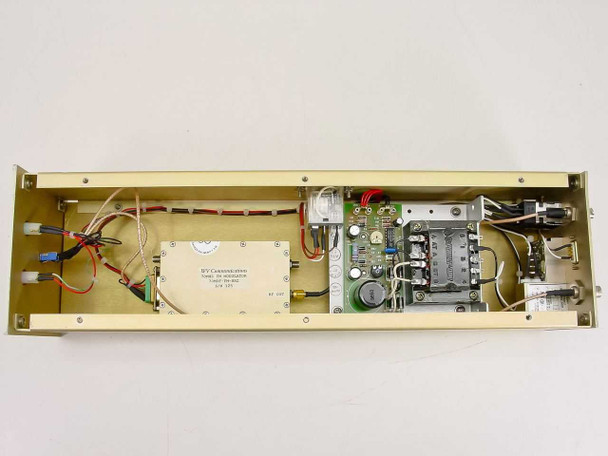

  • WV Communications 70-01FM-CH — top-off interior view showing internal PCB with WV Communications FM modulator subassembly and circuit board
  • WV Communications label on packaging — 70MHz FM Modulator, model 70MDF-FM-BRZ, S/N 125
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust 70MHz RF

This is a benchtop FM modulation sensitivity adjustment unit operating at 70 MHz. It provides manual control over FM modulation sensitivity settings via a front-panel rotary trim potentiometer, with status indication via power and fault LEDs.

Specifications & What's Included

  • Model: 70-01FM-CH (Secondary: 70MDF-FM-BRZ)
  • Frequency: 70 MHz
  • Power: 115 VAC, 1-phase, 47–63 Hz, 1 A
  • RF Output: BNC connector (J2)
  • Tone Input: BNC connector (J1)
  • Control: DB9 connector (J4)
  • AC Input: IEC C14 (J3)
  • Front Panel: AC PWR ON (green LED), FAULT (red LED), FM Modulation Sensitivity rotary trim pot
  • Unit only; no accessories included

Applications

FM modulation adjustment units like this were used in telecommunications and RF test environments for 70 MHz systems, particularly in microwave link and repeater configurations. The device allows technicians to calibrate modulation depth and sensitivity during commissioning and troubleshooting. It integrates with standard RF measurement and transmission chains via BNC and DB9 control interfaces.

Condition: Used
This WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust has been inspected and is in good used condition. The enclosure is clean with only minor surface wear typical of bench use. Front panel LEDs and the sensitivity adjust trim knob are intact and undamaged. Rear-panel BNC connectors, DB9, IEC AC inlet, and the fuse holder all appear in good shape with no bent pins or connector damage visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
WV Communications
Model:
70-01FM-CH
MPN:
70-01FM-CH
Secondary Model:
70MDF-FM-BRZ
SKU:
39369
Type:
FM Modulation Sensitivity Adjust Unit
Frequency:
70 MHz
RF Output Connector:
BNC (J2)
Tone Input Connector:
BNC (J1)
Control Interface:
DB9 (J4)
AC Input Connector:
IEC C14 (J3)
Power Requirements:
115 VAC, 1-Phase, 47-63Hz, 1A
Fuse:
1A SB
Front Panel Indicators:
AC PWR ON (green LED), FAULT (red LED)
Front Panel Controls:
FM Modulation Sensitivity Adjust (rotary trim pot)
Power Switch:
Rear-panel rocker switch (AC ON / AC OFF, SW1)
Form Factor:
Benchtop / Rackmount enclosure
Condition:
Used – Inspected
Seller Notes:
Unit only; no accessories included.
Country/Region of Manufacture:
United States
Condition Notes:
WV Communications 70-01FM-CH FM Modulation Sensitivity Adjust. Inspected and in good used condition. Clean enclosure with minor surface wear. Front panel controls and rear BNC/DB9 connectors intact. No damage observed.
View AllClose

Related Products

Related Products

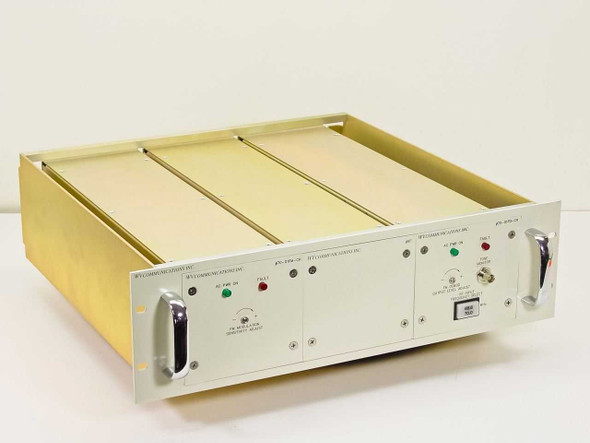

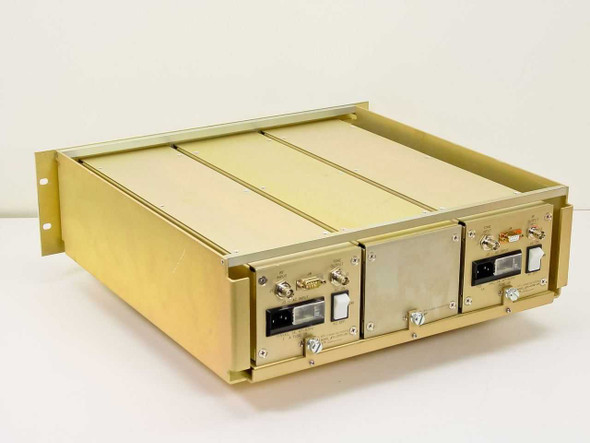

WV Communications 70-01FD-CH rackmount chassis front view showing two installed modules with front panel handles and indicator LEDs WV Communications 70-01FD-CH chassis rear view showing IEC AC inputs, BNC RF connectors, DB9 connectors, and AC ON/OFF rocker switches on both modules
