Matrix Systems 10360 Programmable Switching System 1031/10287 w/ 4204-NC-10 Card

(No reviews yet) Write a Review
SKU:
39469
MPN:
10360
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
33.00 LBS
Shipping:
Calculated at Checkout
  • Matrix Systems 10360 Programmable Switching System front panel view showing multi-grid red LED matrix display and Matrix Systems Corporation nameplate

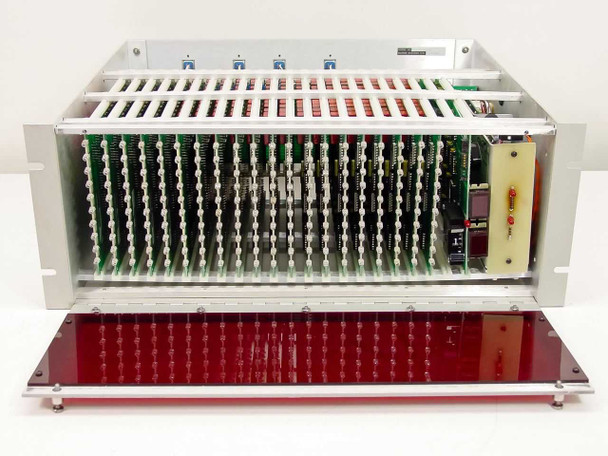

  • Matrix Systems 10360 rear interior view with front panel removed showing populated card cage backplane with relay and logic cards installed

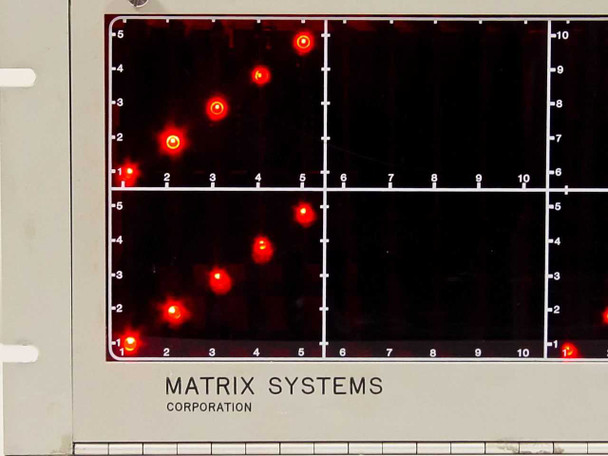

  • Close-up of Matrix Systems 10360 red LED matrix display showing illuminated dot pattern across upper and lower grid quadrants

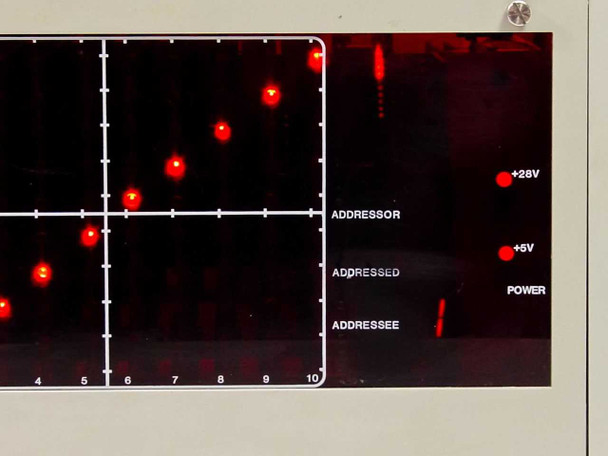

  • Close-up of Matrix Systems 10360 right-side front panel showing ADDRESSOR, ADDRESSED, ADDRESSEE labels and +28V, +5V, POWER LED status indicators
  • Matrix Systems model label showing MODEL NO 1031/10287 and Matrix Systems S/N 103088

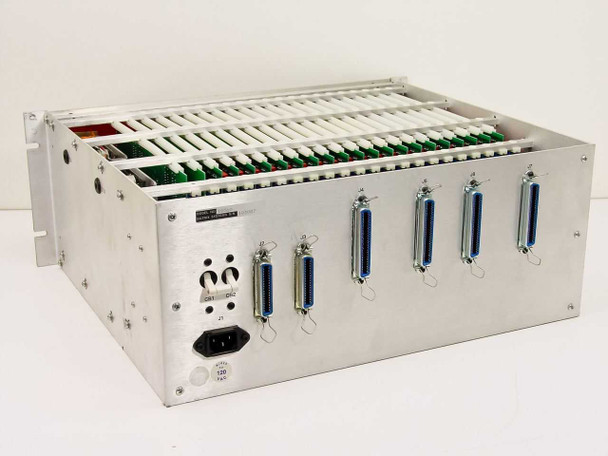

  • Matrix Systems 10360 rear panel angled view showing IEC AC inlet, CB1 and CB2 circuit breakers, J1 connector, and four Centronics 50-pin I/O connectors J2–J4

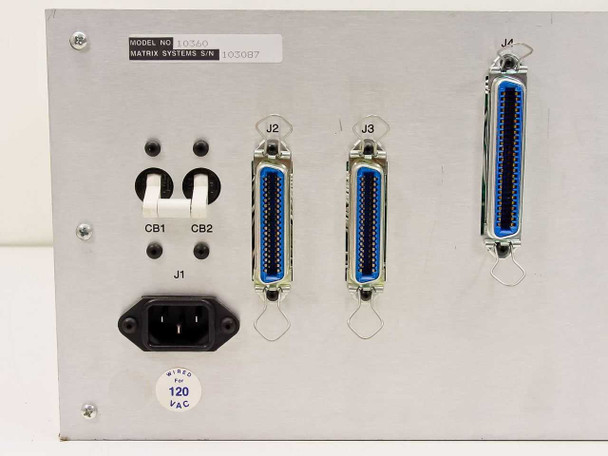

  • Matrix Systems 10360 rear panel straight-on view showing MODEL NO 10360 label, IEC inlet, CB1/CB2 breakers, J1–J4 Centronics connectors, and '120 VAC' wiring sticker

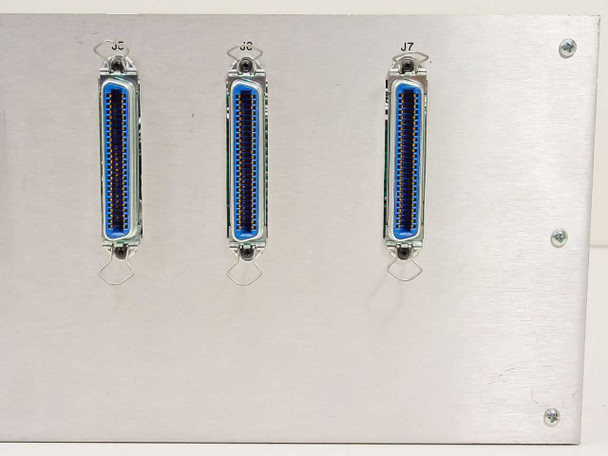

  • Side panel of Matrix Systems 10360 showing three Centronics 50-pin connectors labeled J5, J6, and J7

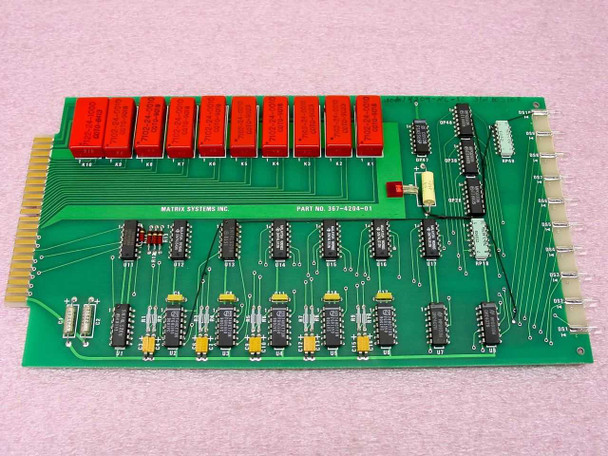

  • Matrix Systems 4204-NC-10 relay card (Part No. 367-4204-01) — front view showing 10 red relay blocks, logic ICs, and edge connector

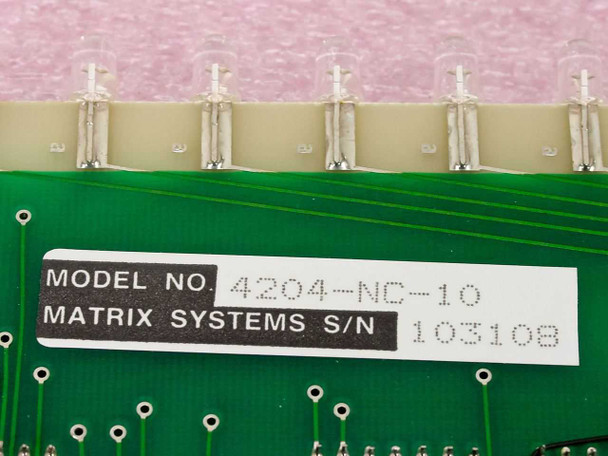

  • Matrix Systems 4204-NC-10 relay card reverse label showing MODEL NO 4204-NC-10 and Matrix Systems S/N 103108

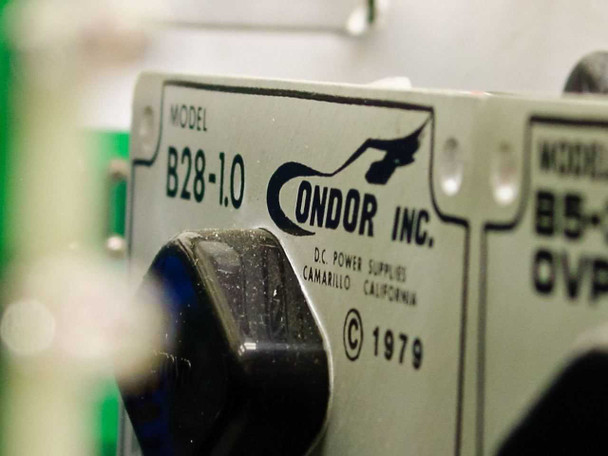

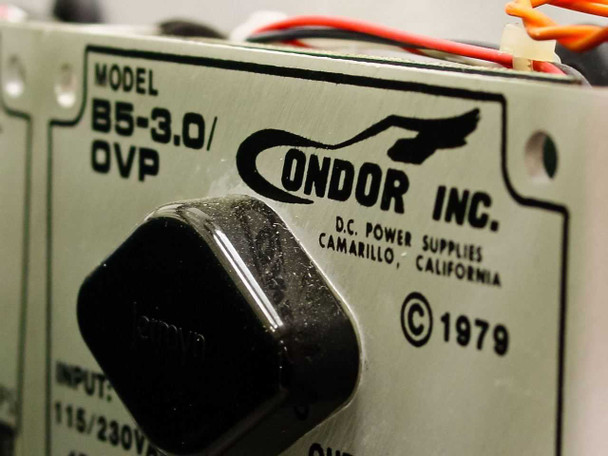

  • Matrix Systems 10360 Programmable Switching System 1031 / 10287 w/ Condor DC PSU
  • Matrix Systems 10360 Programmable Switching System 1031 / 10287 w/ Condor DC PSU
  • Matrix Systems 10360 Programmable Switching System 1031 / 10287 w/ Condor DC PSU
  • Matrix Systems 10360 Programmable Switching System 1031 / 10287 w/ Condor DC PSU
$250.00
Was: $500.00
Current Stock: 2

Sold Out

Description

Matrix Systems 10360 Programmable Switching System 1031/10287 w/ 4204-NC-10 Card

Rackmount programmable switching system designed for telecom and industrial control applications. Features a multi-slot card cage architecture with integrated relay switching and LED matrix display for status monitoring.

Specifications & What's Included

  • Model: Matrix Systems 10360 (1031/10287)
  • Form Factor: Rackmount chassis with 20+ card positions
  • Power: 120V AC, 60Hz; includes Condor B5-3.0/OVP and B28-1.0 DC PSUs
  • Display: Red LED matrix with status indicators (+28V, +5V, POWER, ADDRESSOR, ADDRESSED, ADDRESSEE)
  • I/O: 7x Amphenol/Centronics 50-pin connectors (J1–J7)
  • Included: 4204-NC-10 relay card (Matrix Part No. 367-4204-01)
  • Rear: 2x panel-mount circuit breakers; IEC C14 input connector

Applications

This switching system type was used in telecom exchanges, call routing systems, and industrial control environments for circuit switching and signal routing. The programmable relay architecture supported multi-line telephone systems and automated switching operations common in legacy telecom infrastructure.

Condition: Used
This Matrix Systems 10360 Programmable Switching System (Model 1031/10287) has been inspected and is in good used condition. The unit powers on at our warehouse — the LED matrix display illuminates and the +28V, +5V, and POWER status indicators light up — but we are not able to test its switching functions further. It came out of a working environment where it was in active use. The chassis, front panel display, and card cage are intact; the Centronics 50-pin I/O connectors (J1–J7) are present and show normal wear. The included 4204-NC-10 relay card (Part No. 367-4204-01) and both Condor DC power supplies (B5-3.0/OVP and B28-1.0) are present. Some light surface wear and minor scuffing are consistent with normal use in a technical environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
