General Instrument

General Instrument VideoCipher II VCRS 76590-1 Commercial TV Descrambler

(No reviews yet) Write a Review
SKU:
39434
MPN:
76590-1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
19.00 LBS
Shipping:
Calculated at Checkout

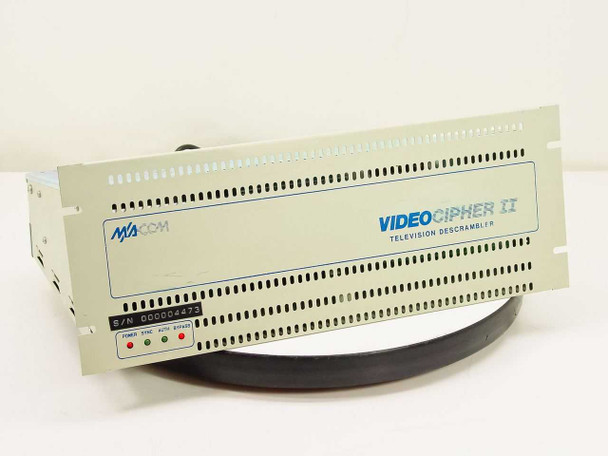

  • General Instrument VideoCipher II VCRS 76590-1 rackmount commercial TV descrambler — front panel with MA/COM logo and POWER, SYNC, AUTH, BYPASS indicator LEDs
  • General Instrument VideoCipher II front panel closeup showing MA/COM logo, S/N 000004473 label, and four LED status indicators: POWER, SYNC, AUTH, BYPASS
  • General Instrument VideoCipher II VCRS — front panel closeup showing VideoCipher II Television Descrambler branding in blue lettering
  • General Instrument VideoCipher II VCRS 76590-1 — rear panel view showing BNC video connectors, terminal blocks TB1 and TB2, rocker power switch, external battery connector, and power cable
  • General Instrument VideoCipher II VCRS rear label closeup — Part No. 76590-1, 120VAC 60Hz 38 Watts, General Instrument Cable/Home Communication Corp., Made in USA, with address barcode label
  • General Instrument VideoCipher II VCRS rear panel detail — TB2 audio terminal block (Left, Mono, Right), TB1 data terminal block (CLK, DATA), BYPASS connector, and BNC video ports (OUT, BYPASS THRU, LOCK, IN)

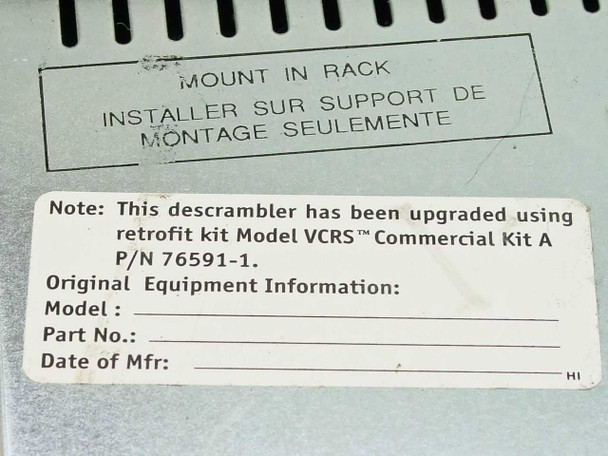

  • General Instrument VideoCipher II bottom panel label — Mount In Rack instruction and retrofit upgrade note: upgraded using VCRS Commercial Kit A P/N 76591-1

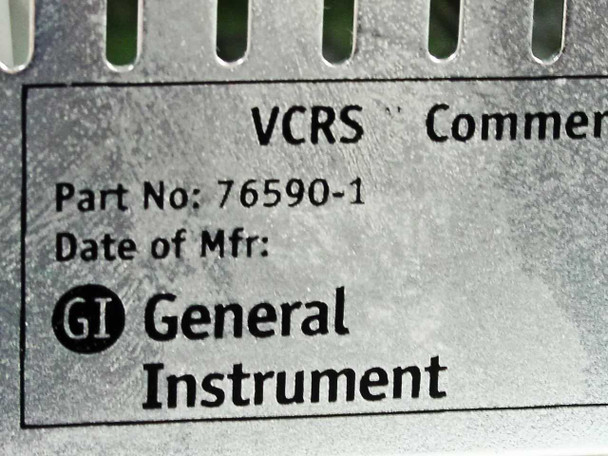

  • General Instrument VideoCipher II VCRS rear label closeup — Part No. 76590-1 and General Instrument GI logo embossed on rear chassis
$35.00
Was: $70.00
Current Stock: 3

Sold Out

Description

General Instrument VideoCipher II VCRS 76590-1 Commercial TV Descrambler Rackmount

Commercial-grade television descrambler designed for C-band satellite TVRO headend systems. Decodes encrypted video and audio signals for cable and satellite television distribution networks.

Specifications & What's Included

  • Model: VideoCipher II VCRS 76590-1 with VCRS Commercial Kit A retrofit (76591-1)
  • Power: 120VAC, 60Hz, 38W; rear-mounted rocker switch with 0.5A fuse
  • Video: BNC connectors (IN, OUT, BYPASS/THRU, LOCK)
  • Audio: TB2 terminal block (Left, Mono, Right outputs)
  • Data: TB1 terminal block (CLK, DATA outputs)
  • Front panel indicators: POWER, SYNC, AUTH, BYPASS LEDs
  • Rear battery connector present
  • Includes power cable

Applications

Used in commercial satellite television headend operations for decryption of C-band signals. Typical deployment in cable television networks, SMATV systems, and satellite receive facilities requiring descrambling of commercial broadcast content. Handles video routing with bypass capability and provides synchronized audio and data outputs for system integration.

Condition: Used
This General Instrument VideoCipher II VCRS 76590-1 commercial TV descrambler has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The front panel shows some light surface wear and minor scuffing consistent with rack service; the MA/COM logo area on the upper left panel shows a small surface scratch visible in the photos. The rear terminal blocks, BNC connectors, and power switch all appear intact. The unit has been upgraded with the VCRS Commercial Kit A retrofit (P/N 76591-1) as noted on the bottom panel label. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
General Instrument
Model:
VideoCipher II VCRS
MPN:
76590-1
Secondary Model:
76591-1 (VCRS Commercial Kit A retrofit)
Type:
Commercial Television Descrambler
SKU:
39434
Form Factor:
Rackmount
Power Requirements:
120VAC, 60Hz, 38 Watts
Video Interface:
BNC — IN, OUT, BYPASS/THRU, LOCK
Audio Interface:
TB2 terminal block — Left, Mono, Right outputs
Data Interface:
TB1 terminal block — CLK, DATA (Data Out)
Front Panel Indicators:
POWER, SYNC, AUTH, BYPASS LEDs
Rear Connectors:
BNC video x4, TB1 data terminal, TB2 audio terminal
Power Switch:
Rear-mounted rocker switch, 0.5A fuse
External Battery Connector:
Yes — rear panel
Retrofit Kit:
Upgraded with VCRS Commercial Kit A P/N 76591-1
Manufacturer:
General Instrument / Cable-Home Communication Corp.
Country/Region of Manufacture:
United States
Compatible With:
C-band satellite TVRO commercial headend systems
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; includes power cable visible in photos.
Condition Notes:
General Instrument VideoCipher II VCRS 76590-1 commercial TV descrambler. Inspected, in good used condition, pulled from a working environment. Minor surface wear on front panel. Upgraded with VCRS Commercial Kit A (76591-1).
View AllClose
