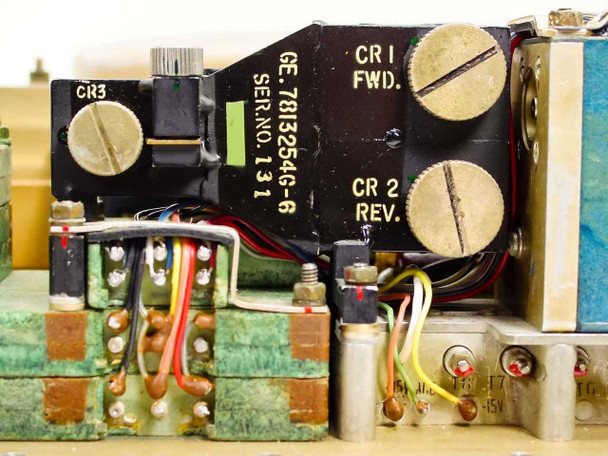

  • GE EM-1 – close-up of black RF subassembly with GE part number GE 7813254G-6, Ser. No. 131, showing CR1 FWD and CR2 REV indicator labels and tuning adjusters
  • GE EM-1 – close-up of blue module with GE part number GE 7641547G1, Ser G 021, showing terminal strip with T6 through L1 labeled connection points

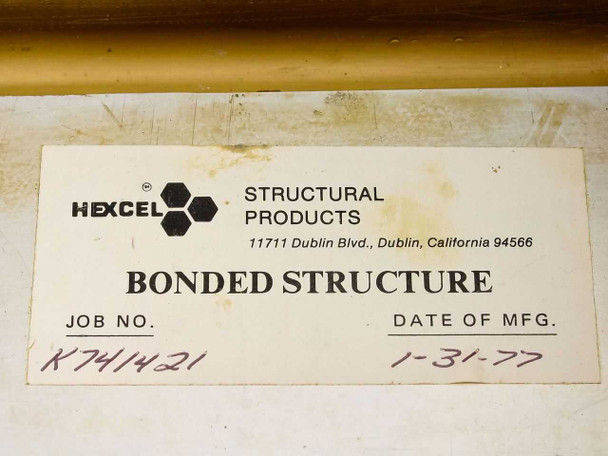

  • Hexcel Structural Products bonded structure label showing Job No. K741421 and Date of Manufacture 1-31-77, affixed to gold-anodized enclosure lid
  • GE EM-1 – close-up of gold cylindrical RF component showing part number 9127-1088 stamped on body, with SMA connector and wiring visible
  • Hexel Radio RF Ground Test Unit Waveguides EM-1
  • Hexel Radio RF Ground Test Unit Waveguides EM-1
  • Hexel Radio RF Ground Test Unit Waveguides EM-1
  • Hexel Radio RF Ground Test Unit Waveguides EM-1
  • Hexel Radio RF Ground Test Unit Waveguides EM-1
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

GE RF Ground Test Unit Waveguide Assembly EM-1 Satcom Microwave Test Set

Open-frame RF waveguide ground test assembly manufactured by General Electric for satellite communications microwave testing. Multi-subassembly unit with Airtron waveguide switches and integrated RF measurement indicators for forward and reverse power monitoring.

Specifications & What's Included

  • Model: EM-1; MPN: GE 7523149P15
  • Manufactured: January 31, 1977 (United States)
  • Five integrated subassemblies including GE RF components and Airtron waveguide switches (Morris Plains, NJ)
  • RF Indicators: CR1 FWD, CR2 REV, CR3
  • Hexcel bonded structure enclosure; open-frame bench/rack form factor
  • Technology: Microwave waveguide RF assembly

Applications

Ground test units of this type were used in satellite communications infrastructure for RF signal measurement and waveguide switching during equipment commissioning and maintenance. The EM-1 assembly supported microwave frequency testing in satcom earth station and terminal equipment. Airtron waveguide switches provided RF signal routing and isolation for multi-path test configurations common in satellite uplink and downlink verification procedures.

Condition: Used
This GE EM-1 RF Ground Test Unit waveguide assembly has been inspected and appears to be in good used condition. The unit is an open-frame assembly with multiple GE subassemblies, Airtron waveguide switches, and a Hexcel bonded structure enclosure manufactured January 31, 1977. The chassis and gold-anodized enclosure show age-appropriate patina and light oxidation consistent with a 1970s-era aerospace/satcom assembly. Several of the green circuit board subassemblies show surface oxidation on their copper traces and edge contacts, visible in the photos. The waveguide and RF hardware components appear intact and undamaged. Wiring harnesses are present and connected. This unit has not been powered or tested at our facility and is sold in as-inspected condition. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
General Electric (GE)
Model:
EM-1
MPN:
GE 7523149P15
Secondary Model:
GE 7813254G-6
Type:
RF Waveguide Ground Test Unit Assembly
SKU:
40608
Condition:
Used – Inspected
Enclosure Manufacturer:
Hexcel Structural Products
Enclosure Type:
Bonded Structure
Date of Manufacture:
January 31, 1977
Job Number:
K741421
Subassembly 1 Part No.:
GE 7523149P15 (Serial No. 0033)
Subassembly 2 Part No.:
GE 7641881G1 (Ser. 119)
Subassembly 3 Part No.:
GE 7813254G-6 (Ser. No. 131)
Subassembly 4 Part No.:
GE 7641547G1 (Ser G 021)
Subassembly 5 Part No.:
GE 7813327-G0
Part Number (visible on component):
9127-1088
Waveguide Switch Manufacturer:
Airtron (Division of Litton Industries)
Airtron Location:
Morris Plains, New Jersey
RF Indicators:
CR1 FWD (Forward), CR2 REV (Reverse), CR3
Application:
Satellite / Satcom RF Ground Test
Technology:
Microwave Waveguide RF
Form Factor:
Open-frame bench/rack assembly
Country/Region of Manufacture:
United States
Seller Notes:
Multi-subassembly open-frame unit with Airtron waveguide switches and GE RF components. Sold as-is assembly.
Condition Notes:
GE EM-1 RF Ground Test Unit waveguide assembly. Inspected, good used condition. Age patina and oxidation on board contacts consistent with 1977 mfg. date. Not powered or tested at our facility. Sold as-inspected.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
