Uni-Solar
-
Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel UL
Uni-Solar
$125.00Was: $250.00Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel UL The Uni-Solar PVL-116 is a 116-watt amorphous thin-film flexible solar panel designed for 24V DC systems. This lightweight, conformable...53312- SKU:
- 53312
- Availability:
- In stock and ready to ship within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-116
- MPN:
- PVL-116
- SKU:
- 53312
- Condition:
- New – Old Stock
- Seller Notes:
- Sold as single panel. Solder point connections only – no connectors included. Adhesive liner intact; cells undamaged.
- Country of Manufacture:
- United States
- Form Factor:
- Flexible laminate with peel-and-stick adhesive backing
- Cell Technology:
- Amorphous Thin-Film
- Maximum Power (Pmax):
- 116 Watts
- Peak Power Voltage (Vmp):
- 30V
- Peak Power Current (Imp):
- 3.88A
- Open Circuit Voltage (Voc):
- 43.2V
- Short Circuit Current (Isc):
- 4.8A
- Panel Length (inches):
- 197.3 in
- Panel Width (inches):
- 15.5 in
- Panel Thickness (inches):
- 0.2 in
- Panel Length (feet):
- 16.4 ft
- Panel Width (feet):
- 1.29 ft
- Electrical Connector Type:
- Solder point – no connectors included
- Wind Resistance Rating:
- Category 3 Hurricane – 130 MPH
- Bypass Diode Protection:
- Yes – per-cell bypass diodes
- Mounting Method:
- Peel-and-stick adhesive – no hardware required
- Compatible With:
- Membrane and metal roofing systems
- Certifications:
- UL Listed
- Manufacture Date:
- August 2010
- Type:
- Amorphous Thin-Film Flexible Solar Panel
- Maximum Power Output:
- 116 Watts
- Panel Length:
- 197.3 inches (16.4 feet)
- Panel Width:
- 15.5 inches (1.29 feet)
- Panel Thickness:
- 0.2 inches
- Country/Region of Manufacture:
- United States
- Condition Notes:
- <p><strong>Condition: New – Old Stock</strong></p><p>This Uni-Solar PVL-116 116W 24V flexible solar panel is new, never deployed. It is original stock from the 2012 Uni-Solar liquidation, manufactured in August 2010.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -

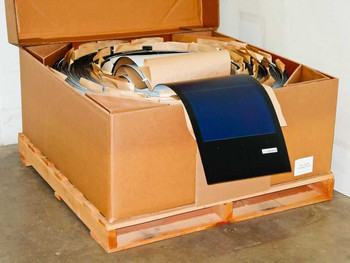

Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30
Uni-Solar
$2,000.00Was: $4,000.00Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30This is a carton of 30 Uni-Solar PVL-128 128-watt flexible amorphous silicon solar panels. The PVL-128 is a...53179- SKU:
- 53179
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 520.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-128
- MPN:
- PVL-128
- Type:
- Flexible Amorphous Silicon Thin Film Solar Panel
- SKU:
- 53179
- Quantity in Lot:
- 30 Panels
- Maximum Power (Pmax):
- 128 W
- Maximum Power Voltage (Vmpp):
- 33 V
- Maximum Power Current (Impp):
- 3.88 A
- Open Circuit Voltage (Voc):
- 47.6 V
- Short Circuit Current (Isc):
- 4.8 A
- Panel Technology:
- Amorphous Silicon (a-Si)
- Flexibility:
- Flexible
- Mounting Type:
- Adhesive Peel-and-Stick — No Penetrations Required
- Panel Length:
- 18 ft (216 in)
- Panel Width:
- 1.29 ft (15.5 in)
- Panel Thickness:
- 0.2 in
- Compatible Roofing Types:
- Metal, TPO, EPDM, Membrane
- Connector Type:
- Uni-Solar Proprietary
- Bypass Diodes:
- Integrated — max 4.5% power loss when shaded
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Carton of 30 panels; connectors included on panel ends
- Condition Notes:
- Carton of 30 Uni-Solar PVL-128 128W flexible amorphous solar panels. Inspected and in good condition. Pulled from a working environment. Panel roll intact; connectors present. Carton shows external wear/moisture staining — cosmetic only.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,000.00Was: $4,000.00 -
Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel Laminate 24V Qty 20
Uni-Solar
$2,100.00Was: $4,200.00Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel Laminate 24V Qty 20Lot of 20 used flexible amorphous silicon solar panel laminates rated at 128W maximum power. These adhesive-backed panels...53178- SKU:
- 53178
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 420.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-128
- MPN:
- PVL-128
- Type:
- Flexible Amorphous Solar Panel Laminate
- SKU:
- 53178
- Quantity:
- 20 panels per lot
- Maximum Power (Pmax):
- 128 Watts (STC)
- Maximum Power Voltage (Vmpp):
- 33.0 V
- Maximum Power Current (Impp):
- 3.88 A
- Open Circuit Voltage (Voc):
- 47.6 V
- Short Circuit Current (Isc):
- 4.8 A
- Max Series Fuse Rating:
- 8 A
- NOCT Power Output:
- 100 W
- NOCT Vmp:
- 30.8 V
- NOCT Imp:
- 3.24 A
- NOCT Voc:
- 43.5 V
- NOCT Temperature:
- 46°C
- Length:
- 5486 mm (216 in / 18 ft)
- Width:
- 394 mm (15.5 in)
- Depth:
- 4 mm (0.2 in)
- Cell Type:
- Triple-junction amorphous silicon, 356mm x 239mm
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer adhesive-sealant
- Output Cables:
- 4mm² (12 AWG), 560mm (22 in), quick-connect
- Bypass Diodes:
- Connected across every solar cell
- Max System Voltage:
- 600 VDC (UL)
- Certifications:
- UL 1703, IEC 61646 v1, IEC 61730 TUV pending
- Installation Method:
- Adhesive-backed laminate, no roof penetrations
- Compatible Substrates:
- EPDM, TPO, PVDF coated metal roofing panels
- Min Roof Slope:
- 5:12 (3°)
- Max Roof Slope:
- 21:12 (60°)
- Installation Temperature Range:
- 10°C to 40°C (50°F to 100°F)
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Lot of 20 panels. Includes output cables with quick-connect terminals on each panel.
- Condition Notes:
- Lot of 20 Uni-Solar PVL-128 128W flexible solar laminates inspected and in good used condition. Pulled from a working installation. Photos show surface scuffing and some junction box adhesive wear on visible panels. Output cables present.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,100.00Was: $4,200.00 -
Uni-Solar PVL-116 116W 24V Flexible Amorphous Solar Panel MC3 Qty 20
Uni-Solar
$2,200.00Was: $4,400.00Uni-Solar PVL-116 116W 24V Flexible Amorphous Solar Panel MC3 Qty 20Lot of 20 flexible amorphous thin-film solar panels rated at 116W per unit, totaling 2,320W array capacity. These glass-free...53177- SKU:
- 53177
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-116
- MPN:
- PVL-116
- Type:
- Flexible Amorphous Thin-Film Solar Panel Laminate
- SKU:
- 53177
- Quantity:
- 20 panels
- Power Output (Pmax):
- 116 Watts per panel
- Total Array Power:
- 2,320 Watts (20 panels)
- Peak Power Voltage (Vmp):
- 30 Volts
- Peak Power Current (Imp):
- 3.88 Amps
- Open Circuit Voltage (Voc):
- 43.2 Volts
- Short Circuit Current (Isc):
- 4.8 Amps
- Panel Length:
- 16.44 ft (197.3 in)
- Panel Width:
- 1.3 ft (15.5 in)
- Panel Thickness:
- 0.12 in
- Panel Weight:
- 16.5 lbs per panel
- Cell Technology:
- Triple-junction amorphous silicon thin film
- Construction:
- Glass-free flexible laminate
- Installation Method:
- Peel-and-stick adhesive laminate
- Connector Type:
- MC3
- Compatible Roof Types:
- Metal (Galvalume), membrane, low-slope roofs
- Certifications:
- UL approved for Galvalume steel roofs
- Wind Resistance:
- Category 3 hurricane (up to 130 MPH)
- Bypass Diodes:
- Yes — per cell, reduces shading loss to <4.5%
- Seller Notes:
- Lot of 20 panels with MC3 cables; panels coiled and boxed on pallet
- Country/Region of Manufacture:
- United States
- Form Factor:
- Flexible laminate roll
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Lot of 20 Uni-Solar PVL-116 116W 24V flexible amorphous solar panels inspected and in good used condition. Pulled from a working installation. MC3 cables present. Surface dust and residue consistent with prior outdoor use.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,200.00Was: $4,400.00 -

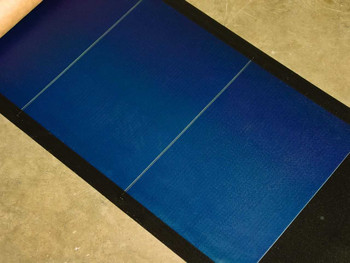

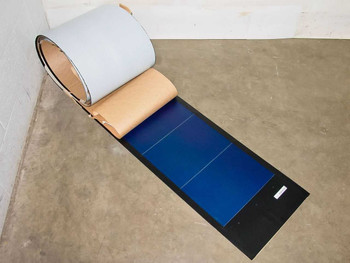

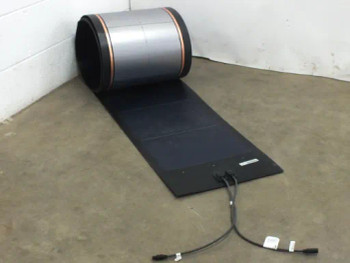

Uni-Solar PVL-136 136W Flexible Amorphous Solar Panel 24V PowerBond MC3
Uni-Solar
$175.00Was: $350.00Uni-Solar PVL-136 136W Flexible Amorphous Solar Panel 24V PowerBond MC3Flexible amorphous thin-film solar panel rated at 136 watts maximum power. Designed for direct adhesion to roofing surfaces...52644- SKU:
- 52644
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-136
- MPN:
- PVL-136
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 52644
- Country/Region of Manufacture:
- United States
- Manufacturer:
- United Solar Ovonic
- Maximum Power (Pmax):
- 136 Watts
- Max Power Voltage (Vmpp):
- 33V
- Max Power Current (Impp):
- 4.1A
- Open Circuit Voltage (Voc):
- 46.2V
- Short Circuit Current (Isc):
- 5.1A
- Max System Voltage:
- 600V
- Cell Technology:
- Amorphous Silicon (Triple-Junction)
- Series:
- PowerBond PVL
- Connector Type:
- MC3
- Backing Type:
- No Sticky Backing (PowerBond)
- Hurricane Rating:
- Category 3 – 130 MPH Uplift Resistant
- Bypass Diodes:
- Yes – per cell, limits shade loss to <4.5%
- Roofing Compatibility:
- Membrane and metal roofing systems
- Installation Method:
- No hardware – direct adhesion to roofing surface
- Condition:
- New – Old Stock, temperature-controlled storage
- Seller Notes:
- New old stock pulled from sealed carton; includes MC3 output cables
- Condition Notes:
- Uni-Solar PVL-136 136W flexible solar panel — new old stock from sealed carton of 30. Stored in temperature-controlled warehouse. New condition, no use or wear. MC3 cables attached. Made in USA. No longer in production.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$175.00Was: $350.00 -
Uni-Solar AF5 4218FG Amorphous Solar Cell 2V 0.35A Flexible Stainless Steel
Uni-Solar
$30.00Was: $60.00Uni-Solar AF5 4218FG Amorphous Solar Cell 2V 0.35A Flexible Stainless Steel 25-PackThis listing is for a pack of 25 Uni-Solar AF5 4218FG flexible amorphous thin-film solar cells on a stainless steel...52519- SKU:
- 52519
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Uni-Solar
- Model:
- AF5
- MPN:
- 4218FG
- Type:
- Amorphous Thin-Film Flexible Solar Cell
- SKU:
- 52519
- Cell Technology:
- Amorphous Silicon (a-Si) Thin Film
- Substrate Material:
- Flexible Stainless Steel
- Nominal Voltage:
- 2 V
- Nominal Current:
- 0.35 A
- Current Range (MPPT):
- 0.35 A – 0.40 A
- Cell Grade:
- Q Grade C
- Cell Size (Approx.):
- 7 in x 1.5 in
- Quantity per Pack:
- 25 cells
- Connection Type:
- Tabbed ribbon leads (flex connector)
- Form Factor:
- Flexible / Rollable
- Application:
- DIY Solar, Custom Panel Assembly, Off-Grid
- Condition:
- New – Open Box, unused
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Pack of 25 new, unused cells. Tested to produce ~2V at 0.35–0.40A MPPT.
- Condition Notes:
- Uni-Solar AF5 4218FG flexible solar cells — pack of 25, new and unused. Tested to ~2V / 0.35–0.40A MPPT. Open box; cells are in new, unused condition with no wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$30.00Was: $60.00 -

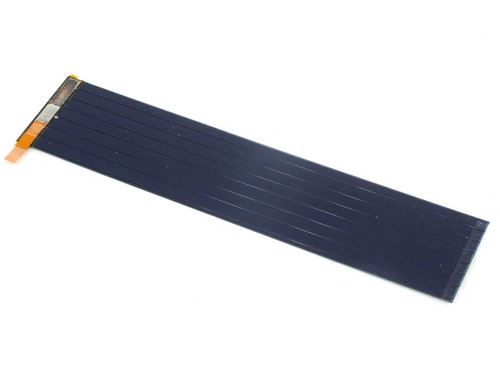

Uni-Solar AF5 4218 FG Amorphous Flexible Solar Cells Grade C Lot of 400
Uni-Solar
$600.00Was: $975.00Uni-Solar AF5 4218 FG Amorphous Flexible Solar Cells Grade C Lot of 400Amorphous silicon flexible thin-film solar cells manufactured by Uni-Solar. Each cell measures approximately 7 inches by 1.5...52518- SKU:
- 52518
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar
- Model:
- AF5 4218 FG
- MPN:
- AF5 4218 FG
- SKU:
- 52518
- Type:
- Amorphous Flexible Thin-Film Solar Cell
- Cell Grade:
- Grade C (Q Grade)
- Quantity:
- 400 cells per carton
- Cell Size (Approx):
- 7 in x 1.5 in
- Cell Technology:
- Amorphous Silicon (a-Si)
- Substrate:
- Stainless Steel
- Flexibility:
- Flexible
- Condition:
- New – Old Stock (factory sealed carton)
- Seller Notes:
- Carton of 400 new unused cells; sourced from Uni-Solar factory at 2013 closure
- Country/Region of Manufacture:
- United States
- Application:
- DIY Solar, Custom Solar Panel Fabrication
- Compatible With:
- DIY solar panel builds, flexible solar module lamination
- Condition Notes:
- New unused old stock from Uni-Solar's 2013 factory closure. Carton of 400 cells, individually wrapped, never used. Date codes 12/28-29/11. Grade C (Q Grade). Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $975.00 -
Uni-Solar PVL-128 128W 24V Flexible Peel-Stick Solar Panel Carton 30 3840W
Uni-Solar
$2,800.00Was: $5,600.00Uni-Solar PVL-128 128W 24V Flexible Peel-Stick Solar Panel Carton 30 3840WThis listing is for a factory carton of 30 Uni-Solar PVL-128 flexible thin-film amorphous silicon solar panels, totaling...52267- SKU:
- 52267
- Availability:
- Usually ships within 1-2 business days via freight.
- Weight:
- 560.00 LBS
- Spec Sheet:
- Unisolar PVL-128 Solar Panel Spec Sheet
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-128
- MPN:
- PVL-128
- Type:
- Flexible Thin-Film Amorphous Silicon Solar Panel
- SKU:
- 52267
- Quantity in Carton:
- 30 panels per carton
- Max Power Current (Impp):
- 3.88 A
- Open Circuit Voltage (Voc):
- 47.6 V
- Short Circuit Current (Isc):
- 4.8 A
- Maximum Series Fuse Rating:
- 8 A
- Panel Dimensions:
- 216 in L x 15.5 in W x 0.2 in thick (18 ft x 1.29 ft)
- Cell Technology:
- Triple-junction amorphous silicon (14 x 9.4 in cells)
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer adhesive-sealant
- By-pass Diodes:
- Yes — connected across every solar cell
- Electrical Connectors:
- Bottom-facing solder points (no cables)
- UL Listing:
- UL 1703 Listed to 600 VDC
- IEC Certification:
- IEC 61646 v1 certified
- Wind Resistance:
- Category 3 hurricane uplift resistant (130 MPH)
- Installation Method:
- Peel-and-stick adhesive — no hardware required
- Compatible Substrates:
- Membrane roofing, metal roofing (PVDF/Galvalume/Zincalume)
- Minimum Slope:
- 5/12 (3 degrees)
- Maximum Slope:
- 21/12 (60 degrees)
- Max Roof Temperature:
- 85°C (185°F)
- Production Pmax Tolerance:
- +/- 5%
- Seller Notes:
- Carton of 30 new panels with solder points; no cables included
- Country/Region of Manufacture:
- United States
- Form Factor:
- Flexible roll laminate — peel-and-stick
- Data Sheet Part Number:
- #AA5-3851-02
- Condition Notes:
- Uni-Solar PVL-128 128W flexible solar panels — carton of 30, new/unused, direct from 2012 Unisolar facility liquidation. Never installed. Original factory carton, solder point connectors, no cables. Panels appear clean and undamaged.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$2,800.00Was: $5,600.00 -

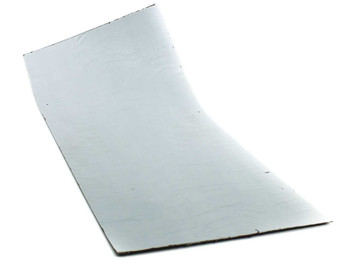

Uni-Solar PVL-24 24W 5V Flexible Amorphous Solar Panel 36in Rollable Solder
Uni-Solar
$40.00Was: $125.00Uni-Solar PVL-24 24W 5V Flexible Amorphous Solar Panel 36in Rollable Solder PointsThe Uni-Solar PVL-24 is a lightweight, flexible 24-watt amorphous thin-film solar panel made by United Solar Ovonic...51944- SKU:
- 51944
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-24
- MPN:
- PVL-24
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 51944
- Seller Notes:
- No cables or junction box included. Top-facing solder points for DIY wiring.
- Country/Region of Manufacture:
- United States
- Power Output:
- 24W
- Voltage (Vmp):
- 5V
- Panel Length:
- 36 inches (3 feet)
- Number of Cells:
- 3
- Cell Technology:
- Amorphous Silicon (a-Si) Thin Film
- Panel Series:
- PVL Series
- Flexibility:
- Rollable to approximately 6 inches in diameter
- Mounting:
- Adhesive backing (pressure-sensitive)
- Connection Method:
- Top-facing solder points
- Wind Rating:
- Category 3 (130 MPH) hurricane uplift resistant
- Cables Included:
- No
- Junction Box Included:
- No
- Compatible With:
- Golf carts, RVs, vans, boats, experimental EVs, backpacking
- Application:
- Off-grid, DIY solar charging, vehicle rooftop, portable solar
- Condition Notes:
- Uni-Solar PVL-24 24W Flexible Amorphous Solar Panel — new and unused. The panel shows no wear or use, and the adhesive backing cover is intact. This 36-inch panel comes with three amorphous cells and is ready to wire via solder points on top; no
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$40.00Was: $125.00 -
Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel Peel Stick Solder
Uni-Solar
$125.00Was: $250.00Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel Peel Stick SolderFlexible thin-film amorphous silicon solar panel rated at 128W nominal output. Features peel-and-stick adhesive installation...51942- SKU:
- 51942
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Spec Sheet:
- Unisolar PVL-128 Solar Panel Spec Sheet
- Brand:
- Uni-Solar
- Model:
- PVL-128
- MPN:
- PVL-128
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- Part Number:
- AA5-3851-02
- SKU:
- 51942
- Manufacturer:
- United Solar Ovonic
- Condition:
- New – Unused, New Old Stock from Factory Liquidation
- Seller Notes:
- New old stock; sold as single panels from factory cartons of 30
- Country/Region of Manufacture:
- United States
- Maximum Power (Pmax):
- 128 Watts
- Max Power Voltage (Vmpp):
- 33.0 V
- Max Power Current (Impp):
- 3.88 A
- Open Circuit Voltage (Voc):
- 47.6 V
- Short Circuit Current (Isc):
- 4.8 A
- Maximum Series Fuse Rating:
- 8 A
- NOCT Power Output:
- 100 W
- NOCT Vmpp:
- 30.8 V
- NOCT Impp:
- 3.24 A
- NOCT Voc:
- 43.5 V
- NOCT Isc:
- 3.9 A
- NOCT Temperature:
- 46°C
- Solar Cell Type:
- Amorphous Silicon (Triple-Junction)
- Cell Size:
- 356 mm x 239 mm (14" x 9.4")
- Panel Length:
- 216 in (5486 mm / 18 ft)
- Panel Width:
- 15.5 in (394 mm)
- Panel Depth/Thickness:
- 0.2 in (4 mm)
- Electrical Connector Type:
- Solder Points (bottom-facing, no quick-connect terminals)
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
- Bypass Diodes:
- Connected across every solar cell
- Installation Method:
- Peel-and-stick adhesive; no penetrations or hardware required
- Suitable Roof Types:
- Membrane (EPDM/TPO) and metal (Galvalume/Zincalume/PVDF)
- Wind Resistance:
- Category 3 Hurricane Uplift Resistant (130 MPH)
- Max System Voltage:
- 600 VDC (UL 1703 Listed)
- Maximum Roof Temperature:
- 85°C (185°F)
- Minimum Roof Slope:
- 5:8 (3°)
- Maximum Roof Slope:
- 21:12 (60°)
- Certifications:
- UL 1703, IEC 61646 v1, IEC 61646 v2 (pending), IEC 61730
- UL Fire Rating:
- Class A (Slope 2/12), Class B (Slope 3/12), Class C (Unlimited Slope)
- Form Factor:
- Flexible Laminate Roll
- Compatible With:
- Grid-tie and off-grid systems up to 600 VDC
- Power Output Tolerance:
- +5% / -5%
- Condition Notes:
- Uni-Solar PVL-128 128W flexible solar panel — new and unused, new old stock from 2012 factory liquidation. Bottom solder-point variant. Stored in factory cartons; no signs of use or wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$125.00Was: $250.00 -

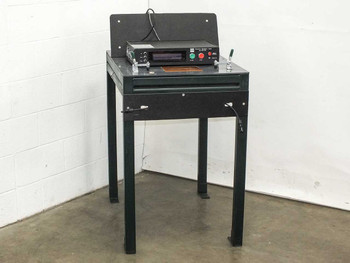

ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar
Uni-Solar
$600.00Was: $1,200.00ECD Ovonics QA4-850-000 MC4 Solar Connector Reliability Tester 250V Uni-Solar Benchtop vibration and continuity tester designed for MC4 solar connector qualification in photovoltaic manufacturing...48199- SKU:
- 48199
- Availability:
- This item requires freight shipping — please contact us for a shipping quote before purchasing.
- Weight:
- 260.00 LBS
- Brand:
- ECD Ovonics
- Model:
- QA4-850-000
- MPN:
- QA4-850-000
- Type:
- MC4 Solar Connector Reliability Tester
- SKU:
- 48199
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes Netter Vibration NEA-5050 vibrator, orange MC4 test pad, Carr-Lane hold-down clamp, and MC4 cable harness. Requires freight shipping.
- Connector Type:
- MC4 (Multi-Contact 4mm Solar Connector)
- Interface / PC Comm:
- 9-Pin RS-232 Serial (DB-9), rear panel
- Power Requirements:
- 250V AC, 10A fuse (Mains)
- Vibration Unit:
- Netter Vibration NEA-5050
- Vibrator Voltage:
- 110-115V AC
- Vibrator Current:
- 0.46A
- Vibrator Power:
- 0.045 kW
- Vibrator Phase:
- Single Phase
- Vibrator Frequency:
- 50/60 Hz
- Vibrator Speed:
- 3000/3600 min-1
- Vibrator Force:
- 440/640 N
- Vibrator Duty Cycle:
- 100%
- Vibrator Protection Rating:
- IP65
- Vibrator Serial Number:
- 100049630
- Test Pad Color:
- Orange
- Test Pad Dimensions:
- 7" x 5.5"
- Tabletop Dimensions:
- 36" x 24"
- Overall Dimensions:
- 36.25" x 24" x 45" tall
- Front Panel Controls:
- START (green), STOP (red), Up/Down/Enter navigation buttons, LCD display
- Front Panel Indicators:
- TEST IN PROGRESS LED, Vibrator ON LED
- Clamp:
- Carr-Lane vertical hold-down toggle clamp
- Application:
- MC4 connector vibration/continuity reliability testing for solar panel production
- Compatible With:
- Uni-Solar solar panel production lines, MC4 photovoltaic connectors
- Country/Region of Manufacture:
- USA
- Form Factor:
- Benchtop / Free-standing workstation on steel stand
- Shipping Method:
- Freight shipping required
- Condition Notes:
- ECD Ovonics QA4-850-000 MC4 Solar Connector Tester sold as-is. Not powered or tested — no PC/software available for the rear 9-pin serial port. Appears physically complete with vibrator, test pad, and clamp. Freight shipping required.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
Uni-Solar PVL-136 136W Flexible Solar Panel 30-Unit Carton Solder Point UL 1703
Uni-Solar
$3,200.00Was: $6,400.00Uni-Solar PVL-136 136W Flexible Solar Panel 30-Unit Carton Solder Point UL 1703 The Uni-Solar PVL-136 is a PowerBond flexible thin-film solar laminate rated at 136 watts peak power (STC). Unlike...44026- SKU:
- 44026
- Availability:
- Usually ships within 3-5 business days via freight; contact us for shipping quotes on this pallet-sized carton.
- Weight:
- 625.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-136
- MPN:
- PVL-136
- Type:
- Flexible Thin-Film Solar Panel
- SKU:
- 44026
- Seller Notes:
- Carton of 30 panels, solder-point termination, new old stock from Uni-Solar liquidation
- Country/Region of Manufacture:
- United States
- Power Output (Pmax):
- 136 W (STC)
- Cell Technology:
- Triple-junction amorphous silicon (thin-film)
- Number of Panels:
- 30
- Voltage at Pmax (Vmpp) STC:
- 33.0 V
- Current at Pmax (Impp) STC:
- 4.13 A
- Short-Circuit Current (Isc) STC:
- 5.1 A
- Open-Circuit Voltage (Voc) STC:
- 46.2 V
- Maximum Series Fuse Rating:
- 10 A (UL), 8 A (IEC)
- System Voltage Rating:
- Up to 600 VDC (UL 1703); up to 1000 VDC (IEC)
- Certifications:
- UL 1703 Listed; TÜV Rheinland IEC 61646 & IEC 61730
- Panel Dimensions:
- 5486 mm x 394 mm x 4 mm (216" x 15.5" x 0.2")
- Termination Type:
- Bottom-facing solder points
- Output Cable:
- 4mm² (12 AWG), weatherproof DC quick-connect, 560mm (22")
- Bypass Diodes:
- Connected across every solar cell
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer with microbial inhibitor
- Roofing Compatibility:
- Membrane and metal roofing systems
- Wind Resistance:
- Category 3 / 130 MPH hurricane uplift resistant
- Installation Method:
- Peel-and-stick adhesive, no hardware penetrations
- Power Tolerance:
- +/- 5%
- Maximum Roof Temperature:
- 85°C
- Form Factor:
- Flexible laminate / roll format
- Compatible With:
- Grid-tie systems up to 600 VDC (UL); membrane & metal roofs
- Datasheet Part Number:
- AA4-3697-05
- Condition Notes:
- Uni-Solar PVL-136 136W flexible solar panels, carton of 30. New and unused, original factory carton on pallet. Custom solder-point variant sourced directly from Uni-Solar at 2012 liquidation. No longer in production.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,200.00Was: $6,400.00 -
Uni-Solar PVL-128 Flexible Solar Laminate 128W 24V Carton 30 Panels 3840W
Uni-Solar
$3,300.00Was: $6,600.00Uni-Solar PVL-128 Flexible Solar Laminate 128W 24V Carton 30 Panels 3840W This listing is for a full factory carton of 30 Uni-Solar PVL-128B flexible amorphous thin-film solar laminates, totaling...44032- SKU:
- 44032
- Availability:
- Usually ships within 1-2 business days via freight; pickup from nearest terminal available.
- Weight:
- 560.00 LBS
- Spec Sheet:
- Unisolar PVL-128 Solar Panel Spec Sheet
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-128
- MPN:
- PVL-128B
- Type:
- Flexible Amorphous Thin-Film Solar Laminate
- SKU:
- 44032
- Quantity in Carton:
- 30 panels
- Total System Power:
- 3840W (30 x 128W)
- Maximum Power (Pmax) per Panel:
- 128 Wp
- Max Power Voltage (Vmpp):
- 33.0V
- Max Power Current (Impp):
- 3.88A
- Open Circuit Voltage (Voc):
- 47.6V
- Short Circuit Current (Isc):
- 4.8A
- Maximum Series Fuse Rating:
- 8A
- NOCT Max Power (Pmpp):
- 100W
- NOCT Vmp:
- 30.8V
- NOCT Imp:
- 3.24A
- NOCT Voc:
- 43.5V
- NOCT Temperature:
- 46°C
- Panel Dimensions:
- 216" L x 15.5" W x 0.2" thick (5486 x 394 x 4mm)
- Cell Type:
- Triple-junction amorphous silicon, 356mm x 239mm
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer with microbial inhibitor
- Output Cables:
- 4mm² (12 AWG), 560mm (22") bare 4" wires, bottom-facing
- Bypass Diodes:
- Connected across every solar cell
- Wind/Hurricane Rating:
- Category 3, 130 MPH uplift resistant
- Certifications:
- UL 1703 to 600VDC, IEC 61646 v1, IEC 61730, TUV pending
- Mounting Method:
- Self-adhesive laminate, no hardware required
- Application:
- Membrane and metal roofing systems
- Minimum Roof Slope:
- 5/8:12 (3°)
- Maximum Roof Slope:
- 21:12 (60°)
- Installation Temp Range:
- 10°C to 40°C (50°F to 100°F)
- Max System Voltage:
- 600VDC (UL)
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Carton of 30 panels; MC4 cables and junction box included for DIY installs
- Condition:
- New
- Data Sheet Part Number:
- AA5-3851-02
- Condition Notes:
- Brand new carton of 30 Uni-Solar PVL-128 128W flexible solar laminates. Unused, factory condition. Includes MC4 cables and junction box. Bottom-facing 4" wire leads. Ships freight to nearest terminal.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,300.00Was: $6,600.00 -
Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel UL 1703 600VDC
Uni-Solar
$120.00Was: $250.00Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel UL 1703 600VDC The Uni-Solar PVL-128 is a 128-watt flexible amorphous thin-film solar laminate designed to bond directly to membrane and...44033- SKU:
- 44033
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Datasheet:
- Unisolar PVL-128 Datasheet
- Brand:
- Uni-Solar
- Model:
- PVL-128
- MPN:
- PVL-128
- Part Number:
- AA5-3851-02
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 44033
- Seller Notes:
- Includes 4-inch bottom-facing output wires (positive/negative). Junction box not included.
- Country/Region of Manufacture:
- United States
- Maximum Power (Pmax):
- 128 W
- Max Power Voltage (Vmpp):
- 33.0 V
- Max Power Current (Impp):
- 3.88 A
- Open Circuit Voltage (Voc):
- 47.6 V
- Short Circuit Current (Isc):
- 4.8 A
- Maximum Series Fuse Rating:
- 8 A
- NOCT Power (Pmpp):
- 100 W
- NOCT Voltage (Vmpp):
- 30.8 V
- NOCT Current (Impp):
- 3.24 A
- NOCT Open Circuit Voltage (Voc):
- 43.5 V
- NOCT Short Circuit Current (Isc):
- 3.9 A
- NOCT Temperature:
- 46°C
- Panel Length:
- 5486 mm (216") / 18 ft
- Panel Width:
- 394 mm (15.5")
- Panel Depth:
- 4 mm (0.2")
- Output Cable Length:
- 560 mm (22")
- Output Cable Gauge:
- 4 mm² (12 AWG)
- Cell Type:
- Triple-junction amorphous silicon
- Cell Dimensions:
- 356 mm x 239 mm
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer w/ microbial inhibitor
- By-pass Diodes:
- Connected across every solar cell
- UL Listing:
- UL 1703 — systems up to 600 VDC
- Fire Rating:
- Class A Max. Slope 2:12, Class B Max. Slope 3:12
- IEC Certification:
- IEC 61646 v1 certified
- Installation Temperature Range:
- -10°C to 40°C (50°F to 100°F)
- Maximum Roof Temperature:
- 85°C (185°F)
- Minimum Roof Slope:
- 5:8:12 (3°)
- Maximum Roof Slope:
- 21:12 (60°)
- Compatible Substrates:
- EPDM, TPO, PVDF-coated metal roofing
- Application:
- Membrane and metal roofing, grid-tie solar systems
- Condition:
- New
- Form Factor:
- Flexible Laminate / Roll
- Condition Notes:
- This Uni-Solar PVL-128 128W flexible amorphous solar panel is new and unused. Clean, intact laminate surface and backing. Includes 4-inch bottom-facing output wires (red/black). No junction box included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$120.00Was: $250.00 -
Uni-Solar PVL-68 68W 12V Flexible Amorphous Solar Panel Peel & Stick MC3
Uni-Solar
$160.00Was: $325.00Uni-Solar PVL-68 68W 12V Flexible Amorphous Solar Panel Peel & Stick MC3 Flexible amorphous thin-film solar panel rated at 68W maximum power output. Features factory-installed peel-and-stick...44043- SKU:
- 44043
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.00 LBS
- Brand:
- Uni-Solar
- Model:
- PVL-68
- MPN:
- PVL-68
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 44043
- Seller Notes:
- Includes panel with factory-installed adhesive backing and MC3 output cable
- Country/Region of Manufacture:
- Mexico
- Form Factor:
- Flexible / Frameless Laminate
- Maximum Power (Pmax):
- 68 W
- Voltage at Pmax (Vmpp):
- 16.5 V
- Current at Pmax (Impp):
- 4.13 A
- Open-Circuit Voltage (Voc):
- 23.1 V
- Short-Circuit Current (Isc):
- 5.1 A
- Max System Voltage:
- 1000 V (IEC) / 600 V (UL)
- Maximum Series Fuse:
- 10 A (UL) / 8 A (IEC)
- Minimum Blocking Diode:
- 10 A (UL) / 8 A (IEC)
- Module Efficiency:
- 6.2%
- Cells Per Module:
- 11
- Frame Material:
- Frameless
- Module Connector:
- MC3
- Field Wiring:
- Copper only, 12–10 AWG, insulated for 90°C min.
- Adhesive Backing:
- Factory-installed peel-and-stick bonding adhesive
- Panel Dimensions:
- 112.1 x 15.5 x 0.2 inches
- Cell Technology:
- Amorphous Silicon (a-Si) Thin Film
- Certifications:
- UL Listed, CE, TÜV
- Condition:
- New – Unused
- Compatible With:
- 12V battery systems, RV, marine, commercial rooftop
- Manufacturer:
- United Solar Ovonic (Uni-Solar), Auburn Hills, MI, USA
- Condition Notes:
- This Uni-Solar PVL-68 68W flexible amorphous solar panel is new and unused. Peel-and-stick adhesive backing is factory-installed and intact. MC3 cable included. Please view our photos and contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$160.00Was: $325.00 -
Uni-Solar PVL-136 Flexible Amorphous Solar Panel 136W 24V Lot of 30 4080W
Uni-Solar
$3,800.00Was: $7,600.00Uni-Solar PVL-136 Flexible Amorphous Solar Panel 136W 24V Lot of 30 4080W This listing is for a full carton of 30 Uni-Solar PVL-136 PowerBond flexible amorphous solar panels, totaling 4,080 watts...44651- SKU:
- 44651
- Availability:
- This is a large pallet shipment — please contact us for freight shipping rates before purchasing.
- Weight:
- 570.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-136
- MPN:
- PVL-136(B)
- Type:
- Flexible Thin-Film Amorphous Solar Panel
- SKU:
- 44651
- Quantity in Lot:
- 30 panels
- Total Lot Wattage:
- 4080W (30 x 136W)
- Rated Power (Pmax) Per Panel:
- 136 Wp
- Voltage at Pmax (Vmp):
- 33.0 V
- Current at Pmax (Imp):
- 4.13 A
- Short-Circuit Current (Isc):
- 5.1 A
- Open-Circuit Voltage (Voc):
- 42.2 V
- Maximum Series Fuse Rating:
- 10 A (UL), 8 A (IEC)
- Cell Type:
- Triple-junction amorphous silicon thin-film
- Number of Cells:
- 22 cells (356mm x 239mm each) in series
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer with microbial inhibitor
- Bypass Diodes:
- Yes — connected across every solar cell
- Output Cables:
- 4mm² (12 AWG) weatherproof DC quick-connect, 560mm (22") length
- Wire Configuration:
- Bottom-facing 4" wires (custom configuration)
- Panel Dimensions:
- 5486mm L x 394mm W x 4mm D (216" x 15.5" x 0.2")
- Terminal Housing Depth:
- 16mm (0.6") including potted terminal housing
- System Voltage Rating:
- Up to 600 VDC (UL); up to 1000 VDC (IEC 61646/61730)
- Certification:
- UL 1703 Listed; TÜV Rheinland IEC 61646 & IEC 61730
- UL Fire Rating:
- Class A Slope 2/12, Class B Max Slope 3/12, Class C Unlimited
- Hurricane / Wind Rating:
- Category 3 — 130 MPH uplift resistant
- Installation Method:
- Peel-and-stick adhesive — no hardware or penetrations
- Compatible Roofing:
- Membrane and metal roofing systems
- Max Roof Temperature:
- 85°C (185°F)
- Minimum Slope:
- 3° (1:21:12)
- Maximum Slope:
- 60° (21:12)
- Power Output Warranty:
- 92% at 10 yrs, 84% at 20 yrs, 80% at 25 yrs (min power)
- Product Warranty:
- 5-Year Limited Product Warranty (original)
- Country/Region of Manufacture:
- United States
- Form Factor:
- Flexible Roll-Format Laminate
- Seller Notes:
- Carton of 30 panels on pallet; custom 4" bottom-facing wire configuration
- Condition Notes:
- Uni-Solar PVL-136 flexible solar panels — new old stock from 2012 Unisolar facility liquidation. Never installed or used. Custom 4" bottom-facing wire configuration. Panels remain in original carton on pallet. No visible damage.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$3,800.00Was: $7,600.00 -
Uni-Solar MX1-711-000-5 Corner Trim Machine 14.5" Plastic Sheet Solar Panel
Uni-Solar
$600.00Was: $1,200.00Uni-Solar MX1-711-000-5 Corner Trim Machine 14.5" Plastic Sheet Solar Panel The Uni-Solar MX1-711-000-5 is a purpose-built pneumatic corner-cutting machine designed to trim the corners of 14.5"-wide...47241- SKU:
- 47241
- Availability:
- Usually ships within 3-5 business days due to size — please contact us to arrange freight.
- Weight:
- 230.00 LBS
- Brand:
- Uni-Solar
- Model:
- MX1-711-000-5
- MPN:
- MX1-711-000-5
- Secondary Model:
- MX1-711-000
- SKU:
- 47241
- Type:
- Corner Trim Machine / Corner Cutting Machine
- Manufacturer:
- MISCO Industries (miscoind.com)
- Application:
- Solar panel component plastic sheet corner trimming
- Sheet Width Capacity:
- 14.5 inches
- Blade Type:
- 1" wide x 0.25" thick slanted blades (2x)
- Linear Motion Guides:
- THK HSR20 (x2)
- Power Requirements:
- 110 VAC, 60Hz
- Power Supply:
- Rhino PSP24-060S, 60W, 110 VAC to 24VDC
- Optical Sensors:
- Keyence FS-N11CP fiber optic sensors (x2)
- Door Sensor:
- Telemecanique XCS-PA593 with Danner E5-FA-9AA
- Time Delay Relays:
- Fuji Electric MS4SA (x3)
- Pneumatic Shut-Off Valve:
- SMC VHS40-04
- Pneumatic Filter/Regulator:
- SMC AW40-04E
- Pneumatic Solenoid Valves:
- SMC VQC4101-5 (x2)
- Pneumatic Cylinders:
- SMC CG1UN50-25, 145 PSI max (x2)
- Air Supply Required:
- Yes — external compressed air required
- Controls:
- Power On pushbutton, Emergency Stop (red mushroom)
- Enclosure:
- Aluminum extrusion frame, polycarbonate safety guards
- Lower Drawer:
- Green painted steel scrap collection drawer
- Country/Region of Manufacture:
- USA
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Internal 24VDC power supply lights up when plugged in. Requires external air supply to operate cutting heads.
- Condition Notes:
- Uni-Solar MX1-711-000-5 Corner Trim Machine pulled from solar panel production. Internal 24VDC power supply lights up when plugged in. Cutting heads require external compressed air to operate. Good used condition with normal production wear.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$600.00Was: $1,200.00 -
Uni-Solar PVL-136 136W 24V Flexible Amorphous Solar Panel Peel & Stick RV Boat
Uni-Solar
$145.00Was: $300.00Uni-Solar PVL-136 136W 24V Flexible Amorphous Solar Panel Peel & Stick RV Boat The Uni-Solar PVL-136 is a 136-watt, 24-volt flexible thin-film solar panel manufactured by United Solar Ovonic...44027- SKU:
- 44027
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-136
- MPN:
- PVL-136
- Type:
- Flexible Amorphous Thin-Film Solar Panel
- SKU:
- 44027
- Power Output:
- 136W
- Voltage (Vmp):
- 24V
- Cell Technology:
- Triple Junction Amorphous Silicon
- Mounting Style:
- Peel-and-Stick Adhesive Backing
- Panel Dimensions:
- 18 ft long x 15.5 in wide
- UL Listing:
- UL 1703 Listed
- Max System Voltage:
- 600 VDC
- Wind Resistance:
- Category 3 Hurricane Uplift (130 MPH)
- Bypass Diodes:
- Yes — per individual cell
- Grid Tie Compatible:
- Yes
- Compatible Applications:
- RV, Boat, Membrane Roofing, Metal Roofing
- Installation Method:
- No hardware required — direct adhesive bond
- Includes:
- MC4 Junction Box set (upon request)
- Condition:
- New
- Country/Region of Manufacture:
- United States
- Seller Notes:
- New panel. MC4 J-box set included with every panel upon request for DIY install.
- Condition Notes:
- Uni-Solar PVL-136 136W flexible solar panel — new and unused, stored on original cardboard core. No wear or damage. MC4 J-box set included upon request for DIY install.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$145.00Was: $300.00 -
Uni-Solar PVL-144 144W Amorphous Flexible PowerBond Solar Panel 46.2Voc MC4
Uni-Solar
$144.00Was: $300.00Uni-Solar PVL-144 144W Amorphous Flexible PowerBond Solar Panel 46.2Voc MC4 Flexible amorphous silicon thin-film solar panel with adhesive PowerBond backing for direct application to flat or...44139- SKU:
- 44139
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-144
- MPN:
- PVL-144B
- SKU:
- 44139
- Condition:
- New – Old Stock
- Seller Notes:
- Includes DIY MC4 junction box and male/female MC4 connectors
- Form Factor:
- Flexible Laminate, Frameless, Rollable
- Country of Manufacture:
- United States
- Solar Cell Type:
- Amorphous Silicon (a-Si) Thin Film
- Maximum Power (Pmax):
- 144 Watts
- Max Power Voltage (Vmpp):
- 33 Volts
- Max Power Current (Impp):
- 4.4 Amps
- Open Circuit Voltage (Voc):
- 46.2 Volts
- Short Circuit Current (Isc):
- 5.3 Amps
- Max System Voltage:
- 600 Volts
- Module Efficiency:
- 6.67%
- Panel Dimensions:
- 18 ft x 15-3/8 in (18 Feet Long x 15.375 Inches Wide)
- Frame Material:
- Frameless
- Module Connector:
- Solder Point on Bottom of Panel
- Mounting Type:
- PowerBond Adhesive Peel-and-Stick
- UL Rating:
- No UL rating sticker
- Manufacture Date:
- June 2011
- Compatible With:
- Low-slope and flat roofing, RV, marine, off-grid
- Type:
- BIPV Building-Integrated Photovoltaic
- Certifications:
- None listed (no UL sticker on this unit)
- Condition Notes:
- This Uni-Solar PVL-144 144W amorphous flexible solar panel is new old stock, manufactured June 2011, sourced directly from the Uni-Solar manufacturing and distribution facility liquidation. The panel has not been installed or deployed.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$144.00Was: $300.00 -
Uni-Solar L-Strip Amorphous Solar Cell 7.5W 1.6V ePVL DIY Lot of 100
Uni-Solar
$280.00Was: $400.00Uni-Solar L-Strip Amorphous Solar Cell 7.5W 1.6V ePVL DIY Lot of 100 Box of 100 amorphous silicon solar cells manufactured by United Solar Ovonic. Each cell features solder tabs and a stainless steel...44046- SKU:
- 44046
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 34.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- L-Strip Amorphous Solar Cell
- MPN:
- DC-110827-048
- SKU:
- 44046
- Condition:
- New – New Old Stock (NOS)
- Seller Notes:
- Box of 100 solar cells with solder tabs. May have minor cosmetic blemishes.
- Cell Technology:
- Amorphous Silicon (a-Si) on Stainless Steel Substrate
- Maximum Power (Pmax):
- 7.573W avg (4.872W low / 7.757W high)
- Max Power Voltage (Vmpp):
- 1.60 V
- Max Power Current (Impp):
- 3.875 A
- Open Circuit Voltage (Voc):
- 2.05 V
- Short Circuit Current (Isc):
- 5.397 A avg (4.953 low / 5.446 high)
- Cell Efficiency:
- 6–7%
- Cell Size:
- 14" L x 10" W (35.56 cm x 25.4 cm)
- Quantity per Box:
- 100 cells
- Positive Connection:
- Two protruding tips on cell edge
- Negative Connection:
- Entire back-side; solder tabs to back-edge strips
- Compatible With:
- Uni-Solar ePVL / PVL series solar panel assembly
- Application:
- DIY solar panels, battery charging, off-grid power projects
- Country of Manufacture:
- USA (Auburn Hills, Michigan)
- Provenance:
- 2012 United Solar Ovonic liquidation, main Michigan plant
- Condition Notes:
- These Uni-Solar L-Strip amorphous solar cells are new old stock (NOS) — manufactured by United Solar Ovonic and never assembled into panels. Individual cells may have minor cosmetic blemishes that differ from those shown in the photos, which depict
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$280.00Was: $400.00
