Uni-Solar PVL-136 Flexible Amorphous Solar Panel 136W 24V Lot of 30 4080W

Uni-Solar PVL-136 Flexible Amorphous Solar Panel 136W 24V Lot of 30 4080W

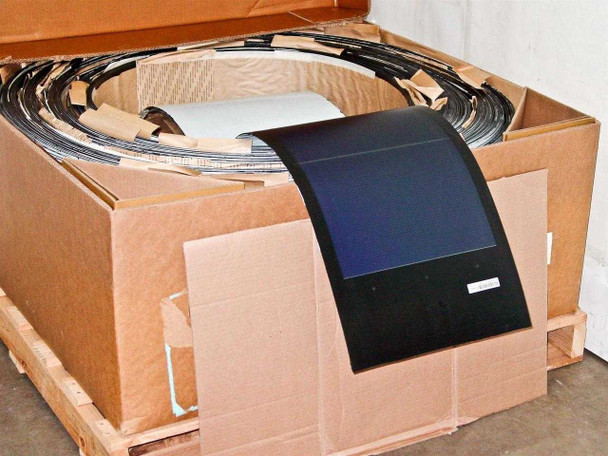

This listing is for a full carton of 30 Uni-Solar PVL-136 PowerBond flexible amorphous solar panels, totaling 4,080 watts. Each panel is a thin-film, triple-junction amorphous silicon laminate rated at 136 watts and 24 volts. This particular carton was custom-configured by Unisolar with bottom-facing 4" wire leads rather than the standard on-top terminal configuration — made for a specific client order that was never fulfilled. The panels came directly from the Unisolar manufacturing and distribution facility liquidation in 2012 and have never been installed.

Specifications & What's Included

• Quantity: 30 panels per carton (on pallet)
• Total lot wattage: 4,080W (30 × 136W)
• Model: PVL-136(B)
• Rated Power (Pmax, STC): 136 Wp
• Production Pmax Tolerance: ±5%
• Voltage at Pmax (Vmp): 33.0 V
• Current at Pmax (Imp): 4.13 A
• Short-Circuit Current (Isc): 5.1 A
• Open-Circuit Voltage (Voc): 42.2 V
• Maximum Series Fuse Rating: 10 A (UL), 8 A (IEC)
• Cell Type: 22 triple-junction amorphous silicon cells, 356mm × 239mm (14" × 9.4") each, connected in series
• Panel Dimensions: 5,486mm L × 394mm W × 4mm D (216" × 15.5" × 0.2")
• Terminal housing assembly depth: 16mm (0.6") including potted terminal housing
• Output Cables: 4mm² (12 AWG) weatherproof DC-rated quick-connect terminals, 560mm (22") length — bottom-facing 4" wire configuration on this lot
• Encapsulation: Durable ETFE high light-transmissive polymer
• Adhesive: Ethylene propylene copolymer adhesive sealant with microbial inhibitor (peel-and-stick backing)
• Bypass Diodes: Across every solar cell (shadow tolerance)
• System Voltage Rating: Up to 600 VDC (UL 1703); up to 1,000 VDC (IEC 61646 / IEC 61730)
• Certification: UL 1703 Listed (Class A Slope 2/12, Class B Max Slope 3/12, Class C Unlimited Slope); TÜV Rheinland certified to IEC 61646 and IEC 61730
• Wind / Hurricane Rating: Category 3 — 130 MPH uplift resistant
• Installation: Adhesive peel-and-stick — no hardware, no roof penetrations required
• Compatible roofing: Membrane and metal roofing systems
• Operating Temperature: 10°C to 40°C (50°F to 100°F); Maximum roof surface temp: 85°C (185°F)
• Minimum slope: 3° (1:21:12); Maximum slope: 60° (21:12)
• Power output warranty (original): 92% at 10 years, 84% at 20 years, 80% at 25 years of minimum rated power
• Product warranty (original): 5-Year Limited Product Warranty
• NOCT Pmax: 105W; NOCT Vmp: 30.8V; NOCT Imp: 3.42A; NOCT Isc: 4.1A; NOCT Voc: 42.2V; NOCT: 46°C

Applications

The Uni-Solar PVL series is a building-integrated photovoltaic (BIPV) laminate designed specifically for low-slope commercial and industrial roofing. Unlike rigid crystalline silicon panels that require racking, ballast, or penetrations, PVL panels bond directly to the roof membrane or metal substrate using their factory-applied adhesive backing — making them a common choice for large flat or low-pitch commercial rooftops, carports, and industrial facilities where structural loading and roof penetration are concerns. The triple-junction amorphous silicon cell technology captures a broader portion of the solar spectrum (blue, green, and red wavelengths absorbed in separate cell layers), giving these panels better performance in diffuse, overcast, and low-light conditions compared to conventional crystalline panels. Each cell is protected by its own bypass diode, so partial shading or soiling of one cell affects only that cell's output — typically less than 4.5% loss per shaded cell — rather than degrading the entire string. The PVL-136 panels are less than one-fifth the weight of equivalent crystalline panels, which makes them suited to roofs with limited load capacity. Unisolar (United Solar Ovonic) was a Michigan-based manufacturer and a pioneer in flexible thin-film BIPV laminates; the company operated through 2012, and genuine factory-new PVL stock has become increasingly scarce since the liquidation.
