Nanosolar

Nanosolar NanoCell 6000ct 15600W CIGS MWT Flexible Solar Cells 2.6W 0.45V

(No reviews yet) Write a Review
SKU:
47024
MPN:
6000ct
Condition:
New
Availability:
Usually ships within 3-5 business days; large carton shipment — contact us for freight quote.
Weight:
350.00 LBS
Shipping:
Calculated at Checkout

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 - 4 and get 10% off

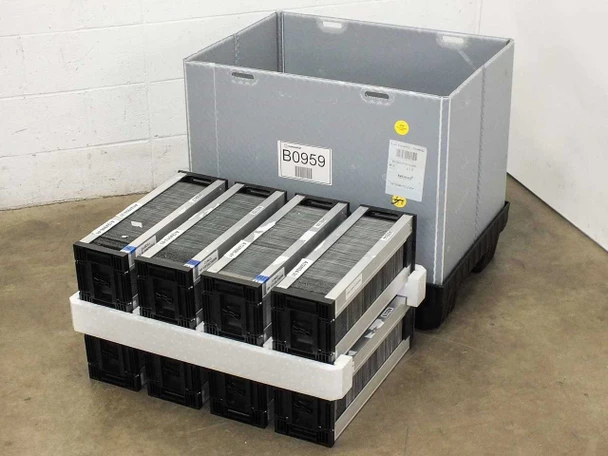

  • Nanosolar NanoCell CIGS solar cells in foam-separated stacks on pallet tray, with sealed gray storage carton labeled B0959 behind

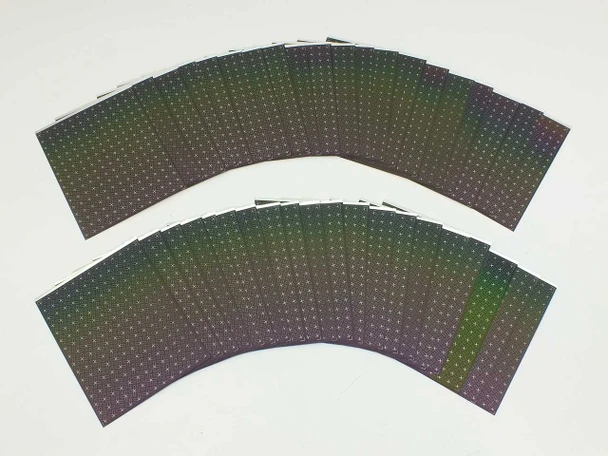

  • Fan of Nanosolar NanoCell flexible CIGS solar cells showing iridescent thin-film surface with MWT screen-printed grid pattern
  • Nanosolar NanoCell preliminary datasheet showing electrical characteristics at STC: 2.6W rated power, 0.45V Vmpp, 5.8A Impp, 0.61V Voc, 6.7A Isc, 165x135x0.4mm dimensions
  • Nanosolar NanoCell product brochure page highlighting low weight aluminum structure, low array mismatch losses, and customizable MWT cell designs

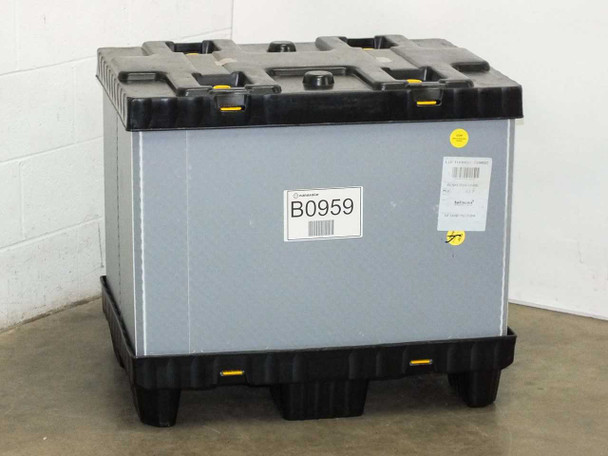

  • Sealed gray Tosca-style bulk storage carton labeled B0959 with black pallet base — outer shipping container for 6,000-cell lot
  • Open carton B0959 showing multiple foam-divided stacks of Nanosolar NanoCell cells labeled with lot codes A124912-43, A124912-40, A124906-41, A03719
  • Row of six stacked Nanosolar NanoCell cell trays fanned out, showing tray labels including A00144, A124924-31, A03102, A124912-03, A08817, A124906-41, A124912-03

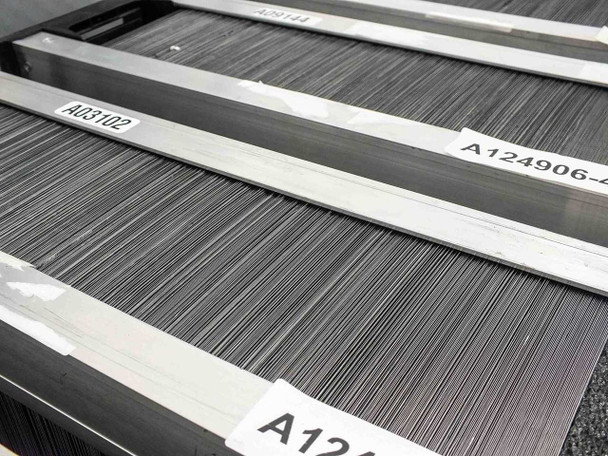

  • Close-up of Nanosolar NanoCell cell trays stacked in sequence, showing tray labels A03102 and A124906-41 clearly

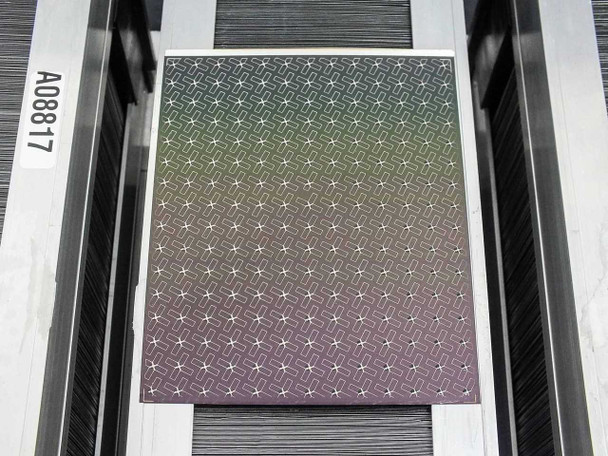

  • Single Nanosolar NanoCell CIGS cell removed from tray, showing MWT star/cross screen-printed grid pattern on active surface, tray label A08817 visible
  • Single Nanosolar NanoCell flexible CIGS cell bent to show flexibility of thin aluminum substrate — green iridescent active surface visible
  • Second view of single Nanosolar NanoCell CIGS cell in tray showing full active surface with MWT grid, tray label A08817 visible

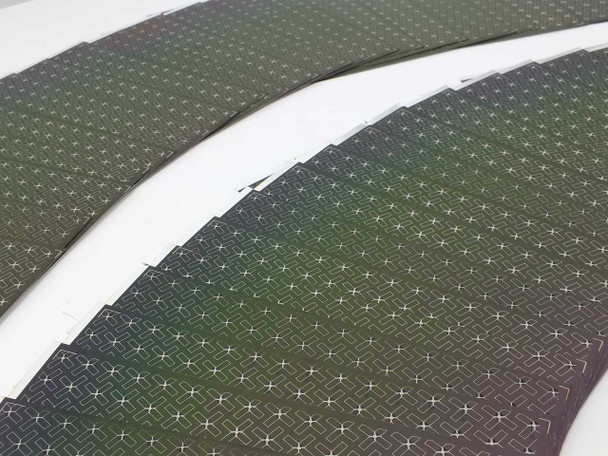

  • Multiple Nanosolar NanoCell CIGS cells fanned out showing iridescent color variation across the thin-film surface and MWT grid pattern
  • Single Nanosolar NanoCell CIGS cell laid flat showing full 165x135mm active surface with MWT star pattern and iridescent green-to-purple gradient
  • Reverse (aluminum substrate) side of Nanosolar NanoCell CIGS cell — bare brushed aluminum with small Nanosolar QR/logo mark at center
  • Close-up of aluminum reverse of Nanosolar NanoCell cell showing laser-etched serial number A12492431 and lot code 00259 with 2D barcode
$3,500.00
Was: $7,000.00
Current Stock: 59

Sold Out

Description

Nanosolar NanoCell 6000ct 15600W CIGS MWT Flexible Solar Cells 2.6W 0.45V

Full carton of 6,000 CIGS thin-film flexible solar cells rated at 2.6W per cell. These copper indium gallium selenide cells use metal wrap-through technology mounted on flexible aluminum substrates for integration into custom photovoltaic arrays and experimental applications.

Specifications & What's Included

  • Quantity: 6,000 cells per lot
  • Total power output: 15.6 kW (combined)
  • Rated power per cell: 2.6W; Vmpp: 0.45V; Impp: 5.8A
  • Voc: 0.61V; Isc: 6.7A
  • Cell dimensions: 165 × 135 × 0.4 mm (flexible aluminum substrate)
  • Operating temperature range: −40 to +85°C
  • Maximum system voltage: 600V UL / 1000V IEC
  • Raw cells with no pre-attached terminals or output cables

Applications

Nanosolar NanoCell CIGS flexible cells are used for custom panel assembly, research and development, and photovoltaic experiments requiring thin-film technology. The flexible substrate allows integration into non-standard form factors and lightweight installations. These cells are suited for integrators building custom arrays rather than end-use residential or commercial systems.

Condition: New
These Nanosolar NanoCell CIGS flexible solar cells are new and unused. The full carton of 6,000 cells is stored in sealed containers with desiccant to protect against moisture and extend shelf life. The cells show no signs of use or wear. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Specifications Sheet:
Nanosolar NanoCell Preliminary Cell Spec Sheet (NSC-NS NanoCell-CDS_Preliminary_EN.v2)
Brand:
Nanosolar
Model:
NanoCell
MPN:
NS NanoCell
Type:
CIGS Flexible Thin-Film Solar Cell
SKU:
47024
Quantity per Lot:
6,000 cells
Total Power (Lot):
15,600 Watts (15.6 kW)
Rated Power per Cell:
2.6 Watts
Power Tolerance:
-10% to +10% (Pmpp and Voc/Isc/Vmpp/Impp)
Vmpp (V):
0.45 V
Impp (A):
5.8 A
Voc (V):
0.61 V
Isc (A):
6.7 A
Temp Coefficient Pmax:
-0.40 %/K
Temp Coefficient Voc:
-0.30 %/K
Temp Coefficient Isc:
+0.01 %/K
Max System Voltage:
600V UL / 1000V IEC
Operating Temperature Range:
-40 to +85°C
Cell Technology:
CIGS (Copper Indium Gallium Selenide)
Cell Design:
MWT (Metal Wrap Through) Print2Power
Substrate:
Thin flexible aluminum sheet
Cell Length:
165 mm (6.5 in)
Cell Width:
135 mm (5.3 in)
Cell Thickness:
0.4 mm (0.02 in)
Condition:
New – Unused, stored sealed with desiccant
Country/Region of Manufacture:
United States
Seller Notes:
Full carton of 6,000 cells. Stored in sealed cartons with desiccant.
Application:
DIY solar panels, R&D, photovoltaic experiments
Series Fuse Rating:
N/A
Output Cables:
N/A (raw cells, no cables)
Output Terminal:
N/A (raw cells, no pre-attached terminals)
Condition Notes:
Nanosolar NanoCell CIGS flexible solar cells — new and unused. Full 6,000-cell carton stored sealed with desiccant. No signs of use or wear. Please view photos and contact us with any questions.
View AllClose
