Nanosolar

Nanosolar NanoCell CIGS MWT Flexible Solar Cells 2.6W 0.45V 5.8A Lot of 1000

(No reviews yet) Write a Review
SKU:
47025
MPN:
NanoCell
Condition:
New
Availability:
Usually ships within 1–2 business days.
Weight:
51.00 LBS
Shipping:
Calculated at Checkout

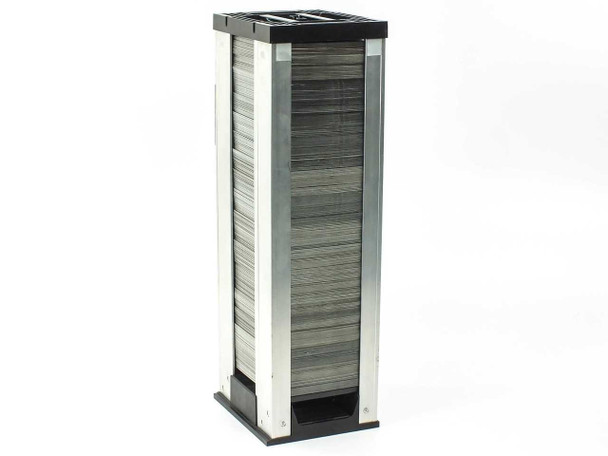

  • Nanosolar NanoCell CIGS solar cells stacked in full 1000-cell carrier tray — full tower view
  • Top view of Nanosolar NanoCell cell carrier showing stack of 1000 semi-flexible aluminum solar cells with data matrix code visible
  • Several Nanosolar NanoCell CIGS MWT solar cells removed from carrier showing green active surface with MWT contact pattern
  • Fan-spread view of multiple Nanosolar NanoCell CIGS solar cells showing iridescent active surface and flexible nature of the aluminum substrate
  • Nanosolar NanoCell dimension diagram showing 165mm width and 135mm height with connection tab location labeled

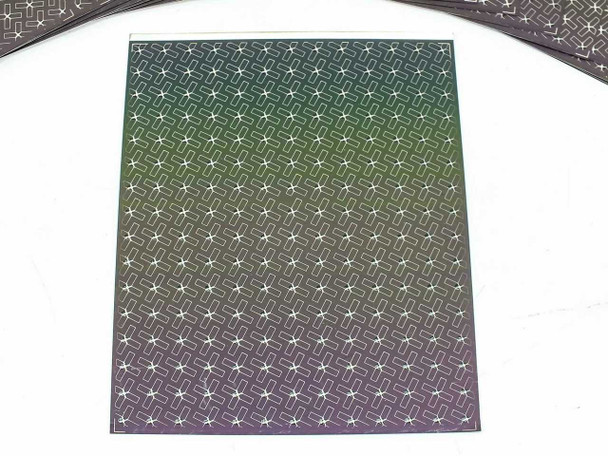

  • Single Nanosolar NanoCell CIGS solar cell showing iridescent active surface with MWT contact grid pattern under studio lighting
  • Reverse (aluminum substrate) side of a Nanosolar NanoCell solar cell showing brushed aluminum backing with data matrix code
  • Fan arrangement of multiple Nanosolar NanoCell cells showing thin-film CIGS active surface and semi-flexible form factor
  • Close-up of Nanosolar NanoCell aluminum substrate showing laser-etched data matrix code and serial identifier A12492431 / 00259
  • Top of Nanosolar NanoCell 1000-cell carrier showing black plastic locking cap and clear acrylic side rails
  • Nanosolar Lot of 1000 NanoCells 2.6KW Lightweight Flexible CIGS MWT Solar Cells
$1,100.00
Was: $2,200.00
Current Stock: 18

Sold Out

Description

Nanosolar NanoCell CIGS MWT Flexible Solar Cells 2.6W 0.45V 5.8A Lot of 1000

Thin-film CIGS flexible solar cells on semi-flexible aluminum substrates with MWT (Metal Wrap Through) interconnection. This lot contains 1,000 unused cells with combined rated output of 2.6 kW.

Specifications & What's Included

  • 1,000 cells on original carrier with desiccant storage
  • 2.6 W per cell; 0.45 V Vmpp; 5.8 A Impp
  • 0.61 V Voc; 6.7 A Isc
  • CIGS thin-film technology; 165 × 135 × 0.4 mm
  • Operating range: -40 to +85°C
  • U.S. manufactured

Applications

CIGS flexible solar cells are used in custom PV module assembly and DIY solar panel fabrication. These cells support assembly via 3M conductive tape, battery tab spot welders, and ultrasonic welders. Flexible thin-film construction allows integration into non-rigid substrates and encapsulation methods where standard rigid silicon modules are not suitable.

Condition: New
These Nanosolar NanoCell CIGS MWT flexible solar cells are new and unused. They have been stored in sealed cartons with desiccant to protect them during storage. The cells show no signs of wear or use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Specifications Sheet:
Nanosolar Nanocell Preliminary Cell Spec Sheet
Brand:
Nanosolar
Model:
NanoCell
MPN:
NanoCell
Type:
CIGS MWT Flexible Thin-Film Solar Cell
SKU:
47025
Lot Quantity:
1000 cells
Total Lot Power Output:
2,600 Watts (2.6 kW)
Power per Cell (Rated):
2.6 W
Vmpp (Max Power Voltage):
0.45 V
Impp (Max Power Current):
5.8 A
Voc (Open Circuit Voltage):
0.61 V
Isc (Short Circuit Current):
6.7 A
Cell Technology:
CIGS (Copper Indium Gallium Selenide)
Connection Technology:
MWT – Metal Wrap Through
Cell Structure:
Semi-flexible aluminum substrate, uncoated
Operating Temperature:
-40 to +85°C
Cell Length:
165 mm (6.5 in)
Cell Width:
135 mm (5.3 in)
Cell Thickness:
0.4 mm (0.02 in)
Seller Notes:
Lot of 1000 cells on original carrier, new and unused, stored with desiccant
Country/Region of Manufacture:
United States
Condition:
New – Unused, stored in sealed cartons with desiccant
Application:
DIY solar panel fabrication, flexible PV module assembly
Compatible Assembly Methods:
3M conductive tape, battery tab spot welder, ultrasonic welder
Condition Notes:
Nanosolar NanoCell CIGS MWT solar cells, new and unused. Stored in sealed cartons with desiccant. No wear or use. Lot of 1000 cells. Please view photos and contact us with questions.
View AllClose

Related Products

Related Products

Nanosolar NanoCell 2.6W flexible CIGS solar cell in sealed clear plastic packaging — top view Nanosolar NanoCell CIGS solar cell bent to show flexibility of thin aluminum substrate — side profile view
Add to Cart
Quick view

Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Lot of 10 26W

Nanosolar

$16.30
Was: $49.99
Nanosolar NanoCell 2.6W Flexible CIGS Solar Cell 0.45V 5.8A Lot of 10 26W Lot of 10 flexible CIGS thin-film solar cells manufactured by Nanosolar. Each cell produces 2.6W at 0.45V and 5.8A, for a...
47026
SKU:
47026
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Specifications:
Nanosolar Nanocell Preliminary Cell Spec Sheet
Brand:
Nanosolar
Model:
NanoCell
MPN:
NanoCell 2.6W
SKU:
47026
Condition:
New – Unused, stored sealed with desiccant
Seller Notes:
Lot of 10 individual CIGS solar cells; 26W total output
Country of Manufacture:
United States
Form Factor:
Flexible Sheet / Thin Film
Solar Cell Technology:
CIGS (Copper Indium Gallium Selenide)
Substrate Material:
Flexible Aluminum Sheet
Power Output Per Cell:
2.6W
Total Lot Power Output:
26W (10 cells)
Voltage at MPP (Vmp):
0.45V
Current at MPP (Imp):
5.8A
Quantity in Lot:
10 cells
Connection Method:
Double-sided conductive tape recommended
Storage:
Airtight sealed cartons with desiccant
Specifications Sheet:
Nanosolar NanoCell Preliminary Cell Spec Sheet (see listing)
Condition Notes:
These Nanosolar NanoCell 2.6W flexible CIGS solar cells are new and unused. They are stored in airtight sealed cartons with desiccant. Please view our photo set and contact us if you have any questions.

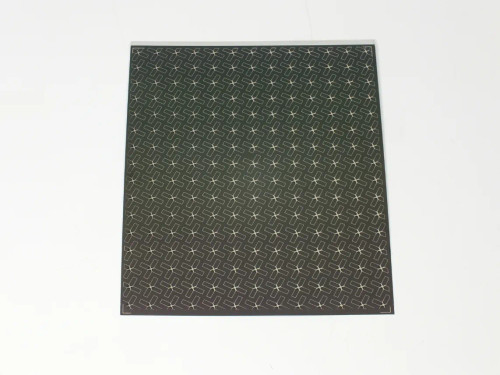

Nanosolar NanoCell CIGS flexible solar cell — front active surface showing metallic grid contact pattern Nanosolar NanoCell flexible solar cell — reverse aluminum substrate side, plain brushed finish
