Uni-Solar

Uni-Solar PVL-68 68W 12V Flexible Amorphous Solar Panel Peel & Stick MC3

(No reviews yet) Write a Review
SKU:
44043
MPN:
PVL-68T
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout

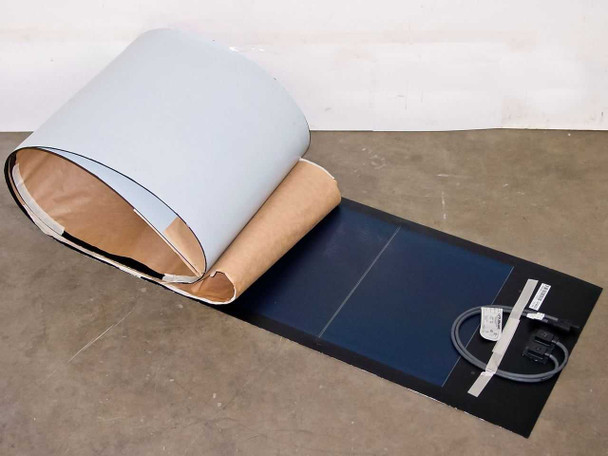

  • Uni-Solar PVL-68 flexible amorphous solar panel partially unrolled showing blue photovoltaic surface and MC3 output cable

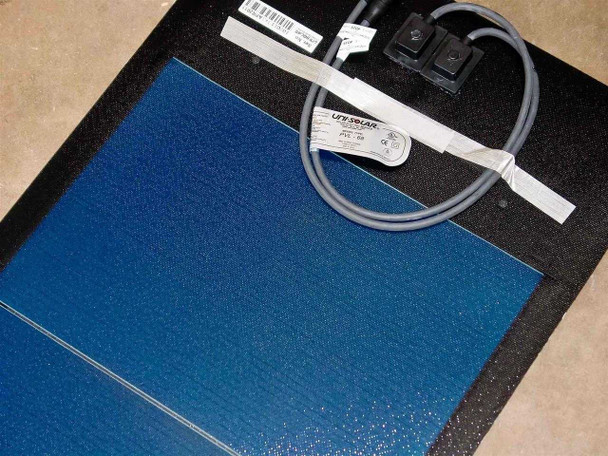

  • Uni-Solar PVL-68 flexible solar panel laid flat showing full blue laminate surface, MC3 cable, and product label
  • Uni-Solar PVL-68 product label showing model type, Max System Voltage 1000V IEC / 600V UL, UL and CE certifications, assembled in Mexico
  • Uni-Solar United Solar Ovonic serial number label showing manufacture date APR 2011

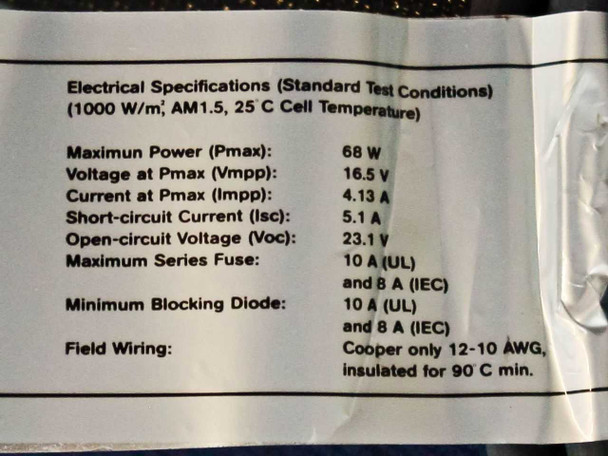

  • Uni-Solar PVL-68 electrical specifications label showing Pmax 68W, Vmpp 16.5V, Impp 4.13A, Isc 5.1A, Voc 23.1V, fuse and wiring ratings
  • Close-up of Uni-Solar PVL-68 MC3 output connectors showing male and female ends

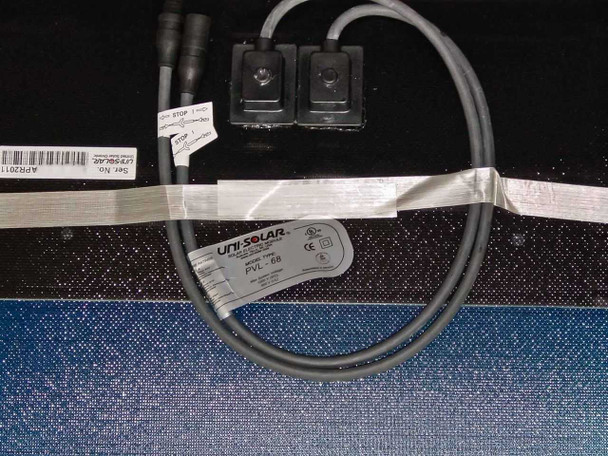

  • Uni-Solar PVL-68 solar panel rear view showing MC3 cable routing, output connectors, and product labels
$160.00
Was: $325.00
Current Stock: 4

Sold Out

Description

Uni-Solar PVL-68 68W 12V Flexible Amorphous Solar Panel Peel & Stick MC3

Flexible amorphous thin-film solar panel rated at 68W maximum power output. Features factory-installed peel-and-stick adhesive backing and MC3 connector cable for direct integration into 12V systems.

Specifications & What's Included

  • Maximum Power (Pmax): 68W at 16.5V / 4.13A
  • Open-Circuit Voltage: 23.1V; Short-Circuit Current: 5.1A
  • Module Efficiency: 6.2% amorphous silicon thin-film
  • Dimensions: 112.1 x 15.5 x 0.2 inches (frameless, flexible laminate)
  • MC3 connectors; UL Listed, CE, TÜV certified
  • Factory-installed peel-and-stick adhesive backing; MC3 output cable included

Applications

Uni-Solar amorphous panels are used in 12V battery systems, RV roof installations, marine applications, and light commercial rooftop deployments. The flexible form factor allows mounting on curved or non-standard surfaces where rigid crystalline panels cannot be used. Typical applications include auxiliary charging, off-grid systems, and supplemental power generation on vehicles and vessels.

Condition: New
This Uni-Solar PVL-68 68W 12V flexible amorphous solar panel is new and unused. The laminate surface is clean and shows no wear, and the factory-installed peel-and-stick adhesive backing is intact and ready to install. The MC3 output cable and connectors are present and undamaged. Please view our photos and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Uni-Solar
Model:
PVL-68
MPN:
PVL-68
Type:
Flexible Amorphous Thin-Film Solar Panel
SKU:
44043
Seller Notes:
Includes panel with factory-installed adhesive backing and MC3 output cable
Country/Region of Manufacture:
Mexico
Form Factor:
Flexible / Frameless Laminate
Maximum Power (Pmax):
68 W
Nominal Operating Voltage:
12 V
Voltage at Pmax (Vmpp):
16.5 V
Current at Pmax (Impp):
4.13 A
Open-Circuit Voltage (Voc):
23.1 V
Short-Circuit Current (Isc):
5.1 A
Max System Voltage:
1000 V (IEC) / 600 V (UL)
Maximum Series Fuse:
10 A (UL) / 8 A (IEC)
Minimum Blocking Diode:
10 A (UL) / 8 A (IEC)
Module Efficiency:
6.2%
Cells Per Module:
11
Frame Material:
Frameless
Module Connector:
MC3
Field Wiring:
Copper only, 12–10 AWG, insulated for 90°C min.
Adhesive Backing:
Factory-installed peel-and-stick bonding adhesive
Panel Dimensions:
112.1 x 15.5 x 0.2 inches
Cell Technology:
Amorphous Silicon (a-Si) Thin Film
Certifications:
UL Listed, CE, TÜV
Condition:
New – Unused
Compatible With:
12V battery systems, RV, marine, commercial rooftop
Manufacturer:
United Solar Ovonic (Uni-Solar), Auburn Hills, MI, USA
Condition Notes:
This Uni-Solar PVL-68 68W flexible amorphous solar panel is new and unused. Peel-and-stick adhesive backing is factory-installed and intact. MC3 cable included. Please view our photos and contact us with any questions.
