Uni-Solar

Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel Laminate 24V Qty 20

(No reviews yet) Write a Review
SKU:
53178
MPN:
PVL-128
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
420.00 LBS
Shipping:
Calculated at Checkout

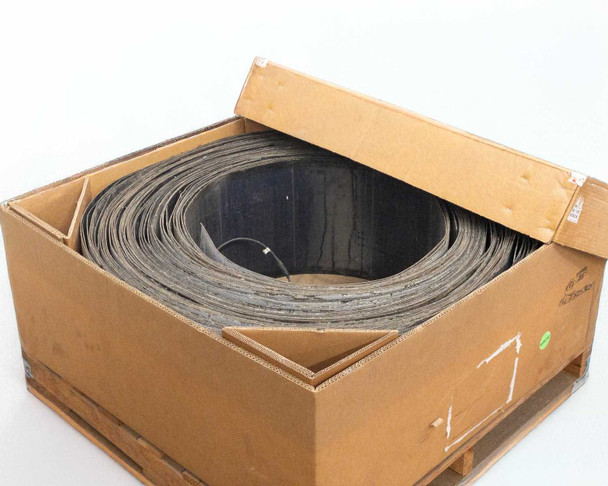

  • Uni-Solar PVL-128 flexible solar panel lot of 20 in cardboard carton on pallet, lid ajar showing rolled panels inside – front angle view
  • Uni-Solar PVL-128 128W flexible solar laminate roll inside open carton on pallet, top-down angle showing layered dark laminate material

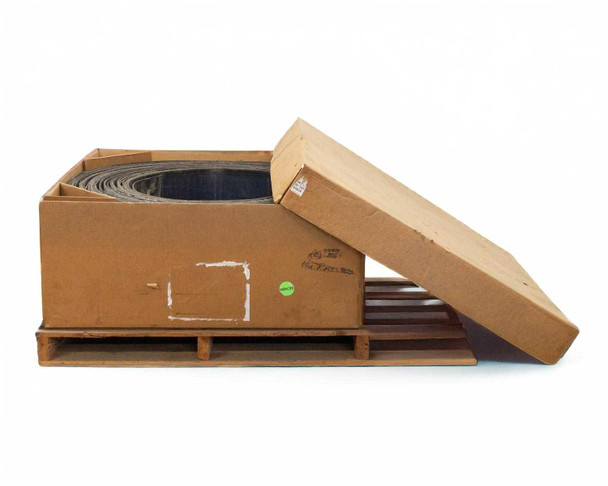

  • Uni-Solar PVL-128 solar panel carton on pallet with lid offset to side, showing rolled flexible laminate panels – side angle view

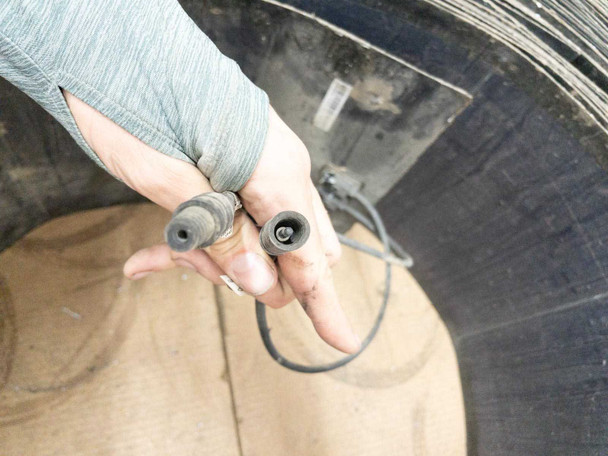

  • Close-up of Uni-Solar PVL-128 output cable quick-connect terminals held by hand, showing two rubber-booted DC connector ends

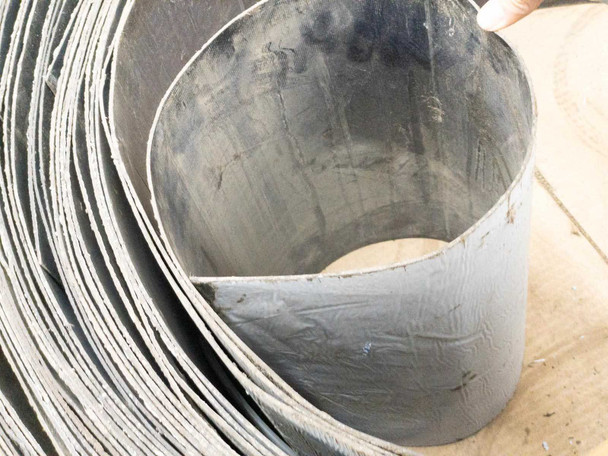

  • Close-up of rolled Uni-Solar PVL-128 flexible solar laminate edge showing dark ETFE surface with surface scuffing and some delamination on leading edge
  • Interior of Uni-Solar PVL-128 panel roll showing wiring lead routed along the inside with junction box mounted on laminate backing
  • Close-up of Uni-Solar PVL-128 panel junction box showing adhesive deterioration and wire leads; label reads serial/date MAR 2011
  • Uni-Solar PVL-128 carton sealed with lid on pallet, exterior showing chalk markings and green dot sticker – full carton exterior view

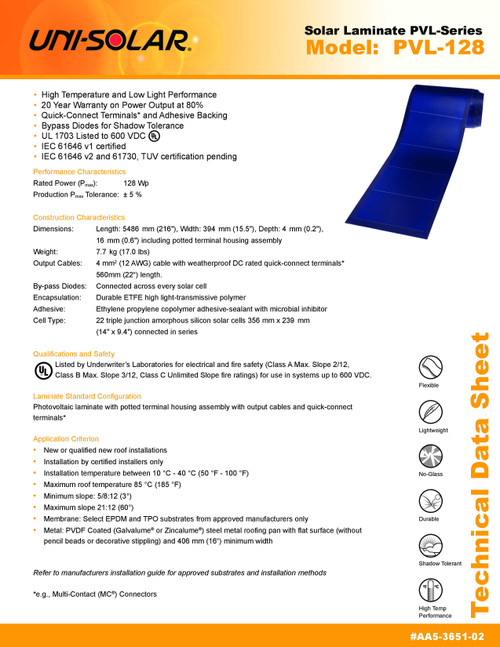

  • Uni-Solar PVL-128 Solar Laminate PVL-Series technical data sheet showing model designation, feature list, construction details and certifications
  • Uni-Solar PVL-128 technical data sheet page 2 showing IV curves, STC and NOCT electrical specifications, and temperature coefficient data
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
  • Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 20
$2,100.00
Was: $4,200.00
Current Stock: 1

Sold Out

Description

Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel Laminate 24V Qty 20

Lot of 20 used flexible amorphous silicon solar panel laminates rated at 128W maximum power. These adhesive-backed panels convert sunlight to DC power and mount directly to compatible roofing substrates without penetrations.

Specifications & What's Included

  • Model: PVL-128 | 128W @ STC, 100W @ NOCT
  • Voltage: 24V nominal, 33.0V Vmpp, 47.6V Voc
  • Current: 3.88A Impp, 4.8A Isc
  • Dimensions: 5486mm L × 394mm W × 4mm D (flexible laminate form)
  • Cell Type: Triple-junction amorphous silicon with bypass diodes
  • Encapsulation: ETFE polymer with ethylene propylene adhesive-sealant
  • Output: 4mm² cables with quick-connect terminals on each panel
  • Installation: Adhesive-backed, suitable for EPDM, TPO, PVDF-coated metal roofing
  • Certifications: UL 1703, IEC 61646, IEC 61730

Applications

Uni-Solar flexible laminates were used in grid-tie and off-grid solar installations on RVs, boats, metal buildings, and low-slope commercial roofing where traditional rigid panels were impractical. Their thin form factor and adhesive mounting made them suitable for curved or flat substrates. These panels are compatible with 24V and 48V DC systems using charge controllers and inverters rated for amorphous silicon output.

Condition: Used
This lot of 20 Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel laminates has been inspected and appears to be in good used condition overall. The panels were pulled from a working installation. The photos show surface scuffing on the laminate faces and some adhesive deterioration around the junction boxes on at least some panels — buyers should review the photos carefully, as condition may vary across panels in the lot. The output cables and quick-connect terminals are present on the panels visible in the photos. The panels are rolled and stored in the original cardboard carton on a pallet. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Uni-Solar
Model:
PVL-128
MPN:
PVL-128
Type:
Flexible Amorphous Solar Panel Laminate
SKU:
53178
Quantity:
20 panels per lot
Maximum Power (Pmax):
128 Watts (STC)
Nominal Operating Voltage:
24V
Maximum Power Voltage (Vmpp):
33.0 V
Maximum Power Current (Impp):
3.88 A
Open Circuit Voltage (Voc):
47.6 V
Short Circuit Current (Isc):
4.8 A
Max Series Fuse Rating:
8 A
NOCT Power Output:
100 W
NOCT Vmp:
30.8 V
NOCT Imp:
3.24 A
NOCT Voc:
43.5 V
NOCT Temperature:
46°C
Length:
5486 mm (216 in / 18 ft)
Width:
394 mm (15.5 in)
Depth:
4 mm (0.2 in)
Cell Type:
Triple-junction amorphous silicon, 356mm x 239mm
Encapsulation:
Durable ETFE high light-transmissive polymer
Adhesive:
Ethylene propylene copolymer adhesive-sealant
Output Cables:
4mm² (12 AWG), 560mm (22 in), quick-connect
Bypass Diodes:
Connected across every solar cell
Max System Voltage:
600 VDC (UL)
Certifications:
UL 1703, IEC 61646 v1, IEC 61730 TUV pending
Installation Method:
Adhesive-backed laminate, no roof penetrations
Compatible Substrates:
EPDM, TPO, PVDF coated metal roofing panels
Min Roof Slope:
5:12 (3°)
Max Roof Slope:
21:12 (60°)
Installation Temperature Range:
10°C to 40°C (50°F to 100°F)
Max Operating Temperature:
85°C (185°F)
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Lot of 20 panels. Includes output cables with quick-connect terminals on each panel.
Condition Notes:
Lot of 20 Uni-Solar PVL-128 128W flexible solar laminates inspected and in good used condition. Pulled from a working installation. Photos show surface scuffing and some junction box adhesive wear on visible panels. Output cables present.
View AllClose

Related Products

Related Products

Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 30 Uni-Solar PVL-128 Carton 128W Flexible Amorphous Solar Panels USED Qty 30
Add to Cart
Quick view

Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30

Uni-Solar

$2,000.00
Was: $4,000.00
Uni-Solar PVL-128 128W Flexible Amorphous Solar Panels 24V Metal Roofing Qty 30This is a carton of 30 Uni-Solar PVL-128 128-watt flexible amorphous silicon solar panels. The PVL-128 is a...
53179
SKU:
53179
Availability:
Usually ships within 1-2 business days.
Weight:
520.00 LBS
Brand:
Uni-Solar
Model:
PVL-128
MPN:
PVL-128
Type:
Flexible Amorphous Silicon Thin Film Solar Panel
SKU:
53179
Quantity in Lot:
30 Panels
Maximum Power (Pmax):
128 W
Nominal Operating Voltage:
24 V
Maximum Power Voltage (Vmpp):
33 V
Maximum Power Current (Impp):
3.88 A
Open Circuit Voltage (Voc):
47.6 V
Short Circuit Current (Isc):
4.8 A
Panel Technology:
Amorphous Silicon (a-Si)
Flexibility:
Flexible
Mounting Type:
Adhesive Peel-and-Stick — No Penetrations Required
Panel Length:
18 ft (216 in)
Panel Width:
1.29 ft (15.5 in)
Panel Thickness:
0.2 in
Compatible Roofing Types:
Metal, TPO, EPDM, Membrane
Connector Type:
Uni-Solar Proprietary
Bypass Diodes:
Integrated — max 4.5% power loss when shaded
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment
Seller Notes:
Carton of 30 panels; connectors included on panel ends
Condition Notes:
Carton of 30 Uni-Solar PVL-128 128W flexible amorphous solar panels. Inspected and in good condition. Pulled from a working environment. Panel roll intact; connectors present. Carton shows external wear/moisture staining — cosmetic only.
Uni-Solar PVL-128 128W flexible amorphous solar panel shown unrolled on floor, displaying dark purple photovoltaic cells and white backing Uni-Solar PVL-128 official technical data sheet showing product specifications, features, and UL listing details
Add to Cart
Quick view

Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel UL 1703 600VDC

Uni-Solar

$120.00
Was: $250.00
Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel UL 1703 600VDC The Uni-Solar PVL-128 is a 128-watt flexible amorphous thin-film solar laminate designed to bond directly to membrane and...
44033
SKU:
44033
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Datasheet:
Unisolar PVL-128 Datasheet
Brand:
Uni-Solar
Model:
PVL-128
MPN:
PVL-128
Part Number:
AA5-3851-02
Type:
Flexible Amorphous Thin-Film Solar Panel
SKU:
44033
Seller Notes:
Includes 4-inch bottom-facing output wires (positive/negative). Junction box not included.
Country/Region of Manufacture:
United States
Maximum Power (Pmax):
128 W
Nominal Operating Voltage:
24 V
Max Power Voltage (Vmpp):
33.0 V
Max Power Current (Impp):
3.88 A
Open Circuit Voltage (Voc):
47.6 V
Short Circuit Current (Isc):
4.8 A
Maximum Series Fuse Rating:
8 A
NOCT Power (Pmpp):
100 W
NOCT Voltage (Vmpp):
30.8 V
NOCT Current (Impp):
3.24 A
NOCT Open Circuit Voltage (Voc):
43.5 V
NOCT Short Circuit Current (Isc):
3.9 A
NOCT Temperature:
46°C
Panel Length:
5486 mm (216") / 18 ft
Panel Width:
394 mm (15.5")
Panel Depth:
4 mm (0.2")
Output Cable Length:
560 mm (22")
Output Cable Gauge:
4 mm² (12 AWG)
Cell Type:
Triple-junction amorphous silicon
Cell Dimensions:
356 mm x 239 mm
Encapsulation:
Durable ETFE high light-transmissive polymer
Adhesive:
Ethylene propylene copolymer w/ microbial inhibitor
By-pass Diodes:
Connected across every solar cell
UL Listing:
UL 1703 — systems up to 600 VDC
Fire Rating:
Class A Max. Slope 2:12, Class B Max. Slope 3:12
IEC Certification:
IEC 61646 v1 certified
Installation Temperature Range:
-10°C to 40°C (50°F to 100°F)
Maximum Roof Temperature:
85°C (185°F)
Minimum Roof Slope:
5:8:12 (3°)
Maximum Roof Slope:
21:12 (60°)
Compatible Substrates:
EPDM, TPO, PVDF-coated metal roofing
Application:
Membrane and metal roofing, grid-tie solar systems
Condition:
New
Form Factor:
Flexible Laminate / Roll
Condition Notes:
This Uni-Solar PVL-128 128W flexible amorphous solar panel is new and unused. Clean, intact laminate surface and backing. Includes 4-inch bottom-facing output wires (red/black). No junction box included.

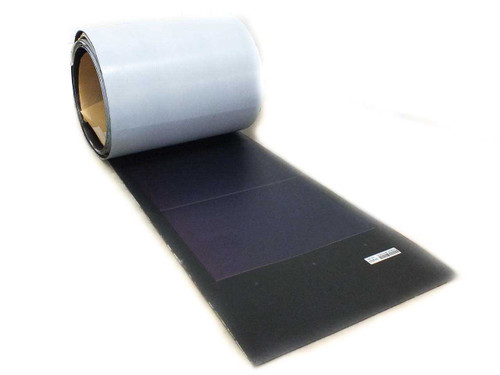

Uni-Solar PVL-128 flexible amorphous solar panel rolled up showing peel-and-stick adhesive backing and thin laminate profile Uni-Solar PVL-128 Solar Laminate PVL-Series technical data sheet showing model number, features, and construction characteristics
