Uni-Solar

Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel Peel Stick Solder

(No reviews yet) Write a Review
SKU:
51942
MPN:
PVL-128
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
20.00 LBS
Shipping:
Calculated at Checkout
  • Uni-Solar PVL-128 flexible amorphous solar panel rolled up showing peel-and-stick adhesive backing and thin laminate profile

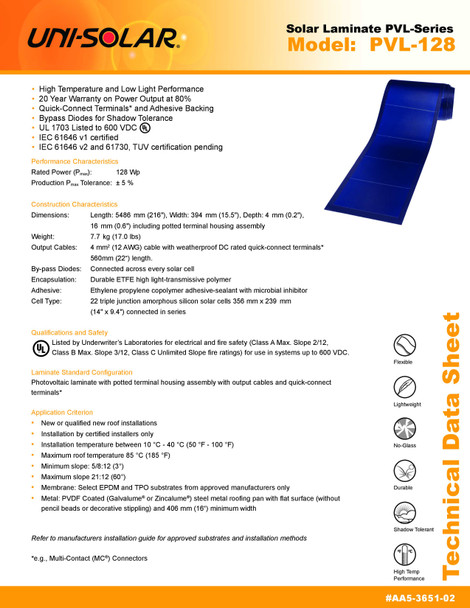

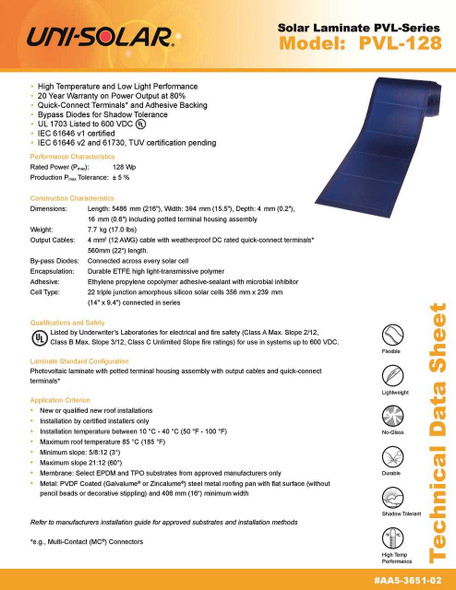

  • Uni-Solar PVL-128 Solar Laminate PVL-Series technical data sheet showing model number, features, and construction characteristics

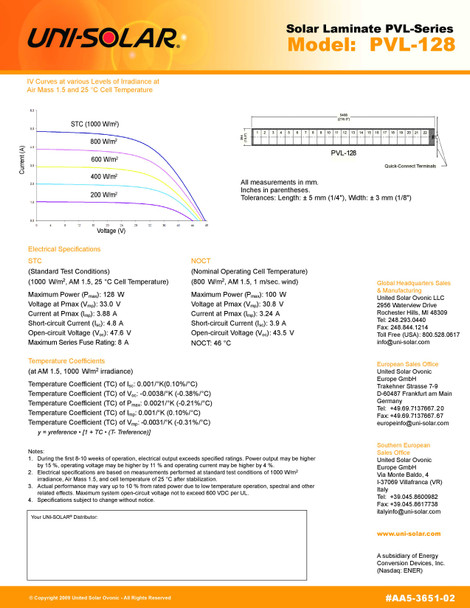

  • Uni-Solar PVL-128 data sheet showing full electrical specifications including STC and NOCT curves, temperature coefficients, and dimensional drawing

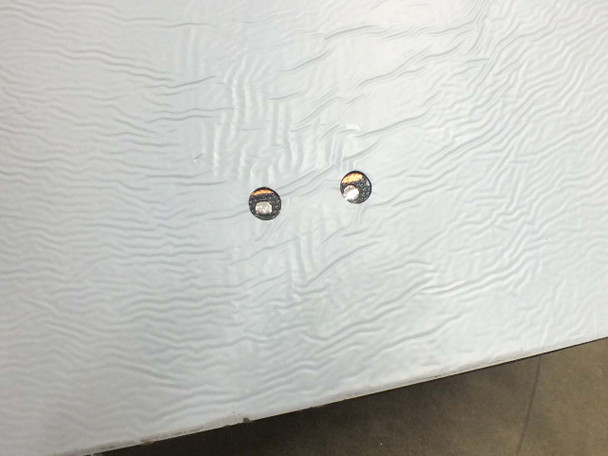

  • Close-up of Uni-Solar PVL-128 bottom solder point connections — two exposed solder contacts on white backing
  • Uni-Solar PVL-128 serial number label showing United Solar Ovonic branding and barcode on panel rear
$125.00
Was: $250.00
Current Stock: 30

Sold Out

Description

Uni-Solar PVL-128 128W 24V Flexible Amorphous Solar Panel Peel Stick Solder

Flexible thin-film amorphous silicon solar panel rated at 128W nominal output. Features peel-and-stick adhesive installation with solder-point electrical connections on the underside.

Specifications & What's Included

  • Maximum Power: 128W at 24V nominal
  • Max Power Point: 33.0V / 3.88A
  • Open Circuit Voltage: 47.6V; Short Circuit Current: 4.8A
  • Dimensions: 216 inches long × 15.5 inches wide × 0.2 inches thick
  • Cell Type: Triple-junction amorphous silicon with bypass diodes
  • Installation: Peel-and-stick ETFE encapsulation; no hardware required
  • Wind Rating: Category 3 Hurricane Uplift Resistant (130 MPH)
  • Max System Voltage: 600 VDC; Certifications: UL 1703, IEC 61646, IEC 61730

Applications

Amorphous thin-film panels were used in grid-tie and off-grid solar installations through the 2010s. This roll-form design suits membrane and metal roofing integration without roof penetrations. Compatible with 600 VDC systems. Used in RV, marine, telecom backup power, and remote building applications where flexible, low-profile mounting was required.

Condition: New
This Uni-Solar PVL-128 128W Flexible Amorphous Solar Panel is new and unused. These panels came directly from the Uni-Solar (United Solar Ovonic) manufacturing and distribution facility when it was liquidated in 2012, and have been stored since. They were originally packed in factory cartons of 30 and are being sold here as individual panels. The panels show no signs of use or wear. This specific variant features bottom-facing solder points rather than the standard quick-connect terminals, as they were made for a specific customer order. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Spec Sheet:
Unisolar PVL-128 Solar Panel Spec Sheet
Brand:
Uni-Solar
Model:
PVL-128
MPN:
PVL-128
Type:
Flexible Amorphous Thin-Film Solar Panel
Part Number:
AA5-3851-02
SKU:
51942
Manufacturer:
United Solar Ovonic
Condition:
New – Unused, New Old Stock from Factory Liquidation
Seller Notes:
New old stock; sold as single panels from factory cartons of 30
Country/Region of Manufacture:
United States
Maximum Power (Pmax):
128 Watts
Nominal Operating Voltage:
24 V
Max Power Voltage (Vmpp):
33.0 V
Max Power Current (Impp):
3.88 A
Open Circuit Voltage (Voc):
47.6 V
Short Circuit Current (Isc):
4.8 A
Maximum Series Fuse Rating:
8 A
NOCT Power Output:
100 W
NOCT Vmpp:
30.8 V
NOCT Impp:
3.24 A
NOCT Voc:
43.5 V
NOCT Isc:
3.9 A
NOCT Temperature:
46°C
Solar Cell Type:
Amorphous Silicon (Triple-Junction)
Cell Size:
356 mm x 239 mm (14" x 9.4")
Panel Length:
216 in (5486 mm / 18 ft)
Panel Width:
15.5 in (394 mm)
Panel Depth/Thickness:
0.2 in (4 mm)
Electrical Connector Type:
Solder Points (bottom-facing, no quick-connect terminals)
Encapsulation:
Durable ETFE high light-transmissive polymer
Adhesive:
Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
Bypass Diodes:
Connected across every solar cell
Installation Method:
Peel-and-stick adhesive; no penetrations or hardware required
Suitable Roof Types:
Membrane (EPDM/TPO) and metal (Galvalume/Zincalume/PVDF)
Wind Resistance:
Category 3 Hurricane Uplift Resistant (130 MPH)
Max System Voltage:
600 VDC (UL 1703 Listed)
Operating Temperature Range:
-10°C to +40°C (50°F to 100°F)
Maximum Roof Temperature:
85°C (185°F)
Minimum Roof Slope:
5:8 (3°)
Maximum Roof Slope:
21:12 (60°)
Certifications:
UL 1703, IEC 61646 v1, IEC 61646 v2 (pending), IEC 61730
UL Fire Rating:
Class A (Slope 2/12), Class B (Slope 3/12), Class C (Unlimited Slope)
Form Factor:
Flexible Laminate Roll
Compatible With:
Grid-tie and off-grid systems up to 600 VDC
Power Output Tolerance:
+5% / -5%
Condition Notes:
Uni-Solar PVL-128 128W flexible solar panel — new and unused, new old stock from 2012 factory liquidation. Bottom solder-point variant. Stored in factory cartons; no signs of use or wear.
View AllClose

Related Products

Related Products

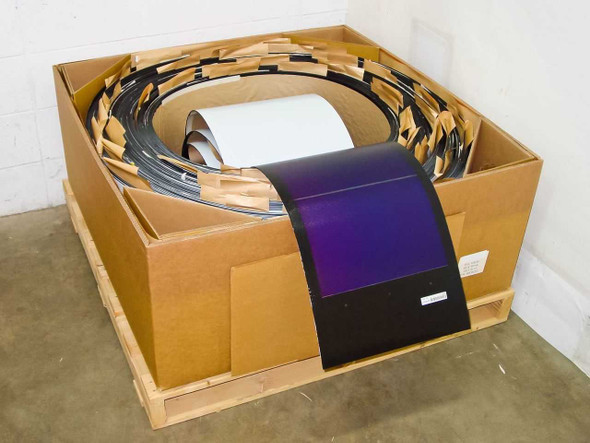

Uni-Solar PVL-128 flexible solar panels coiled in factory carton on pallet — purple amorphous cell surface visible Uni-Solar PVL-128 official technical data sheet showing model name, features, and UL listing details
