Uni-Solar PVL-128 128W 24V Flexible Peel-Stick Solar Panel Carton 30 3840W

Uni-Solar PVL-128 128W 24V Flexible Peel-Stick Solar Panel Carton 30 3840W

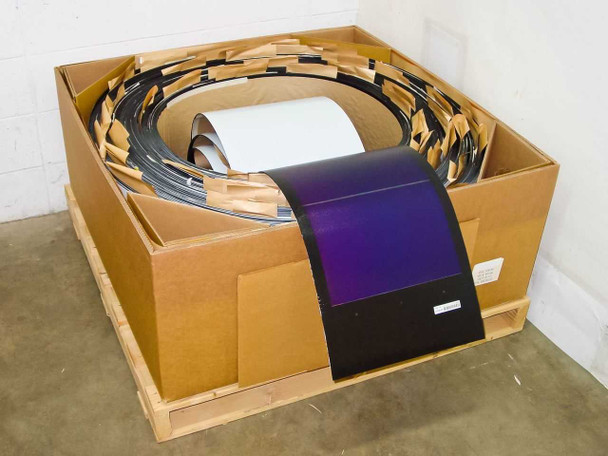

This listing is for a factory carton of 30 Uni-Solar PVL-128 flexible thin-film amorphous silicon solar panels, totaling 3,840 watts of generating capacity. Each panel is rated at 128 watts and 24 volts nominal, and features a peel-and-stick adhesive backing that bonds directly to compatible roofing surfaces without fasteners or mounting hardware. The panels have bottom-facing solder points in place of quick-connect cables.

Specifications & What's Included

• Model: Uni-Solar PVL-128 (Solar Laminate PVL-Series)
• Data Sheet: #AA5-3851-02
• Quantity: 30 panels per factory carton
• Total Array Power: 3,840 Watts
• Maximum Power per Panel (Pmax): 128 Watts
• Production Pmax Tolerance: ±5%
• Nominal Operating Voltage: 24V
• Max Power Voltage (Vmpp): 33.0 V
• Max Power Current (Impp): 3.88 A
• Open Circuit Voltage (Voc): 47.6 V
• Short Circuit Current (Isc): 4.8 A
• Maximum Series Fuse Rating: 8 A
• Cell Type: Triple-junction amorphous silicon, 22 cells per panel (14 × 9.4 in / 356 × 239 mm each), connected in series
• Encapsulation: Durable ETFE high light-transmissive polymer
• Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
• By-pass Diodes: Yes — connected across every solar cell (shading loss limited to the affected cell only, typically less than 4.5%)
• Panel Dimensions: 5,486 mm L × 394 mm W × 4 mm D (216 in × 15.5 in × 0.2 in / 18 ft × 1.29 ft)
• Electrical Connectors: Bottom-facing solder points — no cables included
• UL Listing: UL 1703 Listed to 600 VDC (Class A Max. Slope 2/12, Class B Max. Slope 3/12, Class C Unlimited Slope)
• IEC Certification: IEC 61646 v1 certified
• Wind Resistance: Category 3 hurricane uplift resistant (130 MPH)
• Installation Method: Peel-and-stick — adheres directly to compatible roofing substrates, no hardware required
• Compatible Substrates: PVDF-coated (Galvalume or Zincalume) steel metal roofing pan (flat surface, no pencil beads or decorative stippling, 406 mm / 16 in minimum width); EPDM and TPO membrane roofing
• Minimum Slope: 5/12 (3°) — Maximum Slope: 21/12 (60°)
• Installation Temperature Range: -10°C to +40°C (50°F to 100°F)
• Maximum Roof Temperature: 85°C (185°F)
• Packed and stored in original factory carton on pallet
• Unisolar installation guides and brochures available on request

Applications

The Uni-Solar PVL-128 is a building-integrated photovoltaic (BIPV) laminate designed specifically for membrane and standing-seam metal roofing systems where traditional framed panels cannot be used. Because the panel bonds directly to the roofing surface with no penetrations, it is well-suited for flat or low-slope commercial and industrial roofs — particularly those with EPDM, TPO, or Galvalume/Zincalume steel substrates. The triple-junction amorphous silicon cell technology gives these panels better low-light and high-temperature performance compared to crystalline silicon panels, making them effective in diffuse or partially overcast conditions. The bypass-diode architecture across every cell limits shading losses to the individual shaded cell, an advantage on rooftops with obstructions. At roughly one-fifth the weight of a comparable crystalline panel, the PVL-128 is also used where roof load capacity is a concern. Uni-Solar manufactured these panels in Auburn Hills, Michigan under the United Solar Ovonic brand (a subsidiary of Energy Conversion Devices, Inc./Nasdaq: ENER) until the facility was liquidated in 2012. New old stock in intact factory cartons is now difficult to source, and these panels remain in demand for retrofitting existing commercial roofs, completing partial installations that used the same panel series, and off-grid or backup power applications where the flexible format is required.
