Uni-Solar PVL-136 136W Flexible Solar Panel 30-Unit Carton Solder Point UL 1703

Uni-Solar PVL-136 136W Flexible Solar Panel 30-Unit Carton Solder Point UL 1703

The Uni-Solar PVL-136 is a PowerBond flexible thin-film solar laminate rated at 136 watts peak power (STC). Unlike rigid crystalline panels, these laminates use triple-junction amorphous silicon cells on a flexible stainless steel substrate and bond directly to membrane and metal roofing surfaces with an integrated ethylene propylene copolymer adhesive — no mounting hardware or roof penetrations required. This listing is for a full manufacturer's carton of 30 panels, a custom solder-point variant produced by United Solar Ovonic for a specific client, sourced directly from the Uni-Solar facility at the time of its 2012 liquidation. These panels are new and unused.

Specifications & What's Included

• Model: Uni-Solar PVL-136 (PowerBond PVL series)

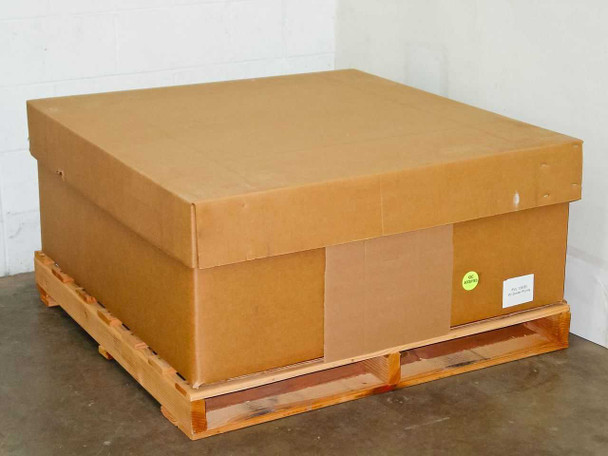

• Quantity: 30 panels per carton (original manufacturer's carton on pallet)
• Termination: Bottom-facing solder points (custom variant — not standard j-box)
• Rated Power (Pmax, STC): 136 W
• Power Tolerance: ±5%
• Nominal Operating Voltage: 24 V
• Voltage at Pmax (Vmpp, STC): 33.0 V
• Current at Pmax (Impp, STC): 4.13 A
• Short-Circuit Current (Isc, STC): 5.1 A
• Open-Circuit Voltage (Voc, STC): 46.2 V
• Maximum Series Fuse Rating: 10 A (UL), 8 A (IEC)
• Maximum System Voltage: 600 VDC (UL 1703); 1000 VDC (IEC)
• Cell Type: 22 triple-junction amorphous silicon cells, 356 mm × 239 mm (14" × 9.4") each, connected in series
• Bypass Diodes: One per cell — if a single cell is shaded or soiled, power loss is limited to that cell only (typically less than 4.5%)
• Panel Dimensions: 5486 mm × 394 mm × 4 mm (216" × 15.5" × 0.2")
• Terminal Housing Depth: 16 mm (0.6") including potted terminal housing
• Output Cable: 4 mm² (12 AWG), weatherproof DC-rated quick-connect terminals, 560 mm (22") length
• Encapsulation: Durable ETFE high light-transmissive polymer
• Adhesive: Ethylene propylene copolymer sealant with microbial inhibitor
• Certifications: UL 1703 Listed (Class A fire, Slope 2/12, Class B max, Slope 3/12, Class C unlimited slope); TÜV Rheinland IEC 61646 & IEC 61730 to 1000 VDC
• Wind Resistance: Category 3 hurricane uplift resistant (130 MPH); installed with no penetrating hardware
• Operating Temperature Range: 10°C to 40°C (50°F to 100°F)
• Maximum Roof Temperature: 85°C
• Maximum Roof Slope: 60° (21:12)
• Approved Substrates: Certain membrane and metal roofing products (see United Solar Ovonic installation documentation)
• Datasheet Reference: AA4-3697-05

Applications

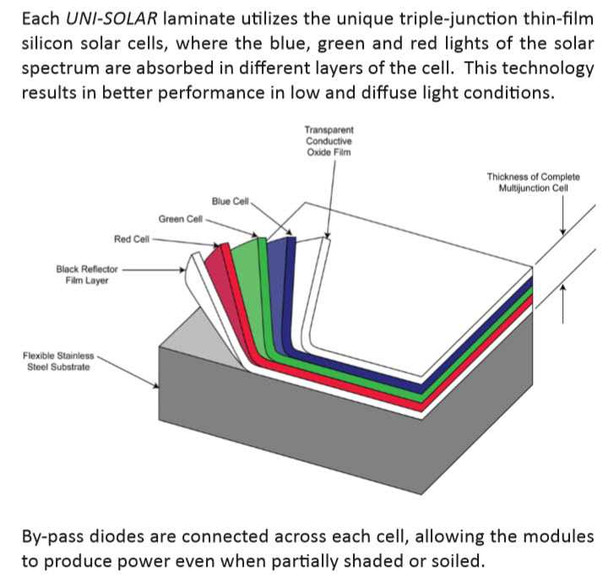

The Uni-Solar PVL (PowerBond Laminate) series was designed specifically for commercial low-slope membrane and standing-seam metal roofing, where conventional racked crystalline panels are impractical due to weight loading, roof penetrations, or wind uplift requirements. The peel-and-stick adhesive laminate bonds directly to TPO, PVC, EPDM, and metal roof surfaces, distributing load across the full panel area rather than point-mounting. The triple-junction thin-film cell stack — capturing blue, green, and red portions of the solar spectrum in separate junction layers — gives these panels better performance than single-junction crystalline cells in low-light and diffuse-light conditions, making them well suited to northern climates and overcast environments. The solder-point termination on this custom variant is intended for wiring directly into a combiner or junction enclosure rather than through the standard quick-connect j-box, giving installers more flexibility in utility-scale or custom array configurations. Typical deployment environments include large commercial and industrial rooftops, carport canopy structures, and building-integrated photovoltaic (BIPV) applications. Because United Solar Ovonic ceased manufacturing and closed its facility in 2012, genuine PVL laminates are no longer produced, and new-old-stock inventory is the only remaining supply channel for replacement panels, system expansions, or new installations using this format.
