Description
Uni-Solar PVL-116 116W 24V Flexible Amorphous Solar Panel MC3 Qty 20
Lot of 20 flexible amorphous thin-film solar panels rated at 116W per unit, totaling 2,320W array capacity. These glass-free laminates mount via peel-and-stick adhesive and connect with MC3 connectors.
Specifications & What's Included
- 116W per panel; 24V nominal operating voltage
- Peak Power: 30V / 3.88A; Open Circuit: 43.2V / 4.8A short circuit
- Dimensions: 197.3" × 15.5" × 0.12" per panel; 16.5 lbs each
- Triple-junction amorphous silicon thin-film construction
- MC3 cables included; coiled and boxed on pallet
- Hurricane-rated to 130 MPH; per-cell bypass diodes reduce shading loss
Applications
Uni-Solar amorphous panels were widely deployed in telecom installations, off-grid power systems, and RV/marine applications through the 2000s–2010s. The flexible laminate form factor allows direct adhesive mounting to metal roofing, membrane roofs, and low-slope surfaces without mechanical fastening. These panels tolerate partial shading and low-light conditions better than crystalline silicon alternatives, making them suitable for installations where shadowing is unavoidable.

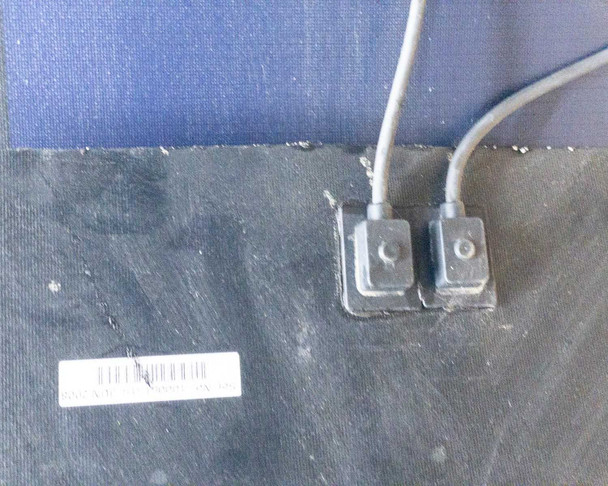

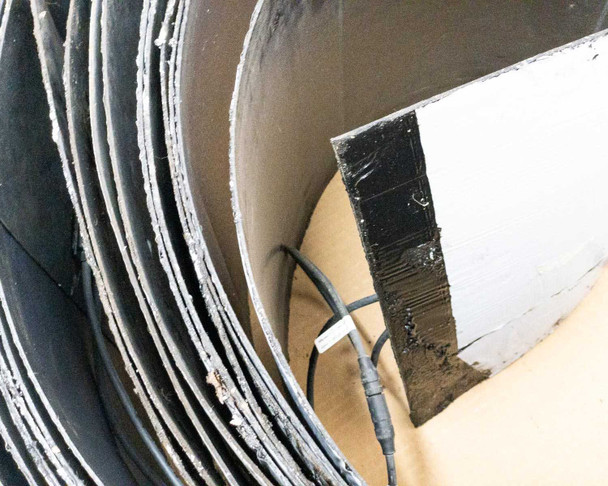

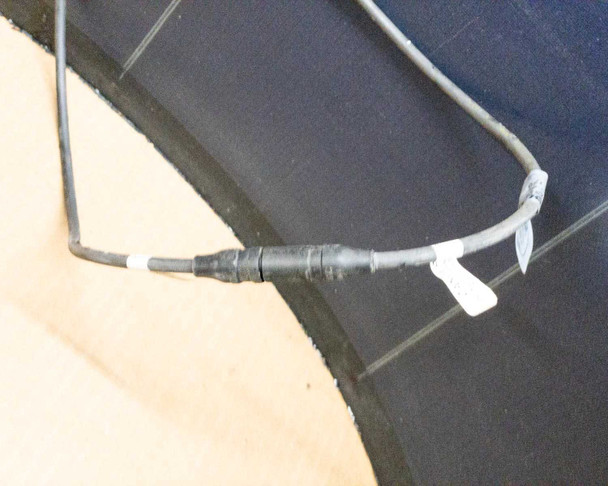

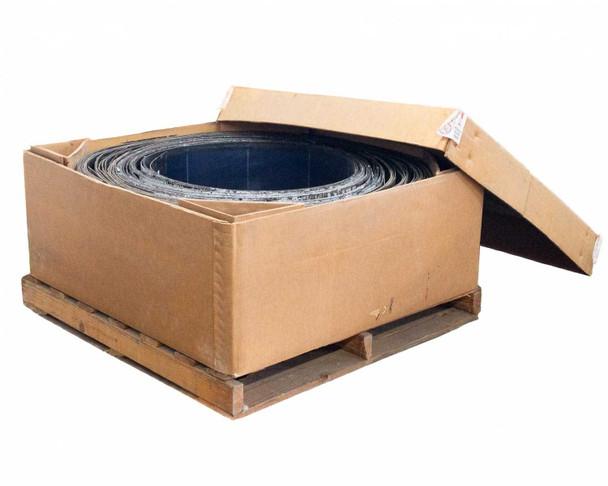

This lot of 20 Uni-Solar PVL-116 116W 24V flexible amorphous solar panel laminates has been inspected and appears to be in good used condition. The panels were pulled from a working environment where they were previously in service. The panels are coiled and packed in a large cardboard box on a pallet. The MC3 cables and connectors are present on each panel. Some surface dust and residue is visible on the panel faces and edges, consistent with prior outdoor installation. One panel edge visible in photos shows tape/sealant residue. No cracks, tears, or delamination are apparent in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Uni-Solar |
Model: |
PVL-116 |
MPN: |
PVL-116 |
Type: |
Flexible Amorphous Thin-Film Solar Panel Laminate |
SKU: |
53177 |
Quantity: |
20 panels |
Power Output (Pmax): |
116 Watts per panel |
Total Array Power: |
2,320 Watts (20 panels) |
Peak Power Voltage (Vmp): |
30 Volts |
Peak Power Current (Imp): |
3.88 Amps |
Open Circuit Voltage (Voc): |
43.2 Volts |
Short Circuit Current (Isc): |
4.8 Amps |
Panel Length: |
16.44 ft (197.3 in) |
Panel Width: |
1.3 ft (15.5 in) |
Panel Thickness: |
0.12 in |
Panel Weight: |
16.5 lbs per panel |
Cell Technology: |
Triple-junction amorphous silicon thin film |
Construction: |
Glass-free flexible laminate |
Installation Method: |
Peel-and-stick adhesive laminate |
Connector Type: |
MC3 |
Compatible Roof Types: |
Metal (Galvalume), membrane, low-slope roofs |
Certifications: |
UL approved for Galvalume steel roofs |
Wind Resistance: |
Category 3 hurricane (up to 130 MPH) |
Bypass Diodes: |
Yes — per cell, reduces shading loss to <4.5% |
Seller Notes: |
Lot of 20 panels with MC3 cables; panels coiled and boxed on pallet |
Country/Region of Manufacture: |
United States |
Form Factor: |
Flexible laminate roll |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Lot of 20 Uni-Solar PVL-116 116W 24V flexible amorphous solar panels inspected and in good used condition. Pulled from a working installation. MC3 cables present. Surface dust and residue consistent with prior outdoor use. |
