Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel UL

Uni-Solar PVL-116 116W 24V Amorphous Flexible Solar Panel UL

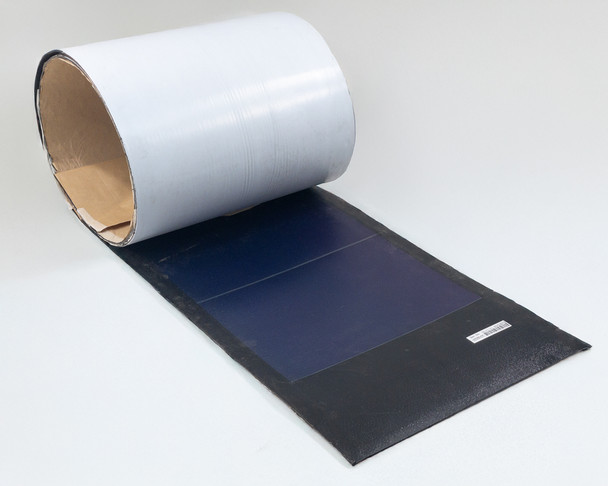

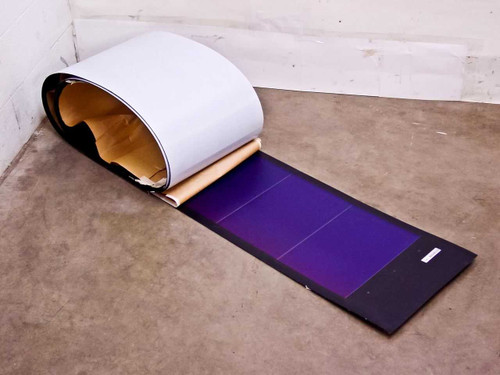

The Uni-Solar PVL-116 is a 116-watt amorphous thin-film flexible solar panel designed for 24V DC systems. This lightweight, conformable panel features peel-and-stick adhesive mounting with no hardware required, making it ideal for applications where rigid modules cannot conform to surface geometry. The solder-point connection allows direct integration into custom DC systems. With per-cell bypass diode protection and UL listing, this panel is engineered for safety and reliability in both on-grid and off-grid installations.

Specifications & What's Included

• Maximum Power Output (Pmax): 116 Watts
• Nominal Operating Voltage: 24V DC
• Peak Power Voltage (Vmp): 30V
• Peak Power Current (Imp): 3.88A
• Open Circuit Voltage (Voc): 43.2V
• Short Circuit Current (Isc): 4.8A
• Panel Dimensions: 197.3 inches long × 15.5 inches wide × 0.2 inches thick (16.4 ft × 1.29 ft)
• Cell Technology: Amorphous thin-film (single-layer flexible laminate)
• Form Factor: Flexible laminate with peel-and-stick adhesive backing — no frame or rigid support required
• Electrical Connection: Solder point terminals only — no pre-installed connectors
• Bypass Diode Protection: Per-cell bypass diodes for fault tolerance
• Wind Resistance: Category 3 Hurricane rated (130 MPH sustained wind)
• Mounting Method: Peel-and-stick adhesive — compatible with membrane and metal roofing
• Certifications: UL Listed
• Manufactured: August 2010
• Country of Origin: United States
• Included: Single solar panel only; no mounting hardware, connectors, or cables

Applications

Amorphous thin-film solar panels like the Uni-Solar PVL-116 were pioneered in the 1980s and 1990s as a lightweight, flexible alternative to traditional rigid crystalline modules. The flexible construction and low weight make them well-suited for RV roofs, boat cabins, and marine vessels where weight distribution and surface conformance matter. Off-grid power systems, remote cabins, and emergency backup power installations benefit from the 24V output, which directly charges battery banks without additional voltage regulation. The peel-and-stick mounting approach eliminates drilling and fasteners—valuable for rental properties, temporary installations, and structures where permanent alterations are prohibited. Industrial and agricultural applications include powering remote monitoring equipment, water pumping systems, and communications infrastructure. Despite their age, these panels remain functional for legacy 24V DC systems and off-grid installations where performance expectations align with amorphous-film characteristics.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
