Description
Uni-Solar PVL-144 144W Amorphous Flexible PowerBond Solar Panel 46.2Voc MC4
Flexible amorphous silicon thin-film solar panel with adhesive PowerBond backing for direct application to flat or low-slope surfaces. Generates 144 watts of power at 33V maximum power point voltage.
Specifications & What's Included
- Output: 144W maximum power, 33V Vmpp, 46.2V Voc, 4.4A Impp
- Module efficiency: 6.67%
- Dimensions: 18 ft long × 15.375 in wide, frameless and rollable

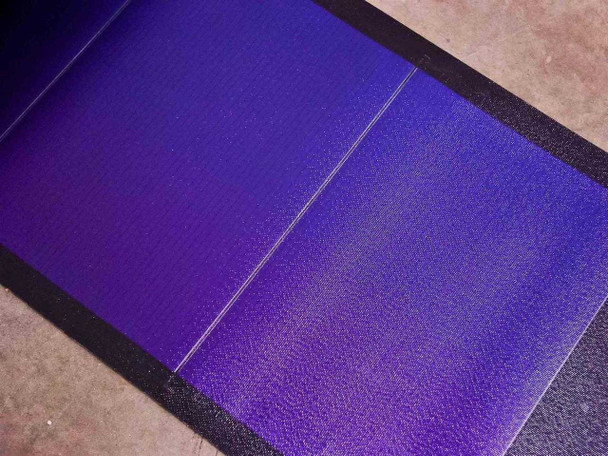

- Cell type: Amorphous silicon thin-film
- Mounting: PowerBond peel-and-stick adhesive backing

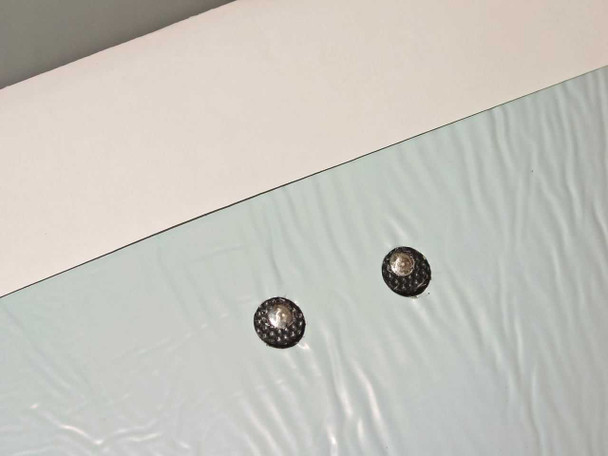

- Connectors: Solder points, includes DIY MC4 junction box and male/female MC4 connectors
- Maximum system voltage: 600V
Applications
Suitable for low-slope and flat roof installations, RV, marine, and off-grid systems.
Condition: Used

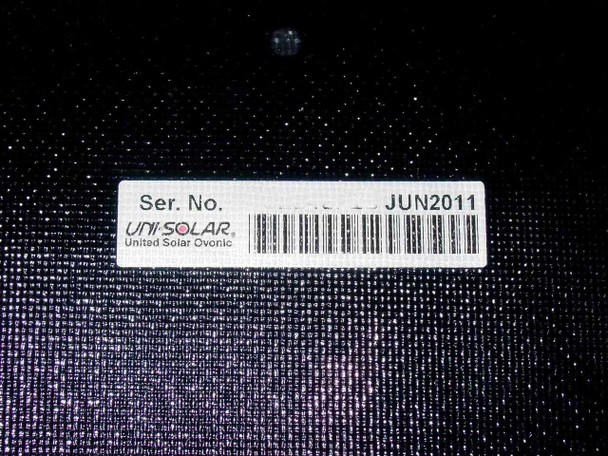

This Uni-Solar PVL-144 144W amorphous flexible solar panel is new old stock, manufactured June 2011, sourced directly from the Uni-Solar manufacturing and distribution facility liquidation. The panel has not been installed or deployed. The PowerBond adhesive backing is intact on the underside. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
This Uni-Solar PVL-144 144W amorphous flexible solar panel is new old stock, manufactured June 2011, sourced directly from the Uni-Solar manufacturing and distribution facility liquidation. The panel has not been installed or deployed. The PowerBond adhesive backing is intact on the underside. Please view our photo set and contact us if you have any questions. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Uni-Solar (United Solar Ovonic) |
Model: |
PVL-144 |
MPN: |
PVL-144B |
SKU: |
44139 |
Condition: |
New – Old Stock |
Seller Notes: |
Includes DIY MC4 junction box and male/female MC4 connectors |
Form Factor: |
Flexible Laminate, Frameless, Rollable |
Country of Manufacture: |
United States |
Solar Cell Type: |
Amorphous Silicon (a-Si) Thin Film |
Maximum Power (Pmax): |
144 Watts |
Max Power Voltage (Vmpp): |
33 Volts |
Max Power Current (Impp): |
4.4 Amps |
Open Circuit Voltage (Voc): |
46.2 Volts |
Short Circuit Current (Isc): |
5.3 Amps |
Max System Voltage: |
600 Volts |
Module Efficiency: |
6.67% |
Panel Dimensions: |
18 ft x 15-3/8 in (18 Feet Long x 15.375 Inches Wide) |
Frame Material: |
Frameless |
Module Connector: |
Solder Point on Bottom of Panel |
Mounting Type: |
PowerBond Adhesive Peel-and-Stick |
UL Rating: |
No UL rating sticker |
Manufacture Date: |
June 2011 |
Compatible With: |
Low-slope and flat roofing, RV, marine, off-grid |
Type: |
BIPV Building-Integrated Photovoltaic |
Certifications: |
None listed (no UL sticker on this unit) |
Condition Notes: |
This Uni-Solar PVL-144 144W amorphous flexible solar panel is new old stock, manufactured June 2011, sourced directly from the Uni-Solar manufacturing and distribution facility liquidation. The panel has not been installed or deployed. |
