Uni-Solar
-

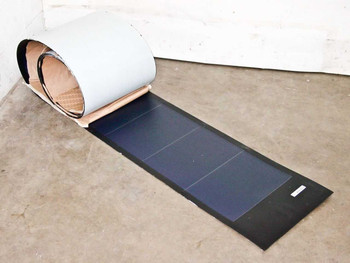

Uni-Solar PVL-136 PowerBond Flexible Solar Panel 136W 24V Triple Junction UL1703
Uni-Solar
$136.00Was: $275.00Uni-Solar PVL-136 PowerBond Flexible Solar Panel 136W 24V Triple Junction UL1703 The Uni-Solar PVL-136 is a PowerBond series flexible photovoltaic laminate using 22 triple-junction amorphous silicon...44652- SKU:
- 44652
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-136
- MPN:
- PVL-136
- SKU:
- 44652
- Condition:
- New
- Product Line:
- PowerBond PVL
- Cell Technology:
- Triple Junction Amorphous Silicon
- Rated Power (Pmax):
- 136 Wp
- Power Tolerance:
- ± 5%
- Nominal Voltage:
- 24V
- Max Power Voltage (Vmpp):
- 33V
- Dimensions:
- 5486 mm x 394 mm x 4 mm (216" x 15.5" x 0.2")
- Terminal Housing Depth:
- 16 mm (0.6") including potted terminal housing
- Output Cables:
- 4mm² (12 AWG) weatherproof DC quick-connect, 560mm (22")
- Bypass Diodes:
- Connected across every solar cell
- Encapsulation:
- Durable ETFE high light-transmissive polymer
- Adhesive:
- Ethylene propylene copolymer with microbial inhibitor
- Cell Count / Size:
- 22 cells, 356 mm x 239 mm (14" x 9.4") in series
- Form Factor:
- Flexible Laminate, Peel-and-Stick
- UL Listing:
- UL 1703 — Class A, B, C Slope; systems up to 600 VDC
- IEC Certification:
- IEC 61646 and IEC 61730 — TÜV Rheinland, up to 1000 VDC
- Installation Temp Range:
- 10°C to 40°C (50°F to 100°F)
- Max Roof Temp:
- 85°C (185°F)
- Min Slope:
- 3° (1:12)
- Max Slope:
- 60° (21:12)
- Compatible Substrates:
- Membrane roofing and metal roofing systems
- Country of Manufacture:
- USA
- Seller Notes:
- New old stock direct from Unisolar liquidation. No hardware required for installation.
- Condition Notes:
- New
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$136.00Was: $275.00 -
Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells L-Strip Tabbed Pack 10
Uni-Solar
$35.00Was: $70.00Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells Pack of 10 This pack contains 10 Uni-Solar ePVL AA amorphous silicon solar cells from United Solar Ovonic's 2012 factory liquidation. Each...46411- SKU:
- 46411
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- ePVL AA Series L-Strip
- MPN:
- DH-110806-062
- SKU:
- 46411
- Condition:
- New – Old Stock
- Seller Notes:
- New old stock from 2012 United Solar Ovonic factory liquidation
- Cell Grade:
- AA
- Cell Type:
- Amorphous Silicon (a-Si)
- Substrate Material:
- Stainless Steel
- Maximum Power (Pmax):
- 7.5 W per cell
- Max Power Voltage (Vmpp):
- 1.60 V
- Max Power Current (Impp):
- 3.875 A
- Open Circuit Voltage (Voc):
- 2.05 V
- Short Circuit Current (Isc):
- 5.397 A
- Cell Efficiency:
- 6–7%
- Cell Size:
- 14" L x 10" W (35.56 cm x 25.4 cm)
- Quantity:
- 10 cells per pack
- Compatible With:
- Uni-Solar PVL and ePVL series systems
- Connection Type:
- Tabbed – positive tabs at tips, negative back
- Country of Manufacture:
- USA – Auburn Hills, Michigan
- Form Factor:
- Flexible flat L-strip
- Provenance:
- 2012 United Solar Ovonic factory liquidation, Auburn Hills MI
- Condition Notes:
- New old stock Uni-Solar ePVL AA amorphous silicon solar cells from 2012 liquidation, unopened and stored properly. Electrically intact and ready for DIY solar panel assembly.
- Type:
- Amorphous Silicon Solar Cell
- Quantity per Pack:
- 10 cells
- Cell Dimensions:
- 14 in. L × 10 in. W (35.56 cm × 25.4 cm)
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$35.00Was: $70.00 -

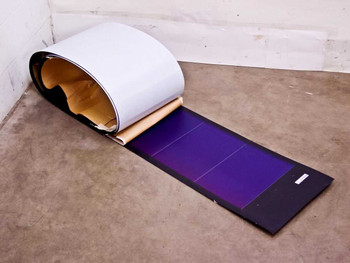

Uni-Solar PVL-120 120W 24V Flexible Amorphous BIPV Solar Panel UL 1703
Uni-Solar
$115.00Was: $225.00Uni-Solar PVL-120 120W 24V Flexible Amorphous BIPV Solar Panel UL 1703The Uni-Solar PVL-120 is a flexible, thin-film amorphous silicon solar panel designed specifically for building-integrated...44137- SKU:
- 44137
- Availability:
- New old stock item in original factory carton — usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uni-Solar (United Solar Ovonic)
- Model:
- PVL-120
- Secondary Model:
- PVL-120B
- MPN:
- PVL-120
- SKU:
- 44137
- Condition:
- New – New Old Stock
- Seller Notes:
- New old stock from Unisolar liquidation. Stored in original factory cartons.
- Country of Manufacture:
- United States
- Form Factor:
- Flexible Roll / Peel-and-Stick
- Cell Technology:
- Triple-Junction Amorphous Silicon Thin Film
- Panel Type:
- BIPV – Building Integrated Photovoltaic
- Maximum Power (Pmax):
- 120 Watts
- Max Power Voltage (Vmpp):
- 33 Volts
- Max Power Current (Impp):
- 4.1 Amps
- Open Circuit Voltage (Voc):
- 46 Volts
- Short Circuit Current (Isc):
- 5.1 Amps
- Maximum System Voltage:
- 600 VDC
- Module Efficiency:
- 6.2%
- Certifications:
- UL 1703
- Wind Resistance:
- Category 3 Hurricane – 130 MPH
- Installation Method:
- Peel-and-Stick Adhesive – No Roof Penetrations
- Compatible With:
- Membrane and metal roofing systems
- Grid Tie Compatible:
- Yes – UL 1703 Listed up to 600 VDC
- Bypass Diodes:
- Yes – Per cell, hot-spot protection
- Manufacture Date:
- May 2011
- Condition Notes:
- This Uni-Solar PVL-120 120W 24V Flexible BIPV Solar Panel is new old stock from the 2012 Unisolar liquidation. Manufactured in May 2011, the panel has been stored in its original factory carton since acquisition and remains in new, unused condition.
- Type:
- Flexible Amorphous Silicon BIPV Solar Panel
- Maximum Power Rating:
- 120 Watts
- Wind Resistance Rating:
- Category 3 Hurricane – 130 MPH
- Compatible Roof Types:
- Membrane and metal roofing systems
- Maximum Power Output:
- 120 Watts
- Maximum System Voltage Rating:
- 600 VDC
- Compatible Substrates:
- Membrane and metal roofing systems
- Grid-Tie Compatible:
- Yes – UL 1703 Listed up to 600 VDC
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$115.00Was: $225.00
