Uni-Solar

Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells L-Strip Tabbed Pack 10

(No reviews yet) Write a Review
SKU:
46411
MPN:
Finished L-Strip
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • Uni-Solar ePVL AA amorphous silicon solar cells – 10-cell pack front view showing tabbed configuration
  • Uni-Solar ePVL AA solar cells – packaging or product label showing model and specifications
  • Individual Uni-Solar ePVL AA cell detail – showing tab configuration and stainless steel substrate
  • Uni-Solar ePVL AA solar cells – side/edge view showing cell thickness and tabbed connection points
  • 10-pack quantity display of Uni-Solar ePVL AA amorphous silicon cells

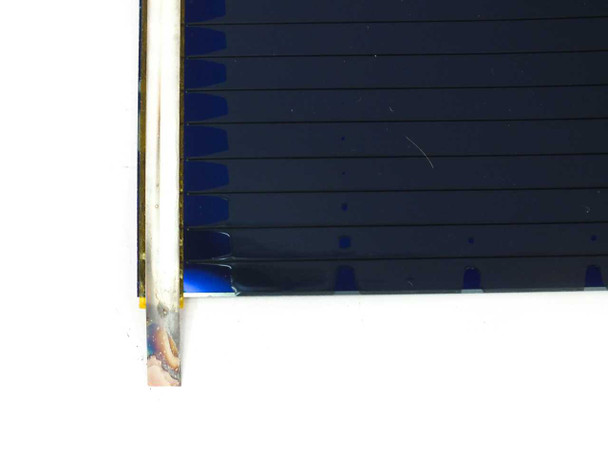

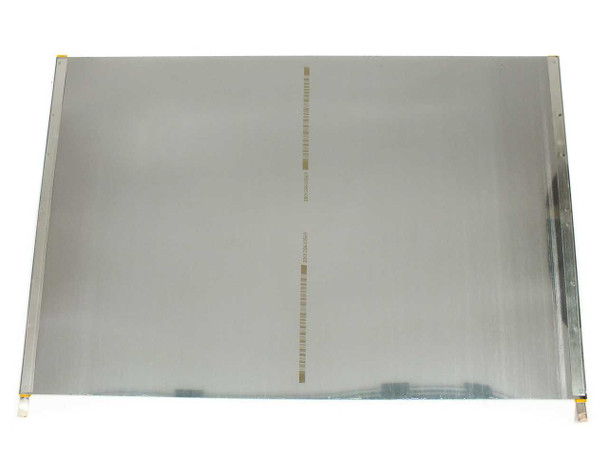

  • Uni-Solar ePVL AA cell – positive and negative tab detail at tips and back surface
  • Uni-Solar ePVL AA amorphous silicon solar cells – group of cells showing uniform appearance

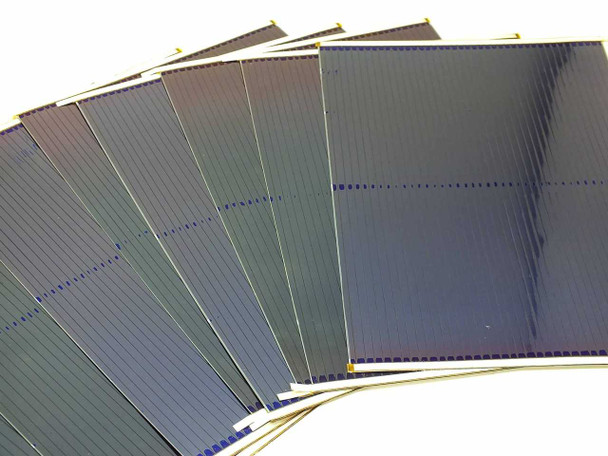

  • Uni-Solar ePVL AA cell – dimensional detail showing 14-inch length and 10-inch width

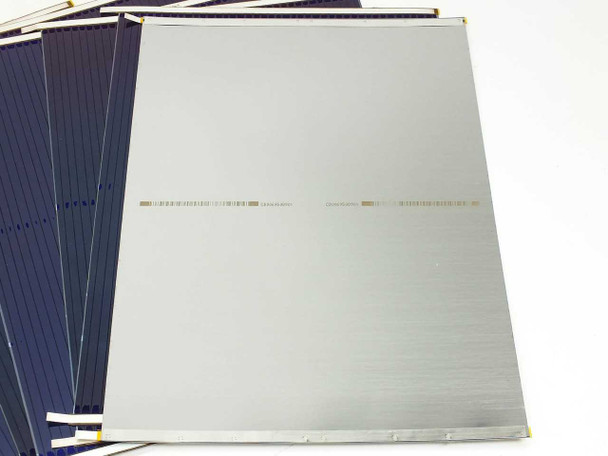

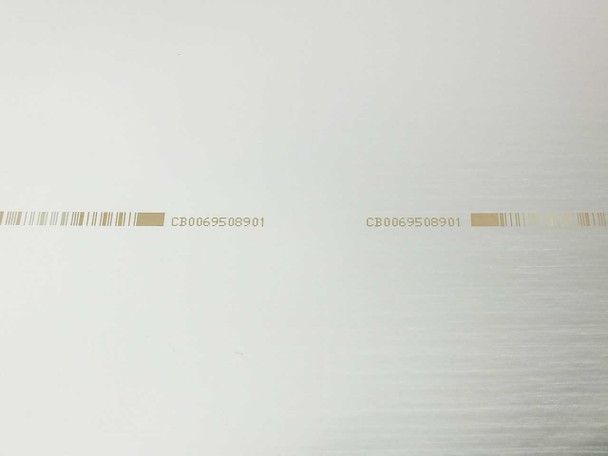

  • Uni-Solar ePVL AA solar cell manufacturing label showing part number DH-110806-062
  • Uni-Solar ePVL AA tabbed solar cells – storage condition and inventory view
$35.00
Was: $70.00
Current Stock: 288

Sold Out

Description

Uni-Solar ePVL AA 7.5W 1.6V Amorphous Silicon Solar Cells Pack of 10

This pack contains 10 Uni-Solar ePVL AA amorphous silicon solar cells from United Solar Ovonic's 2012 factory liquidation. Each cell is a tabbed L-strip design engineered for straightforward series and parallel interconnection in custom solar panel assembly and DIY photovoltaic projects. The stainless steel substrate provides durability and corrosion resistance, while the flexible flat form factor accommodates a wide range of mounting configurations and applications. These cells deliver consistent electrical performance and are ready for immediate integration into your solar array.

Specifications & What's Included

  • Quantity: 10 tabbed amorphous silicon solar cells per pack
  • Brand: Uni-Solar (United Solar Ovonic)
  • Model: ePVL Series L-Strip
  • Manufacturer Part Number: DH-110806-062
  • Cell Grade: AA
  • Cell Type: Amorphous Silicon (a-Si)
  • Cell Efficiency: 6–7%
  • Maximum Power (Pmax): 7.5 W per cell
  • Max Power Voltage (Vmpp): 1.60 V
  • Max Power Current (Impp): 3.875 A
  • Open Circuit Voltage (Voc): 2.05 V
  • Short Circuit Current (Isc): 5.397 A
  • Cell Dimensions: 14 in. L × 10 in. W (35.56 cm × 25.4 cm)
  • Substrate Material: Stainless Steel

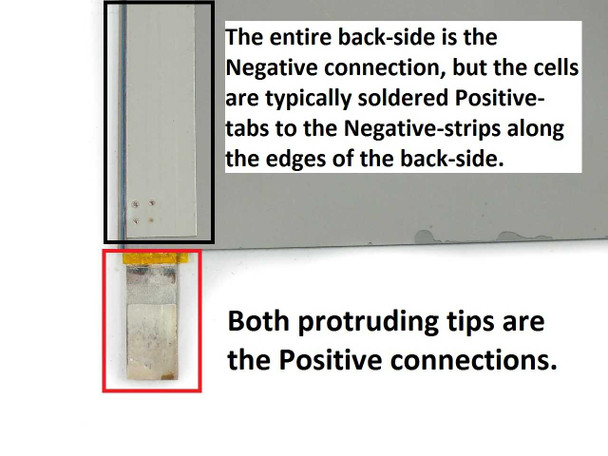

  • Connection Type: Tabbed – positive tabs at tips, negative back surface
  • Form Factor: Flexible flat L-strip
  • Country of Manufacture: USA – Auburn Hills, Michigan

Applications

Amorphous silicon solar cells like the ePVL AA series are widely used in DIY and custom solar panel assembly, off-grid power systems, and renewable energy experimentation. The tabbed configuration simplifies series and parallel wiring, making these cells ideal for hobbyists, educational projects, and small-scale photovoltaic installations. Uni-Solar's ePVL line was a standard choice for independent panel builders and remains sought-after by enthusiasts restoring or expanding legacy solar arrays. The flexible L-strip design accommodates non-traditional mounting surfaces and custom mechanical configurations, offering builders flexibility in system design.

Condition: New
This pack of 10 Uni-Solar ePVL AA amorphous silicon solar cells is new old stock from the 2012 United Solar Ovonic factory liquidation in Auburn Hills, Michigan. The cells were originally boxed and have been stored in proper conditions, preserving their electrical integrity. Each cell is in new, unused condition and ready for immediate use in custom solar panel assembly or DIY photovoltaic projects. Minor cosmetic surface variations between individual cells are normal and do not affect electrical performance. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Uni-Solar (United Solar Ovonic)
Model:
ePVL AA Series L-Strip
MPN:
DH-110806-062
SKU:
46411
Condition:
New – Old Stock
Seller Notes:
New old stock from 2012 United Solar Ovonic factory liquidation
Cell Grade:
AA
Cell Type:
Amorphous Silicon (a-Si)
Substrate Material:
Stainless Steel
Maximum Power (Pmax):
7.5 W per cell
Max Power Voltage (Vmpp):
1.60 V
Max Power Current (Impp):
3.875 A
Open Circuit Voltage (Voc):
2.05 V
Short Circuit Current (Isc):
5.397 A
Cell Efficiency:
6–7%
Cell Size:
14" L x 10" W (35.56 cm x 25.4 cm)
Quantity:
10 cells per pack
Compatible With:
Uni-Solar PVL and ePVL series systems
Connection Type:
Tabbed – positive tabs at tips, negative back
Country of Manufacture:
USA – Auburn Hills, Michigan
Form Factor:
Flexible flat L-strip
Provenance:
2012 United Solar Ovonic factory liquidation, Auburn Hills MI
Condition Notes:
New old stock Uni-Solar ePVL AA amorphous silicon solar cells from 2012 liquidation, unopened and stored properly. Electrically intact and ready for DIY solar panel assembly.
Type:
Amorphous Silicon Solar Cell
Quantity per Pack:
10 cells
Review Status:
Auto-Approved (needs review) 2026-07-03
Cell Dimensions:
14 in. L × 10 in. W (35.56 cm × 25.4 cm)
View AllClose
