Uni-Solar MX1-711-000-5 Corner Trim Machine 14.5" Plastic Sheet Solar Panel

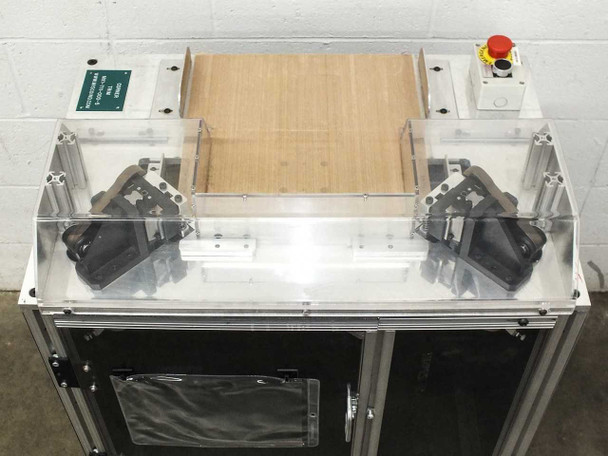

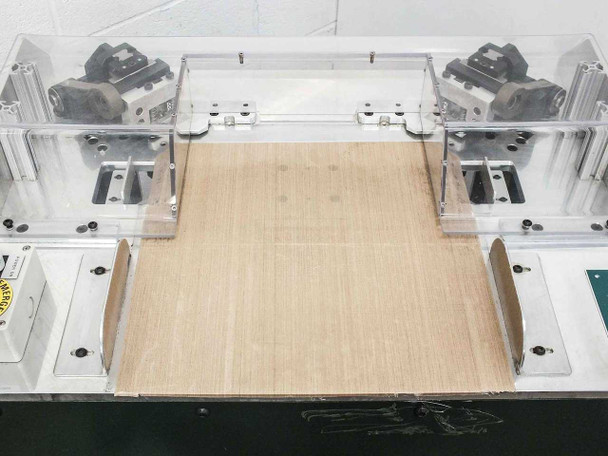

The Uni-Solar MX1-711-000-5 is a purpose-built pneumatic corner-cutting machine designed to trim the corners of 14.5"-wide plastic sheets used in the manufacturing of thin-film solar panels. Built by MISCO Industries, this custom automation station uses paired pneumatic cylinders driving slanted blades downward through linear motion guides to simultaneously cut both corners of a sheet in a single press cycle. It accepts a 14.5" wide plastic laminate sheet on the flat work surface, and optical fiber sensors handle precise alignment. The machine runs on 110 VAC and requires an external compressed air supply for the cutting heads to operate.
Specifications & What's Included
- Model: MX1-711-000-5 (also labeled MX1-711-000)
- Manufactured by: MISCO Industries
- Ordered/used by: Uni-Solar for solar panel component production
- Sheet width capacity: 14.5 inches
- Blade type: 1" wide × 0.25" thick slanted blades (one per side, 2 total)
- Power input: 110 VAC

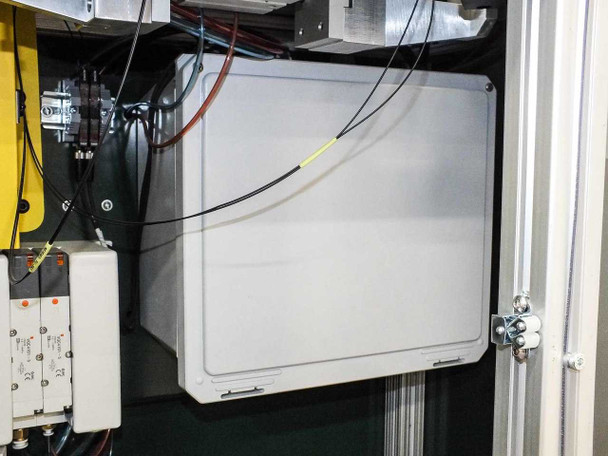

- Internal power supply: Rhino PSP24-060S, 60W, 110 VAC to 24 VDC
- Linear motion guides: THK HSR20 (x2) — drive blade carriages vertically
- Optical alignment sensors: Keyence FS-N11CP fiber optic sensors (x2)

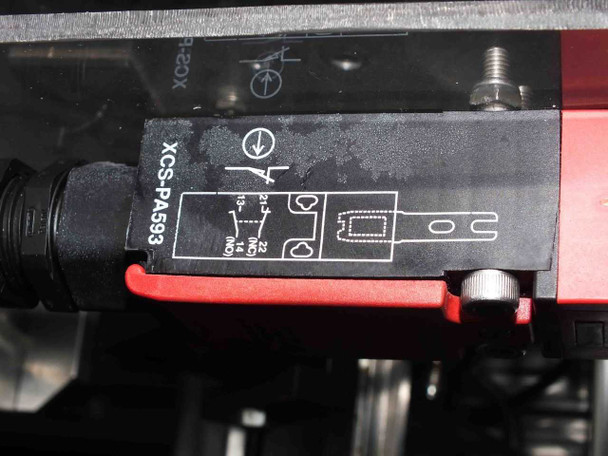

- Door/guard safety interlock: Telemecanique XCS-PA593 with Danner E5-FA-9AA actuator
- Time delay relays: Fuji Electric MS4SA (x3)

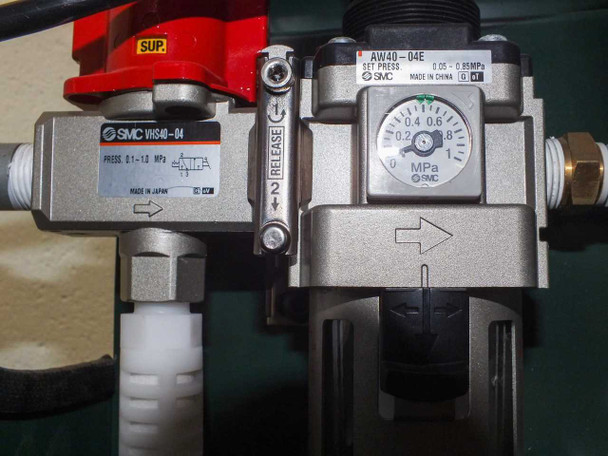

- Pneumatic lockout/shut-off valve: SMC VHS40-04 (0.1–1.0 MPa, Made in Japan)
- Pneumatic filter/regulator: SMC AW40-04E with pressure gauge

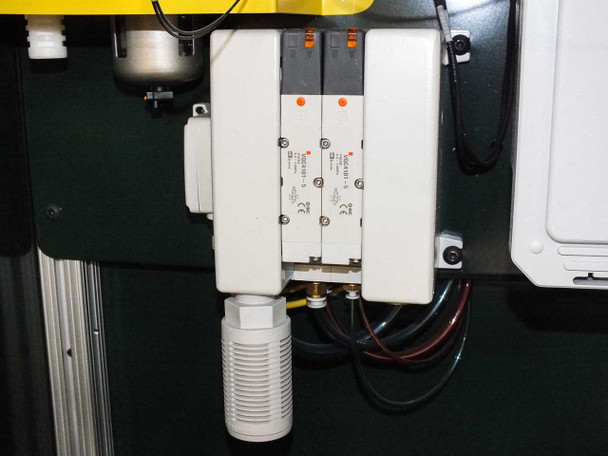

- Pneumatic solenoid valves: SMC VQC4101-5 (x2)

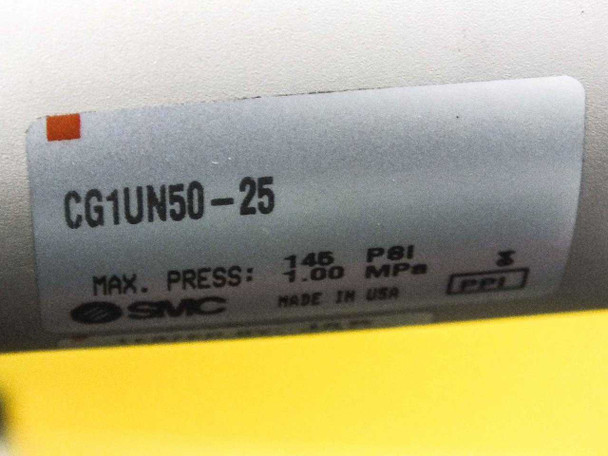

- Pneumatic cylinders: SMC CG1UN50-25, 145 PSI / 1.00 MPa max pressure (x2, Made in USA)
- Air supply: External compressed air required (not included)

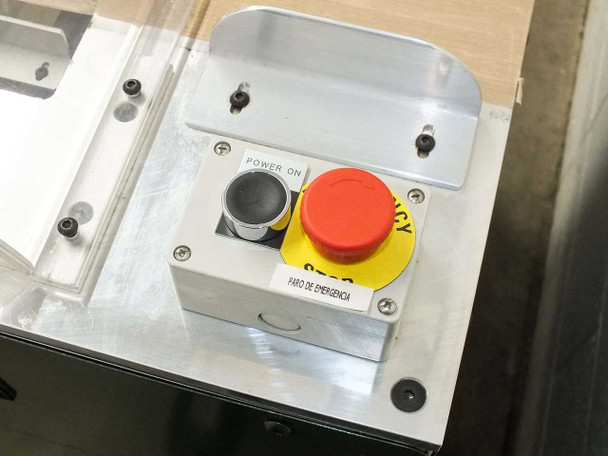

- Controls: Power On pushbutton; red mushroom Emergency Stop (PARO DE EMERGENCIA)
- Frame: Aluminum extrusion construction with polycarbonate safety guard panels

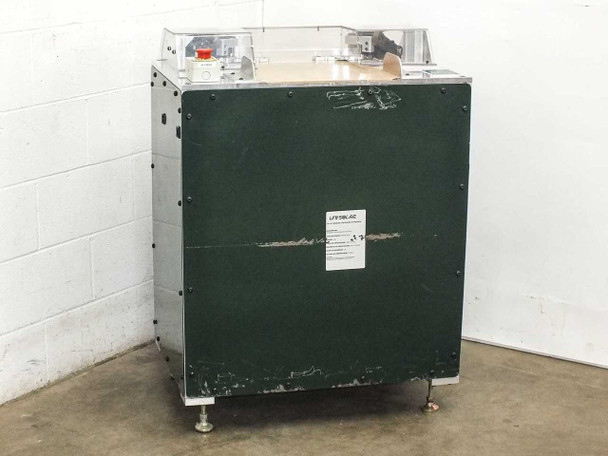

- Cabinet: Green painted steel outer panels with leveling feet
- Lower drawer: Green painted steel scrap/trim collection drawer with orange pull handle
- Origin: USA
Applications
This machine was built specifically for thin-film solar panel manufacturing, where plastic encapsulant or backing sheets must have their corners precisely trimmed before lamination to prevent delamination, edge lifting, or sharp-corner failures in the finished panel. Corner trimming is a standard step in the production of flexible thin-film modules such as those made by Uni-Solar (United Solar Ovonic), where the amorphous silicon cells are deposited on a flexible stainless steel substrate and then encapsulated in polymer layers. Custom automation fixtures like this one — built by specialty machine shops such as MISCO Industries — were common in solar manufacturing lines of the 2000s and early 2010s, when thin-film production was scaling rapidly. Beyond solar manufacturing, a pneumatic corner-trim station of this type is applicable wherever flat plastic sheet stock (EVA, PET, TPT, or similar laminates) needs repeatable corner geometry: photovoltaic module assembly, flexible electronics lamination, and specialty packaging production are all relevant uses. The machine's pneumatic architecture means it can be integrated into a production line with a shared compressed air supply, and the optical sensors allow consistent sheet positioning without manual measurement.
This Uni-Solar MX1-711-000-5 Corner Trim Machine has been inspected and is in good used condition. It was pulled directly from a solar panel production environment where it was in active use. The internal 110 VAC to 24VDC power supply (Rhino PSP24-060S) lights up when plugged in. The cutting heads require an external compressed air supply to operate — the machine is pneumatically driven and will not cycle without air connected. The aluminum extrusion frame and polycarbonate safety guards are intact and show normal production wear. The green painted steel cabinet panels show some surface scratches and minor scuffing consistent with shop use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Uni-Solar |
Model: |
MX1-711-000-5 |
MPN: |
MX1-711-000-5 |
Secondary Model: |
MX1-711-000 |
SKU: |
47241 |
Type: |
Corner Trim Machine / Corner Cutting Machine |
Manufacturer: |
MISCO Industries (miscoind.com) |
Application: |
Solar panel component plastic sheet corner trimming |
Sheet Width Capacity: |
14.5 inches |
Blade Type: |
1" wide x 0.25" thick slanted blades (2x) |
Linear Motion Guides: |
THK HSR20 (x2) |
Power Requirements: |
110 VAC, 60Hz |
Power Supply: |
Rhino PSP24-060S, 60W, 110 VAC to 24VDC |
Optical Sensors: |
Keyence FS-N11CP fiber optic sensors (x2) |
Door Sensor: |
Telemecanique XCS-PA593 with Danner E5-FA-9AA |
Time Delay Relays: |
Fuji Electric MS4SA (x3) |
Pneumatic Shut-Off Valve: |
SMC VHS40-04 |
Pneumatic Filter/Regulator: |
SMC AW40-04E |
Pneumatic Solenoid Valves: |
SMC VQC4101-5 (x2) |
Pneumatic Cylinders: |
SMC CG1UN50-25, 145 PSI max (x2) |
Air Supply Required: |
Yes — external compressed air required |
Controls: |
Power On pushbutton, Emergency Stop (red mushroom) |
Enclosure: |
Aluminum extrusion frame, polycarbonate safety guards |
Lower Drawer: |
Green painted steel scrap collection drawer |
Country/Region of Manufacture: |
USA |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Internal 24VDC power supply lights up when plugged in. Requires external air supply to operate cutting heads. |
Condition Notes: |
Uni-Solar MX1-711-000-5 Corner Trim Machine pulled from solar panel production. Internal 24VDC power supply lights up when plugged in. Cutting heads require external compressed air to operate. Good used condition with normal production wear. |
