Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-

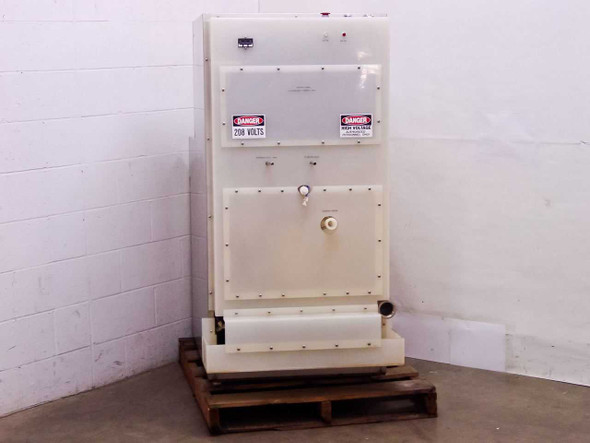

ITS UC-7010 Microprocessor Wafer Box Washer 208VAC 3PH 20A 60Hz Semiconductor
ITS
$1,600.00Was: $3,200.00ITS UC-7010 Microprocessor Wafer Box Washer 208VAC 3PH 20A 60Hz SemiconductorFloor-mounted wafer box cleaning system with microprocessor control for semiconductor and clean room applications. Uses LMI Milton Roy chemical dosing pump and stainless steel...43937- SKU:
- 43937
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 510.00 LBS
- Brand:
- ITS
- Model:
- UC-7010
- MPN:
- UC-7010
- Type:
- Microprocessor Controlled Wafer Box Washer
- SKU:
- 43937
- Condition:
- Used – Inspected, Appears in Good Condition
- Voltage Rating:
- 208VAC
- Current Rating (Amps):
- 20A
- Phase:
- Three Phase
- Frequency:
- 60Hz
- Power Requirements:
- 208VAC, 3-Phase, 20A, 60Hz
- Control System:
- ITS TYMKON Microprocessor Control Center
- Chemical Pump:
- LMI Milton Roy Chemical Dosing Pump
- Chemical Tank Capacity:
- 3 Gallons (Max Cap 3 Gal.)
- Nitrogen Inlet Pressure:
- 60 PSI
- Exhaust:
- 100 CFM
- DI Water Inlet:
- Yes
- Circuit Breakers:
- 3-pole, 20A per pole
- Wash Chamber:
- Stainless steel with stainless wire basket carriers
- Construction:
- Stainless steel top section, polypropylene/polymer lower enclosure
- Application / Use Case:
- Semiconductor wafer box / carrier cleaning, clean room
- Form Factor:
- Freestanding Floor Unit
- Manufacture Date:
- 10-30-1992
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes stainless wire wafer box baskets visible in wash chamber
- Condition Notes:
- ITS UC-7010 Wafer Box Washer inspected and in good used condition. Stainless wash chamber and TYMKON control panel intact. LMI pump, Dayton motor, and plumbing present. Wire baskets included. Normal wear from prior fab use.
$1,600.00Was: $3,200.00 -

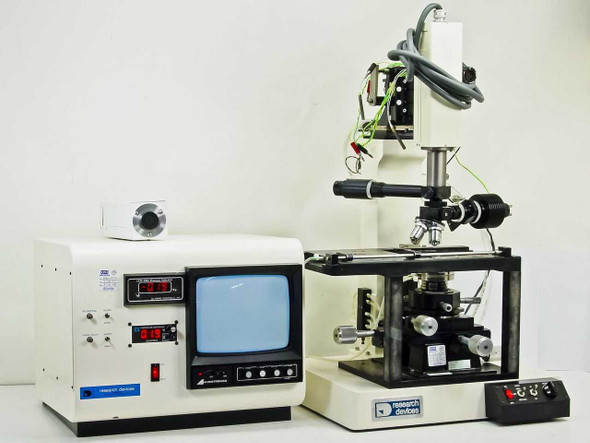

Research Devices M9 Infrared Microscope Heated Platform Rework Station Kulite
Research Devices
$3,200.00Was: $6,400.00Research Devices M9 Infrared Microscope Heated Platform Rework Station KuliteBenchtop infrared microscope system with heated XY positioning stage designed for semiconductor rework, die attach operations, and thermal inspection. Incorporates integrated...43219- SKU:
- 43219
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 162.00 LBS
- Brand:
- Research Devices
- Model:
- M9
- MPN:
- M9
- Type:
- Infrared Microscope Heated Platform Rework Station
- SKU:
- 43219
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes Kulite Semiconductor transducer, IR objective lenses, XY stage, controller console, and cabling
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Application / Use Case:
- Semiconductor rework, die attach, IR inspection, bond wire repair
- Illumination Type:
- Infrared (IR)
- Microscope Type:
- Infrared Reflection/Collimation Microscope
- Stage Type:
- Heated Platform with XY Positioning Stage
- Objective Type:
- Research Devices Infrared Objectives (multiple, visible in photos)
- Transducer / Sensor:
- Kulite Semiconductor Inc. – Input 3277 Ohms, Output 852 Ohms
- Controller:
- Integrated console with Audiotronics monitor, Olympic Controls LED-35D, Quantem Temp Controller
- Temperature Controller:
- Quantem Temperature Controller (visible on console)
- Process Indicator:

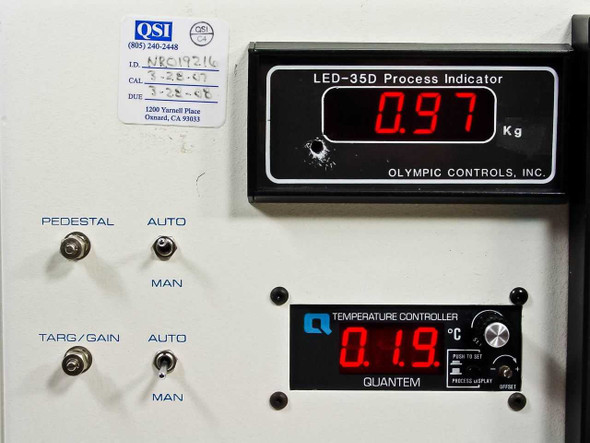

- Olympic Controls Inc. LED-35D Process Indicator
- Monitor:
- Integrated CRT video monitor (Audiotronics branded)
- Illumination Control:
- AUTO/COLL / REFLECT toggle; HI/LO toggle; INTENSITY knob
- Gas Lines:
- Gas line fittings included (visible in photos)
- Connector Type:
- Multi-pin circular connector (206039-1, visible on cable)
- Compatible With:
- Semiconductor die attach, rework, and IR inspection processes
- Heater Output:
- Heater Out connection present on rear panel
- Condition Notes:
- Research Devices M9 IR Microscope Heated Rework Station pulled from a working semiconductor environment, in use and functional. Includes controller console, IR objectives, heated XY stage, Kulite transducer, and cabling.
$3,200.00Was: $6,400.00 -

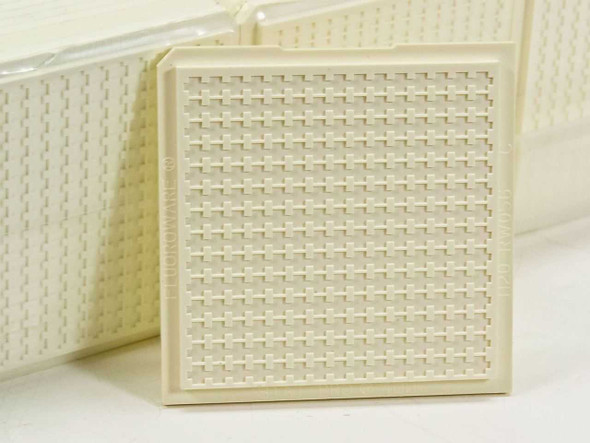

Fluoroware H20-RW056 Stat Pro 400 Wafer Carrier Tray Bottom 210-Slot Lot 500
Fluoroware
$325.00Was: $650.00Fluoroware H20-RW056 Stat Pro 400 Wafer Carrier Tray Bottom 210-Slot Lot 500This is a bulk lot of 500 Fluoroware H20-RW056 Stat Pro 400 wafer carrier tray bottoms, a standard consumable used in semiconductor wafer handling and cleanroom processing...43103- SKU:
- 43103
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Fluoroware
- Model:
- H20-RW056
- MPN:
- H20-RW056
- Type:
- Wafer Carrier Tray Bottom
- Product Line:
- Stat Pro 400
- Revision:
- C
- Number of Slots:
- 210
- Slot Dimensions:
- Approximately 2.5mm x 2mm
- Quantity:
- 500
- Application:
- Semiconductor Wafer Handling / Cleanroom
- Material:
- Polypropylene (static-dissipative plastic)
- Condition:
- New – Open Box / Surplus
- SKU:
- 43103
- Seller Notes:
- Lot of 500 carrier tray bottoms; new from manufacturer, surplus stock
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Fluoroware H20-RW056 Stat Pro 400 wafer carrier tray bottoms, lot of 500. New from manufacturer but surplus/open-box; may have been stored long-term or be past original shelf date. Out of original packaging. Unit received may vary from photo.
$325.00Was: $650.00 -

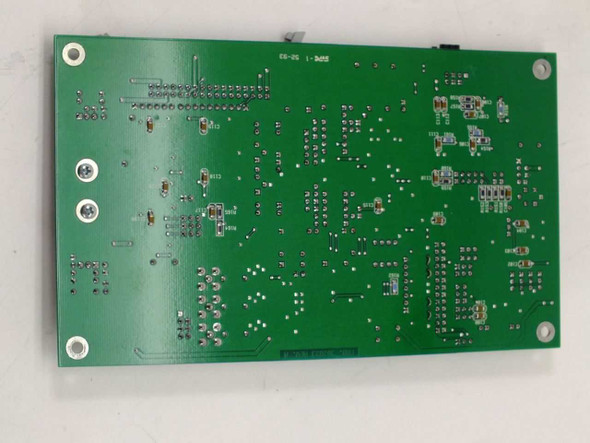

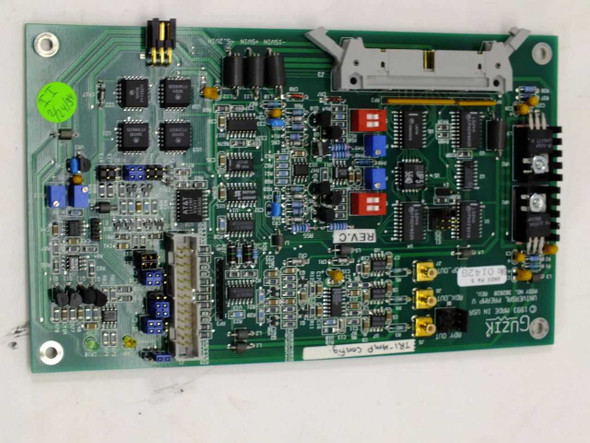

Guzik 302820 Preamp V Tri-Amp Config PCB Card Rev C Hard Drive Tester
Guzik
$100.00Was: $200.00Guzik 302820 Preamp V Tri-Amp Config PCB Card Rev C Hard Drive TesterThe Guzik 302820 is a Preamp V preamplifier board in the Tri-Amp configuration, designed for use in Guzik hard disk drive (HDD) certification and test systems. This PCB serves as the...42744- SKU:
- 42744
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Guzik
- Model:
- 302820
- MPN:
- 302820
- Type:
- Preamplifier PCB Card / Hard Drive Test System Module
- SKU:
- 42744
- Configuration:
- Tri-Amp Config
- Revision:
- Rev C
- Form Factor:
- PCB Card / Module
- Application:
- Hard Drive / HDD Certification and Test System
- Compatible With:
- Guzik hard drive test and certification systems
- Connector Type:
- Multi-pin edge connector (high-density gold-pin)
- Condition:
- Used – Inspected
- Seller Notes:
- PCB card only; pulled from Guzik HDD test system
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Guzik 302820 Preamp V Tri-Amp Config PCB card. Inspected and in good used condition. Board is clean with no visible damage. Gold-pin connector intact. Minor handling marks from prior use.
$100.00Was: $200.00 -

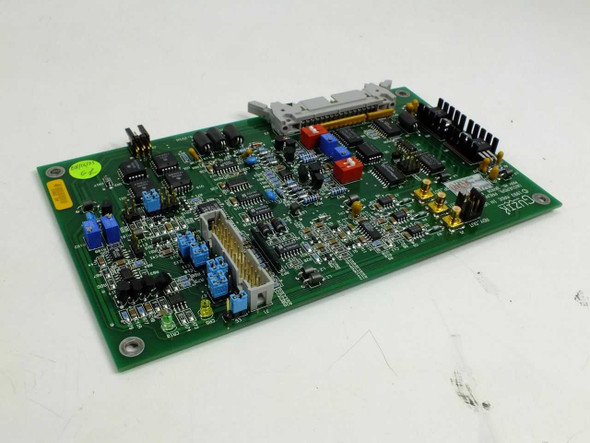

Guzik UP205 Universal Preamp V PCB 302820 392729 Disk Drive Test Board
Guzik
$150.00Was: $300.00Guzik UP205 Universal Preamp V PCB 302820 392729 Disk Drive Test BoardUniversal preamplifier PCB for read-write signal conditioning in disk drive test systems. This board processes magnetic recording signals from test spinstands and is used in automated...42743- SKU:
- 42743
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Guzik
- Model:
- UP205
- MPN:
- 392729
- Secondary Model:
- 302820
- Type:
- Universal Preamplifier PCB / Read-Write Preamp Board
- SKU:
- 42743
- Condition:
- Used – Inspected
- Assembly Number:
- 302820
- Part Number:
- 392729
- Product Name:
- Universal Preamp V
- Form Factor:
- PCB / Card Module
- Country/Region of Manufacture:
- United States
- Application:
- Disk Drive Test System / Magnetic Recording Test
- Compatible With:
- Guzik spinstand and disk drive test systems
- Connector Type:
- Multi-pin edge connector / ribbon connectors
- Seller Notes:
- Board only. Inspected and in good condition.
- Condition Notes:
- Guzik UP205 Universal Preamp V PCB (Assy 302820, P/N 392729) inspected and in good used condition. Light handling wear; no visible damage. All connectors intact. Please view photos and contact us with questions.
$150.00Was: $300.00 -
Fluoroware Entegris A182-60MU 13-Slot 6" 150mm Silicon Wafer Carrier Cassette
Fluoroware
$45.00Was: $90.00Fluoroware Entegris A182-60MU 13-Slot 6" 150mm Silicon Wafer Carrier CassetteThe Fluoroware Entegris A182-60MU is a 6" (150mm) silicon wafer carrier cassette made from translucent polypropylene. This unit was originally configured for 25 wafers and has...42654- SKU:
- 42654
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Fluoroware / Entegris
- Model:
- A182-60MU
- MPN:
- A182-60MU
- Type:
- Silicon Wafer Carrier Cassette
- SKU:
- 42654
- Wafer Size:
- 6" / 150mm
- Number of Slots:
- 13 (modified from original 25-slot)
- Material:
- Polypropylene (translucent white plastic)
- Compatible Outer Carry Case:
- Fluoroware Entegris E124-60
- Compatible Inner Wafer Carrier:
- Fluoroware Entegris A182-60MU
- Application:
- Semiconductor wafer transport and storage
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Carrier only; outer case E124-60 may be available separately — contact us
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Fluoroware Entegris A182-60MU 150mm wafer cassette in good used condition. Modified from 25-slot to 13-slot. Pulled from active production use. Intact, no cracks; slot tines undamaged. Normal light surface wear.
$45.00Was: $90.00 -
Entegris X9150-0406 Ultrapak WaferShield 25-Slot Wafer Carrier 6" 150mm
Entegris
$50.00Was: $100.00Entegris X9150-0406 Ultrapak WaferShield 25-Slot Wafer Carrier 6" 150mmThe Entegris X9150-0406 is a 25-slot Ultrapak WaferShield wafer carrier designed for storing, handling, and shipping 6-inch (150mm) silicon wafers. Made from a semi-transparent...42653- SKU:
- 42653
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Entegris
- Model:
- X9150-0406
- MPN:
- X9150-0406
- Type:
- Wafer Carrier / Wafer Shipping Container
- SKU:
- 42653
- Wafer Size:
- 6" / 150mm
- Number of Slots:
- 25
- Product Line:
- Ultrapak WaferShield
- Material:
- Polypropylene (semi-transparent plastic)
- Application:
- Silicon wafer storage, transport, shipping
- Compatible Wafer Type:
- 150mm (6") Silicon Wafers
- Condition:
- Used – Inspected, Good Condition
- Seller Notes:
- Carrier only; no lid pictured. May vary from unit photographed.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Entegris X9150-0406 Ultrapak WaferShield 25-slot 150mm wafer carrier. Inspected, good used condition. Minor surface marks from handling; plastic intact, no cracks or breaks. Photos available.
$50.00Was: $100.00 -
Integrated Time Systems Wafer Mask Cleaner Developer ITS Sonotek Ion Systems ECD
Integrated Time
$900.00Was: $1,800.00Integrated Time Systems Wafer Mask Cleaner Developer ITS Sonotek Ion Systems ECDSemiconductor wafer and photomask cleaning and photoresist development system. Stainless steel freestanding floor unit with integrated microprocessor control center for spray...42651- SKU:
- 42651
- Availability:
- Usually ships within 5-7 business days; large industrial item — please contact us for freight shipping details.
- Weight:
- 445.00 LBS
- Brand:
- Integrated Time Systems
- Model:
- ITS Microprocessor Control Center
- MPN:
- AU311FT-141
- Type:
- Wafer Mask Cleaner / Chemical Developer System
- SKU:
- 42651
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes Sonotek spray controller, Ion Systems AirForce Z-Stat 6115 ionizer, ECD controller, Grundfos pump, Tecumseh compressor, 3M 722 workstation monitor, Globtek power supply, multiple chemical/DI/nitrogen pumps and valves
- Application / Use Case:
- Semiconductor wafer/photomask photoresist development and spray cleaning
- Control System:
- Integrated Time Systems Microprocessor Control Center
- Compressor:
- Tecumseh AU311FT-141
- Pump:
- Grundfos
- Spray Controller:
- Sonotek (Nozzle Power/Watts display, Coarse/Fine power adjust)
- Ionizer:
- Ion Systems AirForce Z-Stat 6115 IsoStat Technology
- ESD Monitor:
- 3M 722 Work Station Monitor
- Power Supply (Aux):
- Globtek TA2CH000B01, Input 230V 50Hz, Output 24V AC 1A
- Tank Size Overall:
- 12 in x 13 in x 10 in deep
- Tank Size Effective:
- 5 in x 10 in
- Fluid Inputs:
- Chemical, DI Water, Nitrogen, CDA
- Fluid Outputs:
- Waste Drain, Flush Out, Chemical pump output
- Pressure Gauges:
- Two manifold pressure gauges, 0-60 psi / 0-4 bar
- Control Inputs:
- Chamber Door, Sump Tank Low/Full, Over Temp, Cooling, Chem Temp, VRP Motor, High Level, Chiller Interlock, Left/Right Manifold, DI Water, CDA, Nitrogen
- Control Outputs:
- Process Spray, Heaters, Chem/DI/CDA to Chamber, Diverter Valve, CETC Pump, VRP Motor, Flush, Overtemp Cutoff, Filter, Cooling Coil, Bulk Fill
- Enclosure Material:
- Stainless Steel
- Form Factor:
- Freestanding Floor Unit
- Country/Region of Manufacture:
- United States
- Condition Notes:
- ITS wafer mask cleaner/developer sold AS-IS for parts or repair. Not tested; completeness and functionality unknown. Includes Sonotek controller, Ion Systems Z-Stat 6115 ionizer, Tecumseh compressor, Grundfos pump.
$900.00Was: $1,800.00
