Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-

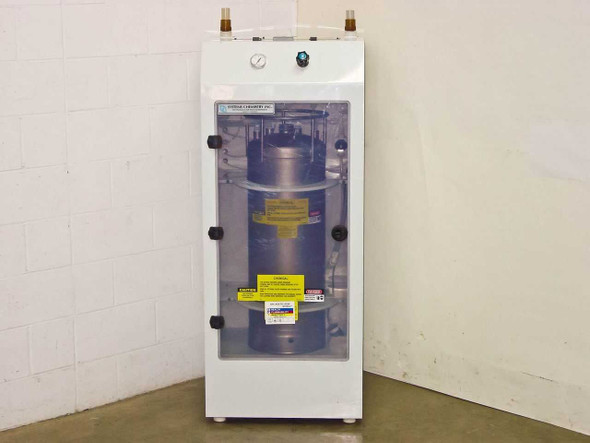

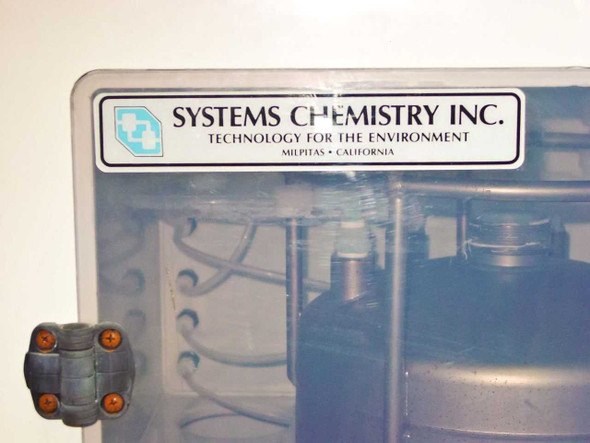

Systems Chemistry 99-12262-00 Chemical Day Tank Delivery System 16 Gal SS
Systems Chemistry
$2,500.00Was: $5,000.00Systems Chemistry 99-12262-00 Chemical Day Tank Delivery System 16 Gal SSStainless steel chemical day tank delivery system designed for semiconductor fabrication facilities. The 16-gallon tank is housed in a white powder-coated steel cabinet with clear...42637- SKU:
- 42637
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 201.00 LBS
- Brand:
- Systems Chemistry Inc.
- Model:
- 99-12262-00
- MPN:
- 99-12262-00
- Type:
- Chemical Day Tank Delivery System
- SKU:
- 42637
- Tank Capacity:
- 16 Gallons (approx.)
- Tank Dimensions (approx.):
- 33 x 12 inches
- Tank Material:
- Stainless Steel
- Cabinet Construction:
- White powder-coated steel enclosure with clear acrylic door
- Control Panel:
- External relay logic panel with multi-pin I/O connectors
- Valve Configuration:
- AOV103, AOV101, AOV102 pneumatic valves; CDA connections
- I/O Connectors:
- Multiple multi-pin circular connectors (J1–J4 visible)
- Chemical Inlet:
- Labeled CHEMICAL IN port on top/rear of enclosure
- Pressure Gauge:
- Analog pressure gauge on top panel
- Pressure Fitting:
- Two top-mounted bulkhead fittings (amber/brown tubing)
- Application:
- Semiconductor fab chemical dispensing / day tank supply
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Milpitas, California
- Form Factor:
- Freestanding Cabinet
- Condition:
- Used – Inspected, appears in good condition
- Seller Notes:
- Includes stainless steel tank, control panel, and all visible plumbing/valves
- Condition Notes:
- Systems Chemistry 99-12262-00 Chemical Day Tank Delivery System inspected and in good used condition. Cabinet, acrylic door, SS tank, plumbing, relay panel, and I/O connectors all appear present and undamaged. Minor handling wear.
$2,500.00Was: $5,000.00 -
Fluoroware E124-60 Robox 6" 150mm Silicon Wafer Case A182-60MU 13-Slot Cassette
Fluoroware
$70.00Was: $250.00Fluoroware E124-60 Robox 6" 150mm Silicon Wafer Case A182-60MU 13-Slot CassetteFluoroware polypropylene wafer cassette and transport case designed for 150mm silicon wafers. Combines the E124-60 outer case with an A182-60MU cassette insert configured for...42621- SKU:
- 42621
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Fluoroware
- Model:
- E124-60
- MPN:
- E124-60
- Secondary Model:
- A182-60MU
- Type:
- Silicon Wafer Shipping Case / Cassette
- SKU:
- 42621
- Wafer Size:
- 150mm / 6 inch
- Number of Slots:
- 13 (modified from original 25-slot)
- Cassette Part Number:
- A182-60MU
- Series:
- Robox
- Latch Type:
- No Latch
- Material:
- Polypropylene plastic
- Color:
- Blue (may vary — previous stock includes Purple and Yellow)
- Compatible With:
- 150mm / 6" silicon wafers
- Application:
- Semiconductor wafer transport and storage
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes outer E124-60 case and A182-60MU 13-slot cassette insert
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Fluoroware E124-60 Robox 150mm wafer case with A182-60MU 13-slot cassette. Inspected, good used condition. Pulled from a working fab environment. Cassette modified from 25-slot to 13-slot. Color may vary (Blue, Purple, or Yellow).
$70.00Was: $250.00 -

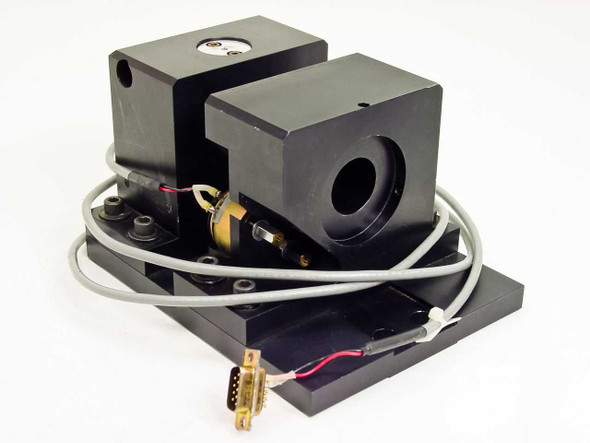

Unbranded Electronic Shutter Assembly Mask Aligner Semiconductor UV Optics DB9
Generic
$150.00Was: $300.00Unbranded Electronic Shutter Assembly Mask Aligner Semiconductor UV Optics DB9This is an unbranded electronic shutter assembly removed from a mask aligner UV exposure system. The assembly consists of two black anodized aluminum housing blocks mounted on...40971- SKU:
- 40971
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 12.00 LBS
- Brand:
- Unbranded
- Model:
- Electronic Shutter Assembly
- Type:
- Electronic Shutter Assembly
- Application:
- Mask Aligner / Photolithography UV Exposure System
- Actuator Type:
- Rotary Solenoid
- Connector Type:
- DB9 Male (9-pin D-sub)
- Housing Material:
- Black Anodized Aluminum
- Number of Optical Apertures:
- 2 (one per housing block)
- Aperture Style:
- Circular, with shutter blade/disc
- Mounting Base:
- Integrated black anodized aluminum baseplate
- Cable:
- Gray multi-conductor cable with red/white leads
- Dimensions (approx.):
- 7 in x 6 in x 5 in
- Form Factor:
- Benchtop / Inline Module
- Compatible With:
- Mask Aligner UV Exposure Systems
- SKU:
- 40971
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes integrated cable and DB9 connector; pulled from a working mask aligner.
- Condition Notes:
- Unbranded mask aligner electronic shutter assembly pulled from a working environment. Inspected and in good condition — housings show light surface wear. Solenoid actuator, shutter discs, cable, and DB9 connector all present and appear intact.
$150.00Was: $300.00 -

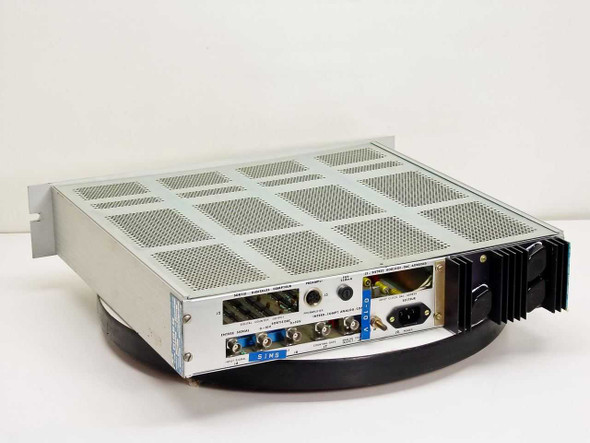

Riber CD 116 Acquisition Drive Interface Control Unit 19" Rack 220V SIMS
Riber
$325.00Was: $650.00Riber CD 116 Acquisition Drive Interface Control Unit 19" Rack 220V SIMSAcquisition and control interface for Secondary Ion Mass Spectrometry (SIMS) systems. Handles ion beam counting, signal processing, and data acquisition from mass spectrometer...40626- SKU:
- 40626
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 23.00 LBS
- Brand:
- ISA Riber
- Model:
- CD 116
- MPN:
- 600 045
- Type:
- Acquisition Drive Interface Control Unit
- SKU:
- 40626
- Condition:
- Used – Pulled from Working Environment
- Voltage:
- 220V AC
- Current Rating:
- 250 mA (CD 116 module); 500 mA (±15V +5V PSU module)
- Power Supply Outputs:
- +/-15V, +5V
- Form Factor:
- 19" Rackmount
- Application:
- SIMS (Secondary Ion Mass Spectrometry) Data Acquisition
- Measurement Type:
- Counting Rate / Ion Beam Acquisition
- DAC Output:
- 0 to +10V (Sortie DAC)
- Input Signal Range:
- 0 to -10V (Entree Signal / J4)
- Analog Counter Output:
- 0-10V (J8)
- Counting Time Modes:
- INT (1s), EXT
- Measurement Scale:
- LIN / LOG, 10 to 3x10^5 range
- Connectors:
- BNC (signal input, DAC out, counting gate, analog out), DIN preamplifier
- Rear Connectors:
- J2 Digital Counter Output, J3 Preamplifier, J4 Input Signal, J6 DAC Output, J7 Counting Gate, J8 Analog Counter Output, J9 Power (IEC)
- Front Panel Controls:
- Power switch, Counting Rate selector, Measure/Range knob, DAC Output toggle, Overload indicator
- Display:
- Analog panel meter (logarithmic scale, Cp / Y.Cp)
- Code:
- 250 I23 20 M (CD 116); 250 II2 I6 M (PSU module)
- Country/Region of Manufacture:
- France
- Manufacturer Address:
- BP 231-92505 Rueil Cedex, France
- Seller Notes:
- Unit only; no accessories included. Pulled from working SIMS environment.
- Condition Notes:
- Riber CD 116 Acquisition Drive Interface Control Unit in good used condition. Inspected and pulled from a working environment where it was previously in active use. Light cosmetic wear; connectors and meter intact.
$325.00Was: $650.00 -

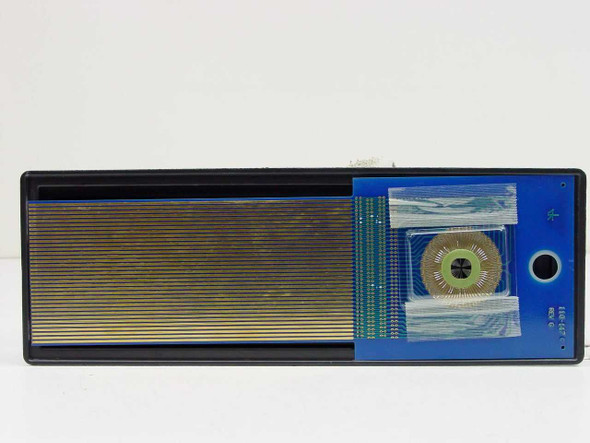

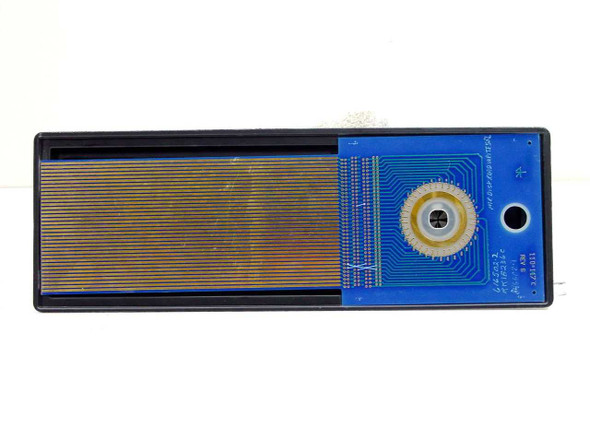

MIR Disk Read/Write Head DAS Device 110-117C Rev G G16503-2 RK18226C
Generic
$125.00Was: $250.00MIR Disk Read/Write Head DAS Device 110-117C Rev G G16503-2 RK18226CThis is a MIR disk read/write head assembly, part number 110-117C (Revision G), a DAS (Disk Access Sensor) type device built on a rectangular blue PCB. The assembly features a large...40108- SKU:
- 40108
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- MIR
- Model:
- 110-117C
- MPN:
- G16503-2
- Secondary Model:
- RK18226C
- Type:
- Disk Read/Write Head Assembly (DAS Device)
- Revision:
- Rev G
- SKU:
- 40108
- Form Factor:
- PCB Module / Flat Rectangular Assembly
- Interface:
- Multi-trace flat ribbon PCB (multi-track radial contact array)
- Condition:
- New – Open Box
- Seller Notes:
- New open-box unit; central disk head element sealed in protective plastic bag
- Application / Use Case:
- Disk storage read/write head; DAS (Disk Access Sensor) device
- PCB Color:
- Blue
- Contact Array:
- Radial gold-trace multi-track pattern with central head element
- Condition Notes:
- MIR Disk Read/Write Head 110-117C Rev G (G16503-2) is new and unused, sold open box — original packaging may be absent. Central head element is sealed in protective bag. No wear or use visible.
$125.00Was: $250.00 -

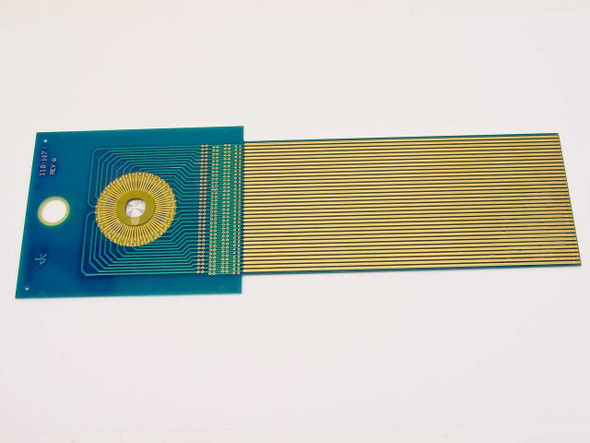

110-147C Rev G DAS Device PCB Gold Finger Flex Semiconductor Test Board
Generic
$125.00Was: $250.00110-147C Rev G DAS Device PCB Gold Finger Flex Semiconductor Test BoardDAS (Data Acquisition System) device PCB with gold finger flex ribbon connector designed for semiconductor testing applications. This board interfaces with test equipment via its gold...40098- SKU:
- 40098
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Unbranded
- Model:
- 110-147C
- MPN:
- 110-147C
- Secondary Model:
- Rev G
- SKU:
- 40098
- Type:
- DAS Device PCB / Gold Finger Flex Semiconductor Board
- Revision:
- Rev G
- PCB Color:
- Teal/Green
- Contact Finish:
- Gold
- Interface Type:
- Gold Finger Flex Ribbon
- Application:
- Semiconductor Test / Data Acquisition
- Form Factor:
- PCB Card / Flex Board
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only; no additional accessories included.
- Compatible With:
- Semiconductor DAS test systems using 110-147 series boards
- Condition Notes:
- 110-147C Rev G DAS Device PCB. Inspected and in good condition. Pulled from a working semiconductor environment. Gold fingers and radial contact array appear clean and intact. Normal handling wear.
$125.00Was: $250.00 -
Digiteyes DVC Digital Video Camera Semiconductor Wafer Mask Aligner w/ Power
Digiteyes
$150.00Was: $300.00Digiteyes DVC Digital Video Camera Semiconductor Wafer Mask Aligner w/ Power SupplyThe Digiteyes DVC is a compact digital video camera designed for integration with semiconductor photolithography equipment, specifically silicon wafer mask aligners. It...39206- SKU:
- 39206
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Digiteyes
- Model:
- DVC
- MPN:
- DVC
- Type:
- Digital Video Camera
- SKU:
- 39206
- Condition:
- Used – Inspected and Tested
- Application / Use Case:
- Semiconductor Silicon Wafer Mask Aligner Imaging
- Includes:
- Camera body, Heelpac WM113 power supply, sensor board, cables
- Power Supply Model:
- Heelpac WM113
- Power Supply Input:
- 120VAC 60Hz 22W
- Power Supply Output:
- +5VDC 860mA, +12VDC 300mA, -12VDC 300mA
- Interface / Connector:
- DB25 (parallel), DIN 5-pin, coaxial port
- Form Factor:
- Compact Box / Benchtop
- Sensor:
- Small-format solid-state image sensor (visible through lens barrel)
- Compatible With:
- Semiconductor mask aligners, photolithography systems
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes Heelpac WM113 power supply, external sensor/circuit board, and cables
- Condition Notes:
- Digiteyes DVC Digital Video Camera pulled from a working mask aligner and tested. Camera and Heelpac WM113 power supply are in good working condition. Minor surface wear. All cables and sensor board included.
$150.00Was: $300.00 -

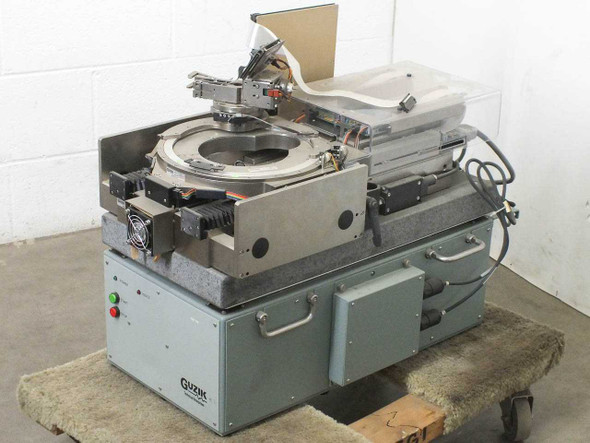

Guzik S1701 Hard Disk Drive Spinstand HDD Component Testing System Granite
Guzik
$1,800.00Was: $3,600.00Guzik S1701 Hard Disk Drive Spinstand HDD Component Testing System GraniteThe Guzik S1701 is a precision hard disk drive spinstand designed for component-level testing of HDD heads and disks. Spinstands of this type are used to spin a disk at controlled...37227- SKU:
- 37227
- Availability:
- This item requires freight shipment due to its size. Contact us for a shipping quote before ordering.
- Weight:
- 232.00 LBS
- User Manual:
- Guzik S-1701 Spin Stand System User Manual
- Brand:
- Guzik
- Model:
- S1701
- MPN:
- S1701
- Type:
- Hard Disk Drive Spinstand Component Testing System
- SKU:
- 37227
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold AS-IS for parts or repair. Freight shipment required.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Tabletop with Granite Base Plate
- Application:
- HDD Component Testing, Magnetic Recording R&D, Disk Drive QA
- Base / Surface Plate:
- Granite isolation plate
- Compatible With:
- Hard disk drive component testing, HDD R&D and manufacturing
- Patent Numbers:
- 4,680,516; 4,710,686; 4,958,839; 5,254,946
- Serial Number (Label):
- 30164
- Condition Notes:
- Guzik S1701 HDD Spinstand sold AS-IS for parts or repair. Not tested or powered at our facility — no functionality guaranteed. Freight shipment required. Please view photos and contact us with questions.
$1,800.00Was: $3,600.00
