MIR Disk Read/Write Head DAS Device 110-117C Rev G G16503-2 RK18226C

(No reviews yet) Write a Review
SKU:
40108
MPN:
110-117 C
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

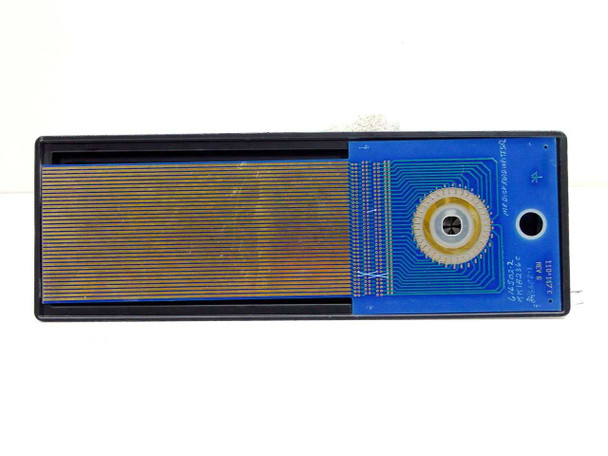

  • MIR Disk Read/Write Head 110-117C Rev G — top view showing blue PCB with radial gold trace pattern and central head element
  • MIR DAS Device 110-117C — top view with central disk head element sealed in protective plastic bag over PCB
  • MIR Disk Head G16503-2 — close-up of central read/write head element showing radial gold contact traces and cross-pattern aperture
  • MIR 110-117C Rev G — angled top view showing part numbers G16503-2 and RK18226C printed on blue PCB with MIR DISK READ W inscription
  • MIR Disk Read/Write Head 110-117C Rev G — reverse side showing part number, revision markings, and full radial gold contact array with numbered pads
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

MIR Disk Read/Write Head DAS Device 110-117C Rev G G16503-2 RK18226C

This is a MIR disk read/write head assembly, part number 110-117C (Revision G), a DAS (Disk Access Sensor) type device built on a rectangular blue PCB. The assembly features a large circular radial gold-trace contact array centered on the board, with a precision cross-aperture read/write head element at its center and a dense multi-track flat ribbon trace field running along the length of the board. A secondary circular gear-ring contact pad surrounds the central head element. The board carries part numbers G16503-2 and RK18226C and is marked Rev G.

Specifications & What's Included

  • Part Number: 110-117C
  • Revision: Rev G
  • Secondary Part Number: G16503-2
  • Tertiary Reference: RK18226C
  • Type: Disk Read/Write Head Assembly (DAS Device)
  • PCB color: Blue
  • Contact array: Radial gold-trace multi-track pattern with numbered contact pads (A1–A83+ visible on reverse)
  • Central element: Precision cross-aperture read/write head with surrounding gear-ring gold contact ring
  • Interface: Multi-trace flat ribbon PCB edge — dense parallel trace field along board length
  • Form factor: Flat rectangular PCB module
  • Central head element is sealed in a protective plastic bag (new, uninstalled condition)
  • PCB inscription: "MIR DISK READ W" (mirror-script, visible on board surface)

Applications

Disk read/write head assemblies of this type are precision electromechanical components used in magnetic disk storage systems to read and write data on rotating magnetic media. The radial multi-track contact array design is characteristic of heads used in specialized data acquisition storage (DAS) systems, instrumentation recorders, or high-track-count disk drives found in scientific, industrial, and aerospace data recording applications. The dense gold-trace PCB layout and numbered contact pads (extending into the 80s) suggest this is a high-channel-count device designed for systems requiring simultaneous multi-track data access — common in flight data recorders, seismic recording systems, and industrial data logging equipment from the late 1980s through the 1990s. Replacement heads of this type are sought by facilities maintaining legacy disk-based data recording systems where the original head has worn or failed.

Condition: New
This MIR Disk Read/Write Head DAS Device (110-117C Rev G) is new and unused. It is being sold as open box — the item is new but may not be in its original manufacturer packaging. The central disk head element is visible in a protective plastic bag on the PCB assembly, consistent with a new, uninstalled component. No signs of use, wear, or damage are visible. Please view our photo set and contact us if you have any questions.
View AllClose
