Rucker & Kolls

Rucker & Kolls 9644 PICO DAS DEV 2 Circular IC Test Socket DAS Devices PCB

(No reviews yet) Write a Review
SKU:
36621
MPN:
9644
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Rucker & Kolls 9644 PICO DAS DEV 2 circular IC test socket in clear plastic clamshell case — top view with label showing Part No. 9644, PICO DAS DEV 2, Made in USA

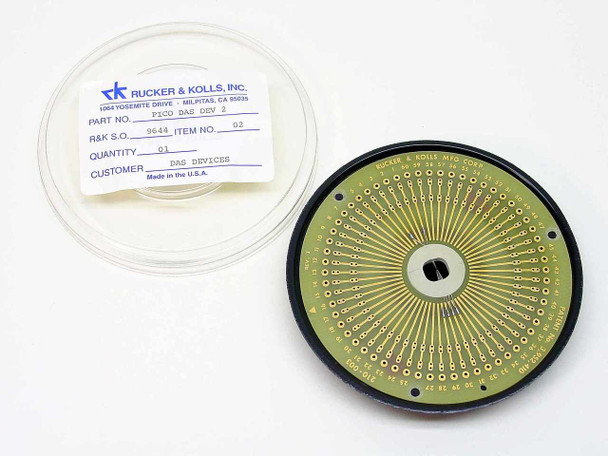

  • Rucker & Kolls 9644 PICO DAS DEV 2 circular IC test socket removed from clamshell case showing gold-plated radial contact pins on PCB — label visible beside unit
  • Close-up of Rucker & Kolls label: Part No. PICO DAS DEV 2, R&K S.O. 9644, Item No. 02, Quantity 01, Customer DAS Devices, Made in the USA

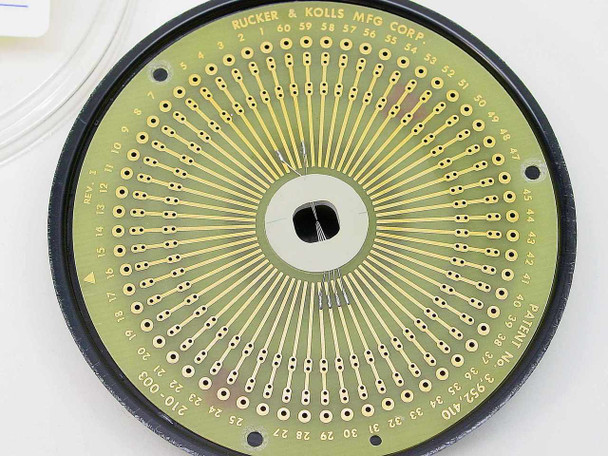

  • Rucker & Kolls MFG Corp circular PCB test socket — top surface showing numbered gold-plated radial pin contacts (1–60+), center mounting hole, patent marking, and PCB PN 210-003
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Rucker & Kolls 9644 PICO DAS DEV 2 Circular IC Test Socket DAS Devices PCB

Circular IC test socket and DAS device interface board manufactured by Rucker & Kolls. Designed for semiconductor package testing and DAS (Distributed Antenna System) device interfacing in industrial and telecom applications.

Specifications & What's Included

  • Model: PICO DAS DEV 2
  • MPN: 9644
  • Form Factor: Circular PCB
  • Manufacturer: Rucker & Kolls, Milpitas, CA
  • Country of Origin: United States
  • Includes original clear plastic clamshell storage case

Applications

Test sockets of this type are used in semiconductor manufacturing and validation for IC package testing. DAS interface boards support distributed antenna systems common in telecom infrastructure and industrial RF applications. This unit was designed for integration with DAS device test benches.

Condition: Used
This Rucker & Kolls 9644 PICO DAS DEV 2 circular IC test socket has been inspected and is in good used condition. The PCB shows no signs of damage, and the gold-plated radial contact pins appear intact and undamaged across the board. The unit comes with its original clear plastic clamshell storage case. Normal light handling marks may be present consistent with prior lab use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Rucker & Kolls
Model:
PICO DAS DEV 2
MPN:
9644
Type:
Circular IC Test Socket / DAS Device Interface Board
SKU:
36621
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Form Factor:
Circular PCB / Disk
Customer:
DAS Devices
Item Number:
02
R&K Sales Order:
9644
Quantity:
01
Manufacturer Address:
1064 Yosemite Drive, Milpitas, CA 95035
Application / Use Case:
IC package testing, DAS device interface, semiconductor test
Seller Notes:
Includes original clear plastic clamshell storage case. Made in the USA.
Condition Notes:
Rucker & Kolls 9644 PICO DAS DEV 2 circular IC test socket. Inspected and in good used condition. Gold-plated pins appear intact. Includes original clear plastic clamshell case.
View AllClose
