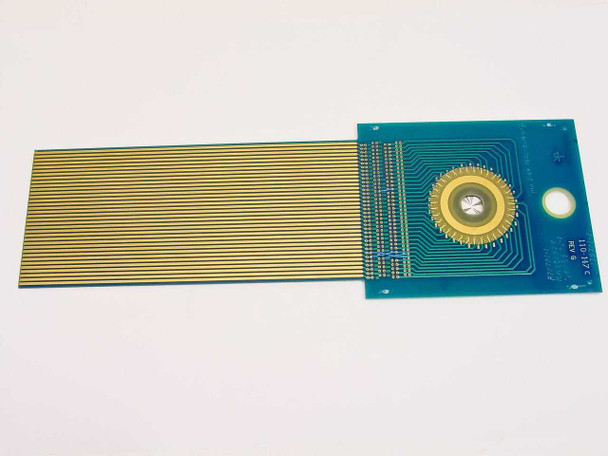

  • 110-147C Rev G DAS Device PCB reverse side view showing gold finger flex ribbon extending left and radial contact array visible on right side of teal board

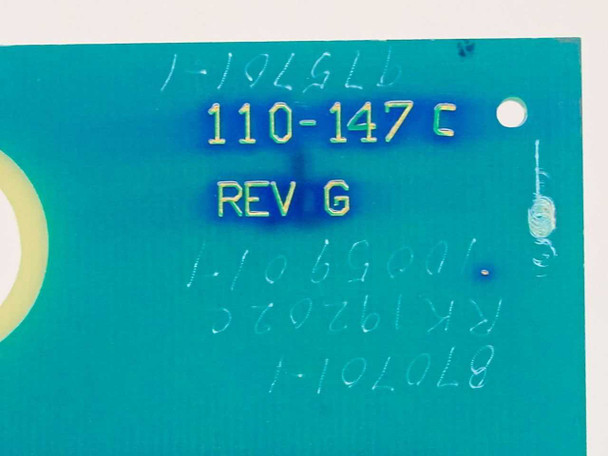

  • Close-up of 110-147C PCB silkscreen label showing part number 110-147C and REV G markings in yellow on teal board surface

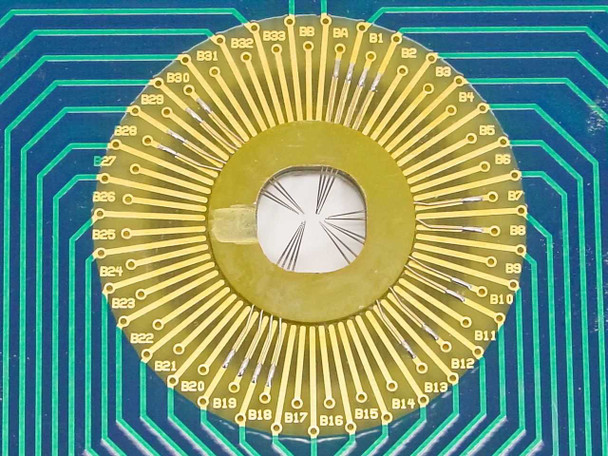

  • Macro close-up of the radial gold contact array on the 110-147C Rev G DAS Device PCB showing labeled contact pads B1 through B33 arranged in a circular pattern
$125.00
Was: $250.00
Current Stock: 1

Sold Out

Description

110-147C Rev G DAS Device PCB Gold Finger Flex Semiconductor Test Board

DAS (Data Acquisition System) device PCB with gold finger flex ribbon connector designed for semiconductor testing applications. This board interfaces with test equipment via its gold finger contact array.

Specifications & What's Included

  • Model: 110-147C, Revision G
  • Form Factor: PCB flex board with gold finger interface
  • PCB Color: Teal/Green
  • Contact Finish: Gold
  • Application: Semiconductor test and data acquisition systems
  • Board only; no additional accessories included

Applications

This board type is used in semiconductor test environments as part of DAS systems for data acquisition and signal routing during device testing. The 110-147 series is compatible with automated test equipment (ATE) systems and probe station interfaces commonly found in semiconductor manufacturing and failure analysis labs. The flex design allows integration into confined test fixtures and burn-in systems.

Condition: Used
This 110-147C Rev G DAS Device PCB has been inspected and is in good condition. It was pulled from a working semiconductor environment where it was previously in service. The gold finger flex ribbon and radial contact array appear clean and intact with no visible damage to the traces or contact pads. The teal PCB substrate shows normal handling marks consistent with light use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
110-147C
MPN:
110-147C
Secondary Model:
Rev G
SKU:
40098
Type:
DAS Device PCB / Gold Finger Flex Semiconductor Board
Revision:
Rev G
PCB Color:
Teal/Green
Contact Finish:
Gold
Interface Type:
Gold Finger Flex Ribbon
Application:
Semiconductor Test / Data Acquisition
Form Factor:
PCB Card / Flex Board
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no additional accessories included.
Compatible With:
Semiconductor DAS test systems using 110-147 series boards
Condition Notes:
110-147C Rev G DAS Device PCB. Inspected and in good condition. Pulled from a working semiconductor environment. Gold fingers and radial contact array appear clean and intact. Normal handling wear.
