Guzik S1701 Hard Disk Drive Spinstand HDD Component Testing System Granite

Guzik S1701 Hard Disk Drive Spinstand HDD Component Testing System Granite

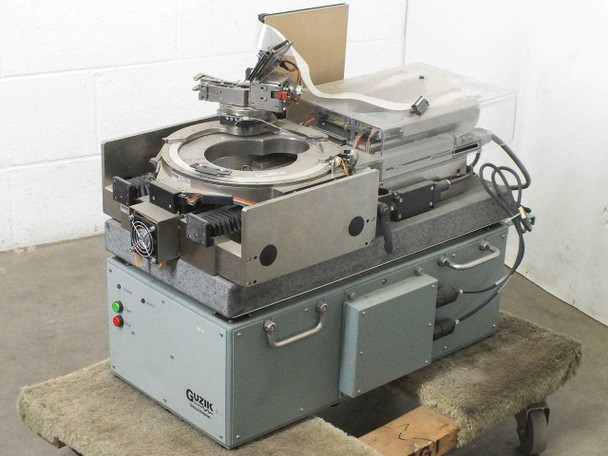

The Guzik S1701 is a precision hard disk drive spinstand designed for component-level testing of HDD heads and disks. Spinstands of this type are used to spin a disk at controlled speeds while positioning a read/write head assembly — allowing engineers to characterize magnetic recording performance, head-to-disk interface behavior, and component parameters outside of a complete drive enclosure. The S1701 mounts on a granite isolation base plate to minimize vibration during sensitive measurements.

Specifications & What's Included

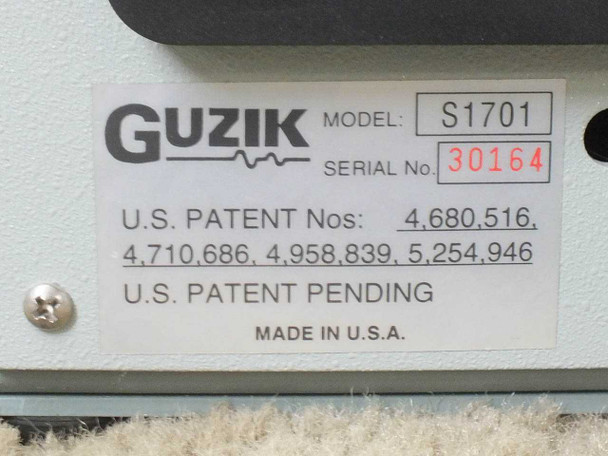

• Manufacturer: Guzik Technical Enterprises
• Model: S1701 (also referenced as S-1701)

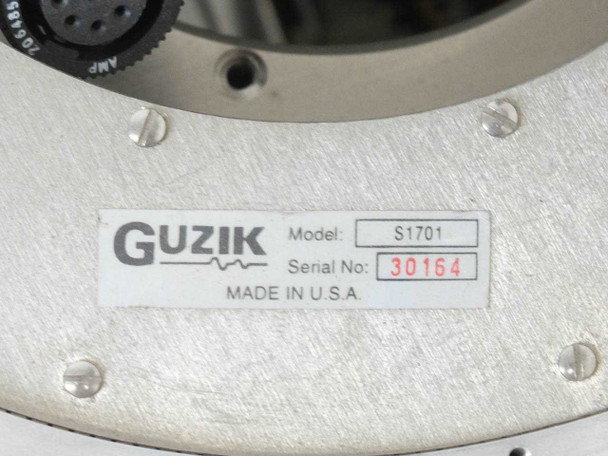

• Serial Number: 30164
• Country of Manufacture: Made in U.S.A.
• U.S. Patents: 4,680,516 / 4,710,686 / 4,958,839 / 5,254,946
• Base: Granite isolation plate for vibration damping
• Form factor: Tabletop / benchtop instrument on granite base

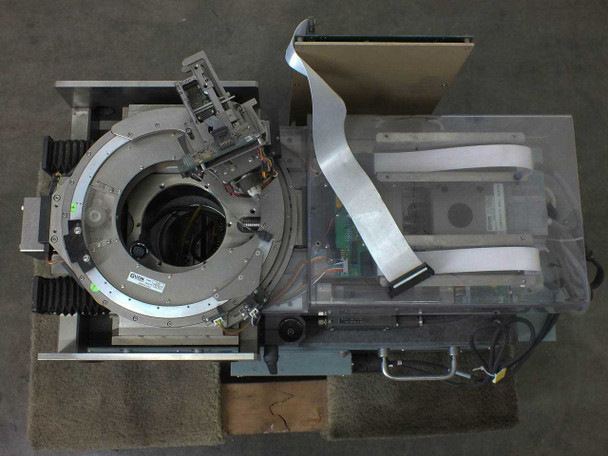

• Spindle assembly with circular disk platter ring visible in photos
• Head positioning arm and actuator mechanism present
• External electronics/controller chassis included (visible in photos)
• Plexiglass enclosure panels present
• Ribbon cable harness and interconnect wiring present

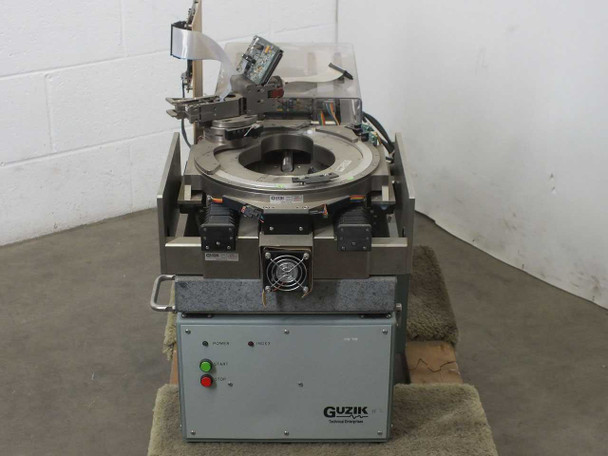

• Front panel: POWER and FAULT indicator lights, Guzik logo
• User manual available: Guzik S-1701 Spin Stand System User Manual (see listing)
• Condition: AS-IS — sold for parts or repair. Not tested. No functionality guaranteed.
• Freight shipment required due to size and weight

Applications

Guzik spinstands are specialized instruments used in hard disk drive research and development, component characterization, and manufacturing quality assurance. In an R&D or failure-analysis lab, a spinstand allows engineers to test read/write heads and disk media independently — spinning the disk at precisely controlled RPMs while the head flies at its designed operating height — so that head-disk interface parameters, magnetic signal properties, and tribological behavior can be measured without the complexity of a fully assembled drive. The S1701-class spinstand was used by HDD manufacturers, component suppliers, and university research groups during the era of rapid areal density scaling in magnetic recording, roughly the late 1980s through the 2000s, when characterizing individual components was critical to pushing recording density forward. Guzik Technical Enterprises has long been a leading supplier of this class of precision disk drive test equipment. Today, surviving Guzik spinstands are sought by labs maintaining legacy HDD test capability, data recovery research operations, and collectors of precision magnetic recording instrumentation.
