Digiteyes DVC Digital Video Camera Semiconductor Wafer Mask Aligner w/ Power

Digiteyes DVC Digital Video Camera Semiconductor Wafer Mask Aligner w/ Power Supply

The Digiteyes DVC is a compact digital video camera designed for integration with semiconductor photolithography equipment, specifically silicon wafer mask aligners. It uses a small-format solid-state image sensor mounted inside a precision optical barrel, capturing alignment imagery and feeding it to the aligner's display or control system. The camera connects via a DB25 parallel interface and DIN 5-pin connector on the rear panel and is powered by its included external Heelpac WM113 plug-in supply. An external sensor/circuit board with shielded cabling is also included as part of the assembly.

Specifications & What's Included

• Brand: Digiteyes
• Model: DVC (Digital Video Camera)
• Form factor: Compact anodized aluminum box body

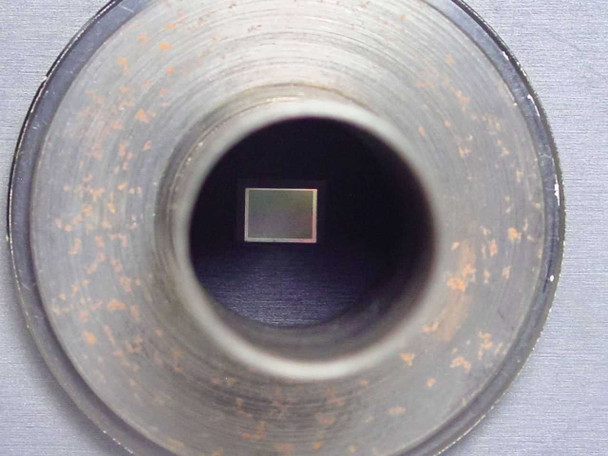

• Optical: Threaded lens barrel with internal solid-state image sensor
• Rear connectors: DB25 (parallel), DIN 5-pin, coaxial port
• Included: Heelpac WM113 plug-in power supply
• Power supply input: 120VAC, 60Hz, 22W
• Power supply output: +5VDC @ 860mA, +12VDC @ 300mA, -12VDC @ 300mA
• Power supply certifications: UL Listed (53J2), CSA (LR60602)
• Included: External sensor/circuit board with shielded copper tape, electrolytic and ceramic capacitors, connected via cable
• Included: All interconnecting cables

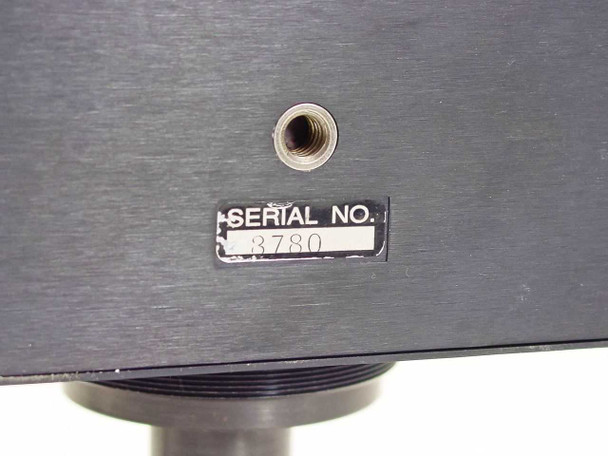

• Top panel: Threaded mounting hole (1/4"-20 or similar) for fixture mounting

Applications

Mask aligners are the core exposure tools in semiconductor photolithography — they project a circuit pattern from a photomask onto a coated silicon wafer, and precise optical alignment between mask and wafer is critical to yield. Integrated cameras like the DVC provide the operator with a real-time video image of the alignment field, allowing microscopic positioning adjustments before exposure. This type of compact, self-contained camera module was widely used in contact and proximity aligners from manufacturers such as Karl Suss, Canon, Ultratech, and Cobilt from the 1980s through the 2000s. Beyond semiconductor fabs, these cameras see use in MEMS fabrication, III-V compound semiconductor processing, solar cell patterning, and university research cleanrooms. Replacement or spare cameras for legacy mask aligners are increasingly difficult to source new, making used units a practical option for facilities maintaining older equipment.
