Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-

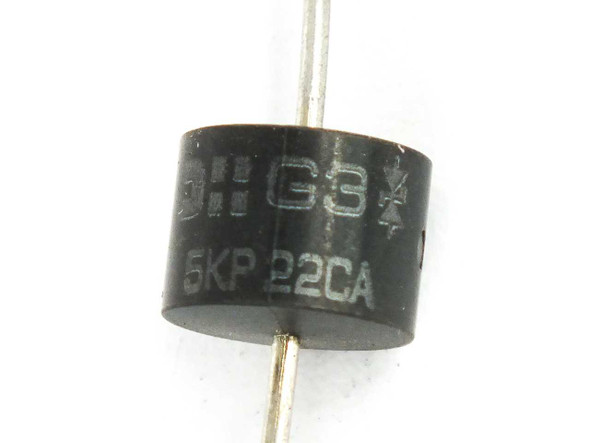

Littelfuse 5KP22CA TVS Diode 5kW 22V Transient Voltage Suppressor Lot of 10
Littlefuse
$12.00Was: $25.00Littelfuse 5KP22CA TVS Diode 5kW 22V Transient Voltage Suppressor Lot of 10The Littelfuse 5KP22CA is a bidirectional 5kW transient voltage suppressor (TVS) diode designed to protect sensitive electronics from voltage spikes, electrostatic discharge...35121- SKU:
- 35121
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 0.50 LBS
- Brand:
- Littelfuse
- Model:
- 5KP22CA
- MPN:
- 5KP22CA
- Type:
- TVS Diode – Transient Voltage Suppressor
- SKU:
- 35121
- Quantity:
- 10 pieces per lot
- Peak Pulse Power:
- 5000W (5kW) at 1.0ms
- Standoff Voltage (Vwm):
- 22V
- Breakdown Voltage:
- 24.4V minimum
- Clamping Voltage (Vc):
- Starts clamping at 26.5V
- Polarity:
- Bidirectional (CA suffix)
- Response Time:
- 5.0 ns
- Package / Case:
- DO-201 axial leaded
- Package Dimensions:
- 0.28" long x 0.375" dia; leads 1.1" each
- Lead Diameter:
- 0.042" (1.07mm)
- Junction Type:
- Glass passivated
- Seller Notes:
- Sold in a lot of 10 components. Minor surface weathering; solderability confirmed.
- Country/Region of Manufacture:
- China
- Application:
- ESD protection, surge suppression, transient clamping
- Condition:
- New
- Condition Notes:
- New Littelfuse 5KP22CA TVS diodes. Minor surface weathering from storage — cosmetic only, solderability unaffected. Lot of 10 on tape carrier. Please view our photos and contact us with any questions.
$12.00Was: $25.00 -

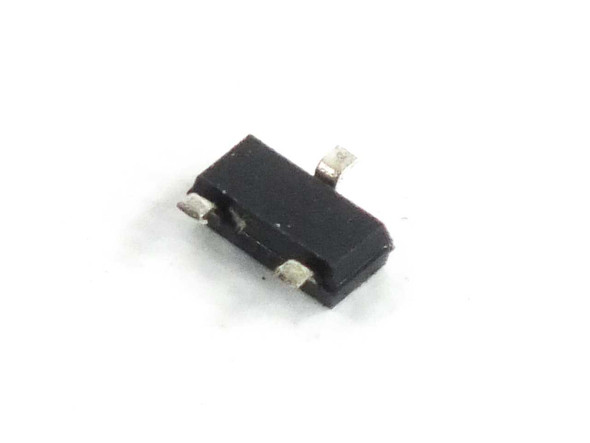

Fairchild MMBT2222AR-R PNP SOT-23 Transistor R2T SMD 40V 0.5A Qty 10 TSOT23
Fairchild
$3.00Was: $6.00Fairchild MMBT2222AR-R PNP SOT-23 Transistor R2T SMD 40V 0.5A Qty 10 TSOT23PNP bipolar junction transistor in SOT-23 surface mount package. Used for switching and amplification in low-signal applications.Specifications & What's IncludedType: PNP...35122- SKU:
- 35122
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Fairchild Semiconductor
- Model:
- MMBT2222AR-R
- MPN:
- MMBT2222AR-R
- Secondary Model:
- TSOT23-2222A
- SKU:
- 35122
- Type:
- PNP Bipolar Junction Transistor (BJT)
- Package / Case:
- SOT-23 (3-pin SMD)
- Transistor Polarity:
- PNP
- Device Marking:
- R2T
- Voltage - Collector Emitter Breakdown (Max):
- ~40V
- Current - Collector (Ic) (Max):
- ~0.5A
- Mounting Type:
- Surface Mount (SMD/SMT)
- Quantity:
- 10 pieces (on tape)
- Complementary Device:
- 2N2222A / MMBT2222A (NPN)
- Pin Configuration:
- Base lower-left, Emitter right, Collector top (R2T up)
- Seller Notes:
- Sold as a pack of 10 on tape. New old stock.
- Country/Region of Manufacture:
- Philippines
- Form Factor:
- SMD / Surface Mount
- Condition Notes:
- Fairchild MMBT2222AR-R PNP SOT-23 transistors, new old stock, pack of 10 on tape. Unused, new condition. Please contact us with any questions.
$3.00Was: $6.00 -
ON Semiconductor DF08S Bridge Rectifier 800V 1.5A 1.1V Vf SMD SMA Qty 10
ON Semiconductor
$7.00Was: $15.00ON Semiconductor DF08S Bridge Rectifier 800V 1.5A 1.1V Vf SMD SMA Qty 10Bridge rectifier for converting AC to DC in power supply circuits. Single-phase full-wave configuration with 800V peak reverse voltage rating and 1.5A forward current capacity...35129- SKU:
- 35129
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.50 LBS
- Brand:
- ON Semiconductor
- Model:
- DF08S
- MPN:
- DF08S
- Type:
- Bridge Rectifier
- SKU:
- 35129
- Quantity:
- 10 (sold as a set in tape strip)
- Package / Case:
- SMA (SMD Surface Mount)
- Peak Reverse Voltage (PRV):
- 800 V
- Forward Current (If):
- 1.5 A
- Forward Voltage (Vf) Max:
- 1.1 V
- Max Surge Current (IFSM):
- 50 A
- Mount Type:
- Surface Mount (SMD)
- Configuration:
- Single-Phase Full-Wave Bridge
- Country/Region of Manufacture:
- China
- Seller Notes:
- Set of 10 units, supplied in tape strip as photographed
- Condition:
- New
- Condition Notes:
- ON Semiconductor DF08S Bridge Rectifiers are new and unused, supplied in a tape strip of 10 units. Original manufacturer packaging may not be included. Please view photos and contact us with questions.
$7.00Was: $15.00 -
Wegener Communications 1601-54 Rev A Series 1600 Mainframe 19" Rackmount 3U RF
Wegener Communications
$145.00Was: $300.00Wegener Communications 1601-54 Rev A Series 1600 Mainframe 19" Rackmount 3U RFRackmount card mainframe and plug-in card shelf from Wegener Communications. Designed to house modular RF signal processing cards for satellite communications and broadcast...35186- SKU:
- 35186
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Wegener Communications
- Model:
- 1601-54
- MPN:
- 1601-54
- Secondary Model:
- Rev A
- Type:
- Rackmount Card Mainframe / Plug-In Card Shelf
- SKU:
- 35186
- Series:
- Series 1600
- Compatible With:
- Wegener Series 1600 and Series 1700 plug-in cards
- Form Factor:
- 19" Rack Mount, 3U
- Number of Card Slots:
- 6 plug-in card slots
- Includes:
- Power supply module + six plug-in cards (functions unknown)
- Power Requirements:
- AC mains via IEC inlet; fuse: 1 AMP (F1)
- Power Switch:
- ON/OFF toggle switch on rear backplane
- Backplane Connectors:
- Multiple card-edge and ribbon/IDC connectors on backplane
- Application:
- Satellite communications / broadcast RF signal processing
- Condition:
- As-Is / For Parts or Not Working
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes power supply and six plug-in cards; functions of cards unknown
- Condition Notes:
- Wegener 1601-54 Rev A Series 1600 Mainframe powers on and lights up but cannot be fully tested. Sold as-is for parts or repair. Includes power supply and six plug-in cards of unknown function. No functionality guarantee.
$145.00Was: $300.00 -
Varian VZC-6965 Cable Set Amplifier to Power Supply NEMA L5-30 125V 30A
Varian
$150.00Was: $300.00Varian VZC-6965 Cable Set Amplifier to Power Supply NEMA L5-30 125V 30AComplete cable and harness assembly for connecting a Varian VZC-6965 TWT (Traveling Wave Tube) amplifier to its external power supply. This set includes both power distribution and...35902- SKU:
- 35902
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Varian
- Model:
- VZC-6965
- MPN:
- 00-112820-07 N
- Type:
- Amplifier to Power Supply Cable Set
- SKU:
- 35902
- Condition:
- Used – Inspected and Tested
- Compatible With:
- Varian VZC-6965 TWT Amplifier
- Connector Type 1:
- NEMA L5-30 (125V, 30A, twist-lock)
- Connector Type 2:
- Military-style circular connector
- Connector Type 3:
- D-Sub (DB-15 and DB-9 style)
- Cable Jacket:
- 10/3 Type SO, 90°C, R-123-70-MSHA rated
- Power Rating:
- 125V, 30A
- Harness Part Number:
- 00-112820-07 N
- Seller Notes:
- Includes power cable (NEMA L5-30) and multi-conductor signal harness assembly.
- Application:
- TWT / TWTA Satellite Communications Amplifier
- Condition Notes:
- Varian VZC-6965 Amplifier to Power Supply Cable Set. Tested and in good working condition. Includes NEMA L5-30 power cable (125V/30A) and signal harness P/N 00-112820-07 N. Normal wear. Please contact us with questions.
$150.00Was: $300.00 -

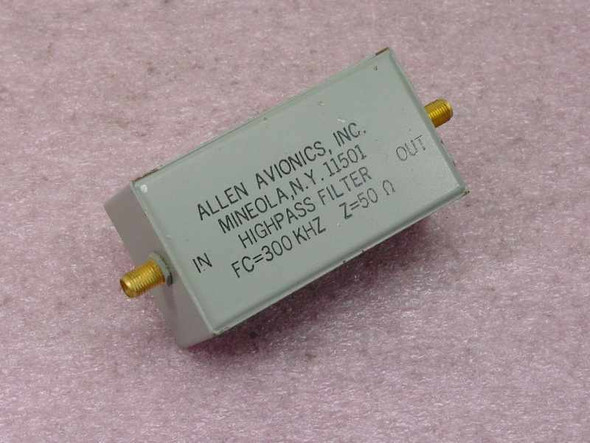

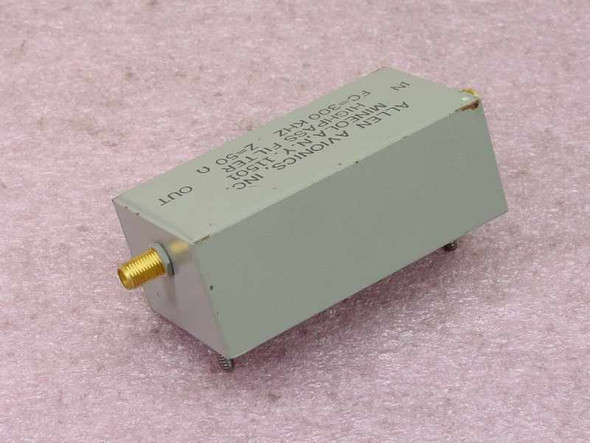

Allen Avionics Highpass Filter 300 kHz 50 Ohm SMA RF Signal For Parts
Allen Avionics Inc.
$40.00Was: $80.00Allen Avionics Highpass Filter 300 kHz 50 Ohm SMA RF Signal For PartsThis is an Allen Avionics passive highpass filter rated at a cutoff frequency (Fc) of 300 kHz with a 50-ohm characteristic impedance. It is housed in a compact shielded metal enclosure...35908- SKU:
- 35908
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Allen Avionics
- Model:
- Highpass Filter 300 kHz
- MPN:
- No P/N
- Type:
- Highpass Filter
- SKU:
- 35908
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. No functionality guarantee.
- Country/Region of Manufacture:
- United States
- Cutoff Frequency:
- 300 kHz
- Impedance:
- 50 Ohms
- Connector Type:
- SMA (Female)
- Filter Type:
- Highpass
- Housing / Enclosure:
- Shielded metal box, painted gray
- Manufacturer Location:
- Mineola, NY 11501
- Form Factor:
- Inline / Benchtop Module
- Condition Notes:
- Allen Avionics Highpass Filter 300 kHz 50 Ohm SMA RF. Used condition, intact housing with light wear, both SMA connectors undamaged and functional.
$40.00Was: $80.00 -
Varian VJW1454R1 Remote Channel Selector 115VAC 100VA P/N 01014548-00/A
Varian
$120.00Was: $250.00Varian VJW1454R1 Remote Channel Selector 115VAC 100VA P/N 01014548-00/AThe Varian VJW1454R1 is a rackmount Remote Channel Selector made by Varian Microwave Equipment Products. It is designed to select and display active channels in microwave and...35910- SKU:
- 35910
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 14.00 LBS
- Brand:
- Varian
- Model:
- VJW1454R1
- MPN:
- 01014548-00/A
- Type:
- Remote Channel Selector
- SKU:
- 35910
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. One front-panel button is missing.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rackmount
- Power Requirements:
- 115 VAC, 100 VA
- Power Connector:
- IEC C14 (J1)
- Interface / Connectors:
- DB25 (J2), DB25 black (J3)
- Display Type:
- Dual 7-segment red LED (CHANNEL, SELECT)
- Front Panel Controls:
- UP, DOWN, SEL, LAMP TEST, CONT MODE buttons
- Front Panel Indicators:
- PWR, FAIL, CABLE, BLOC, REM, AUX LEDs
- Application:
- Satellite / microwave communication channel selection
- Compatible With:
- Varian microwave equipment products systems
- Condition Notes:
- Varian VJW1454R1 Remote Channel Selector sold as-is for parts or repair. One front-panel button is missing. Unit has not been tested and no functionality is guaranteed. Normal cosmetic wear. Please view photos.
$120.00Was: $250.00 -
Tektronix DAS 9109 Digital Analysis System Mainframe Logic Analyzer For Parts
Tektronix
$200.00Was: $400.00Tektronix DAS 9109 Digital Analysis System Mainframe Logic Analyzer For PartsThe DAS 9109 is a benchtop logic analyzer and digital analysis system mainframe from Tektronix. It functions as a modular platform for capturing and analyzing digital signals...36007- SKU:
- 36007
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 58.00 LBS
- Brand:
- Tektronix
- Model:
- DAS 9109
- MPN:
- DAS 9109
- Type:
- Digital Analysis System Mainframe
- SKU:
- 36007
- Series:
- DAS 9100
- Firmware Version:
- V 1.07
- Option:
- 01 NSN
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Includes detachable DAS 9100 Series keyboard. Does not power on.
- Display Type:
- 9-inch Raster Scan CRT, 24 x 80 character lines
- Form Factor:
- Benchtop / Portable
- Measurement Type:
- Logic Analysis, Pattern Generation
- System Architecture:
- Modular — accepts plug-in modules
- Trigger Input:
- 5V Max (BNC)
- Module Slots:
- Multiple — slots visible on rear panel
- Country/Region of Manufacture:
- United States
- Compatible With:
- Tektronix DAS 9100 Series plug-in modules
- Condition Notes:
- Tektronix DAS 9109 Digital Analysis System does not power on. Sold as-is for parts or repair only — no functionality guaranteed. Includes detachable keyboard. Module slots are empty.
$200.00Was: $400.00
