Description
Analogic G-185 LVDT Readout Unit Measuremeter II w/ Transducers & Systems FT 50A
The Analogic G-185 Measuremeter II is a benchtop LVDT (Linear Variable Differential Transformer) signal conditioner and digital readout system. It accepts the output of an LVDT displacement transducer, conditions the AC signal, and displays the measured linear displacement on a front-panel LED readout. This listing includes the G-185 readout/decoder unit, the Transducers and Systems FT 50A LVDT transducer, and the power supply — a complete, ready-to-use displacement measurement system.
Specifications & What's Included
- Manufacturer: Analogic Corporation
- Model: G-185 (Measuremeter II)
- Instrument type: LVDT signal conditioner and digital displacement readout
- Display: Red LED digital readout (signed, e.g. +0.20 / +0.08 as seen on front panel)

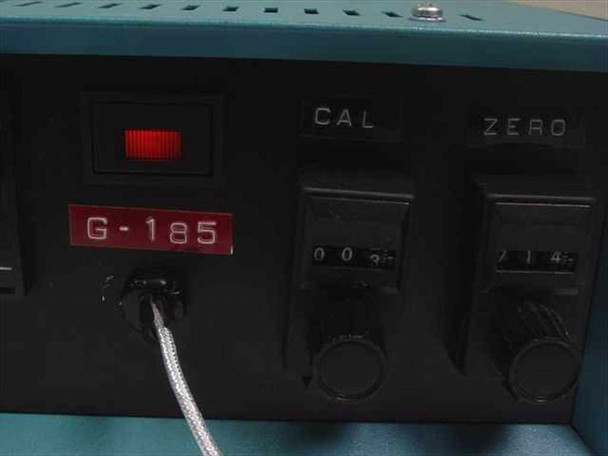

- Front panel controls: illuminated rocker power switch, CAL thumbwheel adjuster, ZERO thumbwheel adjuster

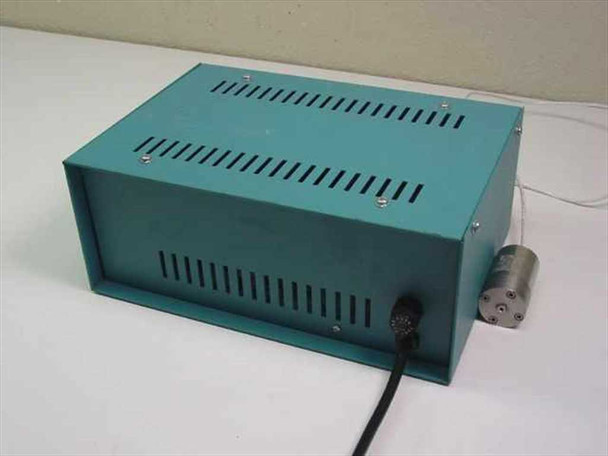

- Form factor: benchtop, teal steel enclosure with ventilation slots

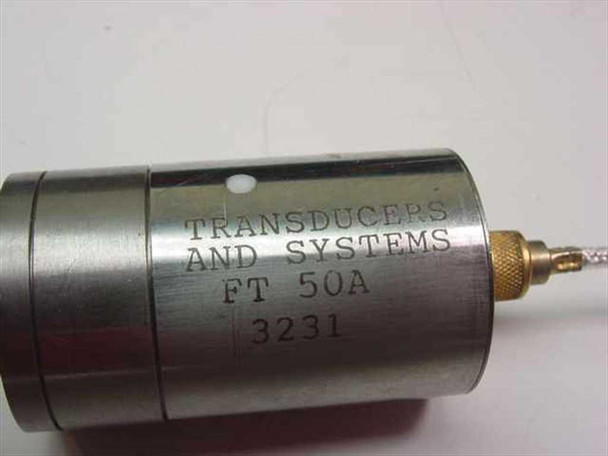

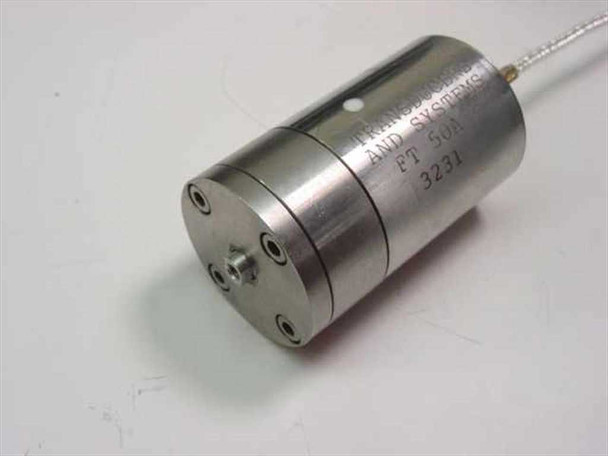

- Included transducer: Transducers and Systems FT 50A LVDT (S/N 3231), cylindrical stainless steel body with coaxial cable connector
- Included: power supply and interconnecting cable
Applications
LVDT-based measurement systems like the Analogic G-185 Measuremeter II are used wherever precise, non-contact linear displacement measurement is required. LVDTs are a standard transducer technology in dimensional gauging, mechanical testing, quality control, and research applications — they measure small linear movements with high resolution and repeatability. The FT 50A transducer from Transducers and Systems is a cylindrical, spring-loaded LVDT probe suitable for measuring part dimensions, surface profiles, or mechanical deflection. Systems of this type are commonly used in metrology labs, machine tool inspection, materials testing setups, and industrial process control environments. The Analogic Measuremeter II series was a well-regarded instrument line from Analogic Corporation, a Massachusetts-based instrumentation company known for precision signal processing and measurement products, and these readout units were popular in precision manufacturing and research labs from the 1970s through the 1990s.
This Analogic G-185 Measuremeter II LVDT readout and signal conditioning system has been inspected and is in good used condition. The teal enclosure shows light surface wear consistent with bench use, but there is no significant damage visible. The front panel LED display, power switch, CAL and ZERO thumbwheel adjusters, and model badge all appear intact. The Transducers and Systems FT 50A LVDT transducer (S/N 3231) is included along with the power supply. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Analogic |
Model: |
G-185 |
MPN: |
G-185 |
Secondary Model: |
Measuremeter II |
Type: |
LVDT Signal Conditioner / Displacement Readout |
SKU: |
31136 |
Seller Notes: |
Includes Transducers and Systems FT 50A LVDT transducer and power supply |
Included Transducer: |
Transducers and Systems FT 50A (S/N 3231) |
Transducer Type: |
LVDT (Linear Variable Differential Transformer) |
Display Type: |
LED digital readout |
Front Panel Controls: |
Power switch, CAL adjust, ZERO adjust |
Form Factor: |
Benchtop |
Application: |
Precision linear displacement measurement |
Condition: |
Used – Inspected and in Good Condition |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Analogic G-185 Measuremeter II LVDT readout inspected and in good used condition. Includes Transducers and Systems FT 50A transducer and power supply. Light surface wear on enclosure, no damage. Please contact us with questions. |
