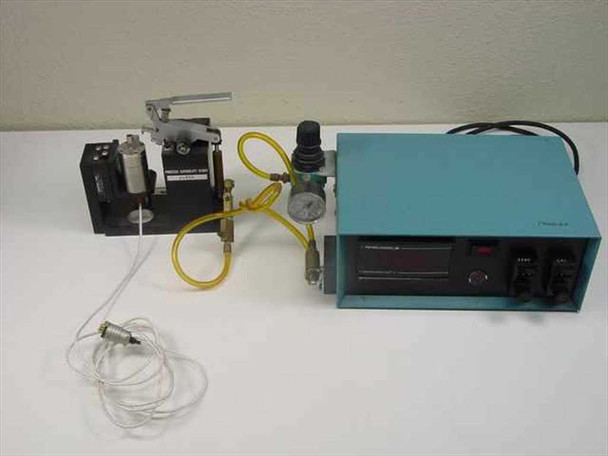

  • Analogic Measurometer II pneumatic precision measurement system – full system view with controller, actuator stage, regulator, and sensor cable on bench
  • Analogic Measurometer II system – alternate angle showing teal analog controller enclosure, air regulator, and pneumatic actuator stage

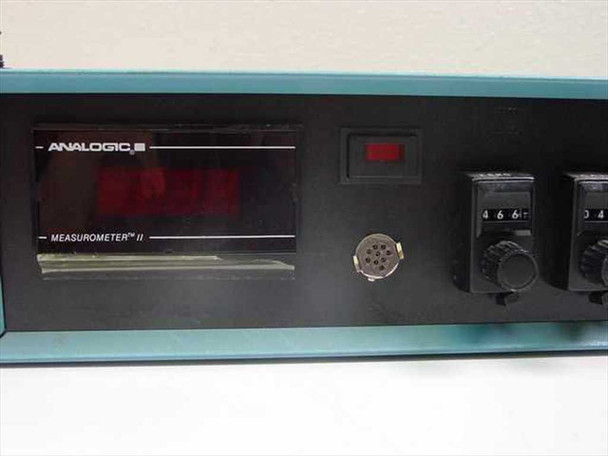

  • Analogic Measurometer II front panel – LED digital display, power switch, and indicator light on teal controller enclosure

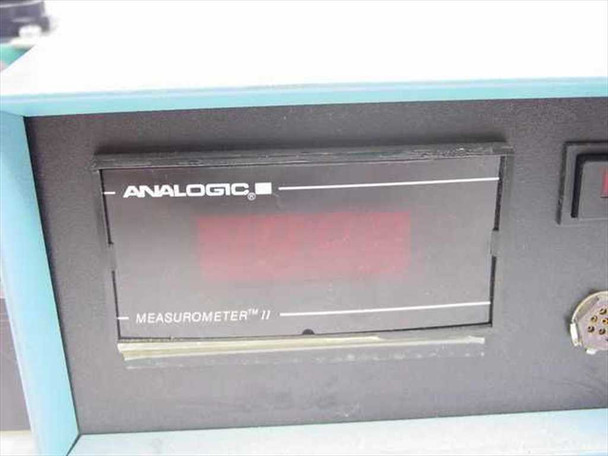

  • Analogic Measurometer II close-up of LED digital readout display on front panel of controller

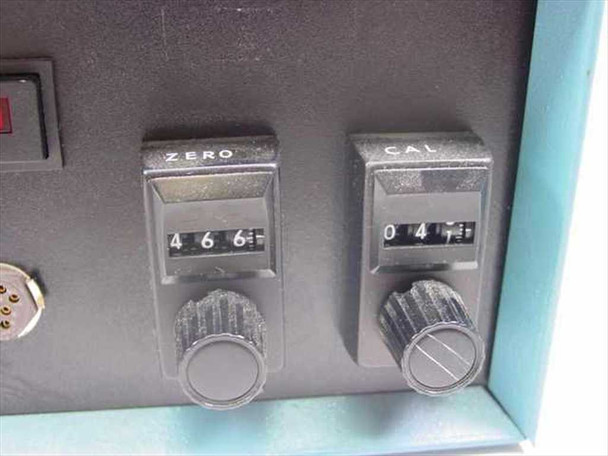

  • Analogic Measurometer II front panel – ZERO and CAL adjustment dials with numerical drum counters showing 466 and 041
  • Pneumatic actuator arm assembly – side view showing spring-loaded pivot arm and precision contact tip

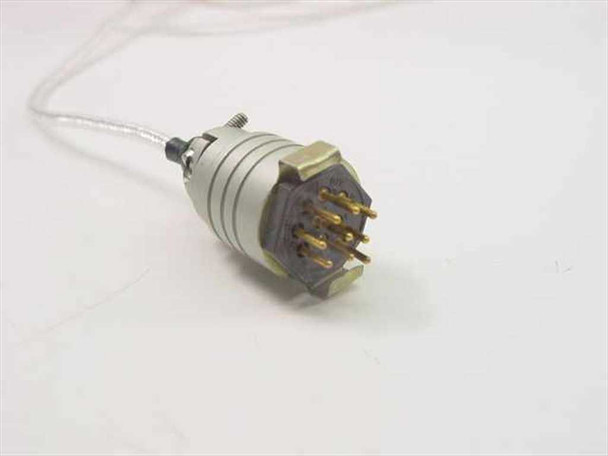

  • Multi-pin circular sensor cable connector – gold pin contact array on braided cable

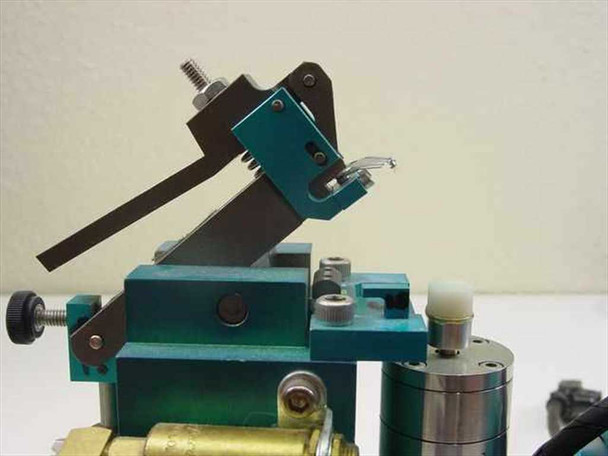

  • Pneumatic actuator and measurement stage – angled view showing teal anodized aluminum body, pivot arm, and pneumatic cylinder

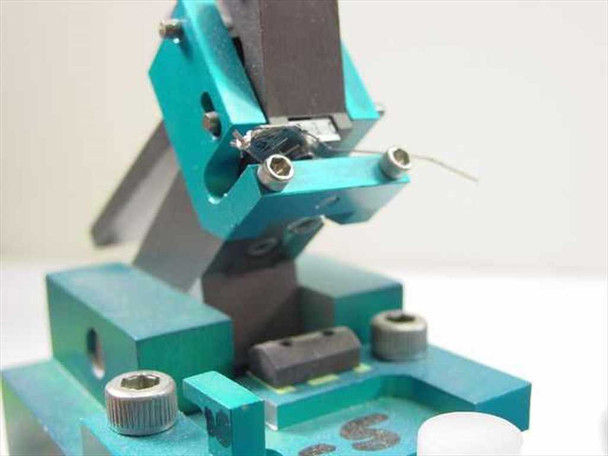

  • Pneumatic actuator stage close-up – teal anodized body with pivot arm, contact probe tip, and adjustment hardware
$325.00
Was: $650.00
Current Stock: 2

Sold Out

Description

Analogic Measurometer II Pneumatic Precision Measurement System w/ Analog Controller

Benchtop pneumatic measurement system designed for precision dimensional gauging. Features analog controller with LED digital readout and pneumatic actuator stage for automated measurement operations.

Specifications & What's Included

  • Model: Measurometer II
  • Type: Pneumatic Precision Measurement System
  • Controller: Analog with LED digital display
  • Actuator: Pneumatic stage
  • Front Panel: ZERO adjust dial, CAL adjust dial, power switch, indicator LED
  • Connectors: Multi-pin circular connector (sensor cable)
  • Air Supply: In-line regulator and filter included
  • Included: Pneumatic actuator stage, air regulator/filter, yellow air tubing, multi-pin sensor cable

Applications

Pneumatic measurement systems like the Measurometer II are used in manufacturing and quality control environments for automated dimensional gauging and part inspection. These instruments integrate with industrial air supply networks and are typically paired with precision sensor probes for go/no-go and continuous measurement applications. Commonly found in metrology labs, production floors, and assembly operations requiring repeatable, automated measurements.

Condition: Used
This Analogic Measurometer II pneumatic precision measurement system has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The teal controller enclosure shows minor surface wear consistent with bench use. The pneumatic actuator stage, air regulator, yellow air tubing, and multi-pin sensor cable are all present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Analogic
Model:
Measurometer II
MPN:
Measurometer II
Type:
Pneumatic Precision Measurement System
SKU:
26756
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes analog controller, pneumatic actuator stage, air regulator/filter, yellow air tubing, and multi-pin sensor cable
Form Factor:
Benchtop
Display Type:
LED Digital Readout
Controller Type:
Analog – Measurometer II
Actuator Type:
Pneumatic
Front Panel Controls:
ZERO adjust dial, CAL adjust dial, power switch, indicator LED
Connector Type:
Multi-pin circular connector (sensor cable)
Air Supply:
Pneumatic – includes in-line air regulator and filter
Application:
Precision dimensional gauging and measurement
Included Accessories:
Pneumatic actuator stage, air regulator/filter, yellow air tubing, multi-pin sensor cable
Condition Notes:
This Analogic Measurometer II pneumatic measurement system has been inspected and is in good condition. Pulled from a working environment. Includes controller, actuator stage, air regulator, tubing, and sensor cable. Please contact us with questions.
View AllClose

Related Products

Related Products

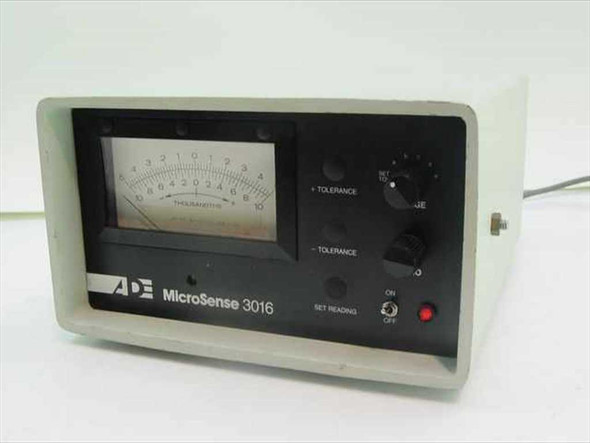

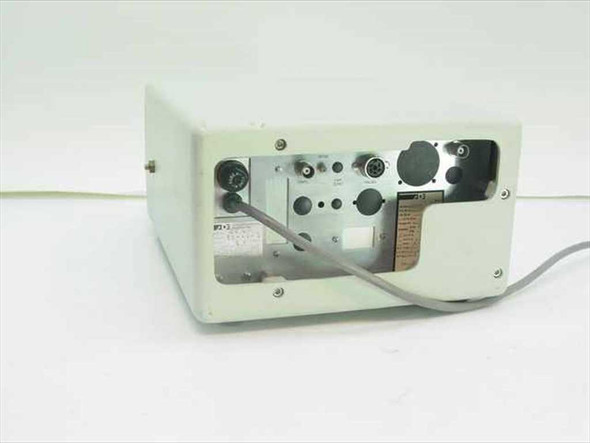

ADE MicroSense 3016 Tolerance Measurement Unit — front panel view showing analog thousandths gauge, + Tolerance, - Tolerance controls, Set Reading switch, Range knob, and power indicator ADE MicroSense 3016 — rear panel view showing probe and sensor connectors, fuse holder, and AC power cable
