Description
SMC Pneumatic Precision Tolerance Checking Fixture CDJPB10-100 VZM550 Gauge

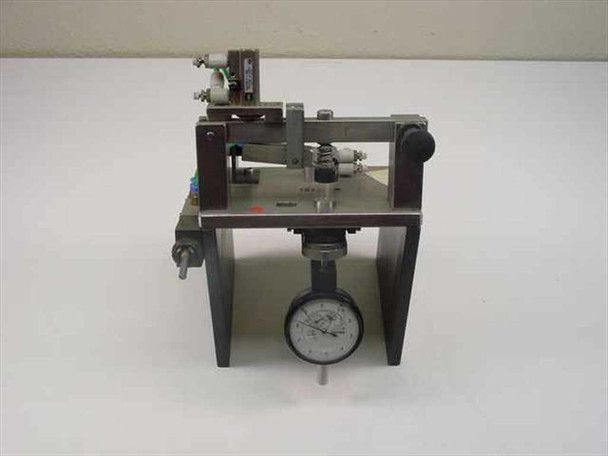

Pneumatic tolerance checking fixture used for dimensional inspection and gauging in manufacturing and quality control operations. Features an integrated analog dial indicator and SMC VZM550 mechanical valve for regulated pressure application.
Specifications & What's Included

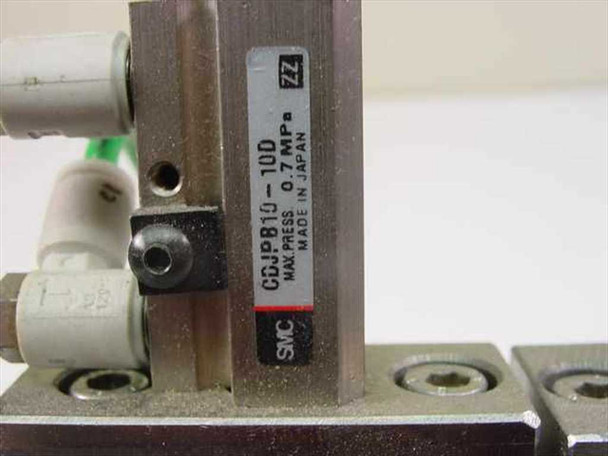

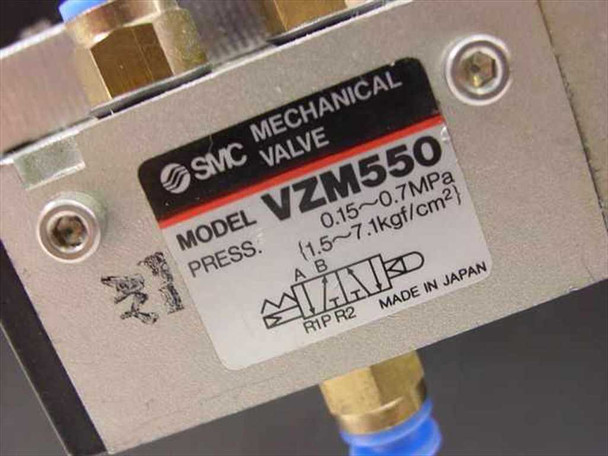

- Model: CDJPB10-100 with VZM550 valve
- Manufacturer: SMC (Japan)
- Operating Pressure Range: 0.15 – 0.7 MPa (1.5 – 7.1 kgf/cm²)
- Actuation: Pneumatic
- Gauge Type: Analog Dial Indicator
- Construction: Aluminum and steel frame
- Form Factor: Benchtop/freestanding fixture
Applications
This fixture type is used for production-line tolerance checking and go/no-go gauging in manufacturing environments. Pneumatic tolerance fixtures are standard equipment in quality control departments for validating component dimensions against specifications. Typically integrated into assembly stations, inspection benches, and production cells where repeatable measurement feedback is required during or after part fabrication.

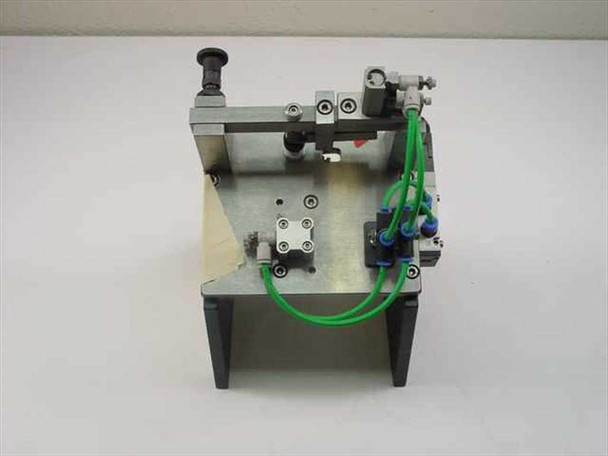

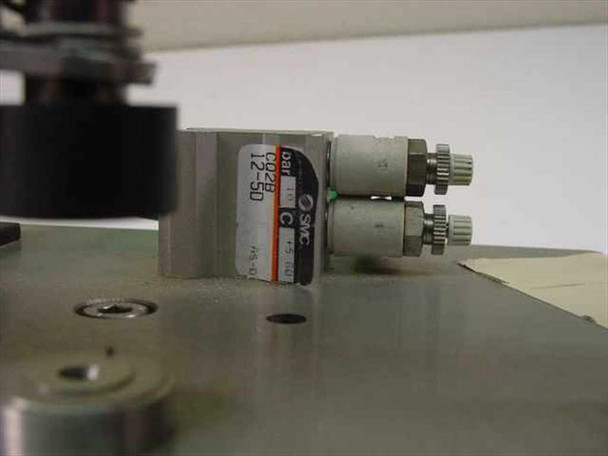

This SMC pneumatic precision tolerance checking fixture has been inspected and appears to be in good used condition. It was pulled from a working production environment where it was in active use. The aluminum and steel frame is intact with normal surface wear. The SMC CDJPB10-100 cylinder and VZM550 mechanical valve are present and show no obvious damage. The analog dial indicator is attached and appears undamaged. Green pneumatic tubing runs between components and appears complete. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
CDJPB10-100 |
MPN: |
CDJPB10-100 |
Secondary Model: |
VZM550 |
SKU: |
26755 |
Type: |
Pneumatic Precision Tolerance Checking Fixture |
Actuator Model: |
SMC CDJPB10-100 |
Valve Model: |
SMC VZM550 Mechanical Valve |
Max Pressure: |
0.7 MPa (7.1 kgf/cm²) |
Min Pressure: |
0.15 MPa (1.5 kgf/cm²) |
Pressure Range: |
0.15 – 0.7 MPa |
Actuation Type: |
Pneumatic |
Gauge Type: |
Analog Dial Indicator |
Country/Region of Manufacture: |
Japan |
Application: |
Dimensional Tolerance Inspection / Gauging |
Form Factor: |
Benchtop / Freestanding Fixture |
Frame Material: |
Aluminum / Steel |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes integrated dial indicator and SMC VZM550 mechanical valve |
Condition Notes: |
Used SMC pneumatic tolerance checking fixture with CDJPB10-100 cylinder and VZM550 valve. Pulled from a working production environment. Inspected and in good used condition. Normal wear visible. Please view photos and contact us with questions. |
