Varian VZC-6965F7 CPI 700W C-Band TWTA RF Assembly & Power Supply 5.925-6.425GHz
C-Band traveling wave tube amplifier (TWTA) assembly with integrated 220V AC single-phase power supply. Provides 700W output power for satellite uplink and ground station RF amplification applications.
Specifications & What's Included
- Output Power: 700W
- Frequency Range: 5.925–6.425 GHz (uplink)
- Downlink: 3.7–4.2 GHz
- RF Assembly Model: VPW2902A1
- Power Input: 220V AC, single phase

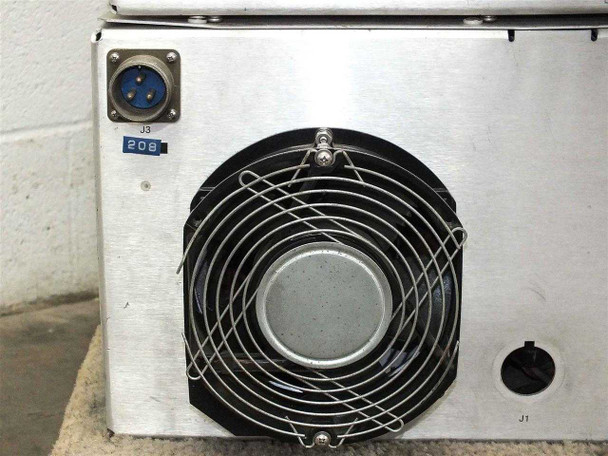

- Cooling: Forced air with ducted blower
- Form Factor: Rackmount/cart-mounted assembly
- Two PSU variants available: VZC-6965F7-CSR or VZC-6965F7-3SR
Applications
C-Band TWTAs function as high-power RF amplifiers in satellite communication systems, particularly for uplink stations and ground-based transmission equipment. These assemblies were widely deployed in telecom infrastructure, broadcast uplink facilities, and fixed satellite service (FSS) ground stations operating in the C-band spectrum. Compatible with standard 19-inch rackmount configurations and legacy satellite communication platforms.
This Varian VZC-6965F7 C-Band TWTA RF Assembly and Power Supply has been inspected and found to have an open heater. It is being sold AS-IS for parts or repair only and carries no functionality guarantee. Two sets are in stock with slight variation in power supply part number — Power Supply 1 is VZC-6965F7-CSR and Power Supply 2 is VZC-6965F7-3SR; the unit you receive will be one of these. Due to size and weight, this item requires freight shipping — please contact us for a freight quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Varian |
Model: |
VZC-6965F7 |
MPN: |
VZC-6965F7-CSR |
Secondary Model: |
VZC-6965F7-3SR |

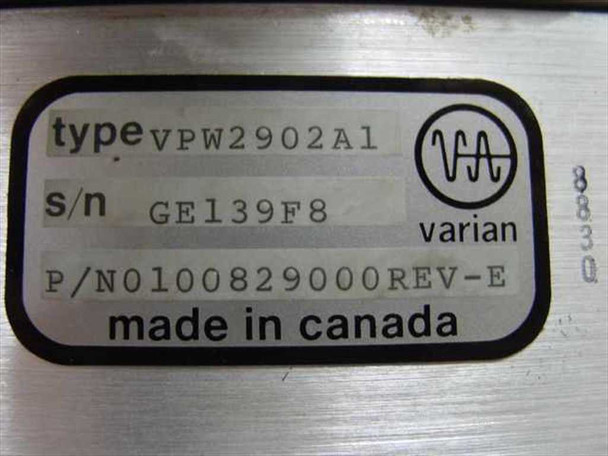

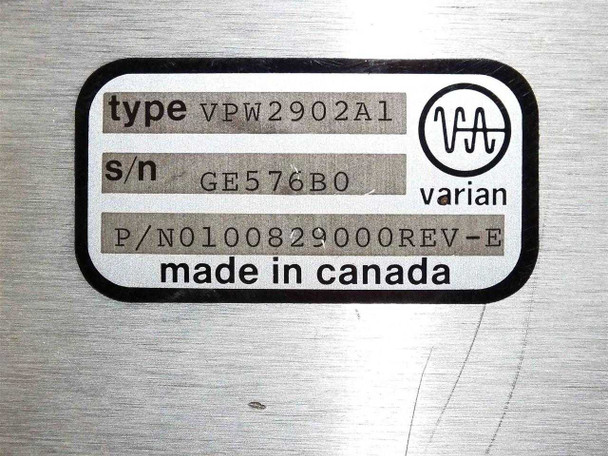

RF Assembly Model: |
01007750-02 |
RF Assembly Type: |
VPW2902A1 |
RF Assembly Part Number: |
0100829000 REV-E |
Type: |
C-Band Traveling Wave Tube Amplifier (TWTA) |
SKU: |
31231 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Two sets in stock; PSU PN varies (VZC-6965F7-CSR or VZC-6965F7-3SR). Freight shipping required. |
Frequency Band: |
C-Band |
Uplink Frequency Range: |
5.925 – 6.425 GHz |
Downlink Frequency Range: |
3.7 – 4.2 GHz |
Output Power: |
700W |
Power Requirements: |
220V AC, Single Phase |
Manufacturer Division: |
Varian Microwave Equipment Division |
Country/Region of Manufacture: |
United States / Canada |
Application: |
Satellite Uplink, Ground Station RF Amplification |
Form Factor: |
Rackmount / Cart-Mounted Assembly |
Cooling: |
Forced air with ducted blower outlets |
Fault / Known Issue: |
Open heater — sold for parts or repair only |
Condition Notes: |
Varian VZC-6965F7 C-Band TWTA RF Assembly & Power Supply inspected — open heater fault found. Sold AS-IS for parts or repair, no functionality guarantee. Freight shipping required. Two PSU variants: VZC-6965F7-CSR or VZC-6965F7-3SR. |
