Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-

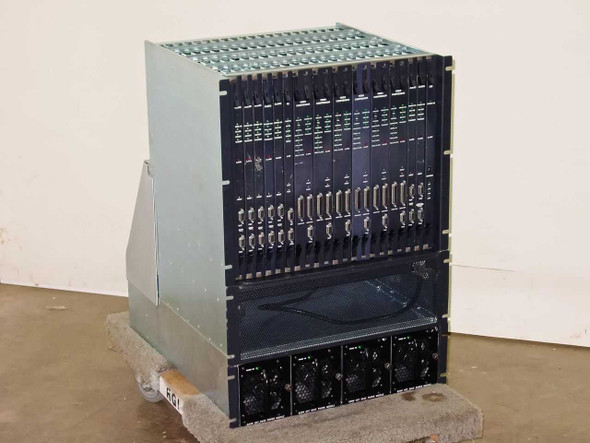

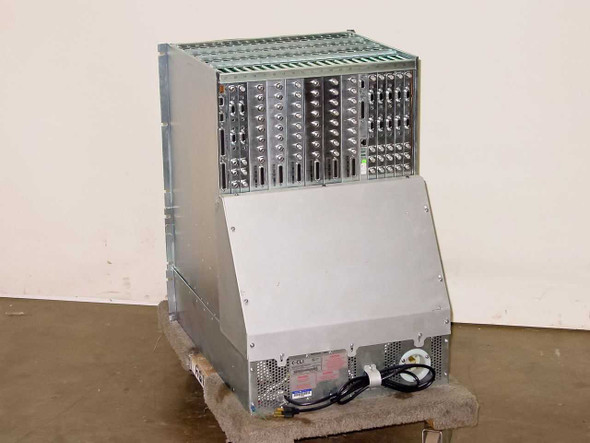

CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer System
CLI
$850.00Was: $1,700.00CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Satcom Multiplexer SystemRackmount MPEG-2 DVB satellite multiplexer and encoder system designed for video contribution and DVB uplink applications. Processes multiple video and audio streams for...39800- SKU:
- 39800
- Availability:
- Usually ships within 3-5 business days due to size and weight.
- Weight:
- 265.00 LBS
- Brand:
- CLI Compression Labs Inc.
- Model:
- Magnitude
- MPN:
- 410111-01
- Type:
- MPEG-2 DVB Satellite Multiplexer / Encoder System
- SKU:
- 39800
- Form Factor:
- Rackmount Chassis
- Standard:
- DVB, MPEG-2
- Application:
- Satellite Broadcasting, DVB Uplink, Video Contribution
- Power Requirements:
- 120 VAC, 60 Hz, 12 A (chassis label)
- Power Connector:
- 30A 250V Twist-Lock
- Power Supply Model:
- Tectrol TO620/11-1054 Rev.E
- Power Supply Input:
- 115/230 VAC, 60/50 Hz, 10A
- Power Supply Output:
- 620W Max., CSA Level 6
- Number of Power Supplies:
- 4 (hot-swap)
- Video Encoder Module:
- CLI Video Encoder M1, P/N 410444 / 410538 (x6)
- Audio Encoder Module:
- CLI Audio Encoder MPEG2, P/N 410588 (x7)
- Remux Input Unit:
- General Instrument RIU Remux Input Unit, P/N 410774-01
- Chassis Interface Module:
- CLI Chassis I/F M1, P/N 410002-01
- Fan Assembly:
- Comair Rotron Muffin-XL MX2A1, 6-fan, 115V 50/60Hz
- Audio Encoder Chipset:
- Motorola DSP56001AFC27; SGS-Thomson SF9701P
- Seller Notes:
- Complete system: 6x video encoders, 7x audio encoders, RIU, chassis I/F, 4x hot-swap PSUs, 6-fan assembly
- Country/Region of Manufacture:
- USA
- Interface Type:
- BNC, DB-25, RJ45
- Condition:
- Used – Inspected
- Condition Notes:
- CLI Compression Labs Magnitude 410111-01 MPEG-2 DVB Multiplexer system inspected and in good used condition. Fully populated with 6 video encoders, 7 audio encoders, RIU, chassis I/F, 4 hot-swap PSUs, and 6-fan assembly. Normal rack wear.
$850.00Was: $1,700.00 -
General Instrument Magnitude MMI+ 410802-03 Multiplexer Modulator Interface 1U
General Instrument
$125.00Was: $250.00General Instrument Magnitude MMI+ 410802-03 Multiplexer Modulator Interface 1UThe General Instrument Magnitude MMI+ (part number 410802-03) is a 1U rackmount Multiplexer/Modulator Interface designed for use in professional cable television and digital...39795- SKU:
- 39795
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 9.50 LBS
- Brand:
- General Instrument
- Model:
- MMI+
- MPN:
- 410802-03
- Secondary Model:
- Magnitude MMI Plus
- Type:
- Multiplexer / Modulator Interface
- SKU:
- 39795
- Condition:
- Used – Inspected
- Form Factor:
- 1U Rackmount
- Power Requirements:
- AC 100-240V, 60-50 Hz, 0.5-0.3 A
- Fuse Rating:
- 1A, 250VAC
- Interface Type:
- HSSI I/O, DVB Modem, EXT Sync, Alarm Cable
- Number of Ports:
- 8 rear ports: A/B MUX IN, Modem OUT 1/3/4/5, DVB Modem OUT/IN
- Connector Types:
- DB-15, DB-25, BNC (EXT sync), IEC AC inlet
- Front Panel Indicators:
- MUX, DVB, SS, CLK, PLL, FRM, OLL LEDs
- DIP Switch Control:
- Internal mode, frequency, packet length, loopback selectors
- Compatible With:
- General Instrument Magnitude headend systems
- Manufacturer:
- Magnitude Compression Systems, Inc.
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; no accessories included. Inspected and in good condition.
- Condition Notes:
- General Instrument Magnitude MMI+ 410802-03 Multiplexer/Modulator Interface. Inspected and in good used condition. Chassis is clean with light surface wear. All connectors appear intact. No accessories included.
$125.00Was: $250.00 -

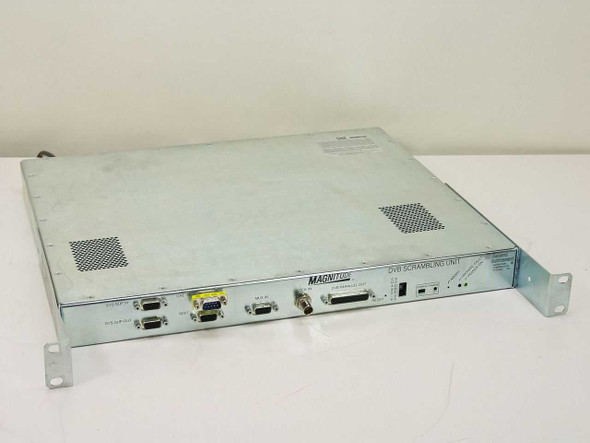

General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" Rackmount
General Instrument
$100.00Was: $200.00General Instrument Magnitude 00-410809-01 DVB Scrambling Unit 19" RackmountDVB conditional access scrambling unit designed for satellite headend operations. Handles DVB parallel output and clock synchronization for encrypted content distribution...39790- SKU:
- 39790
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 19.00 LBS
- Brand:
- General Instrument
- Model:
- Magnitude 00-410809-01
- MPN:
- 00-410809-01
- Type:
- DVB Scrambling Unit
- SKU:
- 39790
- Product Line:
- Magnitude Compression Systems
- Form Factor:
- 19" 1U Rackmount
- Power Requirements:
- AC 100-240V, 0.8/0.4A, 50-60Hz
- Country/Region of Manufacture:
- United States
- Interface Type:
- DB-9, DB-25, BNC
- Ports / Connectors:

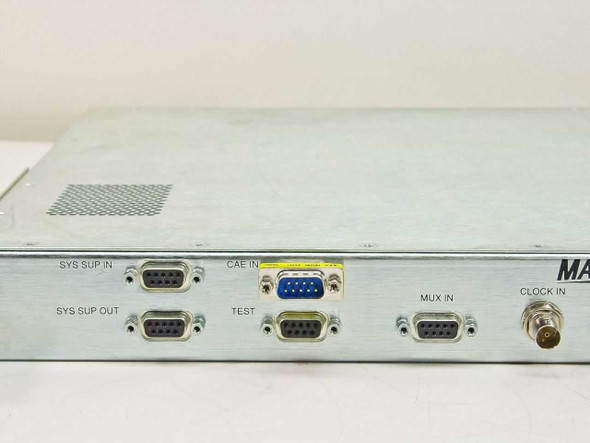

- SYS SUP IN, SYS SUP OUT, CAE IN, TEST, MUX IN, CLOCK IN, DVB Parallel Out
- Application:
- DVB conditional access scrambling, satellite headend
- Standards:
- DVB (Digital Video Broadcasting)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; pulled from a working satellite headend environment.
- Condition Notes:
- General Instrument Magnitude 00-410809-01 DVB Scrambling Unit. Inspected, in good used condition. Pulled from a working headend environment where it was in active use. Light surface wear. Connectors and controls intact.
$100.00Was: $200.00 -

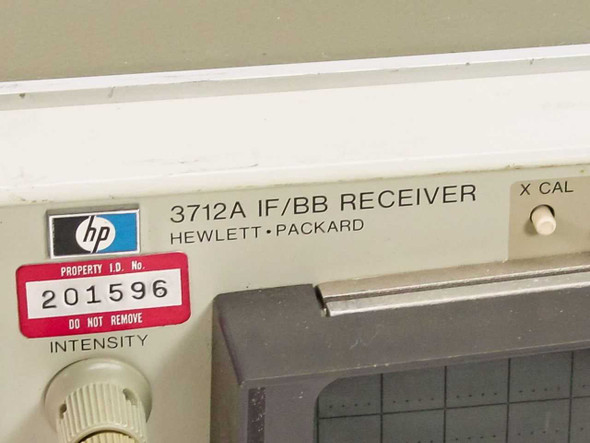

HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link Analyzer
HP
$175.00Was: $350.00HP 3712A 3793B IF/BB Receiver Diff Phase Detector Microwave Link AnalyzerThe HP 3712A IF/BB Receiver and HP 3793B Differential Phase Detector together form the receiver portion of the Hewlett-Packard Microwave Link Analyzer system. The 3712A handles...39762- SKU:
- 39762
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 53.00 LBS
- Brand:
- Hewlett-Packard
- Model:
- 3712A / 3793B
- MPN:
- 3712A
- Secondary Model:
- 3793B
- Type:
- IF/BB Receiver and Differential Phase Detector
- SKU:
- 39762
- Condition:
- Used – Inspected
- Seller Notes:
- Includes HP 3712A IF/BB Receiver and HP 3793B Diff Phase Detector modules in combined chassis
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Rackmount Chassis
- Power Requirements:
- 220/240-1AT or 100/120-3AT, 48-66 Hz, 160 VA max
- Application / Use Case:
- Microwave link analysis, Satcom, IF/BB signal testing
- Rear Connectors:
- X-Y Recorder (5-pin DIN), D-Sub Normaliser, BNC ports
- Subsystem 1:
- HP 3712A IF/BB Receiver
- Subsystem 2:
- HP 3793B Differential Phase Detector
- Front Panel Display:
- CRT oscilloscope display with graticule
- Frequency Display:
- Digital LED frequency readout (visible on front panel)
- Measurement Type:
- IF/Baseband signal analysis, differential phase detection
- Compatible With:
- HP Microwave Link Analyzer system, Satcom test setups
- Phase Functions:
- Phase Lock/Level, BB Frequency, Diff Phase Calibration
- Power Measurement:
- Baseband power meter on front panel (analog meter)
- Condition Notes:
- HP 3712A / 3793B IF/BB Receiver and Diff Phase Detector Microwave Link Analyzer. Inspected and in good used condition. Normal lab wear; CRT, controls, and rear connectors appear intact. Property ID tag on front.
$175.00Was: $350.00 -

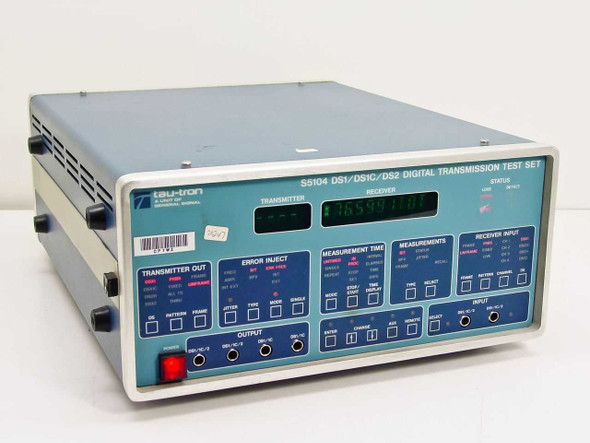

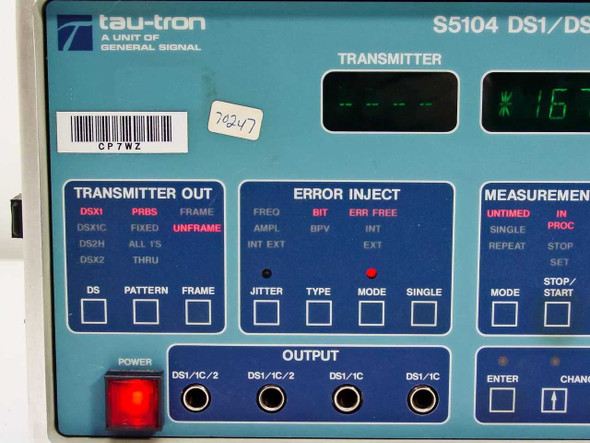

Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIB
Tau-Tron
$200.00Was: $400.00Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set Option 03 GPIBBenchtop test instrument for DS1, DS1C, and DS2 digital transmission line testing. Measures bit error rate, bipolar violations, jitter, and frame alignment on telecom circuits...39757- SKU:
- 39757
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- Tau-Tron
- Model:
- S5104
- MPN:
- S5104
- Type:
- Digital Transmission Test Set
- SKU:
- 39757
- Option:
- Option 03
- Serial Number (Internal):
- See internal fields
- Condition:
- Used – Powers On, Untested Further
- Seller Notes:
- Unit powers on. Includes GPIB and RS-232 interfaces.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Manufacturer:
- Tau-Tron (A Unit of General Signal)
- Signal Standards Supported:
- DS1, DS1C, DS2
- Interface Type:
- DS1, DS1C, DS2, NRZ
- Remote Interface:
- GPIB (IEEE-488), RS-232
- Connector Types:
- BNC, DB-25 (RS-232), GPIB
- Transmitter Outputs:
- DS1/1C/2, DS1 Bipolar, NRZ Data, NRZ Clock
- Receiver Inputs:
- DS1/1C/2, NRZ Data, NRZ Clock
- Monitor Outputs:
- PR Sync, M Sync, Bit Errors, BPV Errors
- Error Inject:
- Freq, BIT, ERR Free, BPV, AMPL, INT, EXT
- Measurements:
- BIT, BPV, Jitter, Frame, Status, Recall
- Measurement Time Modes:
- Untimed, Interval, Elapsed, Single, Repeat, Stop, Set, Time, Date
- Receiver Input Patterns:
- PRBS, UNFRAME, Frame, Fixed, Live, CH1-CH4
- Programmable Fixed Word:
- Yes — front-panel DIP switch programmable
- X Bit Inject/Out:
- DS1C/DS2 X Bit Inject and X Bit Out
- Additional Inputs:
- Ext Clk In, Ext Err, Jitter In/Out
- Display Type:
- LED numeric displays (Transmitter and Receiver)
- Status Indicators:
- Loss, Detect, Signal LEDs
- Application:
- DS1/DS1C/DS2 BER testing, jitter measurement, error injection
- Condition Notes:
- Tau-Tron S5104 DS1/DS1C/DS2 Digital Transmission Test Set with Option 03. Inspected, good cosmetic condition. Powers on — Transmitter and Receiver displays active. Not tested further. GPIB and RS-232 ports intact.
$200.00Was: $400.00 -

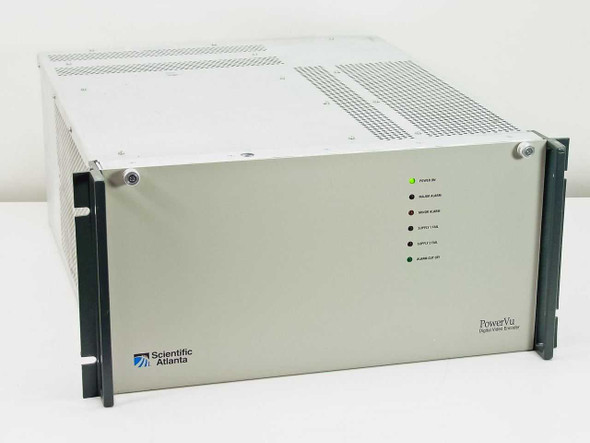

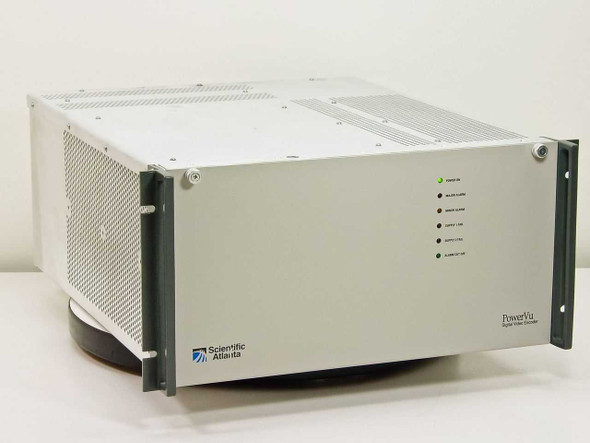

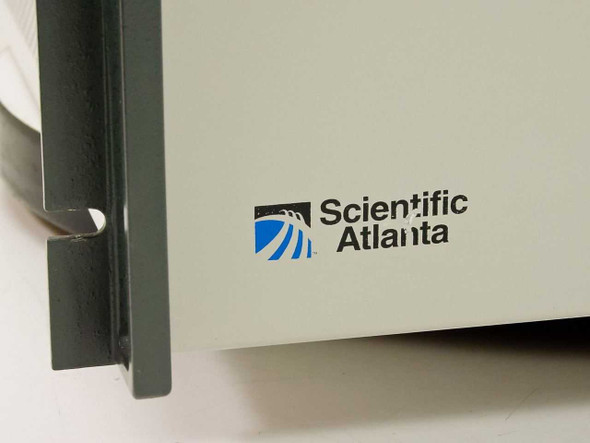

Scientific Atlanta D-9110 PowerVu Digital Video Encoder MPEG2 w/ 5 Modules
Scientific Atlanta
$500.00Was: $1,000.00Scientific Atlanta D-9110 PowerVu Digital Video Encoder MPEG2 w/ 5 ModulesThe Scientific Atlanta D-9110 is a modular MPEG-2 digital video encoder chassis from the PowerVu product line, designed for professional satellite broadcast and video distribution...39701- SKU:
- 39701
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 39.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- D-9110
- MPN:
- D-9110
- Type:
- Digital Video Encoder
- SKU:
- 39701
- Product Line:
- PowerVu
- Encoding Standard:
- MPEG-2
- Form Factor:
- Rack Mount
- Number of Module Slots:
- 5
- Included Module 1:
- D9787 MPEG2 Video Encoder
- Included Module 2:
- D9786 Advanced Video Input
- Included Module 3:
- D9785 VBI Processor
- Included Module 4:
- D9782 Audio Encoder
- Included Module 5:
- D9711 MSYNC Control
- Power Supply Model:
- D9709 (x2, redundant)
- Power Requirements:
- 100-120V 1A / 230-200V 2A, 50-60Hz, 480W
- Fuse Rating:
- T 6.3A 250V
- Application:
- Satellite broadcast video encoding
- Connector Types:
- BNC, DB9, RJ45, XLR, terminal block
- Alarm Indicators:
- Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Certifications:
- UL Listed (12Y7), CE
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes 5 installed modules: D9787, D9786, D9785, D9782, D9711; two D9709 power supplies installed
- Condition Notes:
- Scientific Atlanta D-9110 PowerVu Digital Video Encoder inspected and in good condition. All 5 modules (D9787, D9786, D9785, D9782, D9711) and both D9709 power supplies installed. Normal cosmetic wear from prior rack use.
$500.00Was: $1,000.00 -
Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount
Scientific Atlanta
$145.00Was: $300.00Scientific Atlanta D9261 PowerVu SWIF Distribution Amplifier 1U Rackmount 100-240VThe Scientific Atlanta D9261 is a 1U rackmount SWIF (Satellite Wide-band Intermediate Frequency) distribution amplifier from the PowerVu headend equipment family. This unit...39699- SKU:
- 39699
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- D9261
- MPN:
- D9261
- Type:
- SWIF Distribution Amplifier
- SKU:
- 39699
- Product Line:
- PowerVu
- Power Requirements:
- 100-240V AC, 47-63 Hz, 1.0/0.5A auto-ranging
- Fuse Rating:
- T 2A 250V
- Form Factor:
- 1U Rackmount
- Front Panel Indicators:
- Power, Alarm, Mode A, Mode B, PLL Lock A, PLL Lock B
- Alarm Output:
- Rear terminal block with NC, C, NO contacts
- Control Modes:
- Local (LOC), Remote (REM), External (EXT)
- Connector Type:
- F-Type (multiple rear outputs)
- Country/Region of Manufacture:
- Canada
- Seller Notes:
- Unit only; no accessories included. Rack ears installed.
- Compatible With:
- Scientific Atlanta PowerVu headend systems
- Application:
- Satellite headend signal distribution, CATV, SMATV
- Condition Notes:
- Scientific Atlanta D9261 SWIF Distribution Amplifier inspected and in good used condition. Light surface wear on chassis; front panel indicators and F-type connectors intact. Rack ears installed. Ready for deployment.
- Dual-Path Operation:
- Mode A / Mode B with PLL lock monitoring
$145.00Was: $300.00 -
Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder D9787 D9782 D9711
Digital Atlanta
$325.00Was: $650.00Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder D9787 D9782 D97115U rackmount MPEG-2 digital video encoder used in broadcast, satellite, and cable TV headend applications. Encodes video and audio signals for distribution over digital...39638- SKU:
- 39638
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 36.00 LBS
- Brand:
- Scientific Atlanta
- Model:
- D-9110
- MPN:
- D-9110
- Type:
- MPEG2 Digital Video Encoder
- SKU:
- 39638
- Product Line:
- PowerVu
- Video Encoder Module:
- Model D9787 (MPEG2 Video Encoder)
- Audio Encoder Module:
- Model D9782 (Audio Encoder)
- MSync Control Module:
- Model D9711 (MSync Control)
- Power Supply Module:
- Model D9709
- Encoding Standard:
- MPEG-2
- Application:
- Broadcast / Satellite / Cable TV Headend
- Form Factor:
- Rackmount, 5U Chassis
- Power Requirements:
- 100-120V 4A / 220-240V 3A, 50-60Hz
- Fuse Rating:
- T 6.3A 125V / T 6.3A 250V
- Front Panel Indicators:
- Power On, Major Alarm, Minor Alarm, Supply 1 Fail, Supply 2 Fail, Alarm Cut Off
- Rear Connectors:
- BNC video, XLR/RCA audio, RJ45, DB9, IEC power inlets
- Seller Notes:
- Includes D9787 video, D9782 audio, D9711 MSync modules and D9709 power supply
- Country/Region of Manufacture:
- United States
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Scientific Atlanta D-9110 PowerVu MPEG2 Digital Video Encoder inspected and in good condition. D9787, D9782, and D9711 modules all installed. Normal wear. Please contact us with any questions.
$325.00Was: $650.00
