Electronic Test
Electronic test is a category focused on evaluating the functionality and performance of electronic devices. This includes testing methods such as automated testing, manual testing, and simulation to ensure that electronic components meet quality standards and specifications. Electronic test equipment like oscilloscopes, multimeters, and signal generators are commonly used to measure and analyze electronic signals. This category covers a wide range of industries including telecommunications, automotive, aerospace, and consumer electronics. Whether testing PCBs, integrated circuits, or electronic systems, Electronic Test plays a crucial role in verifying the proper operation and reliability of electronic devices.
-
Fraunhofer IIS DT500 Digital Media Satellite Modulator ASI IF/IQ 10MHz Ref USB
Fraunhofer
$600.00Was: $1,200.00Fraunhofer IIS DT500 Digital Media Satellite Modulator ASI IF/IQ 10MHz Ref USBDesktop satellite modulator and encoder designed for DVB broadcast and satcom applications. Accepts ASI input and outputs modulated IF/IQ signals for satellite transmission...45510- SKU:
- 45510
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 24.00 LBS
- Brand:
- Fraunhofer IIS
- Model:
- DT500
- MPN:
- DT500
- Type:
- Digital Media Satellite Modulator / Encoder
- SKU:
- 45510
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Unit only; inspected and in good condition
- Country/Region of Manufacture:
- Germany
- Form Factor:
- Desktop / Benchtop
- Power Requirements:
- Full Range 100-240V AC
- Dimensions:
- 17 x 17 x 6 in (approx)
- Interface Type:
- ASI, IF/IQ, 10 MHz Ref, ClockOut, DataIn, USB
- Connector Types:
- BNC (ASI, IF/IQ, 10 MHz Ref, ClockOut, DataIn), DB9, USB, VGA
- Signal Interface:
- ASI (Asynchronous Serial Interface)
- Reference Input:
- 10 MHz Reference (BNC)
- Additional Interfaces:
- IF/IQ output, ClockOut, DataIn (BNC)
- PC I/O Ports:
- PS/2 keyboard, PS/2 mouse, VGA, USB x4, parallel, serial
- Display:
- Built-in color LCD panel
- Front Panel Controls:
- Power, S1/S2, Function, Config, Status, Setup, numeric keypad, nav keys, Esc, USB
- Application:
- Satellite communications, digital media broadcast, DVB
- Compatible With:
- DVB satellite broadcast systems, satcom test environments
- Internal Components:
- Custom RF/digital PCBs, internal ATX-style power supply
- Drive Bay:
- Front-panel DVD/optical drive bay visible
- Condition Notes:
- Fraunhofer IIS DT500 Digital Media Satellite Equipment. Inspected, good condition. Clean chassis with light normal wear. Not bench-tested at our facility; pulled from a working environment. Photos available.
$600.00Was: $1,200.00 -
Fuji Electric BRR21N-01S Earth Leakage Relay 600V 50/60Hz 30mA Trip 100/110V
Fuji Electric
$100.00Was: $200.00Fuji Electric BRR21N-01S Earth Leakage Relay 600V 50/60Hz 30mA Trip 100/110VEarth leakage protective relay designed to detect ground faults and trip protection circuits. Operates at 600V rated voltage with 100/110V control voltage, responds to 30mA earth...45487- SKU:
- 45487
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Fuji Electric
- Model:
- BRR21N-01S
- MPN:
- BRR21N-01S
- Type:
- Earth Leakage Protective Relay
- SKU:
- 45487
- Rated Voltage:
- 600V
- Rated Control Voltage:
- 100/110V
- Frequency:
- 50/60Hz
- Rated Tripping Current:
- 30mA
- Rated Non-Tripping Current:
- 15mA
- Tripping Time:
- Below 0.1s
- Through Hole Diameter:
- 40mm
- Contact Configuration:

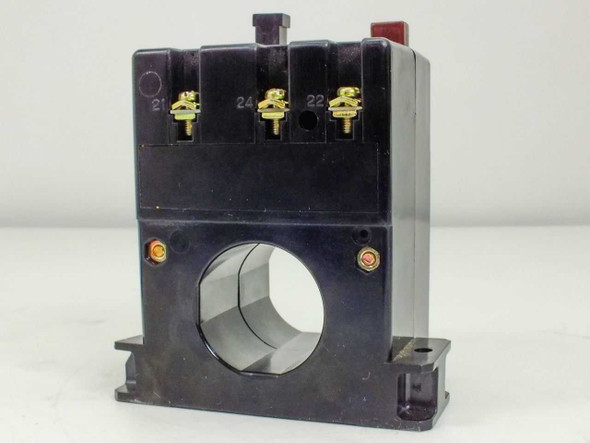

- 3 terminals (21, 22, 24)
- Contact Capacity (Continuous):
- 5A
- Breaking Current Capacity:
- 4C 5A (220V)
- Country/Region of Manufacture:
- Japan
- Form Factor:
- DIN Rail / Panel Mount
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no accessories included.
- Condition Notes:
- Fuji Electric BRR21N-01S Earth Leakage Relay in good used condition. Pulled from a working environment where it was in active service. Housing intact, terminals and through-hole show normal wear. Please contact us with any questions.
$100.00Was: $200.00 -
Nimbus NSD360-3 19in Rackmount Cabinet 38U on Wheels w/ Shelves 230V 0.2KVA
Nimbus
$600.00Was: $1,200.00Nimbus NSD360-3 19in Rackmount Cabinet 38U on Wheels w/ Shelves 230V 0.2KVAA 38U mobile rackmount cabinet designed to house telecom, networking, and industrial equipment in a 19-inch standard form factor. Features four locking casters for mobility and...45438- SKU:
- 45438
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 230.00 LBS
- Brand:
- Nimbus Technology & Engineering
- Model:
- NSD360-3
- MPN:
- NSD360-3
- Type:
- 19in Rackmount Cabinet Enclosure
- SKU:
- 45438
- Rack Unit Capacity:
- 38U
- Rack Width:
- 19 inch
- Overall Dimensions (H x W x D):
- H1900 x W600 x D400 mm
- Usable Interior Dimensions:
- 19 x 19 x 67 inches (approx)
- Voltage:
- 230V
- Current:
- 0.56A
- Power Rating:
- 0.2 KVA
- Wiring Classification:
- IEC
- Specifications:
- 89/392/EEC, 91/386/EEC
- Mobility:
- 4 locking swivel casters (wheels)
- Shelves Included:
- 3 adjustable perforated metal shelves
- Door:
- Single front door with key lock
- Grounding:
- Internal grounding bus bar with bonding cables
- Monitor Hole:
- 18mm monitor hole
- Mount Hole Spacing:
- 2 mount holes every 3/4 inch
- Form Factor:
- Freestanding / Mobile Rack Enclosure
- Certifications:
- ETL Evaluated to Recognized National Standards
- Country/Region of Manufacture:
- United Kingdom
- Seller Notes:
- Includes 3 adjustable perforated shelves and locking door; sold without rack-mount equipment
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Nimbus NSD360-3 19in 38U rackmount cabinet on wheels. Inspected and in good used condition. Light scuffing on finish; frame, shelves, locking door, casters, and grounding bus all present and intact.
$600.00Was: $1,200.00 -

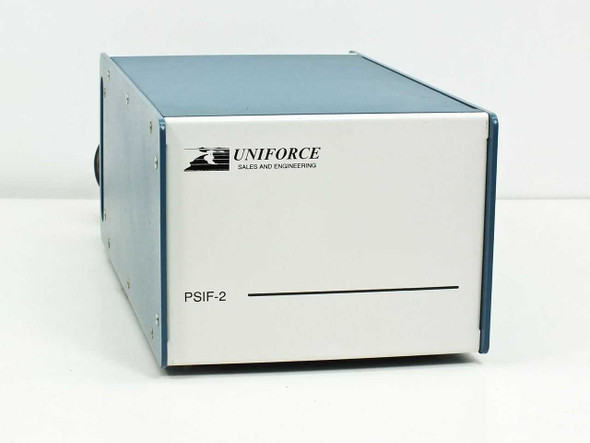

Uniforce PSIF-2 Camera System Power Supply 20/20 Designs PSIF A001 BNC Sync
Uniforce
$55.00Was: $100.00Uniforce PSIF-2 Camera System Power Supply 20/20 Designs PSIF A001 BNC SyncThe Uniforce PSIF-2 is a dedicated power supply and camera interface unit built by Uniforce Sales and Engineering. It provides regulated power and synchronization signal routing...45387- SKU:
- 45387
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 17.00 LBS
- Brand:
- Uniforce
- Model:
- PSIF-2
- MPN:
- PSIF-2
- Secondary Model:
- PSIF A001
- Type:
- Camera System Power Supply / Interface
- SKU:
- 45387
- Manufacturer:
- Uniforce Sales and Engineering
- PCB Manufacturer:
- 20/20 Designs, Inc.
- PCB Part Number:
- PSIF A001
- Year / Date Code:
- 1993
- Internal Transformer 1:
- Deltron W301D
- Internal Transformer 2:
- Deltron W100A
- Internal Component:
- MXT1080
- Camera Inputs:
- J1 D-sub; BNC: PRN (F/R), EXSYNC, MCLK
- Camera Outputs:
- J2 D-sub; BNC: FRAME VALID, LINE VALID, FRAME VALID
- Connector Types:
- BNC, D-sub (25-pin)
- Included Cables:
- D-sub 25-pin camera cable, AC power cord
- Power Switch:
- Rocker on/off switch, rear panel
- Form Factor:
- Benchtop / Desktop Chassis
- Seller Notes:
- Includes D-sub camera interface cable and AC power cord
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Uniforce PSIF-2 Camera Power Supply inspected, good cosmetic condition. Not powered or tested at our facility. Includes D-sub camera cable and AC power cord. Photos available.
$55.00Was: $100.00 -

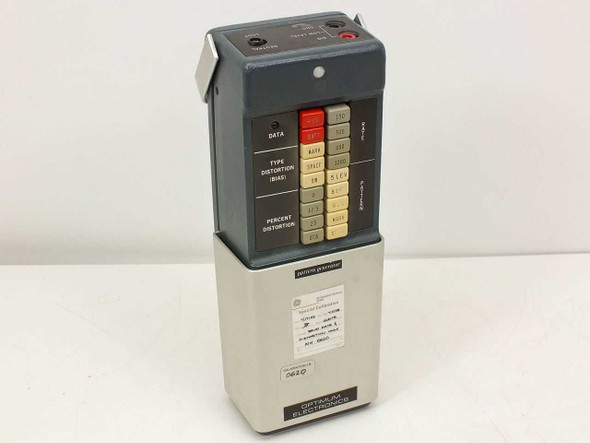

Optimum Electronics PG404 Pattern Generator Baud Rate Distortion Bias Tester
Optimum Electronics
$65.00Was: $125.00Optimum Electronics PG404 Pattern Generator Baud Rate Distortion Bias TesterHandheld pattern generator and distortion tester used for telecommunications and data communications testing. Measures baud rate, start-stop distortion, and bias distortion in...45356- SKU:
- 45356
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Optimum Electronics
- Model:
- PG404
- MPN:
- PG404
- Type:
- Pattern Generator / Distortion Tester
- SKU:
- 45356
- Seller Notes:
- Special calibration (Baud Rate and Distortion only). Last calibrated 07-17-2003.
- Form Factor:
- Handheld / Portable
- Measurement Type:
- Baud Rate, Start-Stop Distortion (Bias), Percent Distortion
- Baud Rates:
- 150, 300, 600, 1200 Baud
- Data Modes:
- Mark, Space, SW (Switching)
- Pattern Modes:
- 5 Level, 8 Level, RLY, Mark, Space
- Percent Distortion Settings:
- 0, 12.5, 25, 37.5
- Power Source:
- AC or Battery (PWR / BATT selector)
- Connectors:
- SIG (red banana), GND (black banana), Low Level, Neutral, Loop

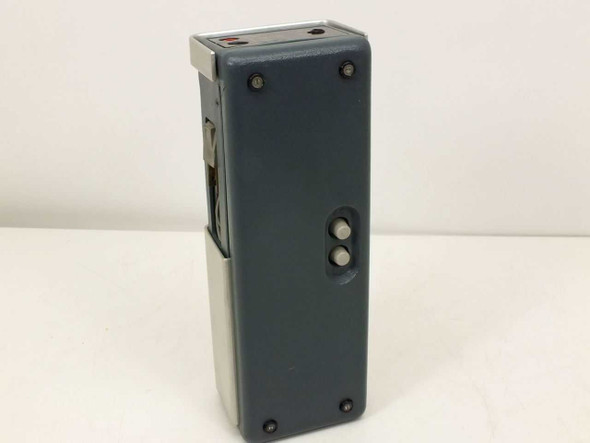

- Side Controls:
- AC and LP trimmer adjustments on right side panel
- Application:
- Telecom / data communications start-stop distortion testing
- Last Calibration Date:
- 07-17-2003
- Calibration Scope:
- Special Calibration – Baud Rate and Distortion Only
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Optimum Electronics PG404 Pattern Generator, inspected and in good used condition. Controls and housing intact with light surface wear. Special calibration (Baud Rate and Distortion only), last cal. 07-17-2003.
$65.00Was: $125.00 -

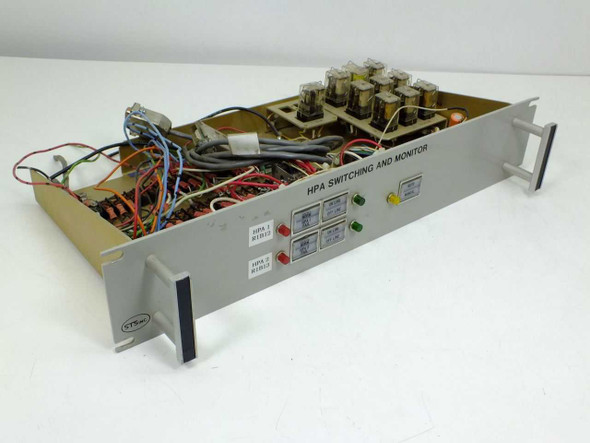

Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly
Satellite Transmission Systems
$150.00Was: $300.00Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor AssemblyRedundancy switching and monitoring assembly for high-power amplifiers in satellite ground stations. Routes signal between two HPA channels with automatic or manual failover...45325- SKU:
- 45325
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Satellite Transmission Systems
- Model:
- HPA Switching & Monitor Assembly
- MPN:
- C14922
- Secondary Model:
- C14922 Rev B
- Type:
- HPA Redundancy Switching & Monitor Assembly
- SKU:
- 45325
- Revision:
- Rev B
- Form Factor:
- Rackmount
- Number of HPA Channels:
- 2 (HPA 1 / HPA 2)
- Control Mode:
- Auto / Manual
- Indicators:
- HPA 1 Norm, HPA 1 Fail, HPA 2 Norm, HPA 2 Fail; ON LINE / OFF LINE
- Relay Type:

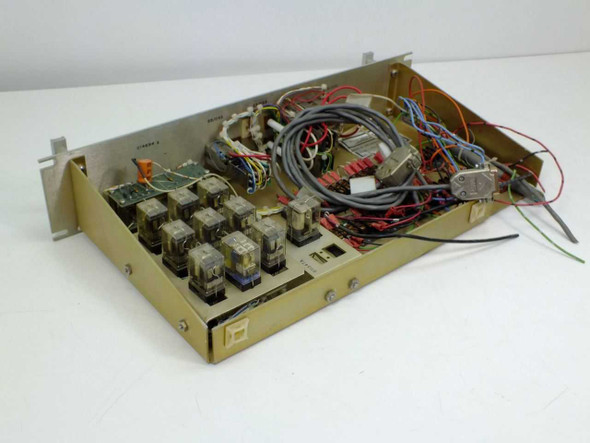

- Electromechanical relay matrix (visible internal relays)
- Application:
- Satellite ground station HPA redundancy switching
- Country/Region of Manufacture:
- United States
- Manufacturer Location:
- Hauppauge, New York
- Condition:
- Used – Inspected
- Condition Notes:
- Satellite Transmission Systems C14922 Rev B HPA Switching & Monitor Assembly. Inspected and in good used condition. Front panel indicators and pilot lights intact. Internal relay matrix and wiring harness complete.
$150.00Was: $300.00 -
3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator Rackmount 115/230VAC BNC RF Out
3dbm
$250.00Was: $500.003dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator Rackmount 115/230VAC BNC RF OutThe 3dbm Inc. 70FMO-BS-2X-AYD is a rack-mounted 70 MHz FM modulator designed for satellite communications uplink chains. Built by 3dbm of Camarillo, CA, it accepts a baseband FM...45323- SKU:
- 45323
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 18.00 LBS
- Brand:
- 3dbm
- Model:
- 70FMO-BS-2X-AYD
- MPN:
- 70FMO-BS-2X-AYD
- Type:
- FM Modulator
- SKU:
- 45323
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only; no accessories included. See photos for condition details.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Rack Mount
- Power Requirements:
- 115/230VAC, 1-Phase, 47-63Hz
- Fuse Rating:
- 115V: 1A / 230V: 0.5A SB
- Output Frequency:
- 70 MHz
- Modulation Type:
- FM (Frequency Modulation)
- RF Output Connector:
- BNC (J1 – RF Out)
- FM Mod Input Connector:
- BNC (J2 – FM Mod In)
- Operate/Calibrate Connector:
- DB9 (J4 – Operate/Calibrate Select)
- Alarm Output Connector:
- Terminal block J3 – Common, N.O., N.C.
- RF Monitor Output:
- BNC (front panel)
- Voltage Monitor Output:
- Banana jacks – GND and +15V (front panel)
- Front Panel Controls:
- AC Power switch, Operate/Calibrate switch, Fault LED
- Peak Deviation Meter:
- Analog meter, kHz scale (front panel)
- Internal Assembly:
- Two 3dbm sub-modules: Relay Enclosure + 70MHz FM Modulator
- PCB Assembly:
- ASSY.50886 (BD.50113L power board)
- Manufacturer Location:
- Camarillo, CA
- Condition Notes:
- This 3dbm 70FMO-BS-2X-AYD 70 MHz FM Modulator is in good used condition. Pulled from a working environment where it was in use and functional. Front panel and rear connectors show light rack wear. Please contact us with any questions.
$250.00Was: $500.00 -
Triad Solutions ATC1 Expander Power Supply 230VAC 50/60Hz 0.5A 115VAC Input
Triad Solutions
$95.00Was: $200.00Triad Solutions ATC1 Expander Power Supply 230VAC 50/60Hz 0.5A 115VAC InputStep-up power supply unit designed to convert 115VAC input to 230VAC output at 0.5A capacity. Built for industrial and telecom applications requiring voltage expansion...45222- SKU:
- 45222
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 13.00 LBS
- Brand:
- Triad Solutions LLC
- Model:
- ATC1
- MPN:
- ATC1
- Type:
- Expander Power Supply
- SKU:
- 45222
- Input Voltage:
- 115VAC, 50/60Hz
- Output Voltage:
- 230VAC
- Output Current:
- 0.5A
- Frequency:
- 50/60Hz
- Fuse Rating:
- 2 x 1A, 250V
- Connector Type:
- Multi-pin circular connector (front); IEC C14 inlet (rear)
- Power Switch:
- Illuminated rocker switch (OFF/ON)
- Form Factor:
- Benchtop / Desktop enclosure
- Seller Notes:
- Unit only; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Triad Solutions ATC1 Expander Power Supply — inspected, in good used condition. Pulled from a working environment. Enclosure shows minor surface wear. Front switch, multi-pin connector, and rear IEC inlet appear clean and intact.
$95.00Was: $200.00
