Fraunhofer

Fraunhofer IIS DT500 Digital Media Satellite Modulator ASI IF/IQ 10MHz Ref USB

(No reviews yet) Write a Review
SKU:
45510
MPN:
DT500
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout

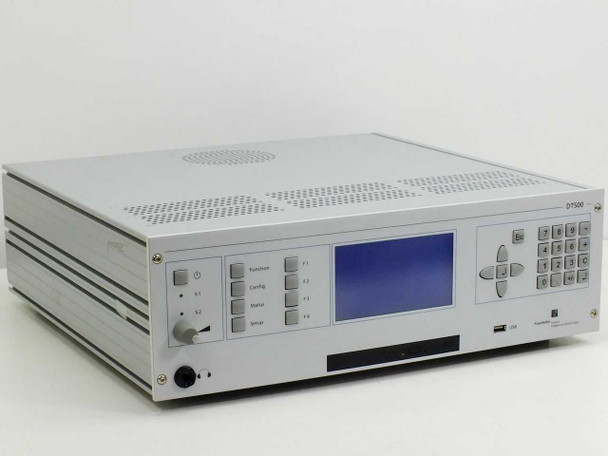

  • Fraunhofer IIS DT500 Digital Media Satellite Equipment – front three-quarter view showing silver chassis, LCD display, keypad, and front panel controls
  • Fraunhofer IIS DT500 – rear panel view showing dual cooling fans, BNC connectors, DB9 serial port, USB ports, VGA, PS/2, parallel, and IEC AC inlet

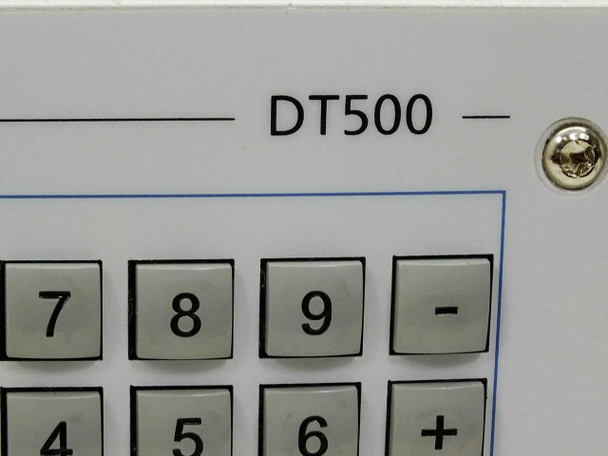

  • Fraunhofer IIS DT500 – close-up of front panel upper-right corner showing DT500 model label and numeric keypad

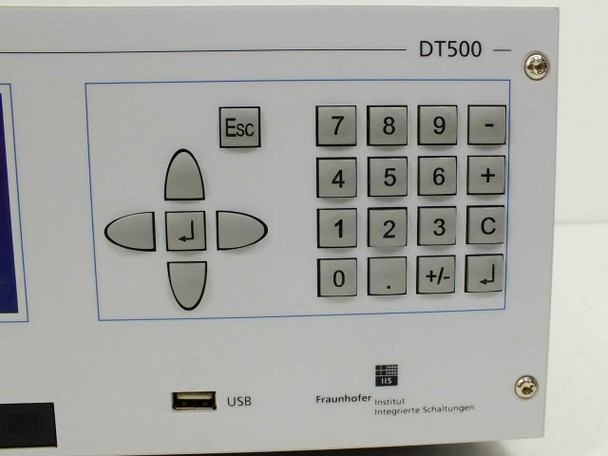

  • Fraunhofer IIS DT500 – close-up of front panel right side showing numeric keypad, navigation keys, Esc button, USB port, and Fraunhofer IIS logo

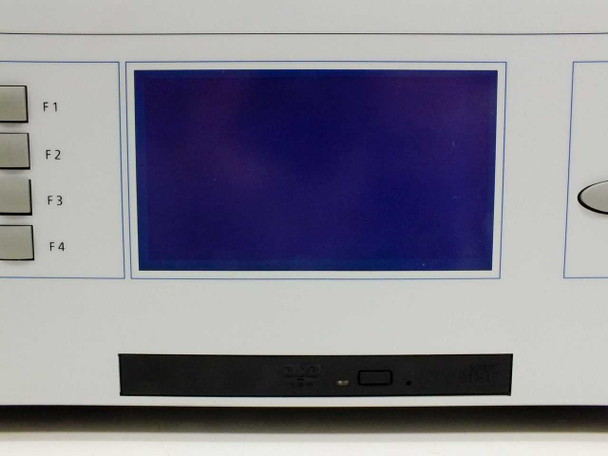

  • Fraunhofer IIS DT500 – close-up of front-panel LCD display (blue screen) and optical drive bay below

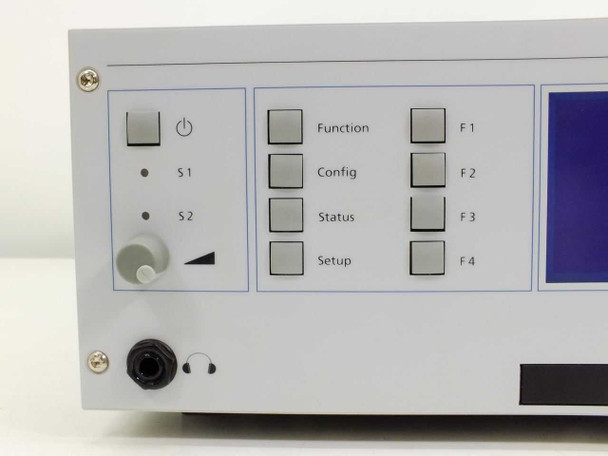

  • Fraunhofer IIS DT500 – close-up of front panel left section showing power button, S1/S2 status indicators, volume knob, headphone jack, and Function/Config/Status/Setup function keys
  • Fraunhofer IIS DT500 – rear panel close-up showing labeled BNC connectors: 10 MHz Ref, I, IF/IQ, ASI, ClockOut, DataIn; plus USB, VGA, DB9, PS/2, and parallel ports
  • Fraunhofer IIS DT500 – rear panel power section close-up showing IEC inlet, on/off switch, Full Range 100-240VAC label, cooling fan, and barcode label 261000-01-00-00-0012

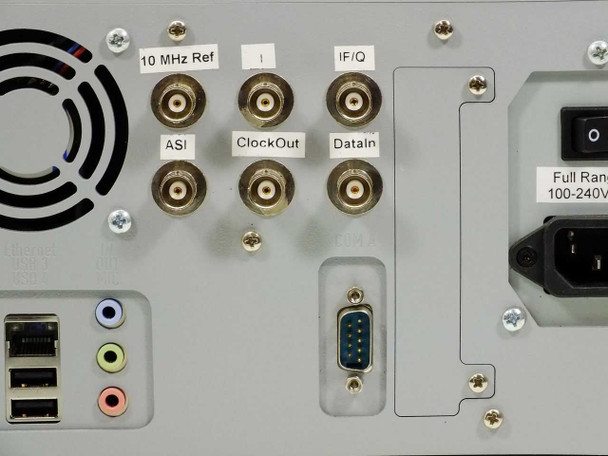

  • Fraunhofer IIS DT500 – close-up of rear BNC connector panel showing 10 MHz Ref, I, IF/IQ, ASI, ClockOut, DataIn labels, plus DB9 serial and power supply label

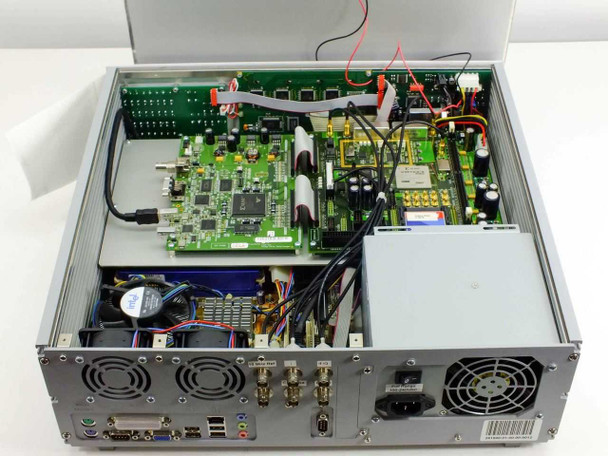

  • Fraunhofer IIS DT500 – internal view with top cover removed showing custom RF and digital PCBs, internal power supply, cabling, and rear panel connector assembly
  • Fraunhofer DT500 Digital Media Equipment for Satellite Communications
  • Fraunhofer DT500 Digital Media Equipment for Satellite Communications
  • Fraunhofer DT500 Digital Media Equipment for Satellite Communications
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

Fraunhofer IIS DT500 Digital Media Satellite Modulator ASI IF/IQ 10MHz Ref USB

Desktop satellite modulator and encoder designed for DVB broadcast and satcom applications. Accepts ASI input and outputs modulated IF/IQ signals for satellite transmission testing and broadcast operations.

Specifications & What's Included

  • Model: DT500 (Fraunhofer IIS)
  • Interfaces: ASI, IF/IQ output, 10 MHz reference input, ClockOut, DataIn (BNC connectors)
  • I/O Ports: USB (x4), VGA, DB9, parallel, serial, PS/2 keyboard and mouse
  • Display: Built-in color LCD front panel with controls and numeric keypad
  • Power: 100-240V AC (internal ATX-style supply)
  • Dimensions: 17 x 17 x 6 inches (approx)
  • Unit only; no accessories included

Applications

Used in DVB satellite broadcast systems, satcom test environments, and digital media transmission setups. The DT500 handles ASI stream input and generates modulated IF/IQ output for satellite uplink chains and laboratory testing. Typical deployment includes broadcast centers, transmission facilities, and RF engineering labs working with satellite distribution networks.

Condition: Used
This Fraunhofer IIS DT500 Digital Media Satellite Equipment has been inspected and is in good condition. The silver chassis is clean overall with light surface wear consistent with normal lab or studio use. The front panel LCD, keypad, and controls appear intact and undamaged. Rear BNC connectors, USB ports, VGA, DB9, and the IEC power inlet all look to be in good shape. The unit has not been powered up or bench-tested at our facility but comes from a prior working environment. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fraunhofer IIS
Model:
DT500
MPN:
DT500
Type:
Digital Media Satellite Modulator / Encoder
SKU:
45510
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Unit only; inspected and in good condition
Country/Region of Manufacture:
Germany
Form Factor:
Desktop / Benchtop
Power Requirements:
Full Range 100-240V AC
Dimensions:
17 x 17 x 6 in (approx)
Interface Type:
ASI, IF/IQ, 10 MHz Ref, ClockOut, DataIn, USB
Connector Types:
BNC (ASI, IF/IQ, 10 MHz Ref, ClockOut, DataIn), DB9, USB, VGA
Signal Interface:
ASI (Asynchronous Serial Interface)
Reference Input:
10 MHz Reference (BNC)
Additional Interfaces:
IF/IQ output, ClockOut, DataIn (BNC)
PC I/O Ports:
PS/2 keyboard, PS/2 mouse, VGA, USB x4, parallel, serial
Display:
Built-in color LCD panel
Front Panel Controls:
Power, S1/S2, Function, Config, Status, Setup, numeric keypad, nav keys, Esc, USB
Application:
Satellite communications, digital media broadcast, DVB
Compatible With:
DVB satellite broadcast systems, satcom test environments
Internal Components:
Custom RF/digital PCBs, internal ATX-style power supply
Drive Bay:
Front-panel DVD/optical drive bay visible
Condition Notes:
Fraunhofer IIS DT500 Digital Media Satellite Equipment. Inspected, good condition. Clean chassis with light normal wear. Not bench-tested at our facility; pulled from a working environment. Photos available.
View AllClose

Related Products

Related Products

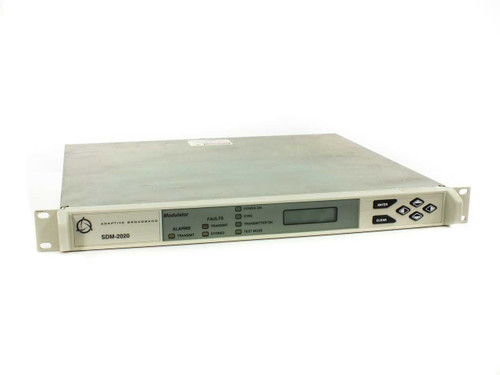

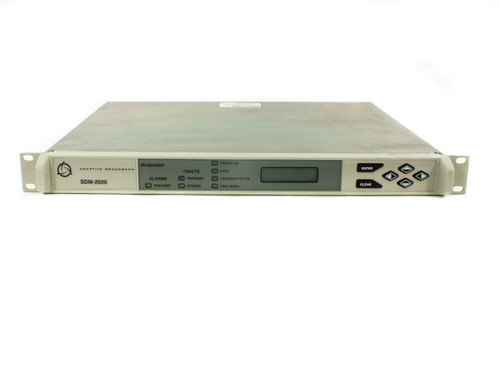

Adaptive Broadband SDM-2020 satellite modulator – front panel straight-on view showing full indicator layout including Power On, Sync, Transmitter On, Test Mode Adaptive Broadband SDM-2020 satellite modulator – front panel close-up showing Modulator label, SDM-2020 model number, Alarms and Faults indicators
Add to Cart
Quick view

Adaptive Broadband SDM-2020 Satellite Modulator EIA-422/530 ASI 1U Rackmount SW

Adaptive Broadband

$550.00
Was: $1,100.00
Adaptive Broadband SDM-2020 Satellite Modulator EIA-422/530 ASI 1U Rackmount SW 8.1.3Satellite modulator designed for DVB-S signal generation and ASI stream processing in broadcast and telecom...
51642
SKU:
51642
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Brand:
Adaptive Broadband
Model:
SDM-2020
MPN:
SDM-2020M
Type:
Satellite Modulator
SKU:
51642
Software Version:
8.1.3
Form Factor:
1U Rackmount
Power Requirements:
100-240V AC, 1.0A-0.5A, 50-60Hz
Interface Type:
EIA-422/530
Input Interface:
ASI (Asynchronous Serial Interface)
Output Interface:
ASI Output, CP1 TX/RF
Remote Interface:
RS-232 (J1 Remote)
Fault Interface:
RS-232 (J2 Fault)
ASI Inputs:
2x BNC (J3, J4)
ASI Outputs:
2x BNC (J6, J7)
EIA Connector:
DB-25 (J5 EIA-422/530)
RF Output:
CP1 TX/RF (BNC)
Front Panel:
LCD display, ENTER/CLEAR keys, navigation buttons
Status Indicators:
Power On, Sync, Transmitter On, Test Mode, Alarms, Faults
Condition:
Used – Powers On, SW Version Confirmed, Not Fully Tested
Country/Region of Manufacture:
United States
Seller Notes:
Unit only — no accessories included. Powers on, SW v8.1.3 confirmed on display.
Condition Notes:
Adaptive Broadband SDM-2020 satellite modulator. Powers on; LCD display confirms SW v8.1.3. Could not test further — full operational status unconfirmed. Good cosmetic condition. Sold as-is beyond power-on. Contact us with questions.

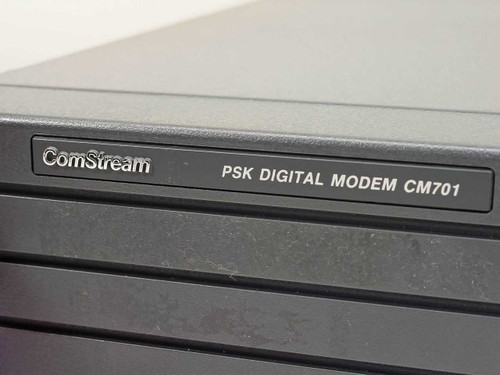

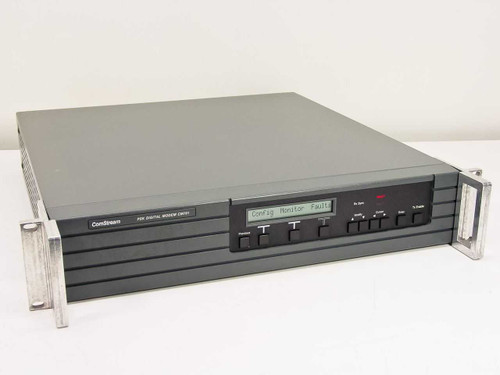

ComStream CM701 PSK Digital Satellite Modem front panel and rackmount chassis, 2U form factor with LCD display showing Config Monitor Fault menu ComStream PSK Digital Modem CM701 nameplate label close-up on front panel bezel
