Adaptive Broadband

Adaptive Broadband SDM-2020 Satellite Modulator EIA-422/530 ASI 1U Rackmount SW

(No reviews yet) Write a Review
SKU:
51642
MPN:
SDM-2020M
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout
  • Adaptive Broadband SDM-2020 satellite modulator – front panel three-quarter view showing LCD display and front panel controls
  • Adaptive Broadband SDM-2020 satellite modulator – front panel close-up showing Modulator label, SDM-2020 model number, Alarms and Faults indicators
  • Adaptive Broadband SDM-2020 satellite modulator – front panel straight-on view showing full indicator layout including Power On, Sync, Transmitter On, Test Mode
  • Adaptive Broadband SDM-2020 satellite modulator – rear panel overview showing AC inlet, fan, remote and fault ports, ASI inputs, EIA-422/530 connector, ASI outputs, CP1 TX/RF
  • Adaptive Broadband SDM-2020 satellite modulator – front panel left-side close-up showing Adaptive Broadband logo, SDM-2020 model designation, Alarms Transmit, Faults Transmit and Stored LEDs

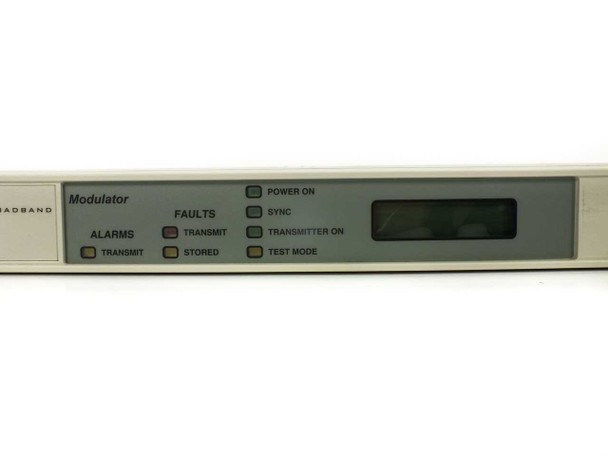

  • Adaptive Broadband SDM-2020 satellite modulator – front panel indicator section close-up showing Power On, Sync, Transmitter On, Test Mode status LEDs and LCD display

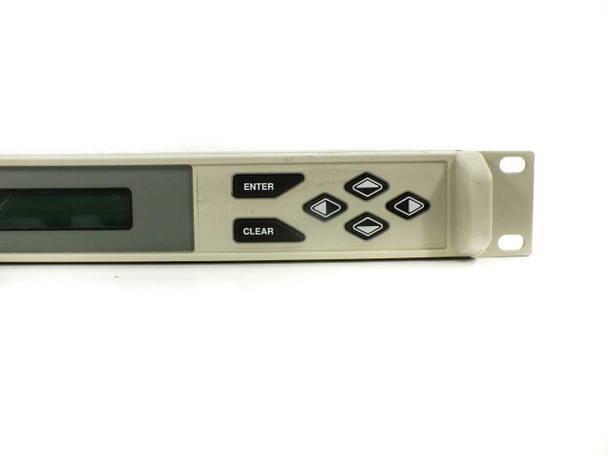

  • Adaptive Broadband SDM-2020 satellite modulator – front panel right-side close-up showing LCD display, ENTER and CLEAR buttons, and diamond navigation keypad
  • Adaptive Broadband SDM-2020 satellite modulator – rear panel left section showing IEC AC inlet, cooling fan, J1 Remote RS-232, J2 Fault RS-232, J3 and J4 ASI BNC inputs
  • Adaptive Broadband SDM-2020 satellite modulator – rear panel center-right section showing J5 EIA-422/530 DB-25 connector, J6 J7 ASI BNC outputs, CP1 TX/RF BNC output, CE mark
  • Adaptive Broadband SDM-2020 satellite modulator – rear panel right-side detail showing EIA-422/530 connector, ASI outputs, CP1 TX/RF BNC, CE mark, and serial number label
$550.00
Was: $1,100.00
Current Stock: 1

Sold Out

Description

Adaptive Broadband SDM-2020 Satellite Modulator EIA-422/530 ASI 1U Rackmount SW 8.1.3

Satellite modulator designed for DVB-S signal generation and ASI stream processing in broadcast and telecom environments. Routes and modulates satellite data streams for transmission.

Specifications & What's Included

  • Model: SDM-2020M | Software: v8.1.3
  • Form Factor: 1U Rackmount
  • Power: 100–240V AC, 50–60Hz
  • Interfaces: EIA-422/530 (DB-25), ASI In/Out (4x BNC), RF Output (BNC)
  • Remote & Fault: RS-232 (J1, J2)
  • Front Panel: LCD, navigation buttons, status indicators (Power, Sync, Transmitter, Alarms)
  • Unit only — no cables or accessories included

Applications

Satellite modulators serve broadcast contribution networks, teleport operations, and DVB-S distribution chains. The SDM-2020 accepts ASI streams and EIA data, modulating to RF for satellite uplink. Commonly deployed in master control environments, remote broadcast facilities, and international telecom infrastructure supporting legacy and current-generation satellite platforms.

Condition: Used
This Adaptive Broadband SDM-2020 satellite modulator powers on and the front-panel LCD display confirms software version 8.1.3. We were not able to test it further beyond power-on, so its full operational status is not confirmed. The unit is in good cosmetic shape — the chassis, front panel, and indicators show only typical light wear consistent with normal rack use. The rear panel connectors (ASI inputs, EIA-422/530, ASI outputs, CP1 TX/RF, RS-232 remote and fault ports, and IEC AC inlet) all appear clean and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Adaptive Broadband
Model:
SDM-2020
MPN:
SDM-2020M
Type:
Satellite Modulator
SKU:
51642
Software Version:
8.1.3
Form Factor:
1U Rackmount
Power Requirements:
100-240V AC, 1.0A-0.5A, 50-60Hz
Interface Type:
EIA-422/530
Input Interface:
ASI (Asynchronous Serial Interface)
Output Interface:
ASI Output, CP1 TX/RF
Remote Interface:
RS-232 (J1 Remote)
Fault Interface:
RS-232 (J2 Fault)
ASI Inputs:
2x BNC (J3, J4)
ASI Outputs:
2x BNC (J6, J7)
EIA Connector:
DB-25 (J5 EIA-422/530)
RF Output:
CP1 TX/RF (BNC)
Front Panel:
LCD display, ENTER/CLEAR keys, navigation buttons
Status Indicators:
Power On, Sync, Transmitter On, Test Mode, Alarms, Faults
Condition:
Used – Powers On, SW Version Confirmed, Not Fully Tested
Country/Region of Manufacture:
United States
Seller Notes:
Unit only — no accessories included. Powers on, SW v8.1.3 confirmed on display.
Condition Notes:
Adaptive Broadband SDM-2020 satellite modulator. Powers on; LCD display confirms SW v8.1.3. Could not test further — full operational status unconfirmed. Good cosmetic condition. Sold as-is beyond power-on. Contact us with questions.
View AllClose

Related Products

Related Products

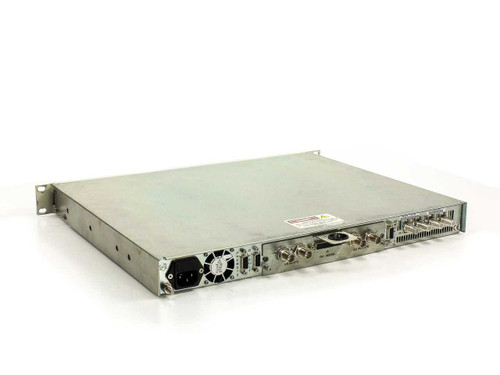

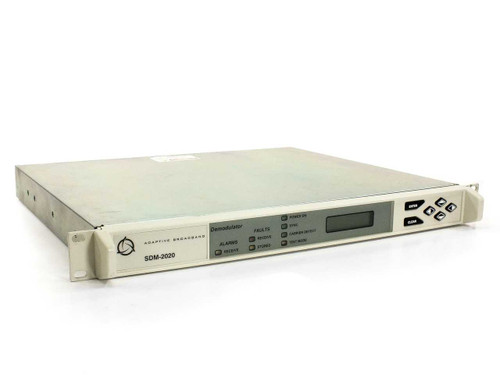

Adaptive Broadband SDM-2020 satellite demodulator — front panel angled left view showing LCD display and indicator LEDs Adaptive Broadband SDM-2020 rear panel angled view showing IEC power inlet, fan, DB-9 connectors, BNC connectors, and EIA-422/530 port
Add to Cart
Quick view

Adaptive Broadband SDM-2020 Satellite Demodulator SW v5.3.1 G7.03 1U Rackmount

Adaptive Broadband

$375.00
Was: $750.00
Adaptive Broadband SDM-2020 Satellite Demodulator SW v5.3.1 G7.03 1U RackmountThe Adaptive Broadband SDM-2020 is a 1U rackmount satellite demodulator designed for professional ground-segment receive...
50310
SKU:
50310
Availability:
Usually ships within 1-2 business days.
Weight:
16.00 LBS
Brand:
Adaptive Broadband
Model:
SDM-2020
MPN:
SDM-2020D
Type:
Satellite Demodulator
SKU:
50310
Software Version:
5.3.1
Interface Standard:
G7.03
Form Factor:
1U Rackmount
Power Requirements:
100-240V AC, 1.0A-0.5A, 50-60Hz
Input Interface:
ASI (Asynchronous Serial Interface)
Output Interface:
ASI (Asynchronous Serial Interface)
Data Interface:
EIA-422/530 (J5 connector)
Remote Control Interface:
J1 Remote (DB-9)
Fault Interface:
J2 Fault (DB-9)
Front Panel Display:
LCD alphanumeric display
Front Panel Controls:
ENTER, CLEAR, 4-way navigation buttons
Front Panel Indicators:
Power On, Sync, Carrier Detect, Test Mode, Alarms, Faults
Condition:
Used – Powers On, SW Version Confirmed, Further Testing Limited
Seller Notes:
Unit only — no accessories included
Country/Region of Manufacture:
United States
Condition Notes:
Adaptive Broadband SDM-2020 satellite demodulator powers on; LCD confirms SW v5.3.1. Not tested beyond power-on. Light cosmetic wear from prior rack use. Sold as-is beyond power-on confirmation. Please contact us with questions.
ARG 2400-EQ390-BOM Distribution Amplifier Splitter — 1U rackmount front panel, angled top view showing front label and rack ears ARG 2400-EQ390-BOM Distribution Amplifier — rear panel view showing BNC connectors, DB-15 OUTPUTS port, REMOTE connector, ALARM port, and dual IEC AC inlets
Add to Cart
Quick view

ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1U

ARG

$125.00
Was: $250.00
ARG 2400-EQ390-BOM ASI Distribution Amplifier Splitter 1x4 Rackmount 1UThe ARG 2400-EQ390-BOM is a 1U rackmount ASI (Asynchronous Serial Interface) distribution amplifier and splitter from ARG's 2400...
49777
SKU:
49777
Availability:
Usually ships within 1–2 business days.
Weight:
16.00 LBS
Brand:
ARG
Model:
2400-EQ390-BOM
MPN:
2400-EQ390-BOM
Type:
ASI Distribution Amplifier / Splitter
SKU:
49777
Series:
ARG 2400 Series
Form Factor:
1U Rackmount
Number of Inputs:
1 (ASI copper)
Number of Outputs:
4 (ASI copper, identical)
Signal Type:
ASI (Asynchronous Serial Interface) — copper
Relay Bypass:
Yes — relay bypass module on input
Power Fail Protection:
Output 1 continues under power fail
Power Supplies:
Dual PSU (PSU 1 and PSU 2)
Alarm:
Alarm output connector and Alarm Reset button on front
Remote Interface:
REMOTE connector (rear panel)
Outputs Connector:
DB-15 OUTPUTS connector (rear panel)
BNC Connectors:
Multiple BNC connectors on rear panel
AC Inlet:
Dual IEC C14 AC inlets (rear panel)
Front Panel Indicators:
PSU 1 LED, PSU 2 LED, Input 1 LED, Input 2 LED
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from a working broadcast environment.
Country/Region of Manufacture:
United Kingdom
Condition Notes:
This ARG 2400-EQ390-BOM ASI Distribution Amplifier/Splitter is in good used condition. Pulled from a working broadcast environment where it was in active use and functional. Shows normal rack service wear. All connectors present.

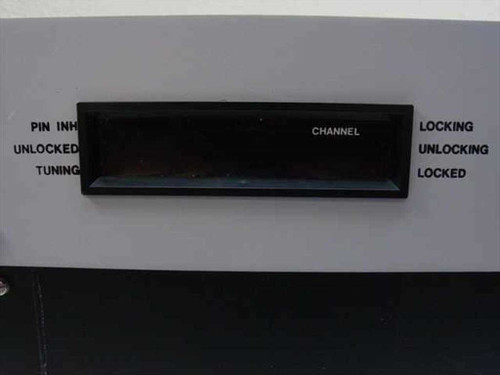

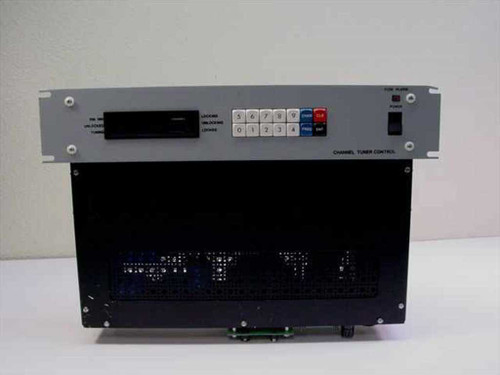

Varian VJW2731A5 Channel Tuner Control – full front and rear stack view showing rackmount chassis and rear board assembly Varian VJW2731A5 – close-up of front panel channel display window with status labels: PIN INH, UNLOCKED, TUNING, LOCKING, UNLOCKING, LOCKED
