Standard MT900B Intercontinental Satellite Receiver CAD930 Module 1U Rackmount
1U rackmount satellite receiver designed for receiving and demodulating intercontinental satellite signals. Accepts RF input at 950–1750 MHz and converts to 70 MHz IF with selectable bandwidth options. Includes installed CAD930 dual-channel demodulator module with configurable de-emphasis and video output formats.
Specifications & What's Included
- RF Input: 950–1750 MHz; IF: 70 MHz with 110/220/440/880 kHz bandwidth options
- Video outputs: 525/625 line selectable; composite and dual video outputs
- CAD930 dual-channel demodulator module installed and configured
- LNB power: 24 VDC, 300 mA max (switched)
- Power: 115/230/240V AC, 50/60 Hz, 60W
- Front panel: AFC, AGC, fine tune, signal/C/N meter, 4-digit mechanical frequency counter
- Rear connections: BNC (RF/IF/Video/Test), IEC AC inlet, terminal block
- Includes 19-inch rack ears; manufactured in Japan
Applications
The MT900B was widely deployed in satellite earth stations and telecom receive-only terminals for intercontinental signal reception. Commonly found in broadcast distribution networks, maritime communication systems, and point-to-point satellite links where multi-channel demodulation and video signal processing were required. The modular CAD930 architecture allowed operators to configure channel bandwidth and de-emphasis per application requirements.

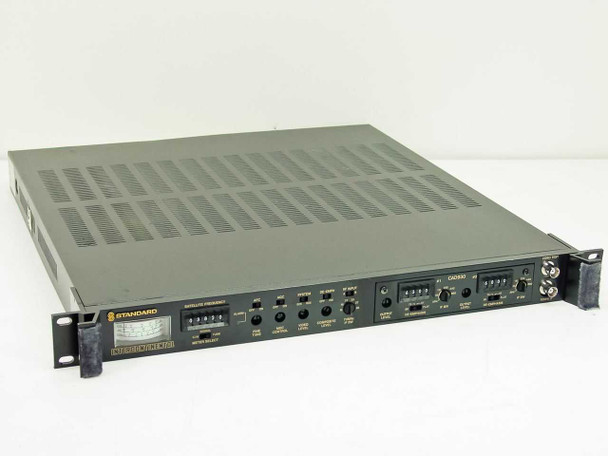

This Standard MT900B Intercontinental Satellite Receiver with CAD930 plug-in module has been inspected and is in good used condition. It was pulled from a working environment where it was actively in service. The chassis and front panel show typical light wear consistent with rack use. The CAD930 dual-channel module is installed, and the 19-inch rack ears are attached. Please review our photos for a close look at the unit's condition and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Standard |
Model: |
MT900B |
MPN: |
MT900B |
Secondary Model: |
CAD930 |
SKU: |
39603 |
Type: |
Satellite Receiver |
Sub-Series / Product Line: |
Intercontinental |
Form Factor: |
1U Rack Mount |
RF Input Frequency Range: |
950–1750 MHz (Satellite Antenna RF Input) |
IF Frequency: |
70 MHz |
IF Bandwidth Options: |
110, 220, 440, 880 kHz (per CAD930 channel) |
De-Emphasis Options: |
75 µs, 50 µs, Flat, XPN (per CAD930 channel) |
Video Output Format: |
525 or 625 line (selectable) |
Video Outputs: |
#1 Video, #2 Video, Composite Video |
LNB Power Output: |
24 VDC, 300 mA max (switched) |
Ext 70 MHz IF Loop: |
External 70 MHz IF loop through (must be connected) |
Power Requirements: |
115/230/240V AC, 50/60 Hz, 60W |
Input Voltage Select: |
115V~: 0.8A 250V; 230/240V~: 0.315A 250V |
Front Panel Controls: |
AFC, AGC, System, De-Emphasis, RF Input A/B, Fine Tune, MGC, Video Level, Composite Level, 70MHz IF BW |
Front Panel Meter: |
Signal / C/N analog meter with Meter Select switch |
Satellite Frequency Display: |
4-digit mechanical counter (03820 visible in photos) |
Plug-In Module: |
CAD930 dual-channel demodulator module (installed) |
CAD930 Channel 1 Output Level: |
6300 (as set, visible on front roller) |
CAD930 Channel 2 Output Level: |
6800 (as set, visible on front roller) |
Rear Connectors: |
BNC (RF/IF/Video/Test), IEC AC inlet, terminal block (alarm/aux/video out) |
Video Inversion: |
Auto / Override switch on rear panel |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes installed CAD930 dual-channel plug-in module and 19-inch rack ears |
Condition Notes: |
Standard MT900B Intercontinental Satellite Receiver with CAD930 module. Inspected, in good used condition. Pulled from a working environment where it was actively in service. Rack ears included. Please view photos and contact us with questions. |
