Standard MT830 Agile Omni Ku-Band Broadcast Satellite Receiver No Control Module

(No reviews yet) Write a Review
SKU:
45518
MPN:
MT830
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout
  • Standard MT830 Agile Omni Broadcast satellite receiver – front 3/4 angle view showing rackmount chassis
  • Standard MT830 Agile Omni Broadcast receiver – rear panel view showing RF connectors and wiring
  • Standard MT830 front panel close-up – Standard logo, analog Signal/C/N/Tune meter and Power button

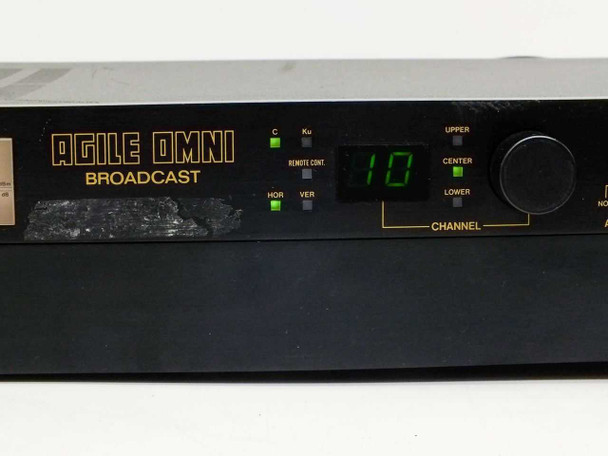

  • Standard MT830 front panel right section – Agile Omni Broadcast label, channel LED display showing 10, C/Ku indicators, HOR/VER LEDs, and channel knob

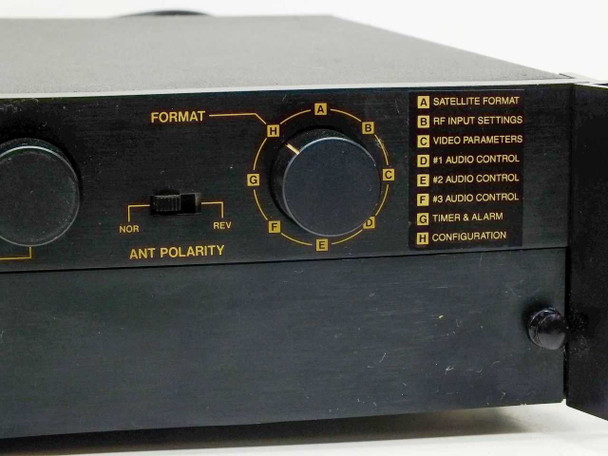

  • Standard MT830 right side of front panel – Format rotary knob with A–H settings legend and ANT Polarity NOR/REV switch
  • Standard MT830 rear panel close-up – 950 MHz LNB input, LNB Power Output 20V 300mA label, C-Band RF Relay VER/OUT/HOR ports, Remote Control connector
  • Standard MT830 rear panel – Composite Out, Video Out, audio terminals, AGC/CAM830 relay block, Ku-Band RF relay ports, CRC800CI I/O module

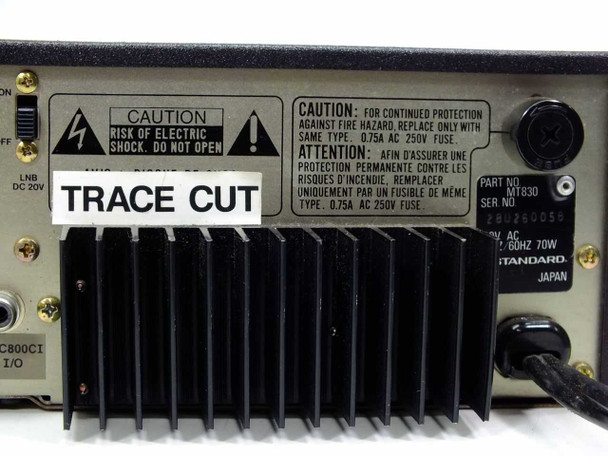

  • Standard MT830 rear panel label – TRACE CUT sticker, caution fuse label 0.75A 250V, Part No. MT830, 120V AC 60Hz 70W, Made in Japan
$55.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Standard MT830 Agile Omni Ku-Band Broadcast Satellite Receiver No Control Module

The Standard MT830 is a rackmount agile satellite receiver designed for broadcast and professional satellite downlink applications supporting both C-band and Ku-band signals. It features an analog Signal/C/N/Tune meter on the front panel, a green LED channel display, a format rotary control covering satellite format, RF input settings, video parameters, three audio controls, timer/alarm, and configuration, plus an antenna polarity switch. This unit does not include the control access module.

Specifications & What's Included

  • Brand: Standard (Standard Communications)
  • Model: MT830
  • Frequency bands: C-Band and Ku-Band
  • RF/IF input: 950 MHz – 1450 MHz (LNB IF)
  • External IF input: EXT 70MHz
  • LNB power output: 20V DC, 300mA maximum
  • Power requirements: 120V AC, 60Hz, 70W
  • Fuse: 0.75A, 250V
  • Form factor: 2U rackmount chassis
  • Country of manufacture: Japan
  • Front panel: Analog Signal/C/N/Tune meter, green LED channel display, Power button
  • Front panel controls: Channel select knob (UPPER/CENTER/LOWER), Format rotary (A–H settings), ANT Polarity switch (NOR/REV)
  • Format settings: A – Satellite Format, B – RF Input Settings, C – Video Parameters, D – #1 Audio Control, E – #2 Audio Control, F – #3 Audio Control, G – Timer & Alarm, H – Configuration
  • Rear panel indicators/controls: C/Ku band selector, HOR/VER polarity LEDs, Remote Cont indicator
  • Video outputs: Composite Out, Video Out (RCA)
  • Audio outputs: Multiple screw-terminal audio outputs
  • C-Band RF relay ports: VER, OUT, HOR (F-type connectors)
  • Ku-Band RF relay ports: VER, OUT, HOR (F-type connectors)
  • Remote control connector: Multi-pin DIN port on rear
  • I/O interface: CRC800CI I/O module installed
  • AGC/CAM830 relay block with Summary Alarm, Band, ANT POL outputs on rear terminal strip
  • Note: TRACE CUT label present on rear panel
  • Not included: Control access module

Applications

The MT830 Agile Omni Broadcast is a professional satellite downlink receiver intended for broadcast facility and receive-site use. It was used to receive and demodulate satellite signals in the C-band and Ku-band ranges, converting downlink IF signals from an LNB to baseband video and audio outputs for distribution or recording. This type of agile receiver was common in broadcast uplink/downlink facilities, cable headends, and VSAT receive sites from the late 1980s through the 1990s, where operators needed to tune across multiple satellite transponders and handle both polarizations. The CRC800CI I/O module on the rear panel is associated with control and monitoring integration in multi-receiver rack installations. Standard Communications was a Japanese manufacturer known for professional satcom and communications equipment. These units are sought after for legacy satellite receive systems, broadcast plant maintenance, and satcom research.

Condition: Used
This Standard MT830 Agile Omni Ku-Band broadcast satellite receiver has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The chassis is intact with normal wear consistent with rack use. The rear panel has a TRACE CUT label present, and the control access module is not included — this unit ships without it, as noted in the listing title. Please review our photos for a full view of the unit's cosmetic condition and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Standard Communications
Model:
MT830
MPN:
MT830
Type:
Ku-Band Agile Satellite Receiver / IRD
SKU:
45518
Condition:
Used – Pulled from Working Environment
Seller Notes:
No control access module included; unit only as shown
Country/Region of Manufacture:
Japan
Form Factor:
Rackmount, 2U
Power Requirements:
120V AC, 60Hz, 70W
Frequency Band:
C-Band and Ku-Band
RF Input:
950 MHz – 1450 MHz (LNB IF input)
LNB Power Output:
20V DC, 300mA Max
External IF:
EXT 70MHz input
Antenna Polarity:
Normal / Reverse switchable
Channel Display:
Green LED numeric channel display
Front Panel Meter:
Analog Signal / C/N / Tune meter
Video Output:
Composite Video Out, Video Out (RCA)
Audio Output:
Multiple audio outputs (screw terminal)
Relay Outputs:
C-Band RF Relay (VER/OUT/HOR), Ku-Band RF Relay
Remote Control:
Remote Control port (multi-pin DIN) on rear
I/O Module:
CRC800CI I/O interface module installed
Format Settings:
Satellite Format, RF Input, Video, Audio x3, Timer/Alarm, Config
Compatible With:
Standard Agile Omni Broadcast satellite receive systems
Fuse Rating:
0.75A, 250V
Note:
TRACE CUT label present on rear panel; no control access module
Condition Notes:
Standard MT830 Agile Omni Ku-Band satellite receiver. Inspected, good used condition. Pulled from working environment. No control access module included. TRACE CUT label on rear. Please see photos.
