Fuji Electric

Fuji Electric BRR21N-01S Earth Leakage Relay 600V 50/60Hz 30mA Trip 100/110V

(No reviews yet) Write a Review
SKU:
45487
MPN:
BRR21N-01S
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Fuji Electric BRR21N-01S Earth Leakage Relay – right-side view showing contact capacity label, attention notice, through-hole aperture, and DIN rail base
  • Fuji Electric BRR21N-01S Earth Leakage Relay – rear view showing three screw terminals labeled 21, 24, and 22, through-hole aperture, and DIN rail mount

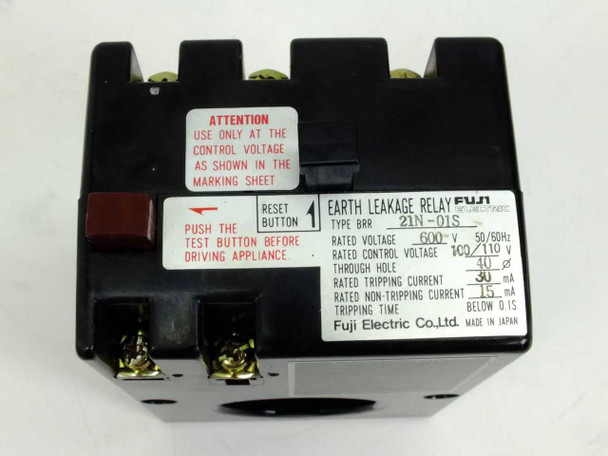

  • Fuji Electric BRR21N-01S Earth Leakage Relay – front label view showing full specifications: 600V rated voltage, 100/110V control voltage, 30mA trip current, 15mA non-tripping current, below 0.1s tripping time, reset button, and test button

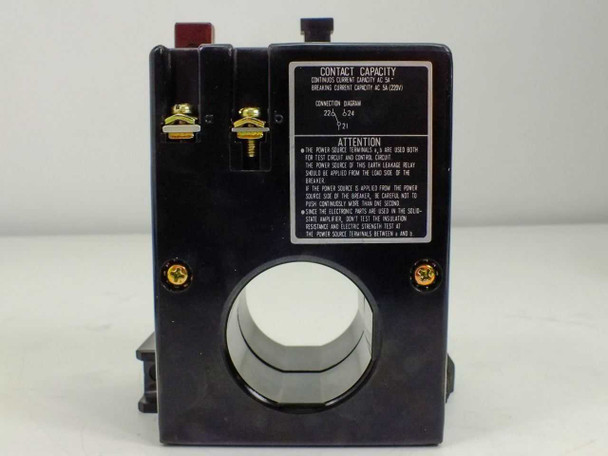

  • Fuji Electric BRR21N-01S Earth Leakage Relay – left-side view showing contact capacity label, attention instructions, through-hole aperture, and DIN rail base

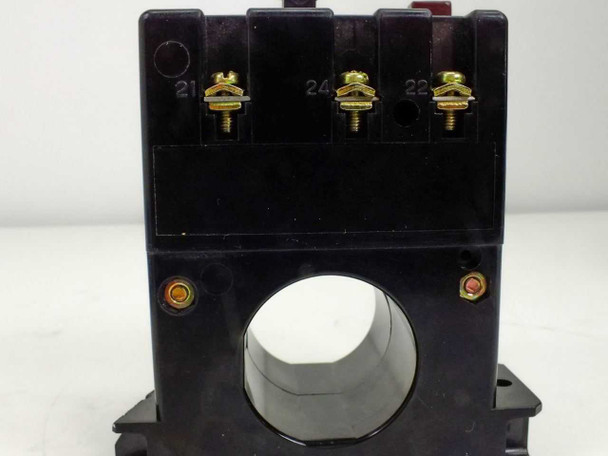

  • Fuji Electric BRR21N-01S Earth Leakage Relay – close-up of top terminal block showing screw terminals 21, 24, and 22 with through-hole aperture below
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Fuji Electric BRR21N-01S Earth Leakage Relay 600V 50/60Hz 30mA Trip 100/110V

Earth leakage protective relay designed to detect ground faults and trip protection circuits. Operates at 600V rated voltage with 100/110V control voltage, responds to 30mA earth leakage current in under 0.1 seconds.

Specifications & What's Included

  • Model: BRR21N-01S | Manufacturer: Fuji Electric (Japan)
  • Rated Voltage: 600V | Control Voltage: 100/110V | Frequency: 50/60Hz
  • Trip Current: 30mA | Non-Trip Current: 15mA | Trip Time: <0.1s
  • Contact Configuration: 3 terminals (21, 22, 24) | Continuous Capacity: 5A
  • Form Factor: DIN Rail / Panel Mount | Through Hole Diameter: 40mm
  • Unit only; no accessories included

Applications

Earth leakage relays are used in industrial power distribution systems and control panels to protect against ground fault conditions. This unit operates in standard AC systems at 50/60Hz and is commonly integrated into motor control centers, machinery protection circuits, and electrical distribution boards. The 30mA trip threshold provides protection for equipment and personnel in environments where ground faults pose operational or safety risks.

Condition: Used
This Fuji Electric BRR21N-01S Earth Leakage Protective Relay has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The housing is intact and the terminal screws and through-hole aperture show normal wear consistent with prior installation. No cracks, breaks, or significant damage are visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Fuji Electric
Model:
BRR21N-01S
MPN:
BRR21N-01S
Type:
Earth Leakage Protective Relay
SKU:
45487
Rated Voltage:
600V
Rated Control Voltage:
100/110V
Frequency:
50/60Hz
Rated Tripping Current:
30mA
Rated Non-Tripping Current:
15mA
Tripping Time:
Below 0.1s
Through Hole Diameter:
40mm
Contact Configuration:
3 terminals (21, 22, 24)
Contact Capacity (Continuous):
5A
Breaking Current Capacity:
4C 5A (220V)
Country/Region of Manufacture:
Japan
Form Factor:
DIN Rail / Panel Mount
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included.
Condition Notes:
Fuji Electric BRR21N-01S Earth Leakage Relay in good used condition. Pulled from a working environment where it was in active service. Housing intact, terminals and through-hole show normal wear. Please contact us with any questions.
