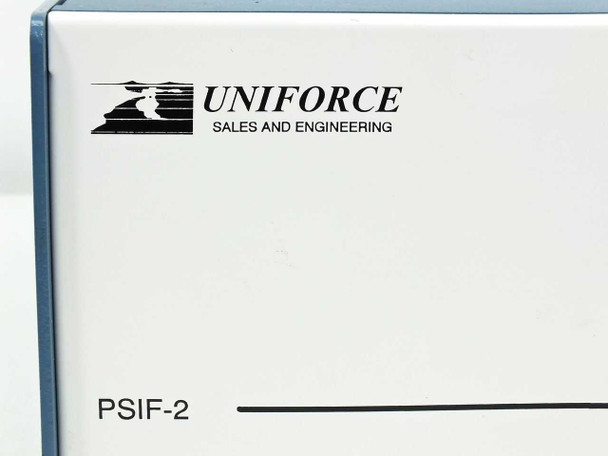

Uniforce PSIF-2 Camera System Power Supply 20/20 Designs PSIF A001 BNC Sync
The Uniforce PSIF-2 is a dedicated power supply and camera interface unit built by Uniforce Sales and Engineering. It provides regulated power and synchronization signal routing for industrial or scientific camera systems, with separate Camera Inputs and Camera Outputs sections on the rear panel. The internal circuitry is built around a 20/20 Designs, Inc. PSIF A001 control board (dated 1993) and houses multiple Deltron power transformers for multi-rail output.
Specifications & What's Included
- Manufacturer: Uniforce Sales and Engineering
- Model: PSIF-2
- Internal Control Board: 20/20 Designs, Inc. PSIF A001 (© 1993)

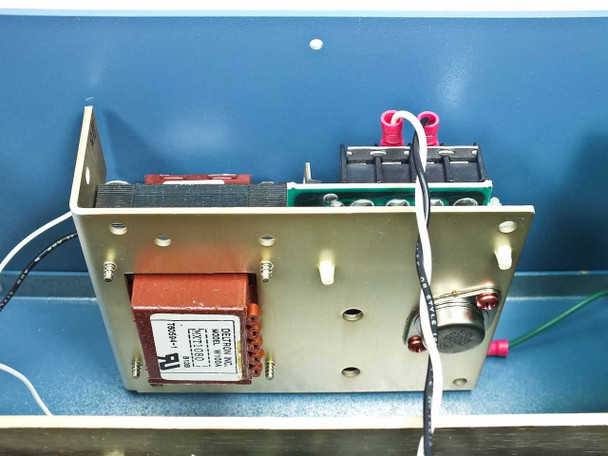

- Internal Transformer 1: Deltron W301D
- Internal Transformer 2: Deltron W100A
- Internal Component: MXT1080
- Internal power outputs: OUTPUT 1, OUTPUT 2, OUTPUT 3 (labeled on internal chassis)

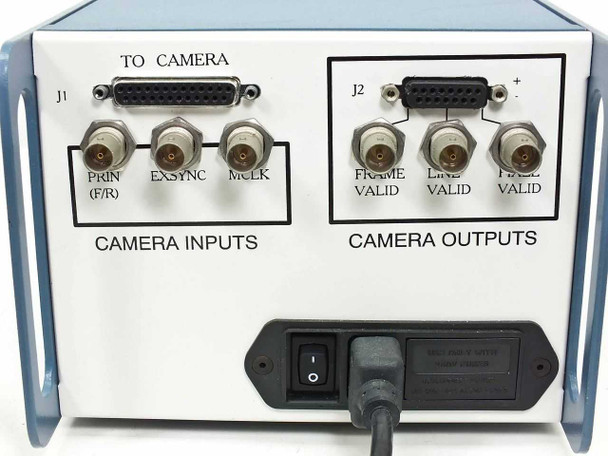

- Camera Inputs (J1): D-sub 25-pin connector; BNC connectors labeled PRN (F/R), EXSYNC, MCLK
- Camera Outputs (J2): D-sub 25-pin connector; BNC connectors labeled FRAME VALID, LINE VALID, FRAME VALID
- Power switch: rear-panel rocker (I/O)
- AC inlet: standard IEC-style with rocker switch on rear panel

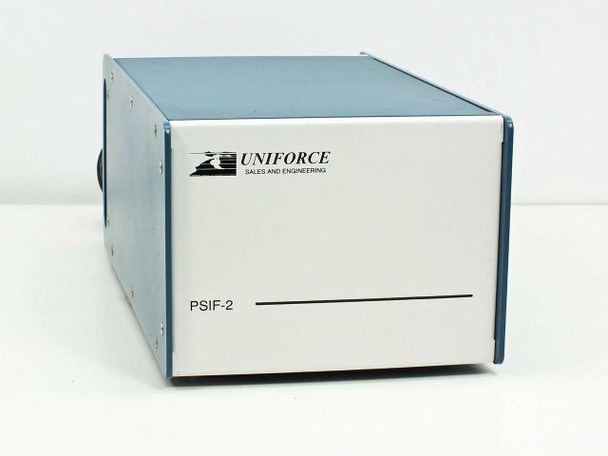

- Form factor: benchtop/desktop metal chassis, blue and gray finish

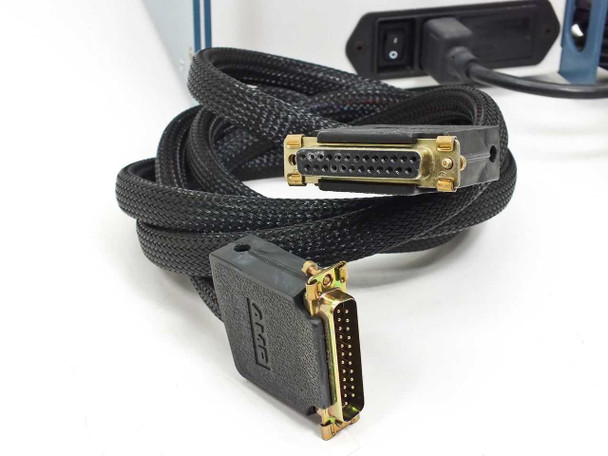

- Includes: D-sub 25-pin camera interface cable (gold contacts, braided sheath) and AC power cord
Applications
The PSIF-2 was designed to power and interface industrial or scientific camera systems that require external, regulated supply and synchronized signal distribution — typical of machine vision, high-speed imaging, or scientific imaging setups from the early 1990s. Camera interface power supplies like this one sit between an AC mains source and one or more camera heads, delivering stable multi-rail DC power while routing camera-control signals such as external sync (EXSYNC), pixel clock (MCLK), and print/frame signals over BNC lines. The D-sub connectors on both the input and output sides allow for direct cable connection to the camera head and host controller. The 20/20 Designs, Inc. board suggests this may have been purpose-built or customized for a specific OEM camera platform in use during that era. These units remain useful as replacement or spare power supplies for legacy camera systems that share the same connector and signal standard.
This Uniforce PSIF-2 Camera System Power Supply has been inspected and appears to be in good physical condition. The chassis shows minor surface wear consistent with normal use — light scuffing on the blue side panels and the front face. The rear BNC and D-sub connectors are present and appear intact. The unit has not been powered or tested at our facility. It includes the D-sub 25-pin camera interface cable and an AC power cord. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Uniforce |
Model: |
PSIF-2 |
MPN: |
PSIF-2 |
Secondary Model: |
PSIF A001 |
Type: |
Camera System Power Supply / Interface |
SKU: |
45387 |
Manufacturer: |
Uniforce Sales and Engineering |
PCB Manufacturer: |
20/20 Designs, Inc. |
PCB Part Number: |
PSIF A001 |
Year / Date Code: |
1993 |
Internal Transformer 1: |
Deltron W301D |
Internal Transformer 2: |
Deltron W100A |
Internal Component: |
MXT1080 |
Camera Inputs: |
J1 D-sub; BNC: PRN (F/R), EXSYNC, MCLK |
Camera Outputs: |
J2 D-sub; BNC: FRAME VALID, LINE VALID, FRAME VALID |
Connector Types: |
BNC, D-sub (25-pin) |
Included Cables: |
D-sub 25-pin camera cable, AC power cord |
Power Switch: |
Rocker on/off switch, rear panel |
Form Factor: |
Benchtop / Desktop Chassis |
Seller Notes: |
Includes D-sub camera interface cable and AC power cord |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Uniforce PSIF-2 Camera Power Supply inspected, good cosmetic condition. Not powered or tested at our facility. Includes D-sub camera cable and AC power cord. Photos available. |
